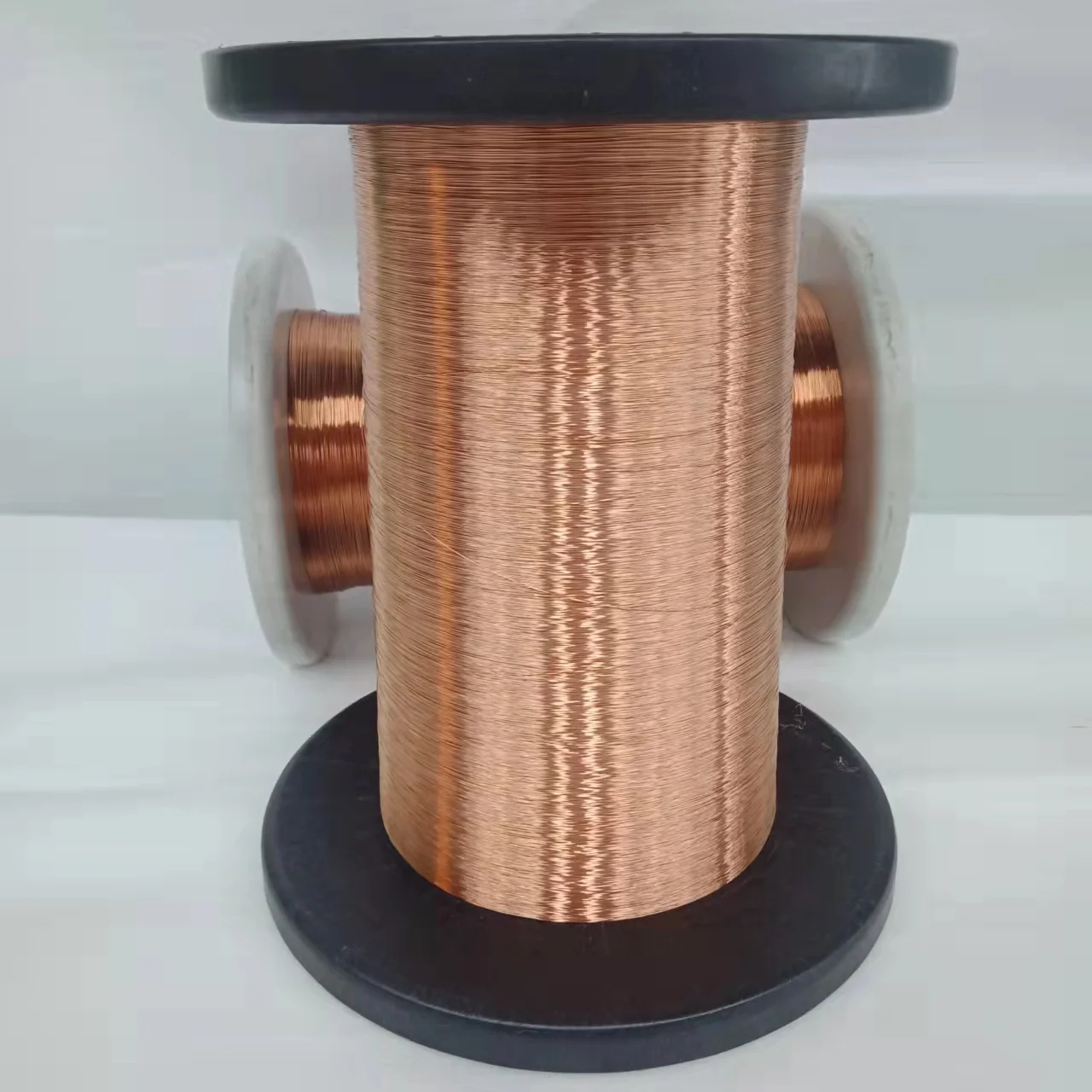

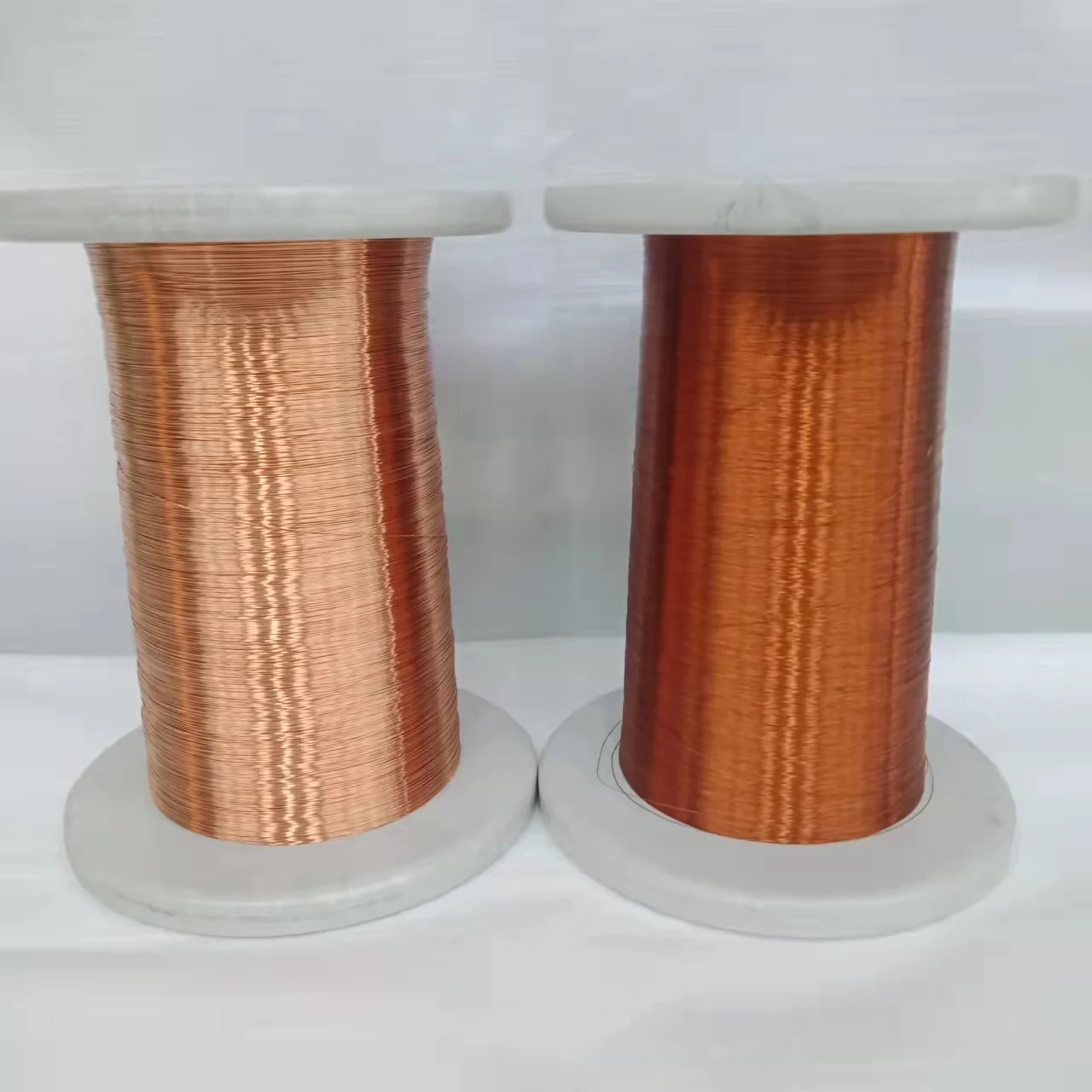

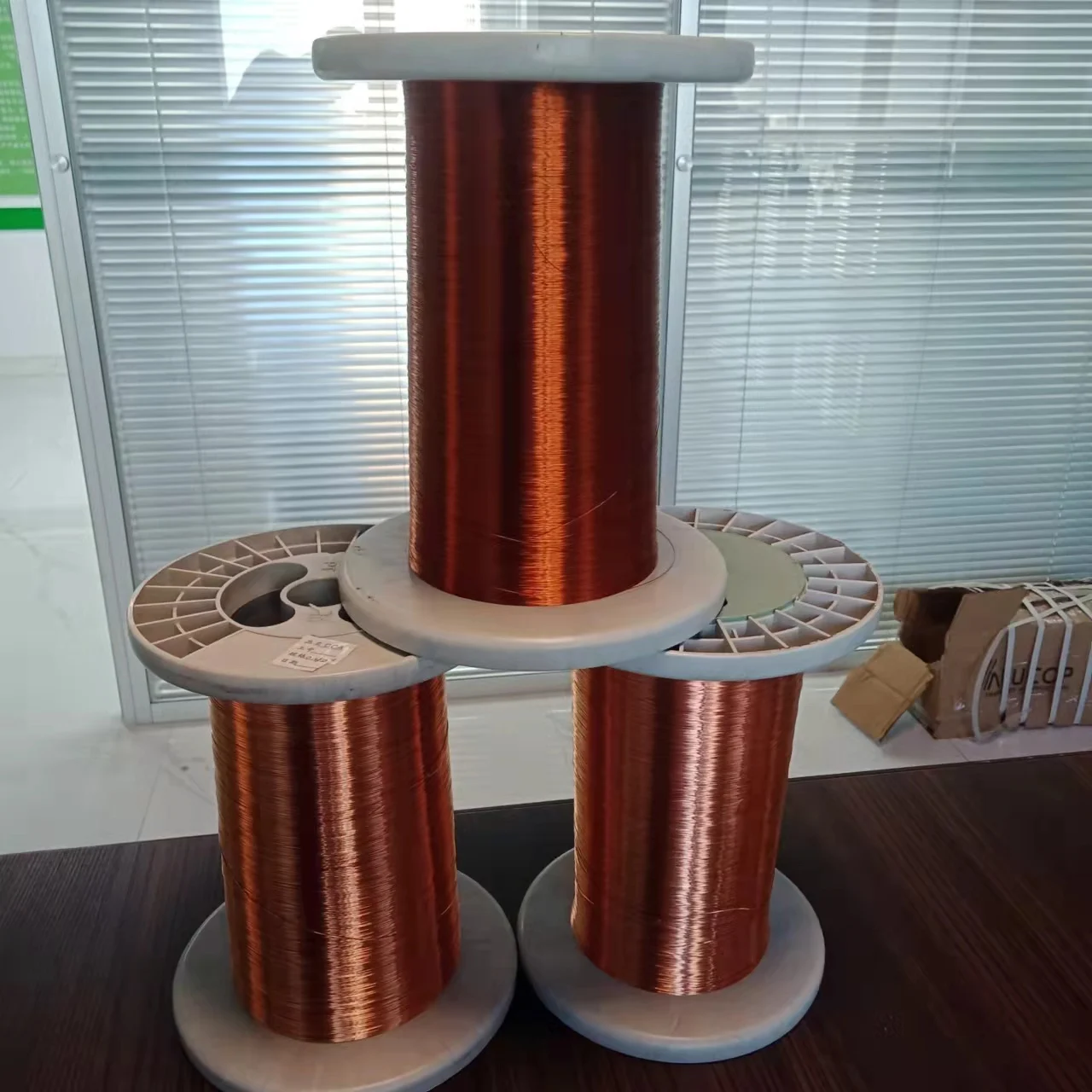

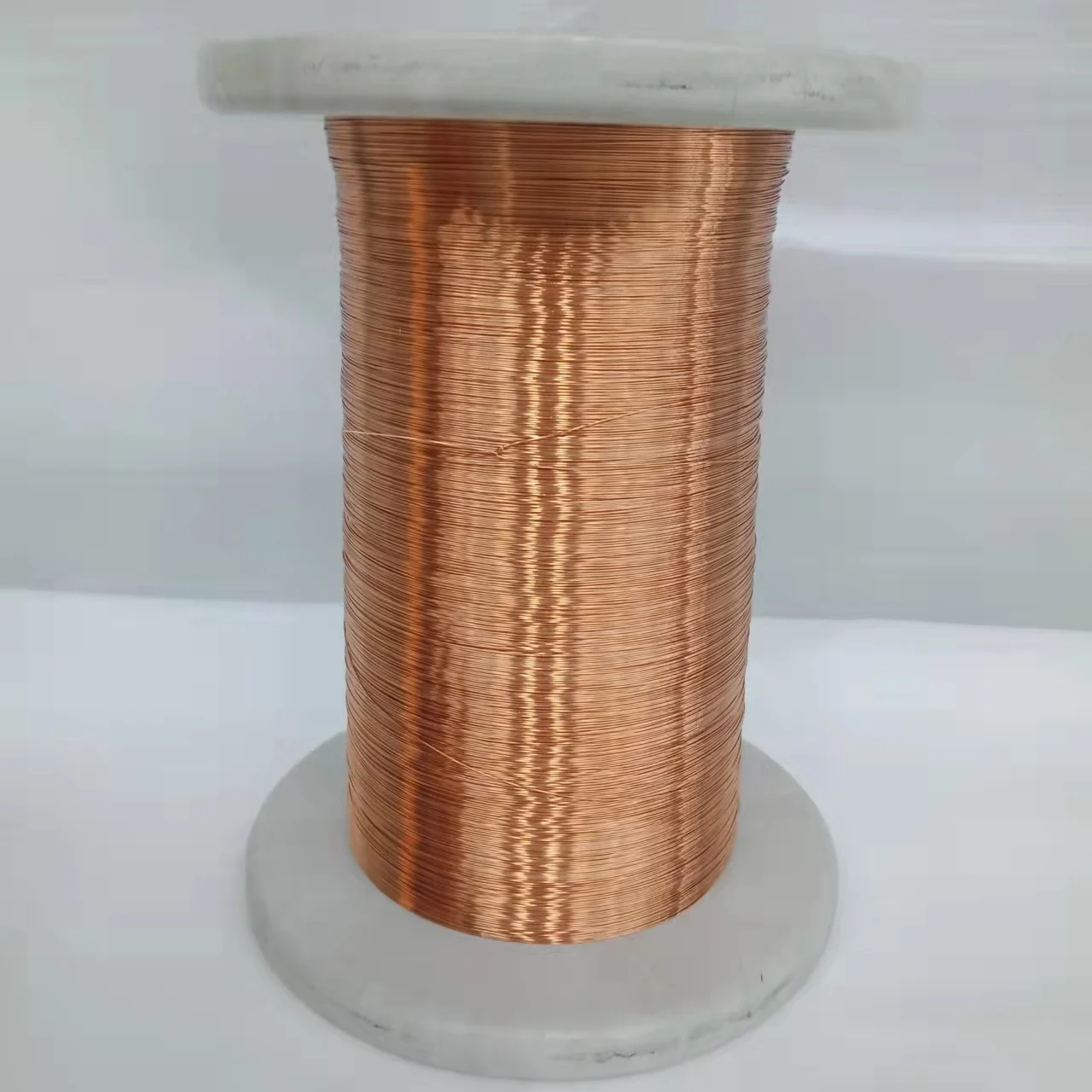

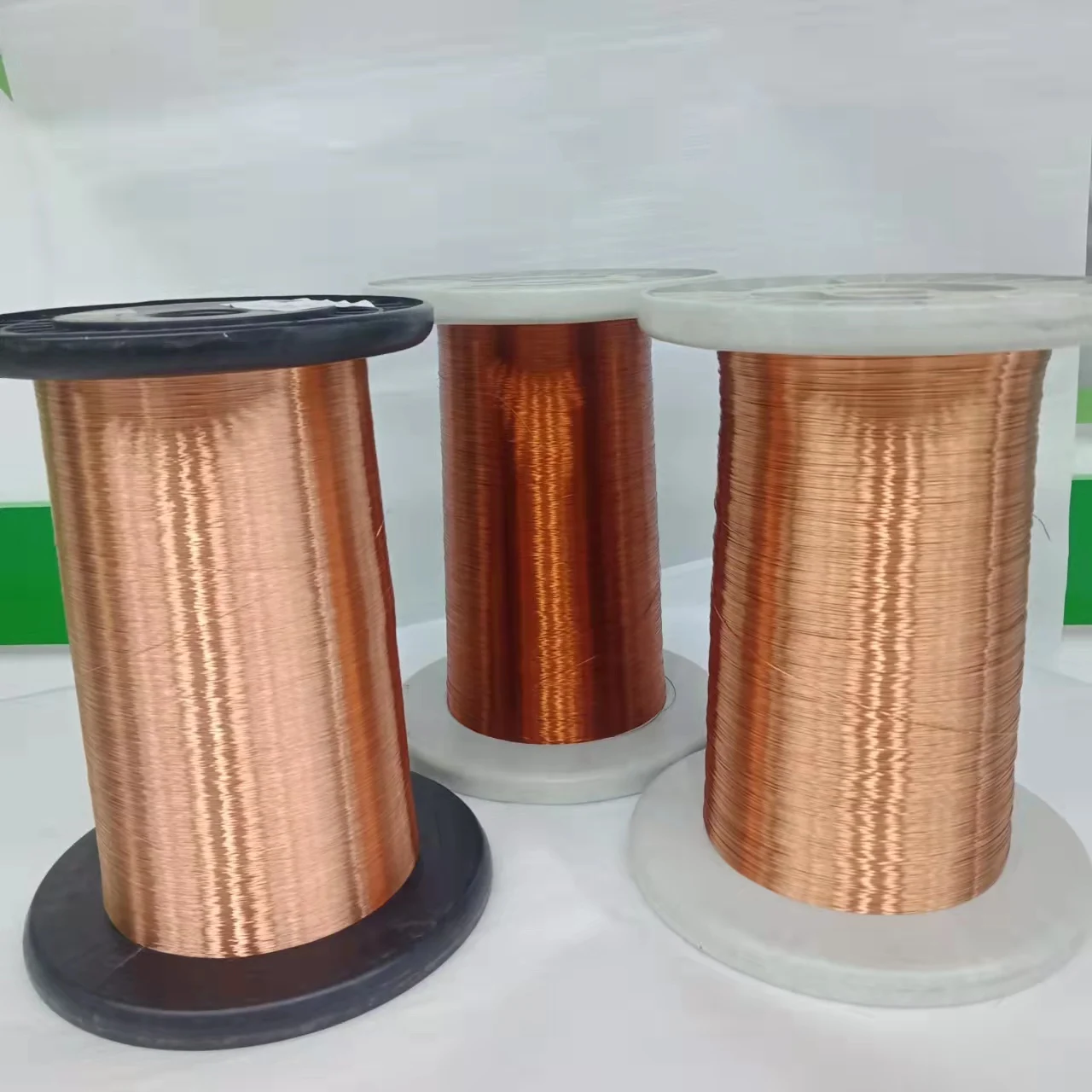

Высококачественная профессиональная продукция медная плакированная алюминиево магниевая проволока
- Категория: Electrical Wires >>>
- Поставщик: Hefei Jinde New Material Technology Co. Ltd.
Сохранить в закладки 11000000864450:
Описание и отзывы
Характеристики
Product Description
Product Standard:
EXecution Reference to SJ/T11224-2000 Copper clad aluminium magnesium w and GB/T6109.1 ~ 11-2008 Enameled Round Winding Wire
ProductsAdvantages of Enameled CCA Wire
1.DC resistivity: The DC resistivity of CCA wire is approximately 1.50 times that of copper wire;
2.With the same resistance, CCA wire is about 1/2 heavy of copper wire.
3.Good solderability: CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;
4.Light weight: The density of CCA wire is 1/3 of copper wire of the same diameter, very effective to reduce the weight of cables and coils.
Scope of Supply of CCA Wire: 0.115-5.60 mm
Enamelled copper wire 0.040mm-3.00mm
Models of supplies of enameled CCA wires: QA (N), QZ (N), QZY, and Q (ZY / XY)
Product Types
1.Enameled CCA round wire(PEW QA QZ QZY );
2.Polyurethane Enameled CCA round wire(UEW);
3.Polyesterimide enameled CCA round wire(EIW);
4.Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).
Applications:
1.Electronic Coil, instrument, communication data line
2.Induction coils, magnetic coils;
3.Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements;
4.Special electromagnetic wire for audio coils and CD drivers;
5. Electromagnetic wire for monitor deflection coils;
6. Various types of magnetic coils and induction coils.
EXecution Reference to SJ/T11224-2000 Copper clad aluminium magnesium w and GB/T6109.1 ~ 11-2008 Enameled Round Winding Wire
ProductsAdvantages of Enameled CCA Wire
1.DC resistivity: The DC resistivity of CCA wire is approximately 1.50 times that of copper wire;
2.With the same resistance, CCA wire is about 1/2 heavy of copper wire.
3.Good solderability: CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;
4.Light weight: The density of CCA wire is 1/3 of copper wire of the same diameter, very effective to reduce the weight of cables and coils.
Scope of Supply of CCA Wire: 0.115-5.60 mm
Enamelled copper wire 0.040mm-3.00mm
Models of supplies of enameled CCA wires: QA (N), QZ (N), QZY, and Q (ZY / XY)
Product Types
1.Enameled CCA round wire(PEW QA QZ QZY );
2.Polyurethane Enameled CCA round wire(UEW);
3.Polyesterimide enameled CCA round wire(EIW);
4.Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).
Applications:
1.Electronic Coil, instrument, communication data line
2.Induction coils, magnetic coils;
3.Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements;
4.Special electromagnetic wire for audio coils and CD drivers;
5. Electromagnetic wire for monitor deflection coils;
6. Various types of magnetic coils and induction coils.
Specification
Type | insulated |
Application | Motor, Transformer,Rectifier and such coil |
Conductor Material | Copper Clad Aluminum |
Conductor Type | Solid |
Insulation Material | Enameled |
Product name | CCAM Wire Copper Clad Aluminum Wire |
Enameled Type | UE,PE,EI,AI COATING |
Thermal Class | 130,155,180,200, |
Conductor | CCAM |
Size(mm) supply | 0.115mm-5.00mm |
Enamel thickness | Grade(0,1,2,3) |
Color | All color supply |
Material | 10%, 30% 40% 50%copper content by Vol. |
COPPER CLAD ALUMINUM MAGNESIUM WIRE. with following chemical detailed: | ||
ALMINIUM: | 90 % | |
Copper. | 10% | |
Iron. | 0.1% | |
Silicon | 0.05% | |
MAgnesim. | 3% | |
Zinc. | 0.01 | |
Tensile Strength : | 230-250MPA | |

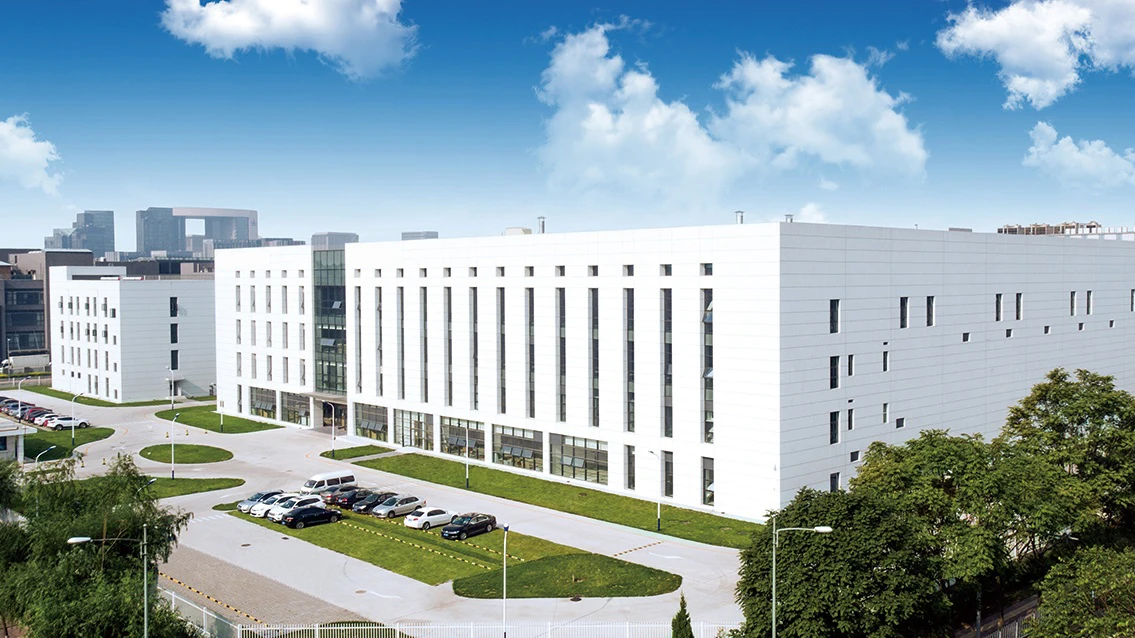

Company Profile
Hefei Jinde New Material Technology Co. , Ltd. is engaged in enameled copper wire, enameled aluminum wire, CCAM windows and doors aluminum, refrigeration copper tubes, copper-clad aluminum magnesium wire sales for 11 years, the product model has JIC, uew, cam, QA, Qz, qzy and other specifications, the company has excellent quality, reliable quality, timely delivery, and is worthy of the trust of customers at home and abroad. The company in the active maintenance of old customers, efforts to develop new customers at the same time, do a good job at the same time make friends at home and abroad, hope to win with you, common achievements in life.
Our Advantages
Hello friends, we are the most professional supplier of enamelled wire, copper-clad aluminum magnesium wire, refrigeration copper pipe, aluminum materials for doors and windows. The product production process has been strictly controlled by the quality system, and each product has been strictly inspected before leaving the factory. Our products use the best copper and aluminum materials in China, with stable and safe quality! We hope to establish a long-term and stable cooperative relationship with customers. The quality of all products we sell is guaranteed! We will provide customers with high-quality pallets, qualified packaging and safe loading, so as to reduce losses. More professional consulting services! The company has technicians responsible for customer service to provide you with quality consultation, production process, product use and technical consultation Better price! We don't pursue profits. Cost performance is the most important. And we will earn less than our peers and let customers earn more! Help customers reduce procurement costs and improve procurement profits. We hope to make more customers and friends all over the world and grow together with you!
Exhibition
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
