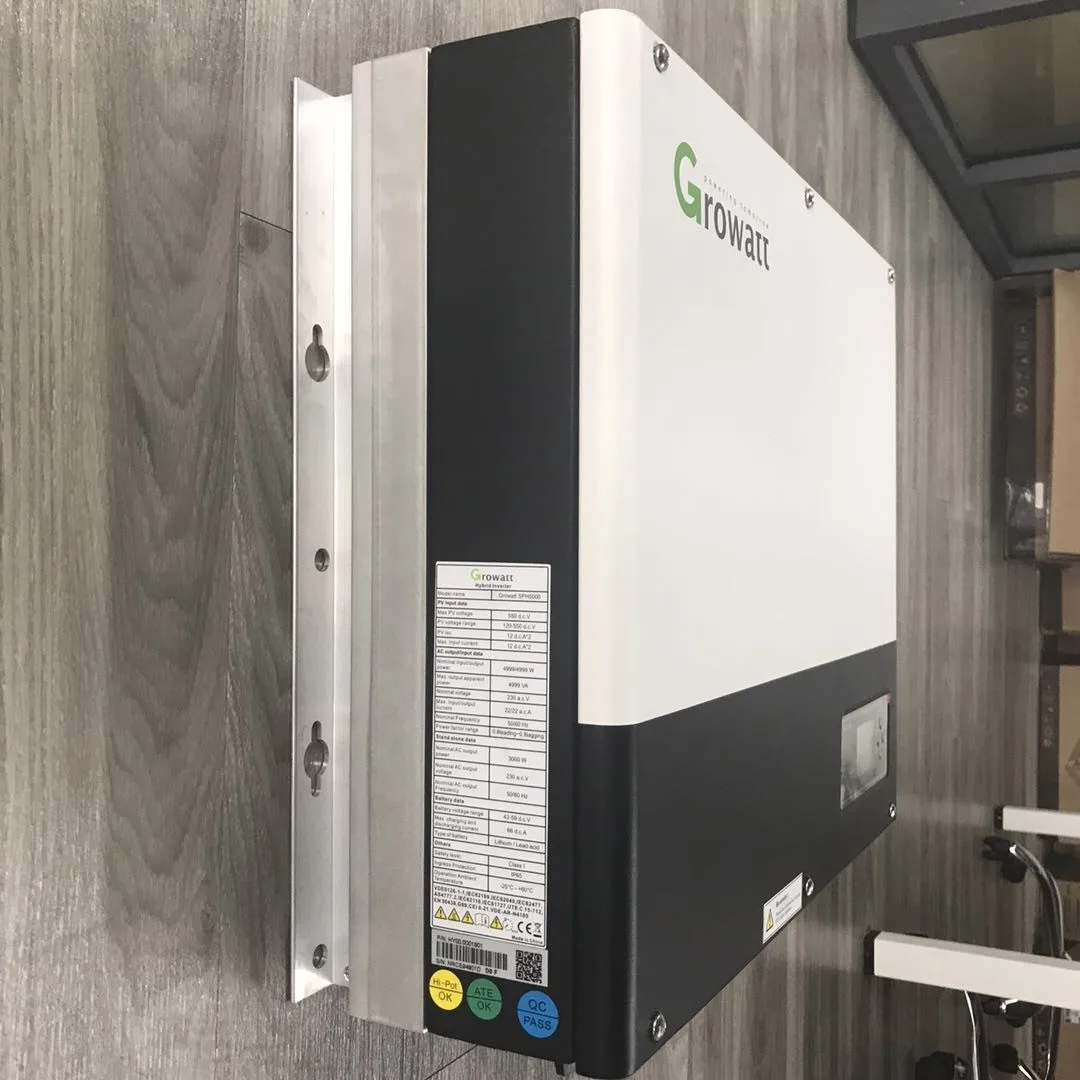

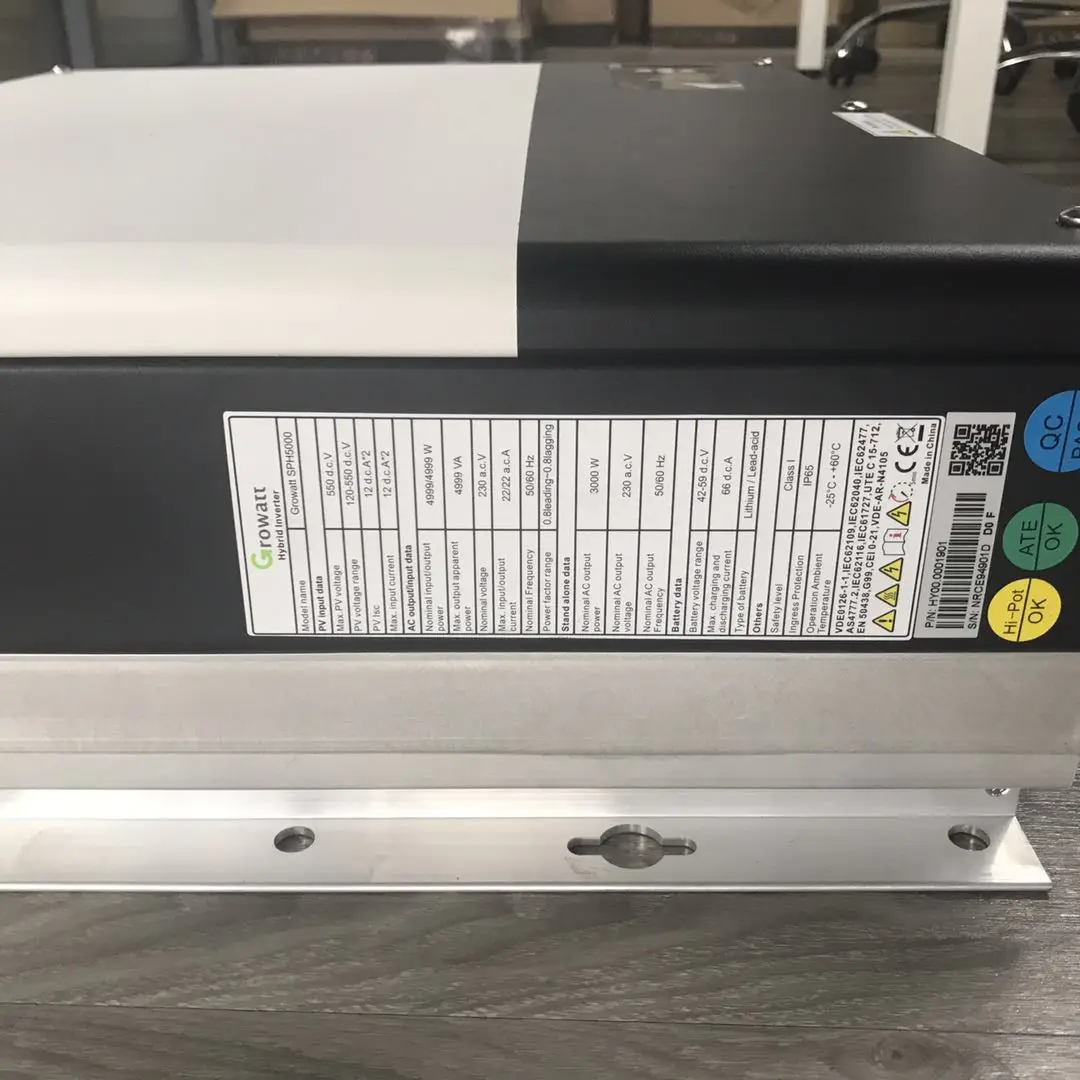

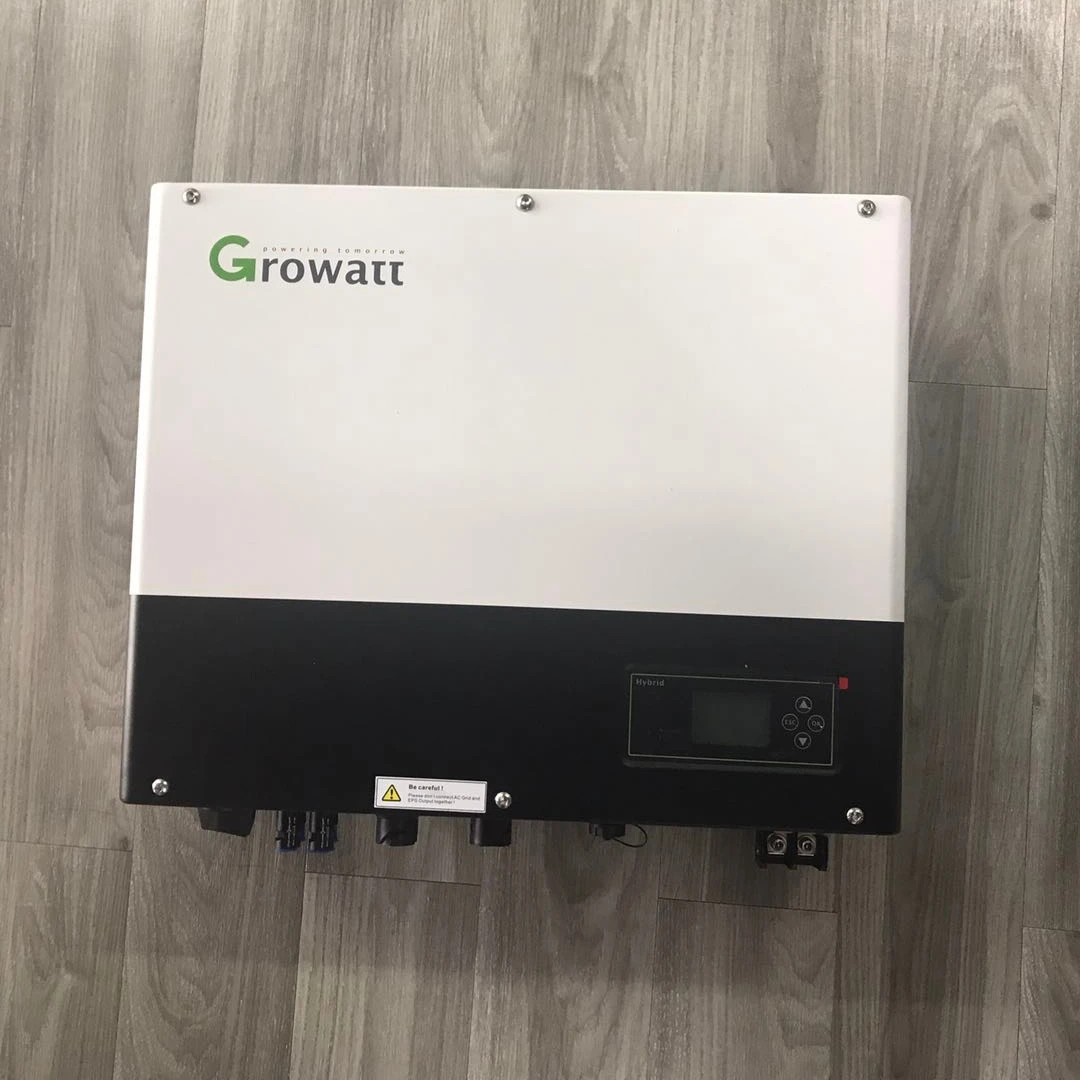

Однофазный Гибридный Инвертор солнечной энергии Growatt Manufacture 6000W 48V Dc To 220V Ac 50/60Hz
- Категория: >>>
- Поставщик: Eitai (Xiamen) New Energy Technology Co. Ltd.
Сохранить в закладки 11000000888931:
Описание и отзывы
Характеристики
Product Description

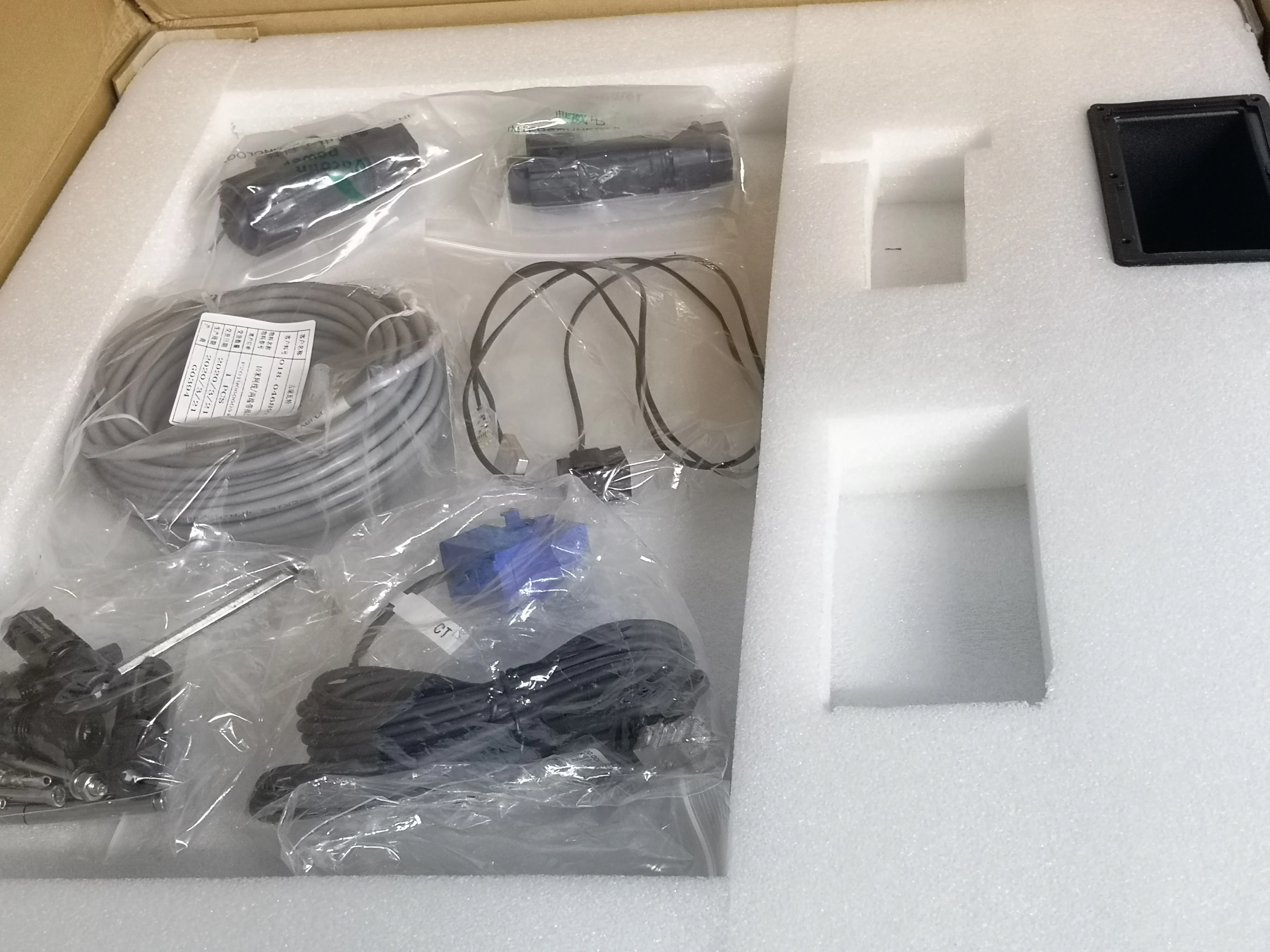

Configuration List
Datasheet | SPH3000 | SPH3600 | SPH4000 | SPH4600 | SPH5000 | SPH6000 | |||||
DC input data | |||||||||||
Max. PV input power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W | |||||
Max. PV input voltage | 550V | ||||||||||
Rated input voltage | 360V | ||||||||||
Start-up voltage | 150V | ||||||||||
MPP voltage range | 150-550V | ||||||||||
Max. PV input current per string | 12A | ||||||||||
MPPT number/Strings number per tracker | 2/1+1 | ||||||||||
AC output data | |||||||||||
Rated output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W | |||||
Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA | |||||
Max outpout current | 16A | 16A | 22A | 22A | 22A | 27A | |||||
Output voltage/range | 230V | ||||||||||
Grid frequency/range | 50/50±5Hz | ||||||||||
Power factor at rated power | 1 | ||||||||||
Displacement power factor | 0.8leading-0.8lagging | ||||||||||
THDi | <3% | ||||||||||
Grid connection type | L+N+E | ||||||||||
Output AC (Back-up) | |||||||||||
Rated output power | 3000W | ||||||||||
Max. output voltage | 230VAC | ||||||||||
Rated grid frequency | 50Hz | ||||||||||
Back-up switch time | <0.5s | ||||||||||
Battery data | |||||||||||
Battery voltage range | 42 - 59V | ||||||||||
Max charging voltage | 58V | ||||||||||
Max charging/discharging current | 66A | ||||||||||
Max charging/discharging power | 3000W | ||||||||||
Battery type | Li-on/ lead-acid | ||||||||||
Depth of discharge | 80%DOD/50%DOD | ||||||||||
Battery capacity | 3-12kWh | ||||||||||
Efficiency | |||||||||||
Max. efficiency | 97.50% | 97.50% | 97.50% | 97.60% | 97.60% | 97.70% | |||||
European efficiency | 97.00% | 97.00% | 97.00% | 97.10% | 97.10% | 97.10% | |||||
Mppt efficiency | 99.50% | ||||||||||
Protection | |||||||||||
DC input switch | Yes | ||||||||||
DC reverse connection | Yes | ||||||||||
Battery reverse connection | Yes | ||||||||||
Output over current protection | Yes | ||||||||||
Ground fault monitoring | Yes | ||||||||||
Grid monitoring | Yes | ||||||||||
Residual current monitoring | Yes | ||||||||||
General Data | |||||||||||
Dimensions(W*H*D) | 547*516*170 mm | ||||||||||
Weight | 27kg | ||||||||||
Operating temperature range | -25℃...+60℃ | ||||||||||
Noise emission | <25dB(A) | ||||||||||
Aittitude | 2000m | ||||||||||
Self-consumption | <3W | ||||||||||
Topology | transformerless | ||||||||||
Cooling concept | Natural | ||||||||||
Environmental protection rating | IP 65 | ||||||||||
Relative humidity | 100% | ||||||||||
Max. operation altitude | 2000 m | ||||||||||
Features | |||||||||||
DC connection | MC4/H4(optional) | ||||||||||
Interface: RS232/USB/CAN/RF/Wi-Fi | yes/yes/yes/opt/opt | ||||||||||
Display | LCD | ||||||||||
Warranty: 5 years/10 years | yes/opt | ||||||||||
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

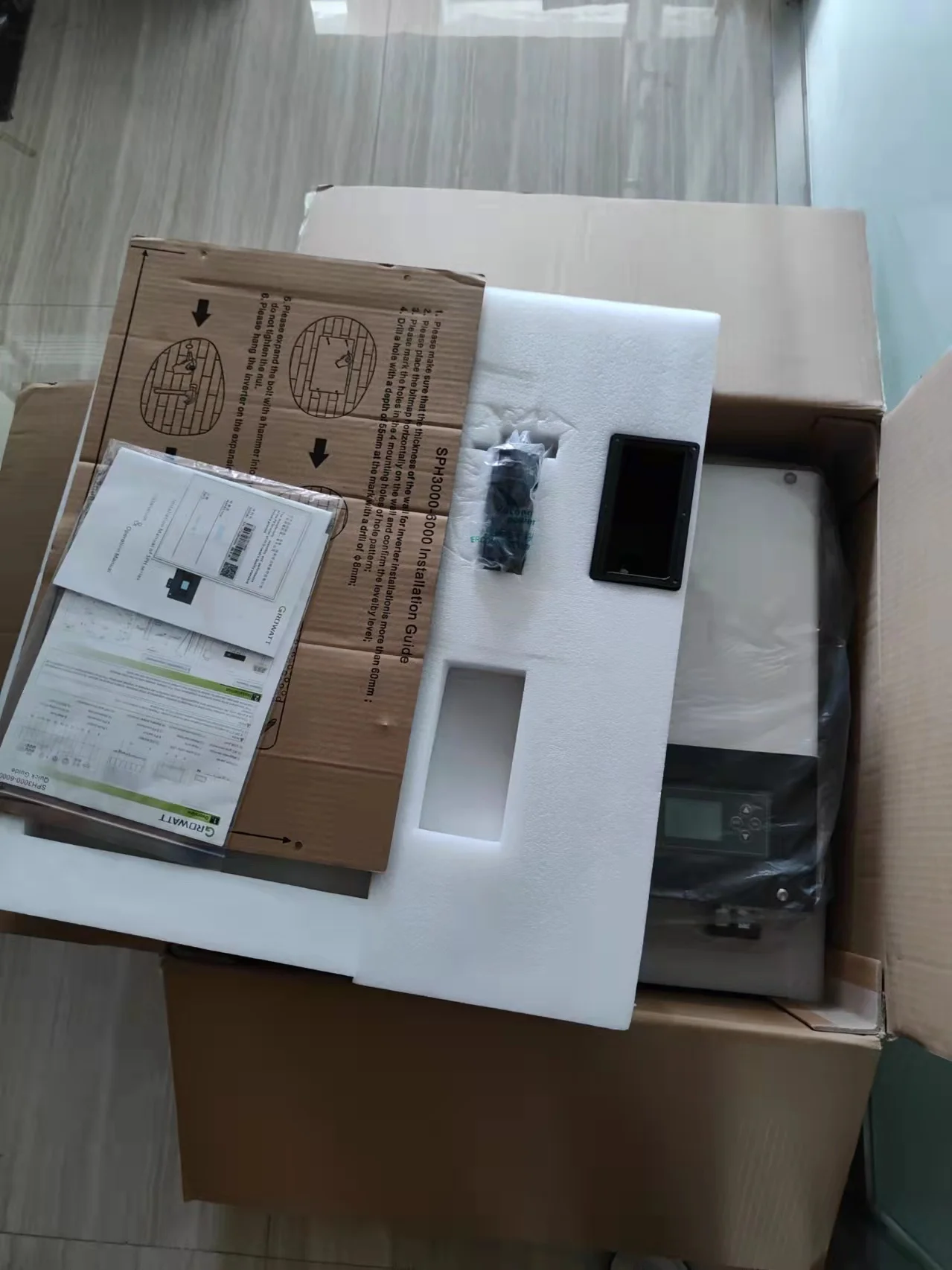

Package
Projects
Our Company
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Our Partners
Exhibition
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
Our Categories---Click To View More
12v/48v LifePo4 Battery
NRUIT/EITAI Lithium Iron Battery, CATL Cells.Power Wall Type, 4.4kwh to 14.3kwh.
BMS For GROWATT/ SOFAR/ DEYE and More.
Wifi/ Bluetooth Optional.
BMS For GROWATT/ SOFAR/ DEYE and More.
Wifi/ Bluetooth Optional.
High Voltage LifePo4 Battery
High Voltage Lithium Iron Battery,
CATL Cells.
Suitable For Three Phase High Voltage Hybrid Inverter.
BMS for GROWATT/ SOLIS and more.
BMS for GROWATT/ SOLIS and more.
Off-Grid Solar System
Complete Off-Grid Solar System From 3kw, With LONGI/ EITAI Solar Panel, GROWATT Inverter, LifePo4/ Gel Battery, Roof/ Ground Mounting System And Related Parts.
Growatt Hybrid Inverter 5Kw Single Phase Eu Standard 230V Hybrid Solar Inverter 48VDC For Solar System
Похожие товары
Оригинальный и новый принтер насос покрывая сверху для E pson R1800 R1900 R2000 R2400 R2880 принтер e pson R2000 покрывая сверху
12,50 $ - 15,00 $
Травяной чай Frontier Co-op с лимоном, имбирем, 1 фунт. Кипящая вода по 1 чайной ложке чая
9,00 $ - 17,00 $
2022 Вельветовая Повседневная однобортная куртка, пальто с лацканами, модное пальто, мужские пальто
25,14 $ - 44,69 $

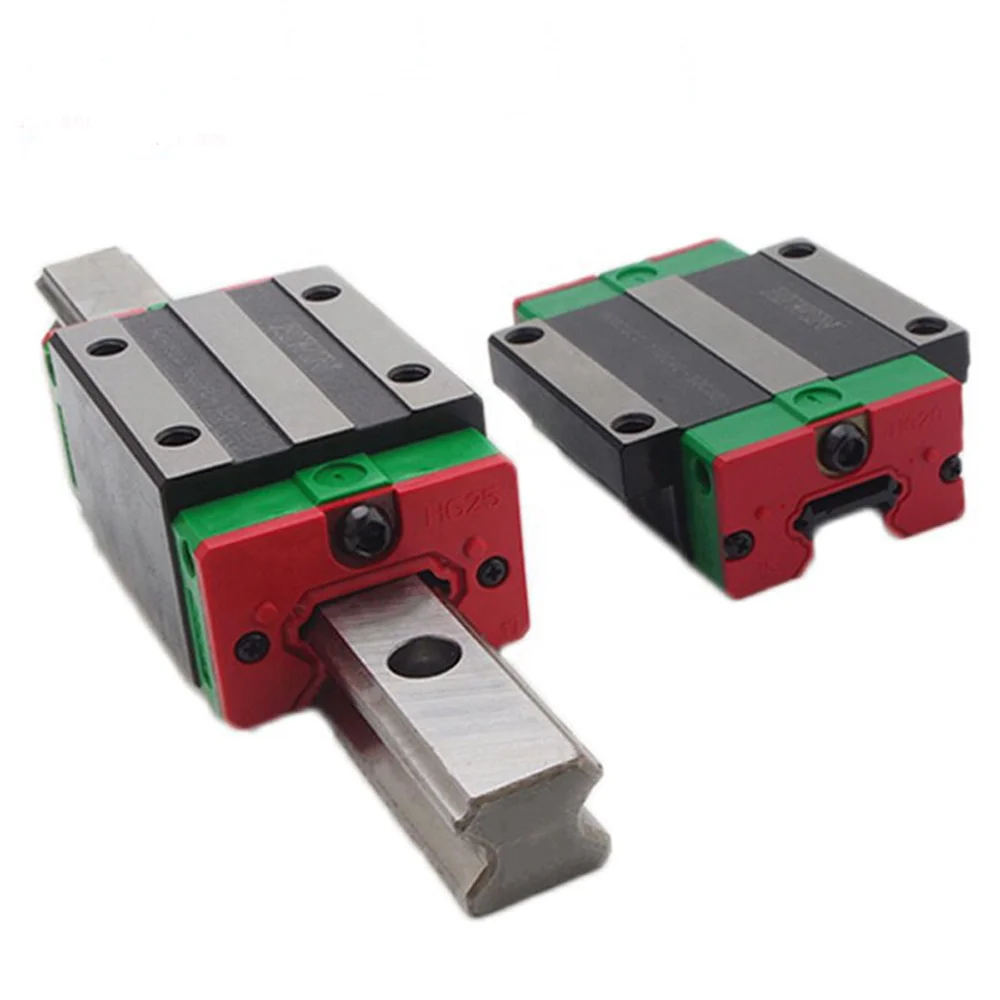

Запчасти для фрезерного станка с ЧПУ Hgr20, Линейный Квадратный направляющий рельс Hgh20ha Hgh20ca Hgw20ca
Линейная направляющая движения HGW 20CA для станка с ЧПУ HGW20CA
0,10 $
Б/у грузовик для Toyota Tacoma 2017 л

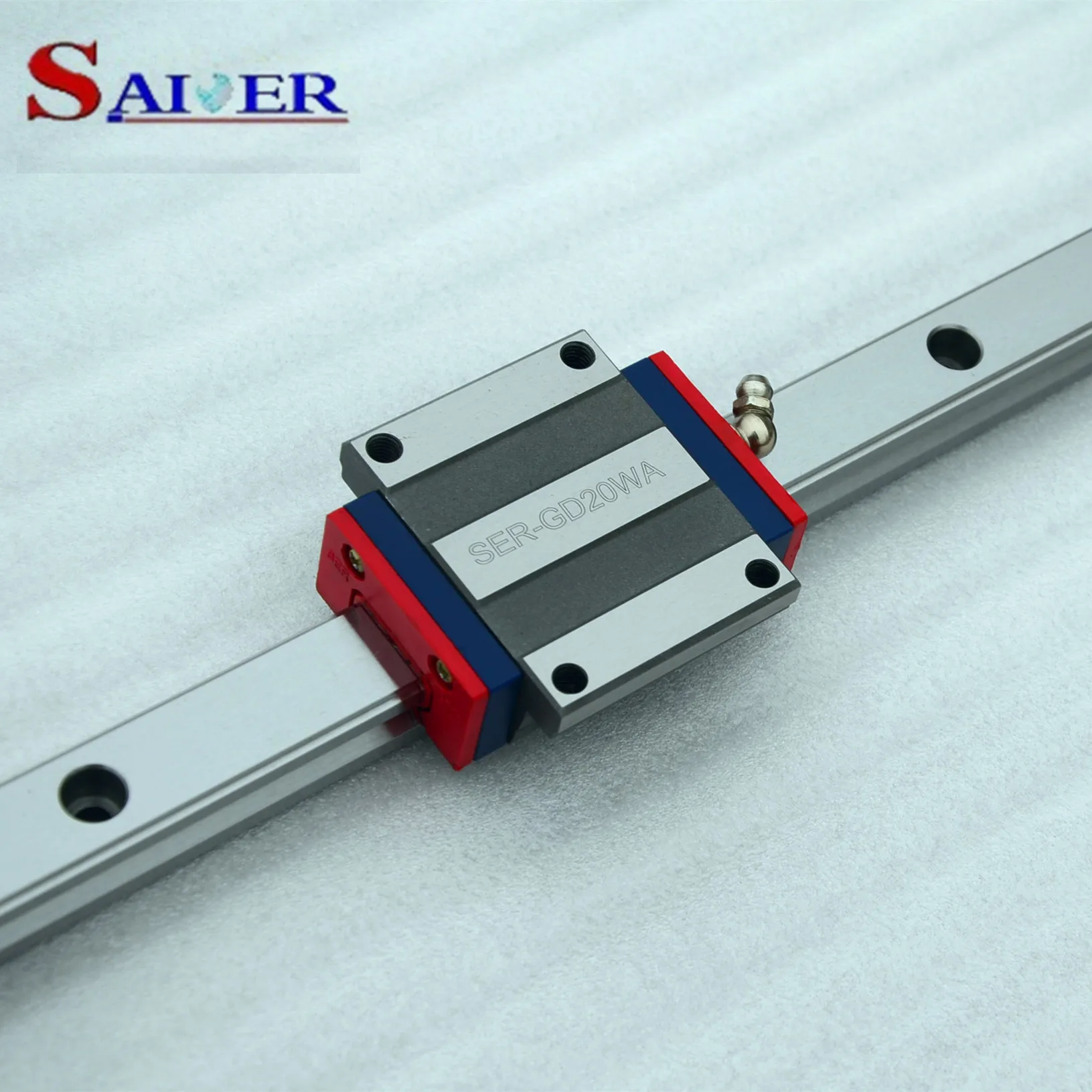

Китай (материк) SAIR SER-GD20WA CNC линейные направительные заменить другой бренд HIWIN PMI TBI hgr20 слайдер HGW20CA
