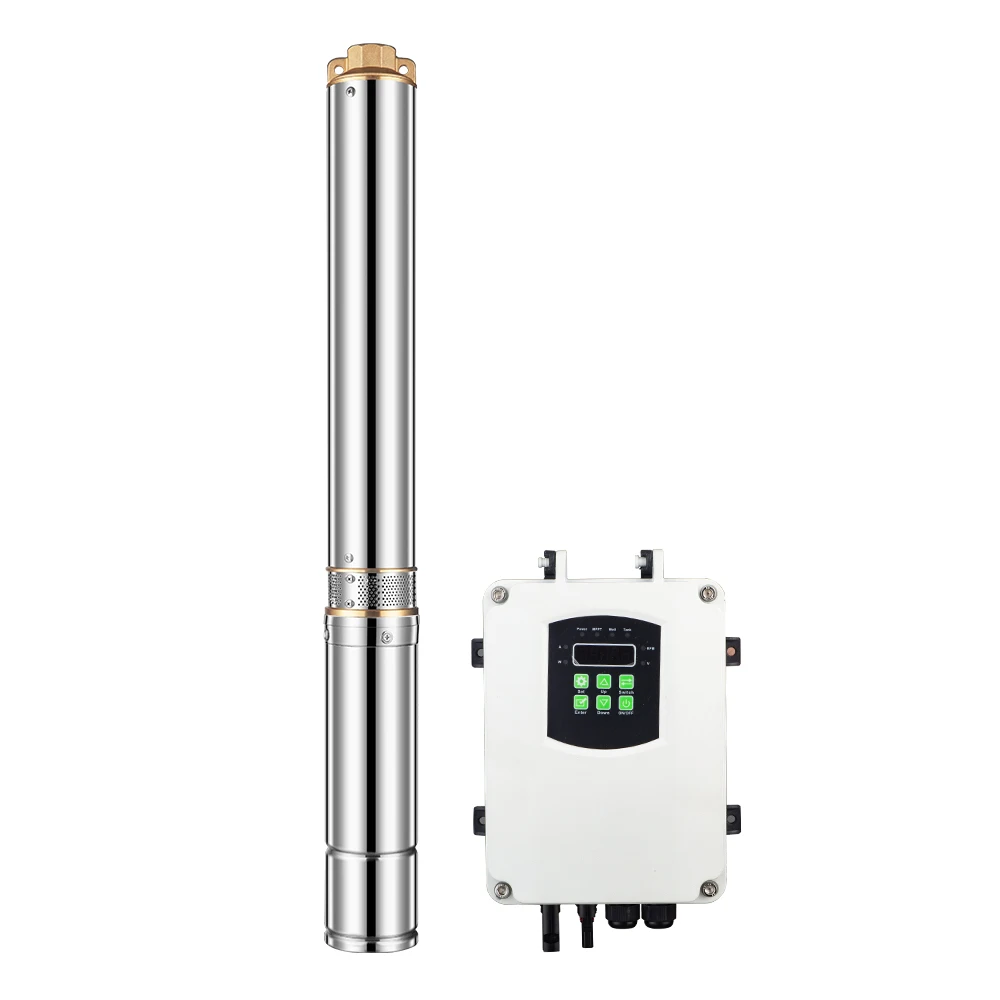

Водяной насос на солнечной энергии AC/DC погружной для глубоких скважин сельскохозяйственного
178,20 $

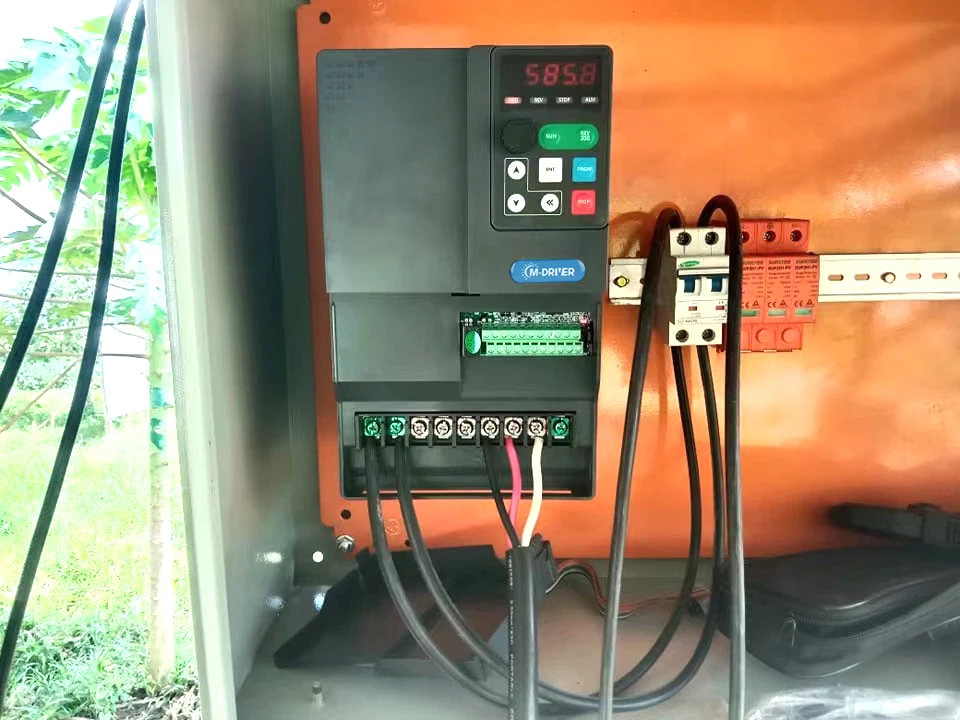

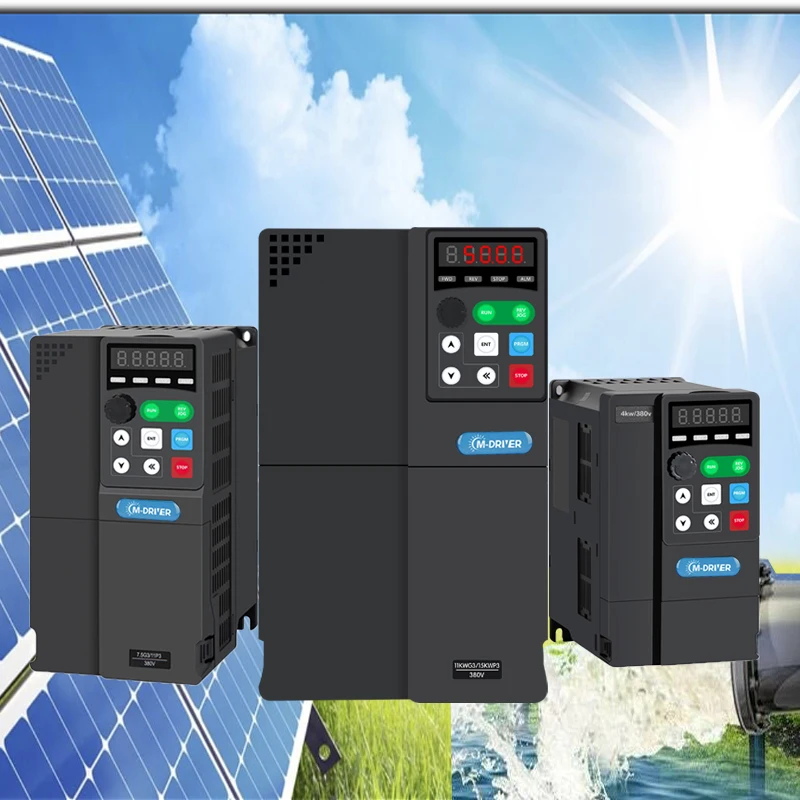

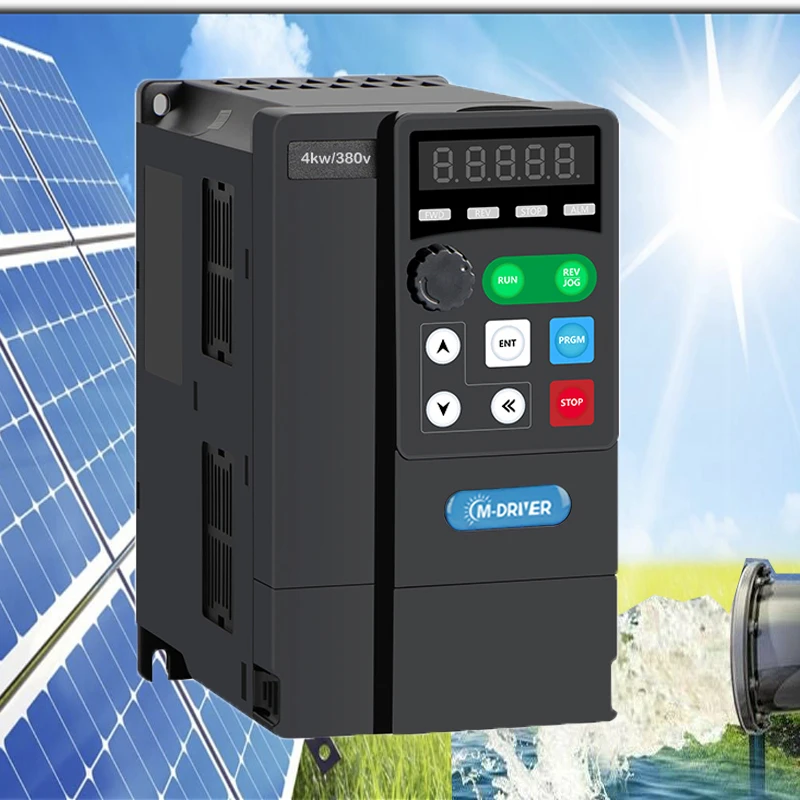

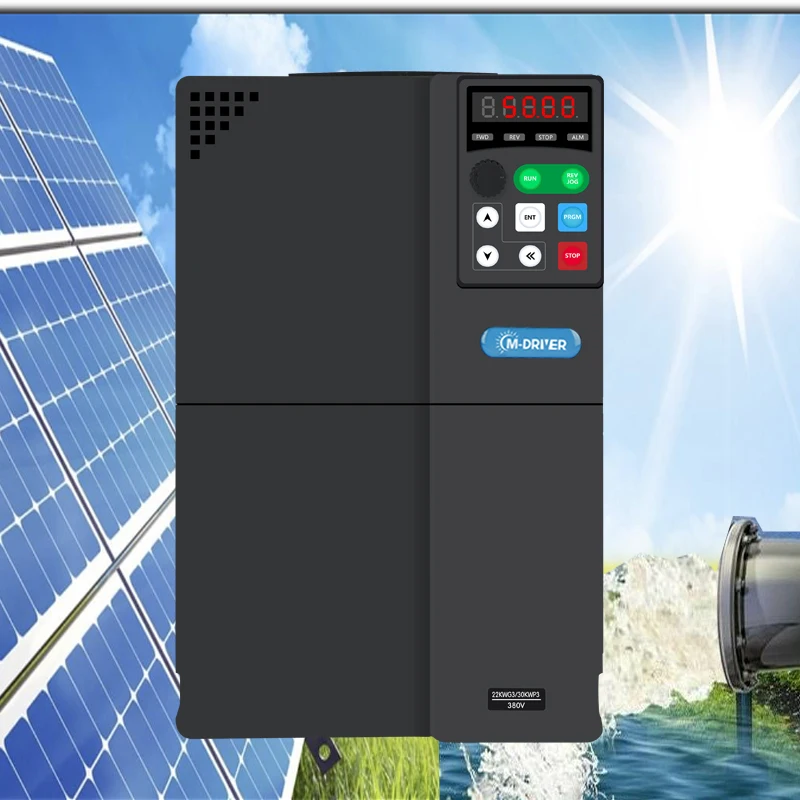

Однофазный 220V 0.75kw 1.5kw 2.2kw солнечный инвертор насоса для сельского хозяйства системы
- Категория: >>>
- Поставщик: Shenzhen M-Driver Technology Co. Ltd.
Сохранить в закладки 11000000899332:
Описание и отзывы
Характеристики
Product Description
Model | PV500-0015G1 |
Drive motor/power capacity/output current | 1.5kw/2hp/7A |
PV input | 150V-400V DC |
Recommended MPPT voltage | 250V-350V DC |
Grid or backup generator input | Single phase 220V(-15%~30%) |
Rated ouput Power | 0-1.5kw |
Rated output voltage | 3PH 220V AC |
Output Frequency | 0-500.00Hz(default 0-50Hz) |
M-driver Power solar pumping system consists of solar pumping inverter, pump and PV array. Consider that storing water is more efficient than storing electricity, the system is designed to directly drive the pump without battery which can reduce the construction and operating cost and routine maintenance effectively.
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
M-driver solar pump inverter features
1. Support broad voltage and power range
single phase 220V and 3 phase 220V/380V pumps, the power from 0.4kw to 315kw.
single phase 220V and 3 phase 220V/380V pumps, the power from 0.4kw to 315kw.
2. Easy to use.
The solar pump inverter automatically start or sleep after being connected to solar panel without any parameter setting.
The solar pump inverter automatically start or sleep after being connected to solar panel without any parameter setting.
3. Mutiple protective measures
PV over-voltage protection, PV polarity reverse warning, auto derating against over-temperature.
PV over-voltage protection, PV polarity reverse warning, auto derating against over-temperature.
4. Advanced MPPT algorithms
With high accuracy MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
With high accuracy MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
5. Supports AC&DC input
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
6.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to
work automatically.
7. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sunlight .
8. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maximum water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
6.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to
work automatically.
7. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sunlight .
8. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maximum water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
Specification
PV500 Series Model NO. | Drive Motor | Power Capacity | Input Current | Output Current | Size | |||||
KW | KVA | A | A | mm | ||||||
Single phase power supply: 220V, 50/60A | ||||||||||
PV500-0007G1 | 0.75 | 1 | 4.2 | 4 | 170*86*131.5 | |||||
PV500-0015G1 | 1.5 | 2 | 14 | 7 | 170*86*131.5 | |||||
PV500-0022G1 | 2.2 | 3 | 23 | 10 | 170*86*131.5 | |||||
Three phase power supply; 220V ,50/60hz | ||||||||||
PV500-0040G2 | 4 | 5 | 18.1 | 16 | 221.6*113*166.5 | |||||
PV500-0055G2 | 5.5 | 7.5 | 28 | 25 | 265*160*171.5 | |||||
PV500-0075G2 | 7.5 | 10 | 37.1 | 32 | 265*160*171.5 | |||||
PV500-0110G2 | 11 | 15 | 49.8 | 45 | 303*192*171.5 | |||||
PV500-0150G2 | 15 | 20 | 65.4 | 60 | 349*227*171.5 | |||||
PV500-0185G2 | 18.5 | 25 | 81.6 | 75 | 349*227*171.5 | |||||
PV500-0220G2 | 22 | 30 | 97.7 | 90 | 303*192*171.5 | |||||
PV500-0300G2 | 30 | 40 | 122.1 | 110 | 349*227*171.5 | |||||
PV500-0370G2 | 37 | 50 | 157 | 150 | 349*227*171.5 | |||||
PV500-0450G2 | 45 | 60 | 185 | 170 | 490*330*217 | |||||
PV500-0550G2 | 55 | 70 | 215 | 210 | 690*370*350 | |||||
PV500-0750G2 | 75 | 100 | 320 | 300 | 849*480*389 | |||||
Three phase power supply: 380V ,50/60hz | ||||||||||
PV500-0007G3 | 0.75 | 1 | 3.4 | 2.1 | 170*86*131.5 | |||||
PV500-0015G3 | 1.5 | 2 | 5 | 3.8 | 170*86*131.5 | |||||
PV500-0022G3 | 2.2 | 3 | 5.8 | 5 | 180*96*151 | |||||
PV500-0040G3 | 4 | 5 | 10.5 | 9 | 180*96*151 | |||||
PV500-0055G3 | 5.5 | 7.5 | 14.6 | 13 | 221.6*113*166.5 | |||||
PV500-0075G3 | 7.5 | 10 | 20.5 | 17 | 221.6*113*166.5 | |||||
PV500-0110G3 | 11 | 15 | 26 | 25 | 265*160*171.5 | |||||
PV500-0150G3 | 15 | 20 | 35 | 32 | 265*160*171.5 | |||||
PV500-0185G3 | 18.5 | 25 | 38.5 | 38 | 303*192*171.5 | |||||
PV500-0220G3 | 22 | 30 | 46.5 | 45 | 303*192*171.5 | |||||
PV500-0300G3 | 30 | 40 | 62 | 60 | 349*227*171.5 | |||||
PV500-0370G3 | 37 | 50 | 76 | 75 | 349*227*171.5 | |||||
PV500-0450G3 | 45 | 60 | 92 | 90 | 490*330*217 | |||||
PV500-0550G3 | 55 | 70 | 113 | 110 | 490*330*217 | |||||
PV500-0750G3 | 75 | 100 | 157 | 150 | 600*387*280 | |||||
PV500-0930G3 | 93 | 125 | 180 | 170 | 600*387*280 | |||||
PV500-1100G3 | 110 | 150 | 214 | 210 | 690*370*350 | |||||
PV500-1320G3 | 132 | 175 | 256 | 250 | 690*370*350 | |||||
PV500-1600G3 | 160 | 210 | 307 | 300 | 849*480*389 | |||||
PV500-1850G3 | 185 | 250 | 385 | 340 | 849*480*389 | |||||
PV500-2000G3 | 200 | 260 | 385 | 380 | 849*480*389 | |||||
PV500-2200G3 | 220 | 300 | 430 | 415 | 849*480*389 | |||||
PV500-2500G3 | 250 | 350 | 468 | 470 | 1060*650*392.5 | |||||
PV500-2800G3 | 280 | 370 | 525 | 520 | 1060*650*392.5 | |||||
PV500-3150G3 | 315 | 400 | 590 | 585 | 1362*818*404.5 | |||||

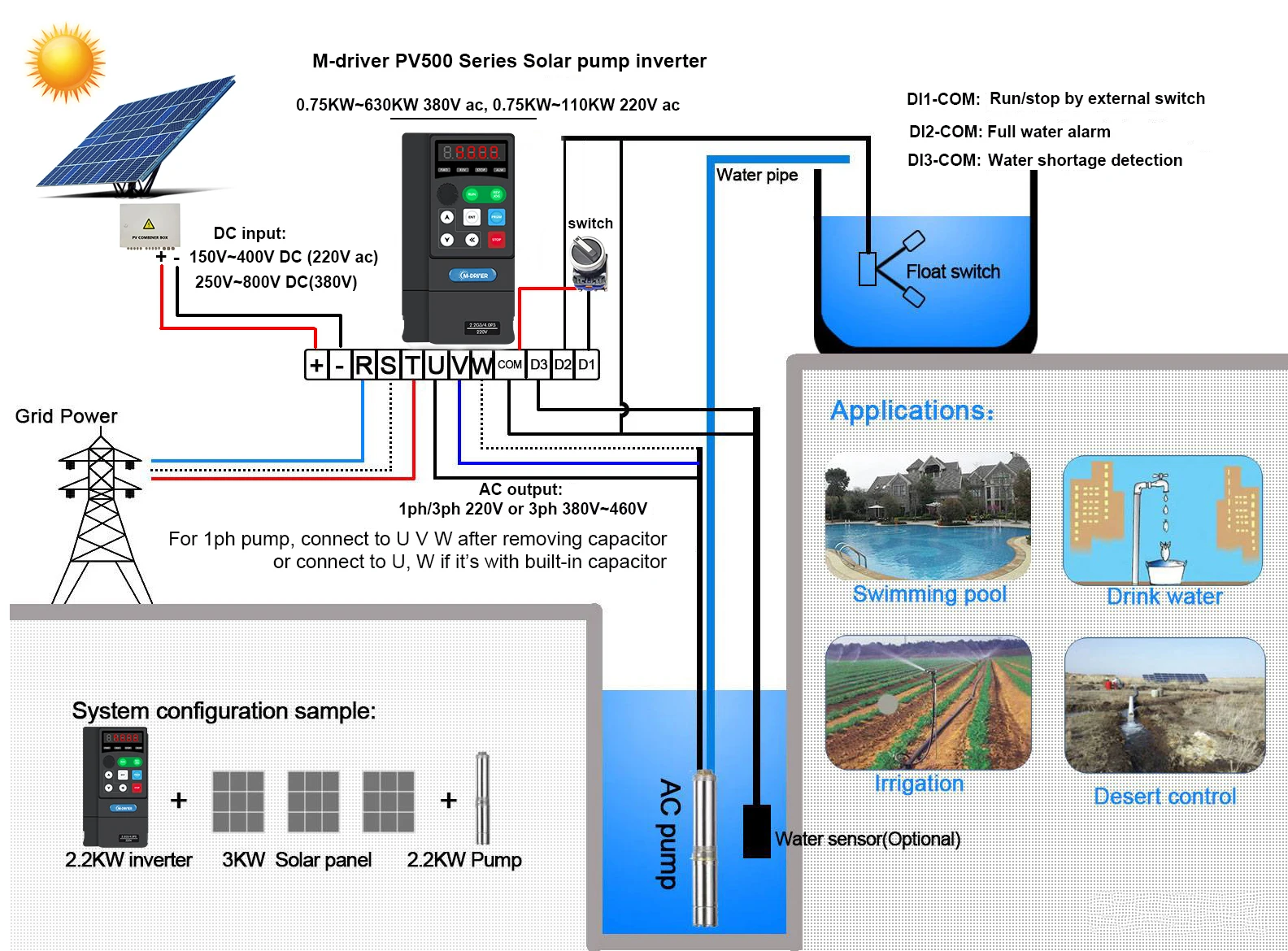

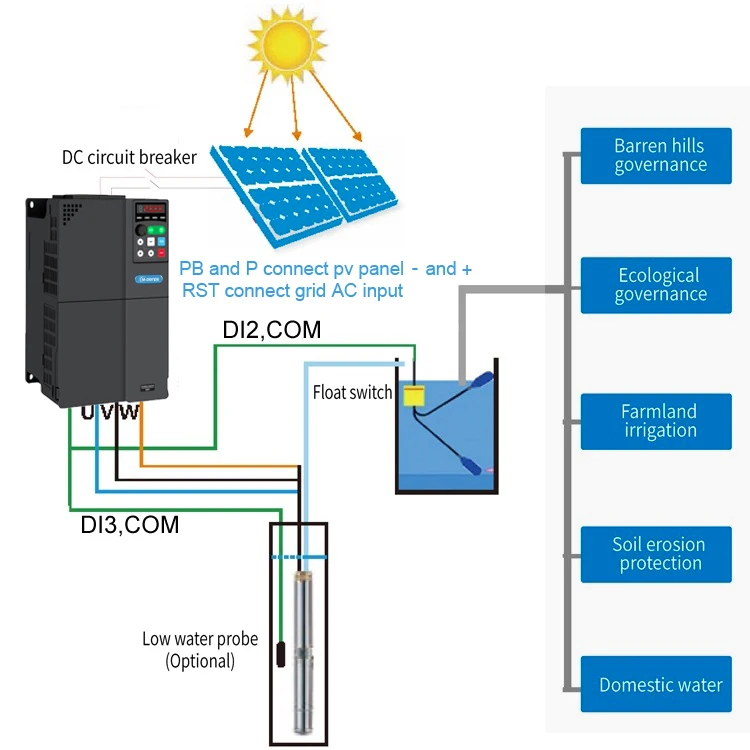

Connection diagram

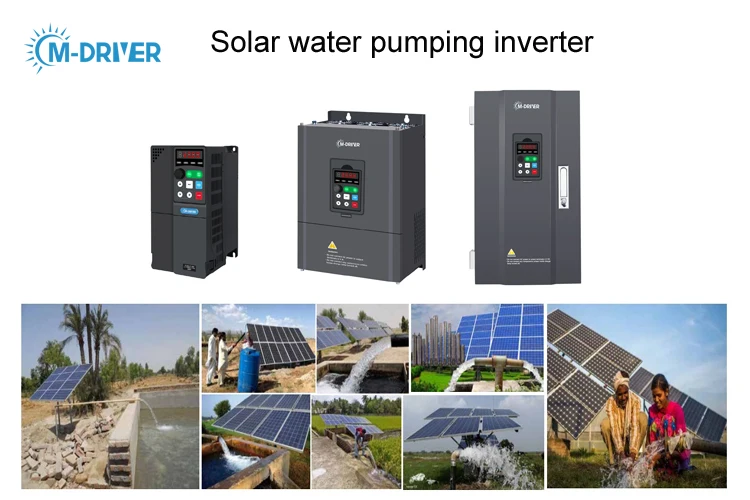

Application
Packing & Delivery
Company Profile
Shenzhen M-Driver Technology Co., Ltd (M-Driver) is a high-tech enterprise that is specializing in industrial automaton control products referring to motor drive and control technology. Since company was founded, M-Driver has been adhering to the company's growth and employees' growth as one, and providing customers with professional & customized solutions and marketing strategies of import substitution. Through unremitting efforts and innovation, our products are highly recognized by our customers from home and abroad. Located in Shenzhen--Capital of National Innovation City, where the transportation is very convenient, M-Driver company has the advantage to meet customer's delivery time whether by sea or by air.
The main products are low-voltage frequency inverters/converters/VFD/VSD/AC drive/motor drive at present.The inverters' voltages range covers 110V-500V, power range covers 0.4KW-630KW, which can meet the needs of high-end applications in many industries. The Inverters are widely used in machine tools, plastics, printing, packaging, textile, electronic equipment, building materials, metallurgy, coal mine, municipal and other industries.
M-Driver company has already set up many marketing offices around the country, which provide users with convenient products and on-site service, to meet different drive functions' replacement and product operation in timely.
M-driver pay attention to product research and development, pay close attention to product quality, and have a research and development team with strong technical force. What's more, we have developed a series of scientific and technological achievements with free intellectual property rights. We strictly follow the national standards to implement standardized and scientific management and procedural control in the process of product R&D, design, production, installation, debugging and after-sales service to strictly control product quality.
The main products are low-voltage frequency inverters/converters/VFD/VSD/AC drive/motor drive at present.The inverters' voltages range covers 110V-500V, power range covers 0.4KW-630KW, which can meet the needs of high-end applications in many industries. The Inverters are widely used in machine tools, plastics, printing, packaging, textile, electronic equipment, building materials, metallurgy, coal mine, municipal and other industries.
M-Driver company has already set up many marketing offices around the country, which provide users with convenient products and on-site service, to meet different drive functions' replacement and product operation in timely.
M-driver pay attention to product research and development, pay close attention to product quality, and have a research and development team with strong technical force. What's more, we have developed a series of scientific and technological achievements with free intellectual property rights. We strictly follow the national standards to implement standardized and scientific management and procedural control in the process of product R&D, design, production, installation, debugging and after-sales service to strictly control product quality.
FAQ
Q 1: Are you trading company or manufacturer ?
We are factory.
Q 2: How long is your lead time?
Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.
Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.
Q 5: What is the standard of package?
Single small carton or plywood crate.
Q 6. Is there any discount ?
The discount will depend on the quanlity you purchase.
Q 7. What is your supply capacity?
The daily production is 2000pcs.
Q 8. Do you provide warranty for the goods?
Yes, we provide 18 months warranty for all the goods.
Q 9. Could M-driver provide technical support?
Yes, we worked 16 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
We are factory.
Q 2: How long is your lead time?
Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.
Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.
Q 5: What is the standard of package?
Single small carton or plywood crate.
Q 6. Is there any discount ?
The discount will depend on the quanlity you purchase.
Q 7. What is your supply capacity?
The daily production is 2000pcs.
Q 8. Do you provide warranty for the goods?
Yes, we provide 18 months warranty for all the goods.
Q 9. Could M-driver provide technical support?
Yes, we worked 16 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
Похожие товары
Погружной водяной фонтан на солнечной батарее 17 в 10 Вт для сада пруда
Солнечный высококачественный 4 мм/6 мм/10 мм Солнечный Кабель под заказ с TUV pv проводом для солнечной панели
0,67 $ - 0,72 $

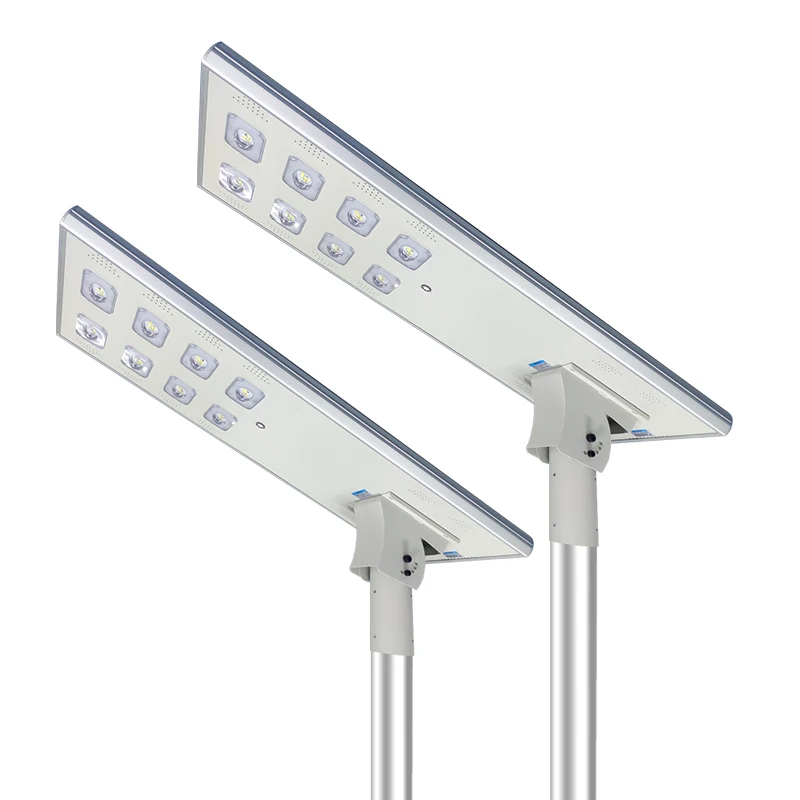

Интегрированный все в одном светодиодный солнечный уличный фонарь Wakatek новый
110,00 $ - 139,00 $
Блок совмещения солнечных батарей анти-обратный диод защита от перенапряжения молниеотвод для солнечной энергетической
178,00 $

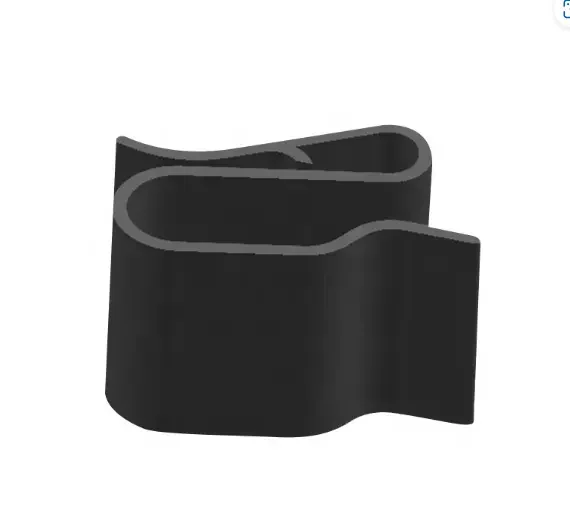

Пользовательские солнечные панели PV пластиковые изоляционные провода кабельный зажим MC4 Солнечный соединитель заземления фиксирующий
0,15 $ - 0,30 $

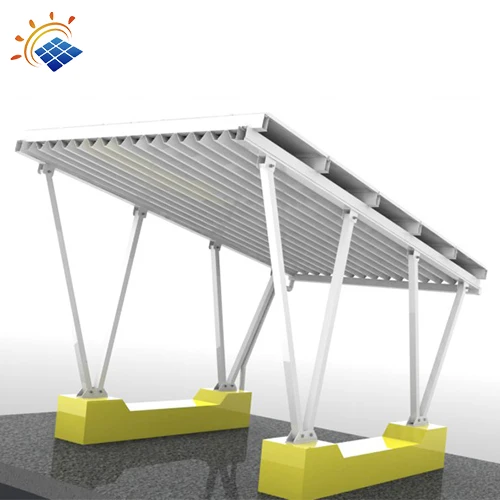

Новейшая водонепроницаемая система крепления на солнечной батарее
