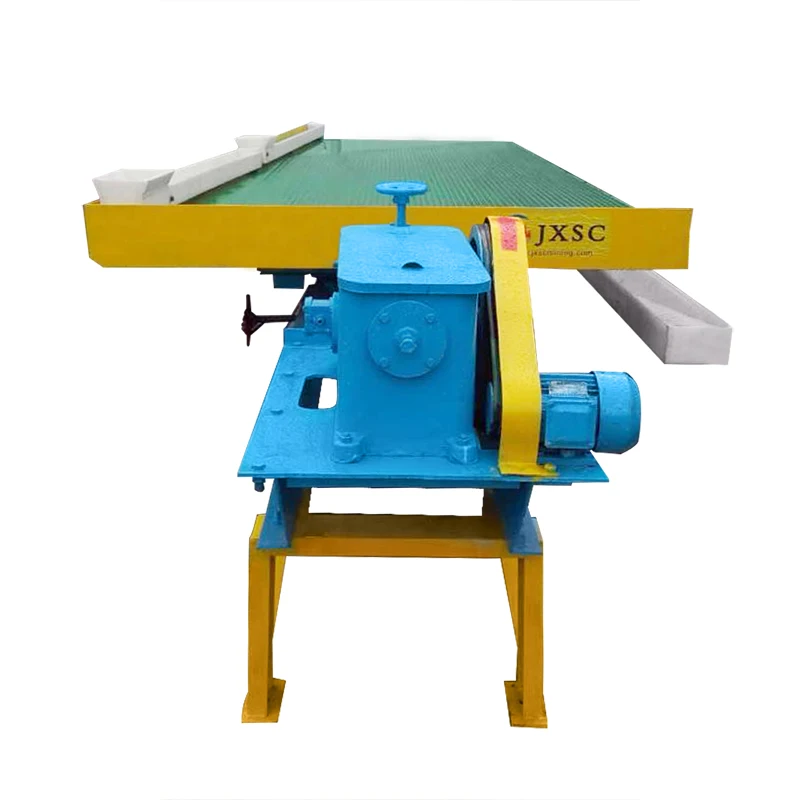

5TPH JXSC Заводская низкая цена PCB процесс восстановления завод двойной встряхивающий стол для золота
- Категория: >>>
- Поставщик: Jiangxi Province County Mining Machinery Factory
Сохранить в закладки 11000000901474:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tShaking Table \t\t\t\t\t\t\t
Overview of 6s Shaking Table
Shaking table is a flagship mining equipment with more than 30 years experiences in JXSC factory.
It is a gravity wet process mine machinery, the table deck is made of fiber glass reinforced with wearable corundum surface.
It is a gravity wet process mine machinery, the table deck is made of fiber glass reinforced with wearable corundum surface.

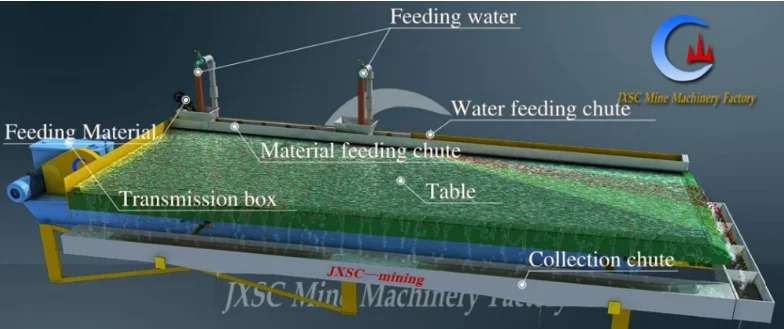

Mining shaker table is composed of three parts: head motion of shaking table, table deck of shaking table, as well as bearing and adjusting gradient.
Shaking table widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead,
zinc, copper, antimony, other rare metal and noble metal ores.
Shaking table widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead,
zinc, copper, antimony, other rare metal and noble metal ores.

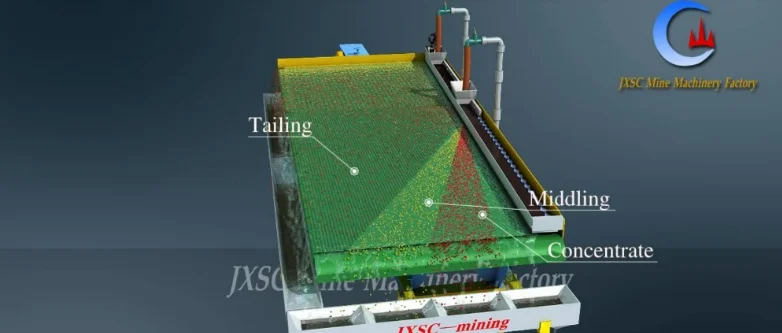

Working Principle of 6s Shaking Table:
The working principle of Shaker Table is separating the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
we can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.
The working principle of Shaker Table is separating the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
we can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.

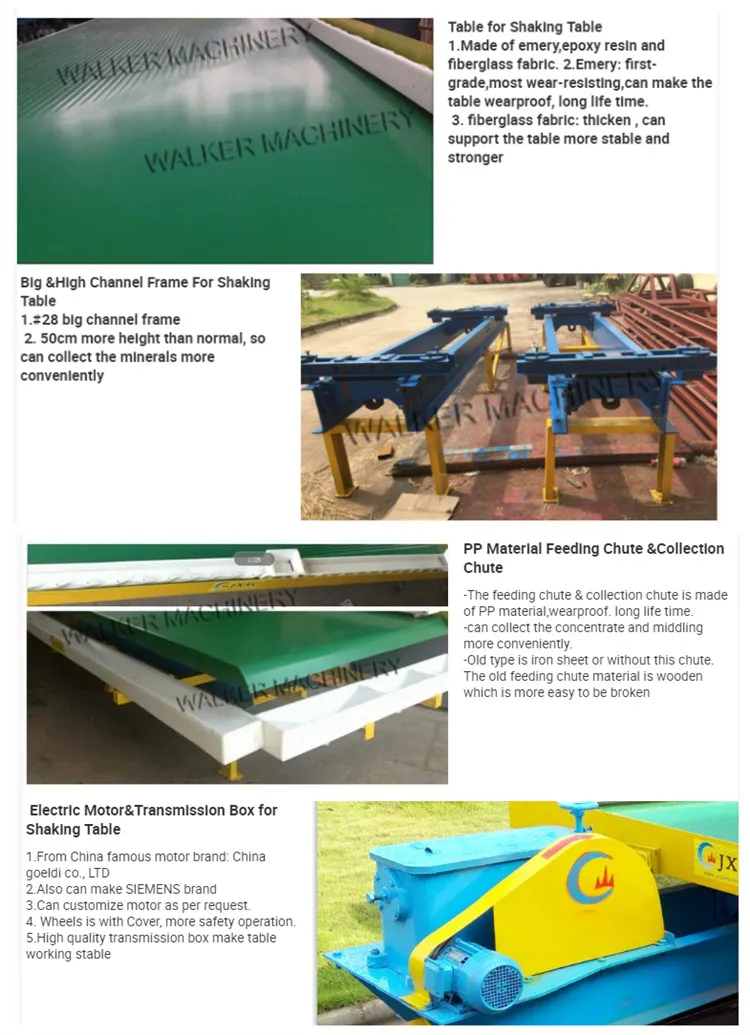

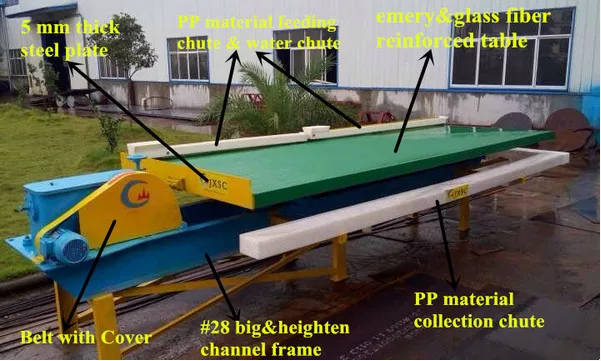

Advantages of 6s shaking table
1.Add the collection chute and feeding chute,its material is pp that is wear-resistant.
2.Heighten the channel frame.
3.Add a protective cover on the belt.
4.Thicken the steel plate to 5 mm.
5.Reinforce the table with emery and glass fiber material.
(Strongly recommend 6s shaking table)
1.Add the collection chute and feeding chute,its material is pp that is wear-resistant.
2.Heighten the channel frame.
3.Add a protective cover on the belt.
4.Thicken the steel plate to 5 mm.
5.Reinforce the table with emery and glass fiber material.
(Strongly recommend 6s shaking table)

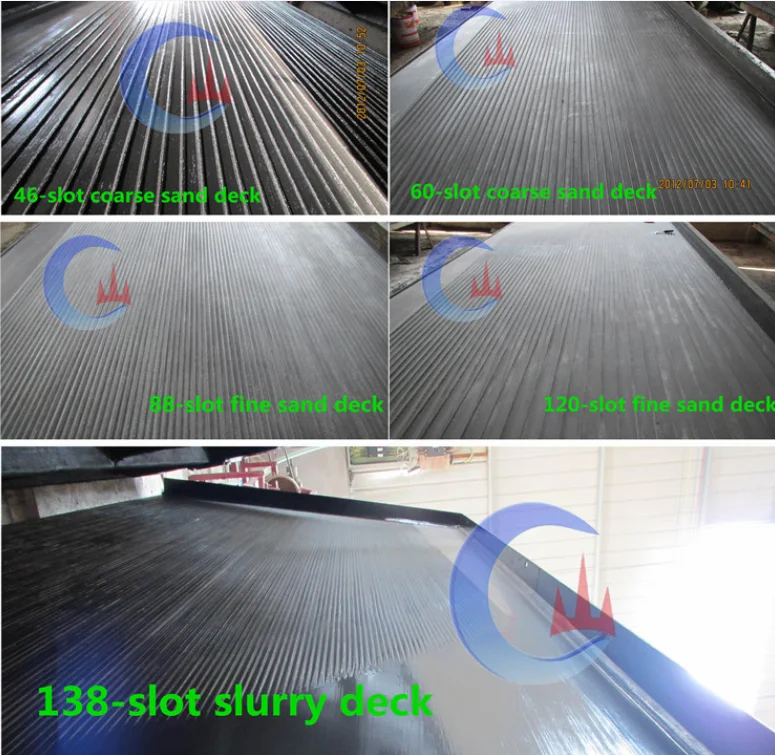

JXSC 6s shaking table has very good separation effect and high recovery as we have different decks for different mineral sizes.
46-slot/60-slot belong to coarse sand deck,used for separating 0.5--2mm;
88-slot/120-slot belong to fine sand deck, used for separating 0.074--0.5mm;
138-slot belong to slurry deck,used for separating ≤0.074mm.
46-slot/60-slot belong to coarse sand deck,used for separating 0.5--2mm;
88-slot/120-slot belong to fine sand deck, used for separating 0.074--0.5mm;
138-slot belong to slurry deck,used for separating ≤0.074mm.
Technical Parameters of 6s Shaking Table
98% Recovery Rate 6s Shaking Table Gold Shaking Table for Gold Mine Dressing in Ghana, West Africa Gold Processing Plant
Model | 6-s 7.6 | 6-s 7.6 | 6-s 7.6 | 6-s 4.08 | 6-s 1.95 | 6-s 0.5 | ||||
Deck type | Course sand | Fine sand | Slime Deck | Three different kinds of decks are available | ||||||
Beneficiation Area m2 | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||||
Deck Size | Length mm | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |||
transmission end width mm | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||||
Concentrate end width mm | 1546 | 1546 | 1546 | 1100 | 850 | 430 | ||||
Maximum Feeding Size mm | 2 | 0.5 | 0.15 | 0.1-2 | 0.074-2 | 0.074-2 | ||||
Feeding Amount t/d | 30-60 | 10-20 | 15-25 | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h | ||||
Feeding Density % | 25-30 | 20-25 | 15-25 | 10-30 | ||||||
Stroke mm | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||||
Frequency f | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | ||||
Water added t/d | 80-150 | 30-60 | 10-17 | 0.3-1.5t/h | 0.2-1t/h | 0.1-0.5t/h | ||||
Transverse slope of Deck ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0 -10° | 0 -8° | 0 -10° | ||||
Longitudinal slope of Deck ° | 1.4 | 0.92 | ------ | ------ | ------ | ------ | ||||
Cross-section Shape of Deck | rectangular | saw tooth | triangle | Avaliable rectangular, saw tooth, triangle | ||||||
Motor Power KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||||
Application of JXSC shaking table in customers' mine site
20thp rock gold process plant in Sudan
Date: 2018Mine site: Sudan
Processing mineral: Rock gold ore
Full set equipment for entire line: JXSC factory provided complete solution and flowchart for this customer.We supplied full sets
of processing equipment for the whole line,including: crushing machine, ball mill,shaking table.
Recovery: The gold recovery reached 92% according to this customer's feedback.

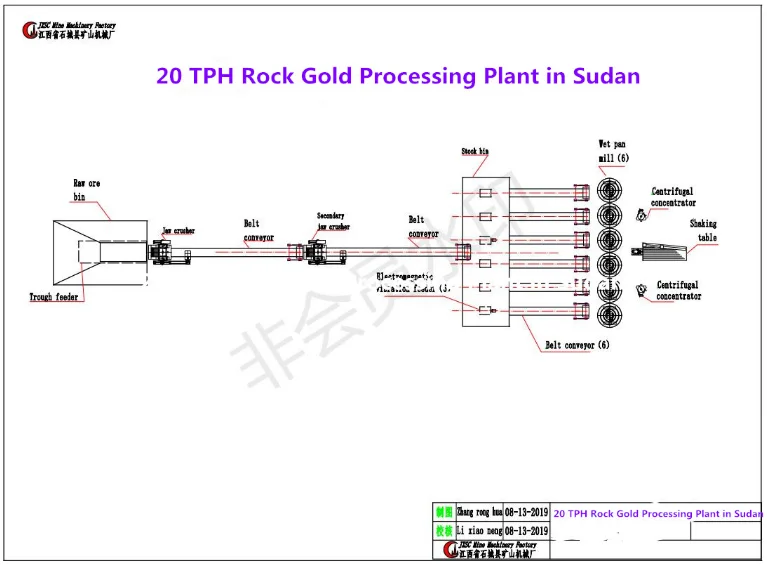

Below is the flowchart we designed:
Processing mineral: Rock gold ore
Full set equipment for entire line: JXSC factory provided complete solution and flowchart for this customer.We supplied full sets
of processing equipment for the whole line,including: crushing machine, ball mill,shaking table.
Recovery: The gold recovery reached 92% according to this customer's feedback.
Below is the flowchart we designed:
100TPH Coltan Mining Plant in Nigeria
JXSC provided full sets of mining equipment for this Nigerian 100tph coltan project,including trommel scrubber,jig
separator,shaking table,belt conveyor,slurry pump,water pump,hammer crusher and 3pcs disc magnetic separator.In coltan mining
plant, jig separator is used for coarse separation; shaking table is used for fine separation.
For installation, we provided layout drawing on site and sent engineer to mine site for guiding installation.
separator,shaking table,belt conveyor,slurry pump,water pump,hammer crusher and 3pcs disc magnetic separator.In coltan mining
plant, jig separator is used for coarse separation; shaking table is used for fine separation.
For installation, we provided layout drawing on site and sent engineer to mine site for guiding installation.

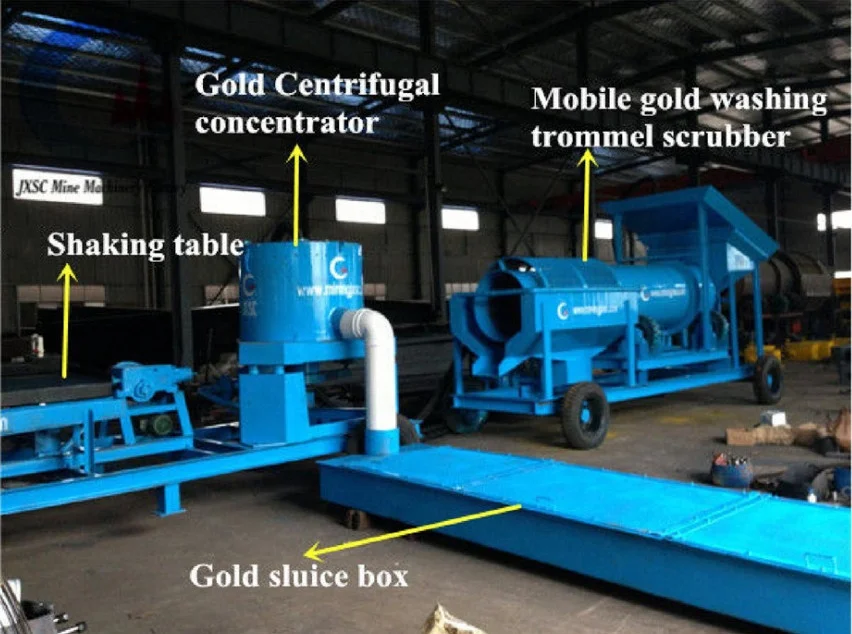

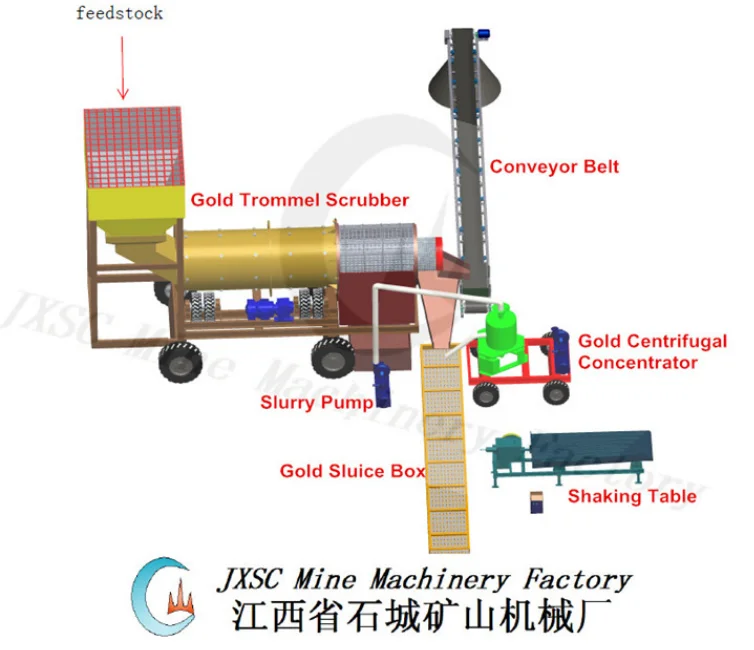

40-50TPH Alluvial Gold Mining Plant For Korean customer

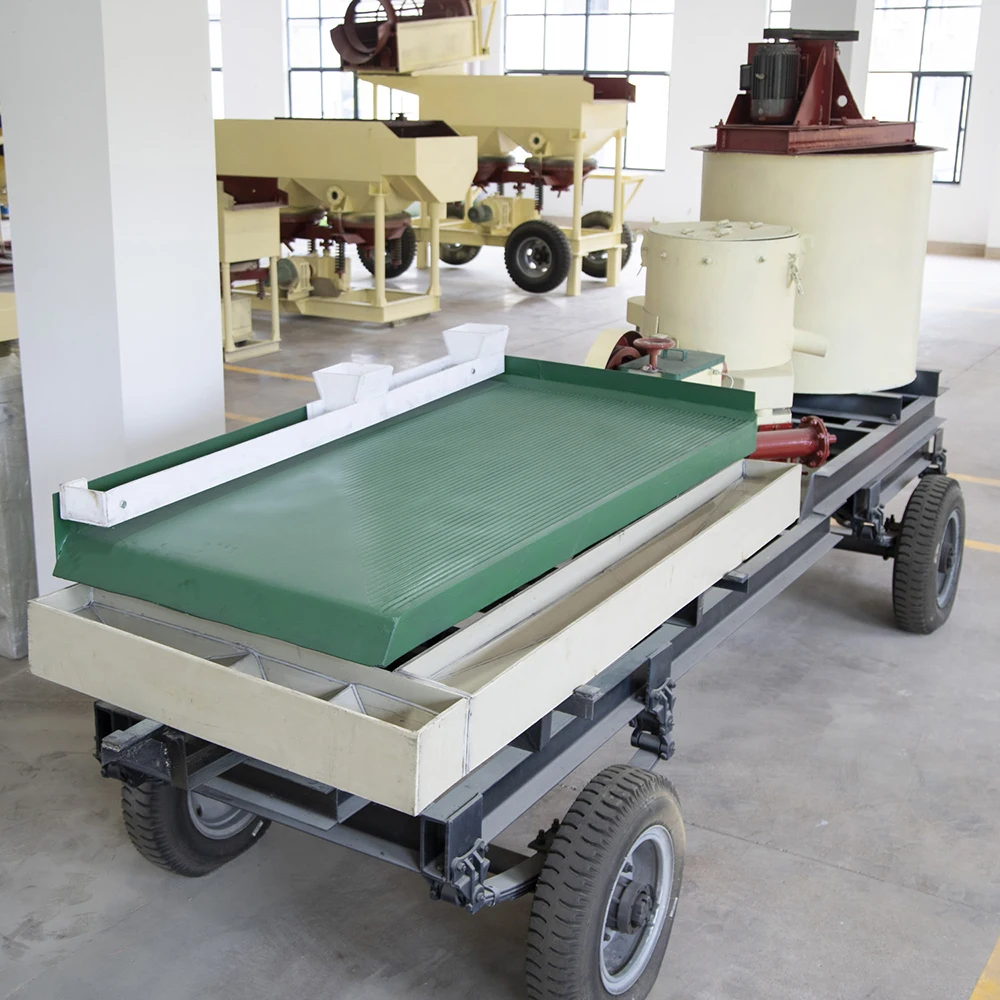

This complete setup is for 40-50 tons per hour alluvial gold mobile plant,including trommel scrubber,gold centrifugal
concentrator,sluice box,shaking table.This is a mobile plant that can easily move to other place.Here shaking table is used for recovery alluvial gold. We designed the mobile plant flowchart as below:
We have provided the shaking table for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Packing & Shipping
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
