HX1011707 USB CTP 10 1 сенсорный экран с ЖК дисплеем 1280x800 tft Модуль промышленного умного домашнего автомобиля медицинские устройства
- Категория: >>>
- Поставщик: Hangzhou Hongxiao Technology Co. Ltd.
Сохранить в закладки 11000000950209:
Описание и отзывы
Характеристики

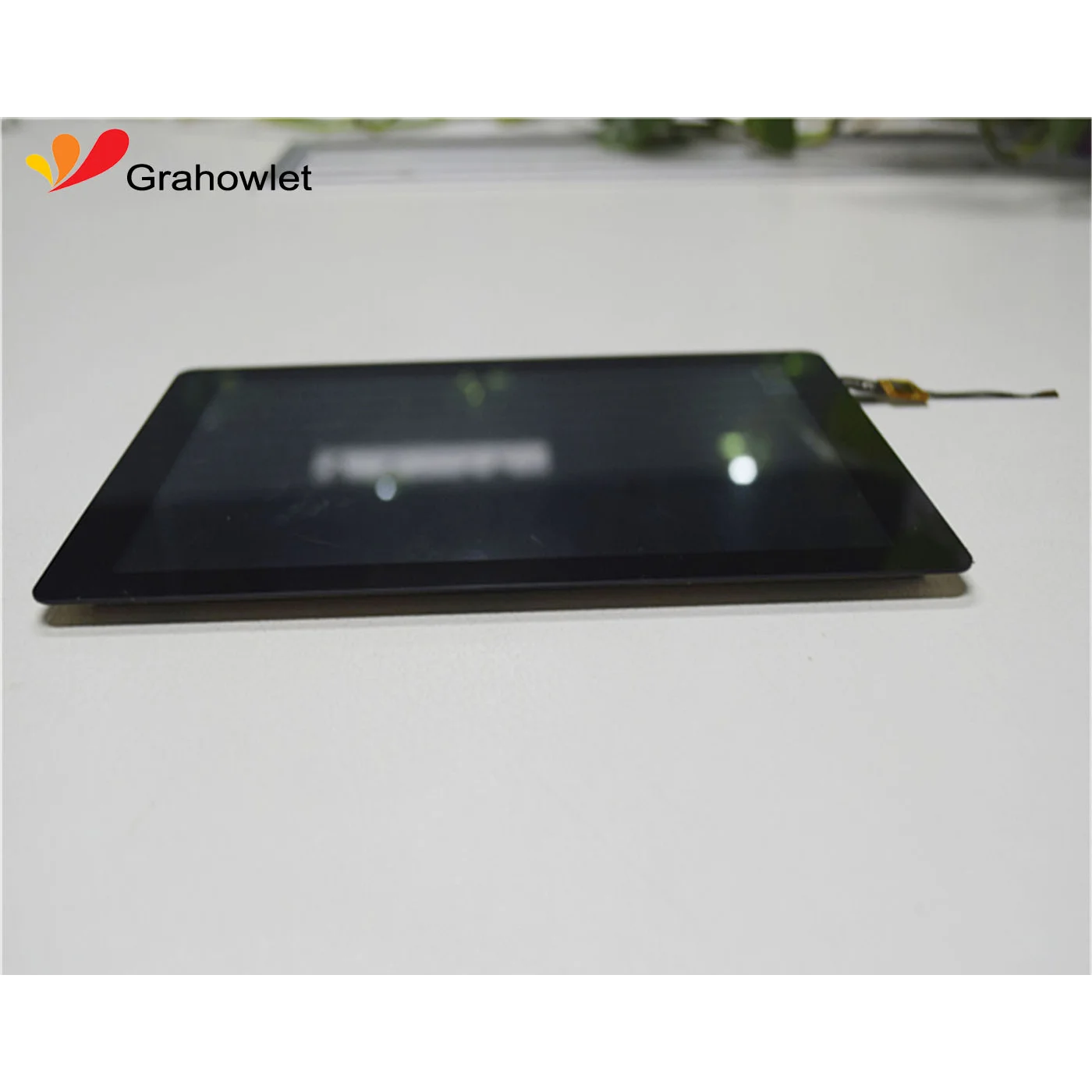

HX1011707 USB CTP 10.1 touch screen with 1280x800 tft lcd display module
Product Description
TPM | Model Number | HX1011707 |
Brand | Grahowlet | |
Size | 10.1inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Bonding workmanship | Air/Optical Bonding | |
Outline Dimension | 241.60(W)x163.20(H)x7.35(D) mm | |
Viewing Area | 217.56(W)x136.20(H) mm | |
Active Area | 216.96(W)x135.60(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
CTP | Interface Type | IIC/USB |
Structure | GLASS+GLASS | |
Controller IC | ILITEK | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 5V | |
TFT | Resolution | 1280x800 |
Interface Type | LVDS/HDMI/VGA | |
Luminance | 450 cd/m² | |
Viewing Angle | 80/80/80/80 |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
Courier handheld terminal
Portable medical machine
Front loading Vehicle control system
Industrial Data Detection Equipment
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4 to 6 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3 years guarantee | ||
One year warranty time for all of our products | ||
Feedback of customers
For more Ratings & Reviews, please Click here
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Похожие товары

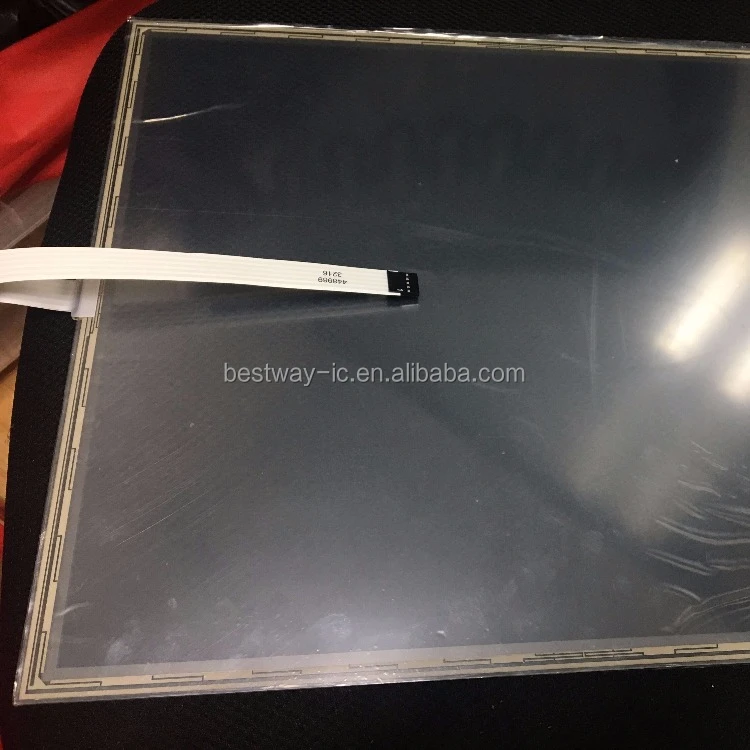

E516990 SCN-A5-FLT15.0-011-0H1-R Touch Screen Hot
Original Touch Screen E161513 SCN-A5-FLT13.8-001-0H1-R
TR4-121F-21 12inch Touch Screen Hot
Новый T190C-5RBA16N-3A28R4-200FH экрана касания
HX0801705 8-дюймовый IPS LVDS 800x1280 TFT экран с емкостной сенсорной панелью промышленный умный дом медицинский образованный логистический

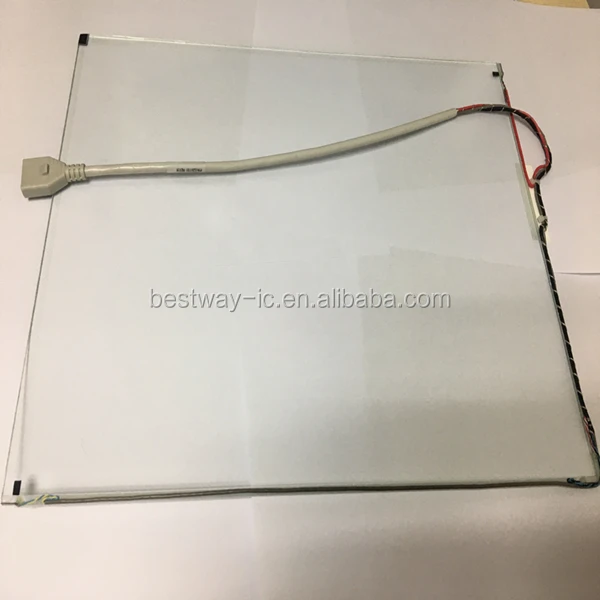

E619311 SCN-AT-FLT24.0-W01-0H1-R Touch Screen Hot

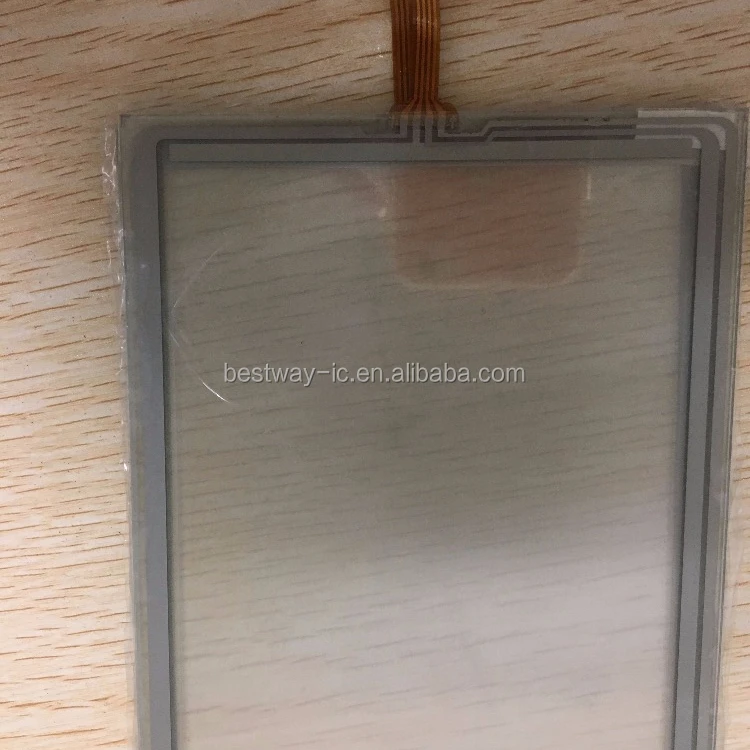

Touch Screen 033A10601C Hot
