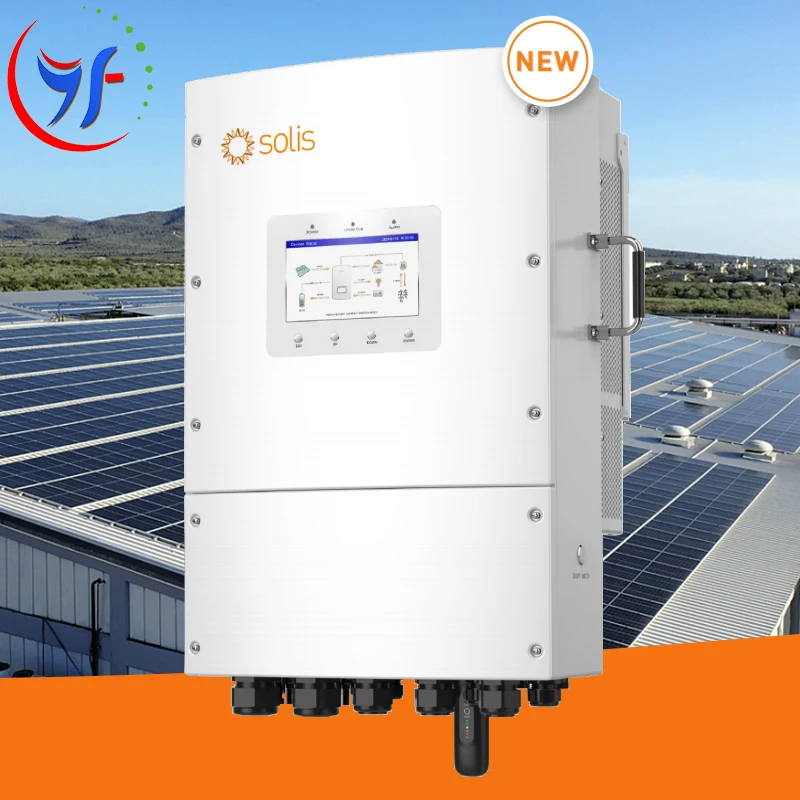

Solis S6-EH3P8K02-NV-YD-L 12 кВт 8 низковольтный инвертор
62 814,61-71 967,92 ₽
HUAWE1 инвертор SUN2000 100KTL агент 100KW трехфазный солнечный
- Категория: >>>
- Поставщик: Jiangsu Solarman Technology Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 11000001199717:
Описание и отзывы
Характеристики
Product Description
About Huawei
Our vision and mission is to bring digital to every person, home and organization for a fully connected, intelligent world
Our vision and mission is to bring digital to every person, home and organization for a fully connected, intelligent world
Features of SUN2000-110KTL-M0 solar inverter
* Smart I-V Curve Diagnosis Supported
* 98.6%(@480v) Max Efficiency
* Fuse Free Design
* IP66 Protection
* String-level Management
* 10 MPPT Trackers
* MBUS Supported
* Surge Arresters for DC&AC
* 98.6%(@480v) Max Efficiency
* Fuse Free Design
* IP66 Protection
* String-level Management
* 10 MPPT Trackers
* MBUS Supported
* Surge Arresters for DC&AC
Datasheet
Technical Specification | SUN2000-110KTL-M0 | |
Efficiency | ||
Max. efficiency | 98.6% | |
European efficiency | 98.1% | |
Input | ||
Max. Input Voltage | 1100V | |
Max. Current per MPPT | 26A | |
Max. Short Circuit Current per MPPT | 40A | |
Start Voltage | 600V | |
MPPT Operating Voltage Range | 200V~1000V | |
Rated Input Voltage | 600 V @380 Vac / 400 Vac; 720 V @480 Vac | |
Number of MPP trackers | 20 | |
Max. input number per MPP tracker | 10 | |
Output | ||
Rated AC Active Power | 110,000 W | |
Max. AC Apparent Power | 121,000 VA | |
Max. AC Active Power (cosφ=1) | 121,000 W | |
Rated Output Voltage | 3x220V/380V,3*230V/400V, 3W +N+ PE | |
Rated AC Grid Frequency | 50 Hz | |
Normal Output Current | 167.2A(380Vac),158.8A(400Vac) | |
Max. Output Current | 185.7A(380Vac),176.4A(400Vac) | |
Adjustable Power Factor Range | 0.8 leading... 0.8 lagging | |
Max. Total Harmonic Distortion | ＜3% | |
Protection | ||
Input-side Disconnection Device | Yes | |
Anti-islanding Protection | Yes | |
AC Overcurrent Protection | Yes | |
DC Reverse-polarity Protection | Yes | |
PV-array String Fault Monitoring | Yes | |
DC Surge Arrester | Type II | |
AC Surge Arrester | Type II | |
DC Insulation Resistance Detection | Yes | |
Residual Current Monitoring Unit | Yes | |
Communication | ||
Display | LED indicators; WLAN adaptor + FusionSolar APP | |
RS485 | Yes | |
USB | Yes | |
General Data | ||
Dimensions (W x H x D) | 1,035x700x365 mm | |
Weight (with mounting plate) | 85 kg | |
Operating Temperature Range | -25°C ~ 60°C (-13°F ~ 140°F) | |
Cooling Method | Natural Convection | |
Max. Operating Altitude | 5,000 m | |
Relative Humidity | 0 ~ 100% | |
DC Connector | Staubli MC4 | |
AC Connector | OT Terminal | |
Protection Degree | IP66 | |
Standard Compliance (more available upon request) | ||
Certificate | EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683 | |
Grid Connection Standards | IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, VDE 4120, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11 | |
More Details
Packing & Delivery
1.Package: Carton box with wooden pallets for packaging.
2.Shipping: AirWay and By Sea.
3.Payment: T/T
4.MOQ:120PCS
2.Shipping: AirWay and By Sea.
3.Payment: T/T
4.MOQ:120PCS
What service can we provide？
Best price
As the diamond distributor of Huawe1 inverters, we provide you much better price on the market.
Sample service
We provide sample service for each customer who is interested into our products but worried about quality before they place an official order.
Shipping service
We can offer you with door to door delivery for even one piece HUAWE1 inverter that you purchase, sent by TNT,Fedex or UPS,DHL.
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: Five years warranty on Huawe1 solar product.
A4: Five years warranty on Huawe1 solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Contact us
Похожие товары

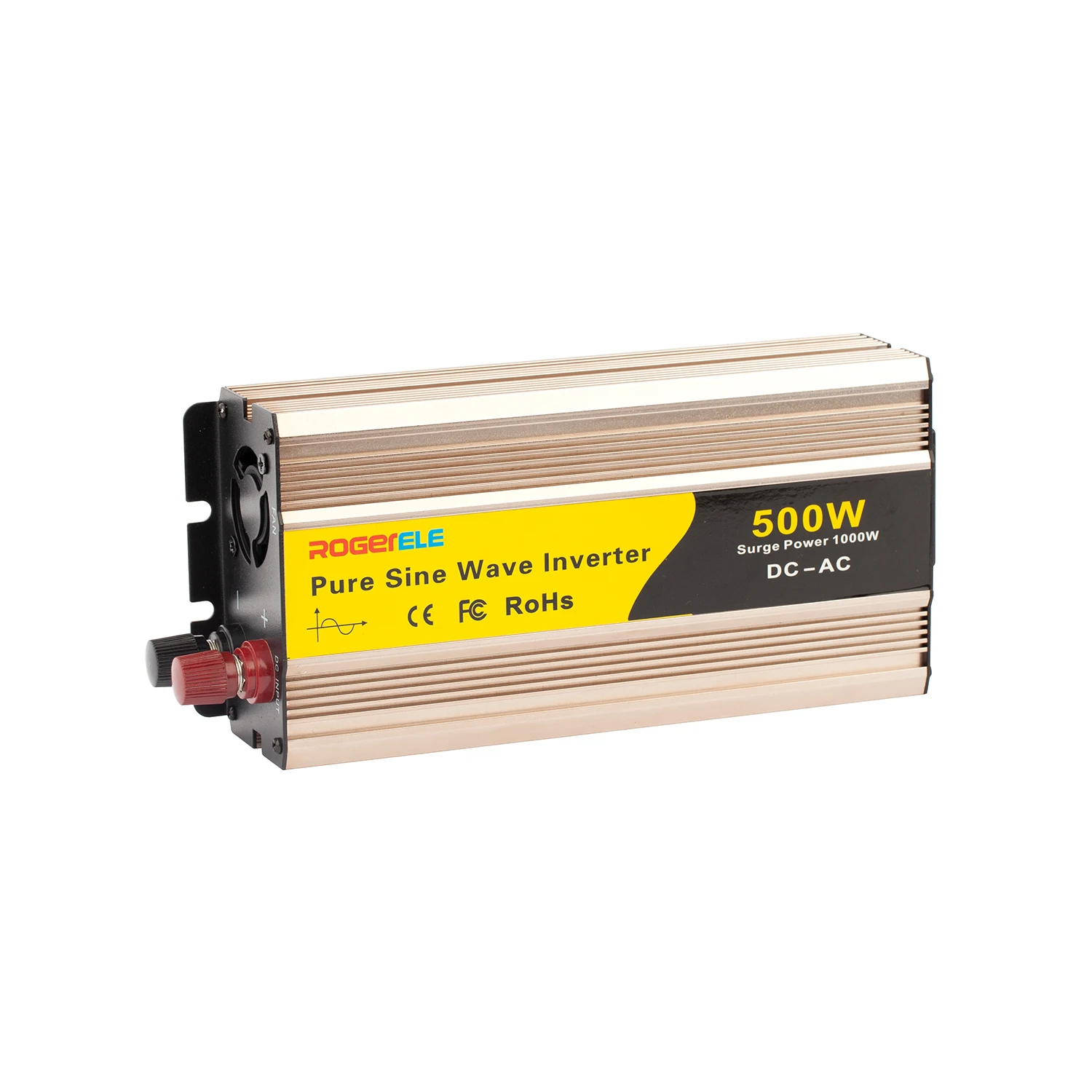

Инвертор немодулированного синусоидального сигнала 500 Вт 12 В постоянного тока в 220 переменного
4 576,66-5 263,16 ₽
Хит продаж Deye Гибридный инвертор 6 кВт 12 3 фазы солнечный с Wi-Fi для дома
194 507,88-234 553,62 ₽

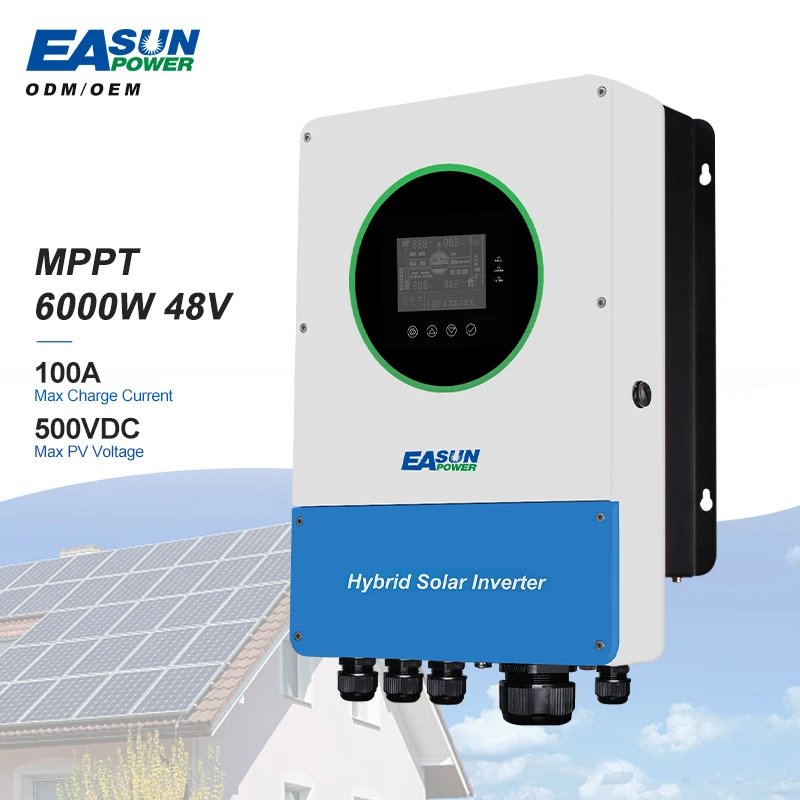

Easun 6 кВт цена 48 В высокоэффективная система включения/выключения 6000 Ватт чистый знак волновой инвертор с параллельной функцией
70 823,76-83 409,56 ₽

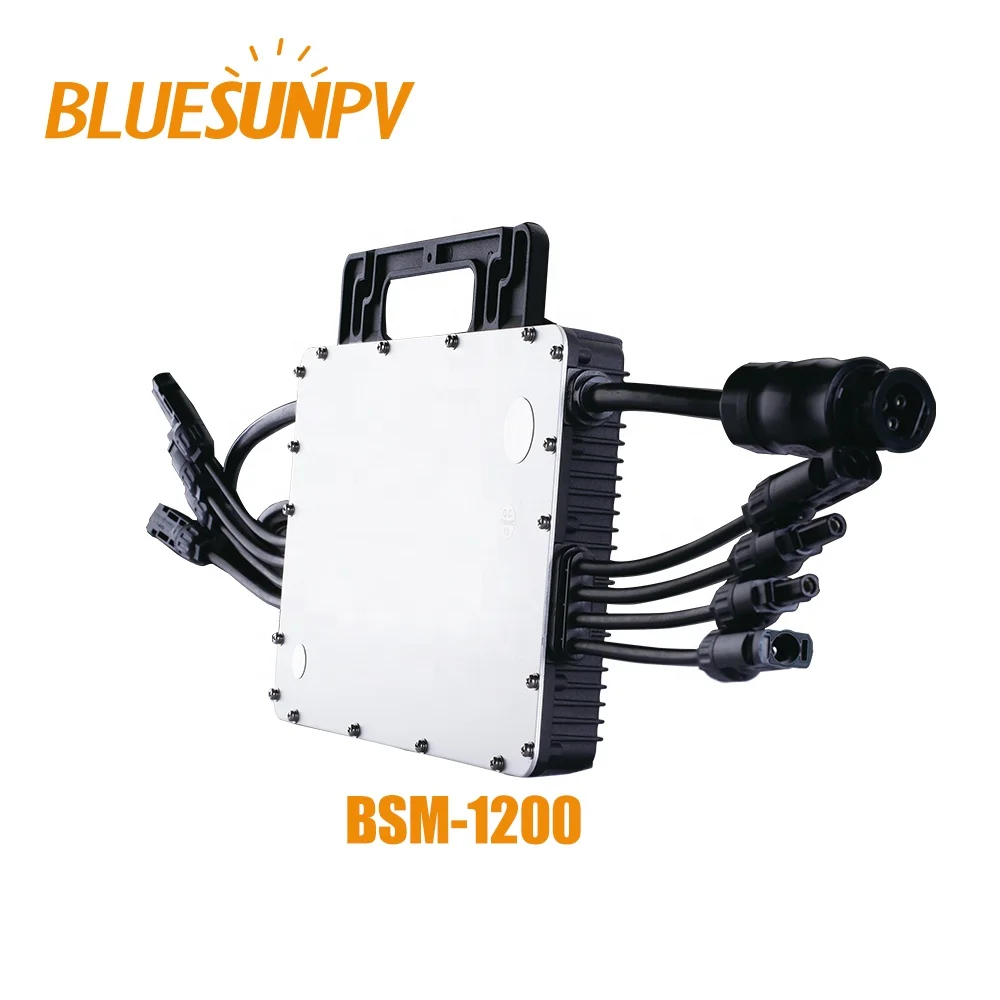

1200 Вт микро-инвертор для солнечных панелей 450 с инверторными ценами
21 853,54-24 599,53 ₽
Гибридный инвертор 4 кВт 6 50/60 Гц
26 315,78-29 519,44 ₽
Четырехкратный микро инвертор 2000 Вт однофазный трехфазный 220 В 208 480 BDM2000
17 733,40-21 737,98 ₽

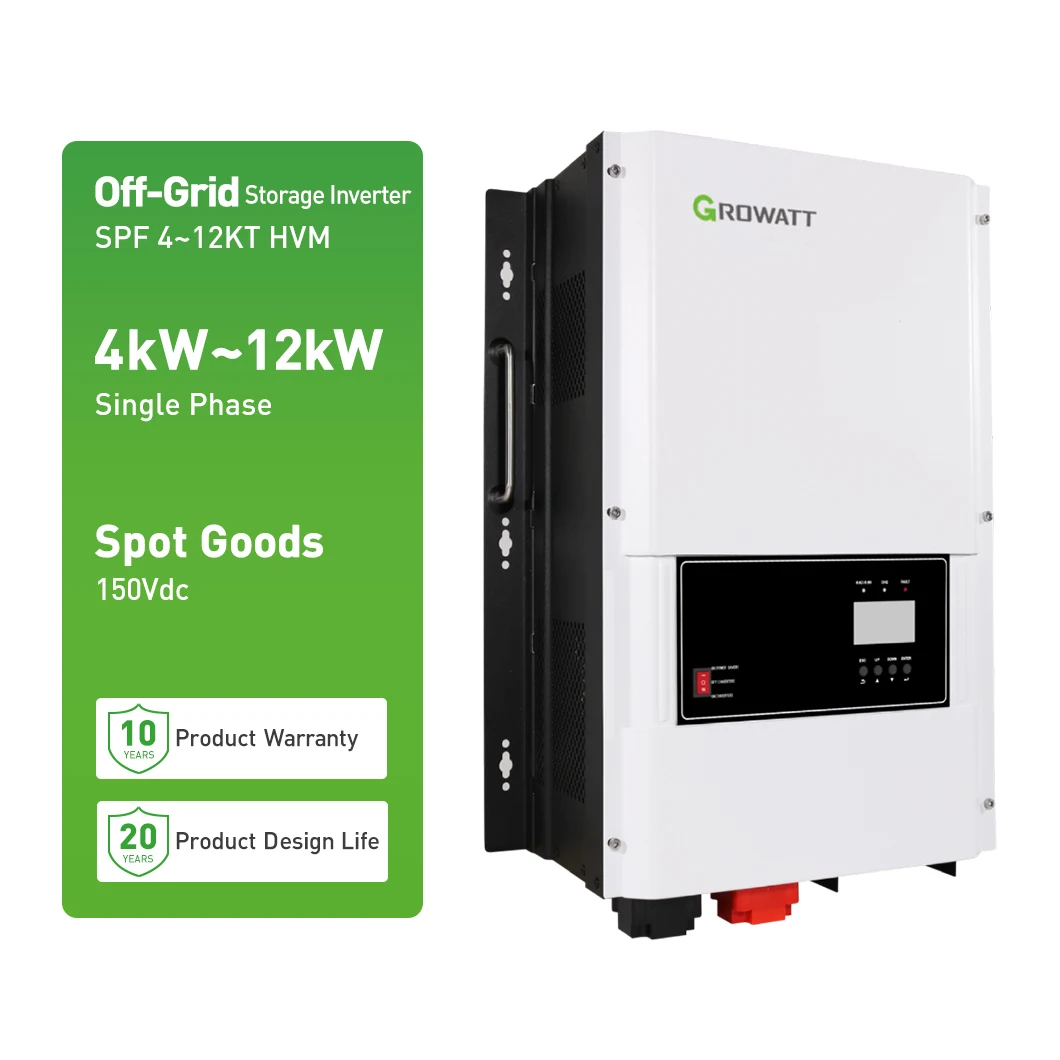

Growatt SPF 4-12KT HVM 6KW 8KW 10KW 12KW инвертор без сетки 12000 Вт MPPT солнечный с батареей 48VDC
