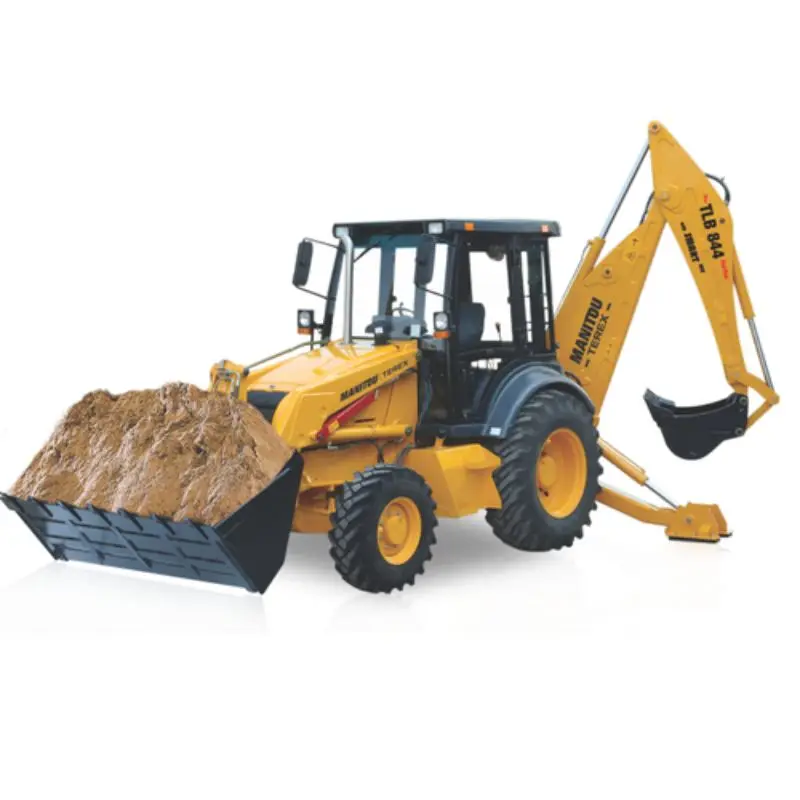

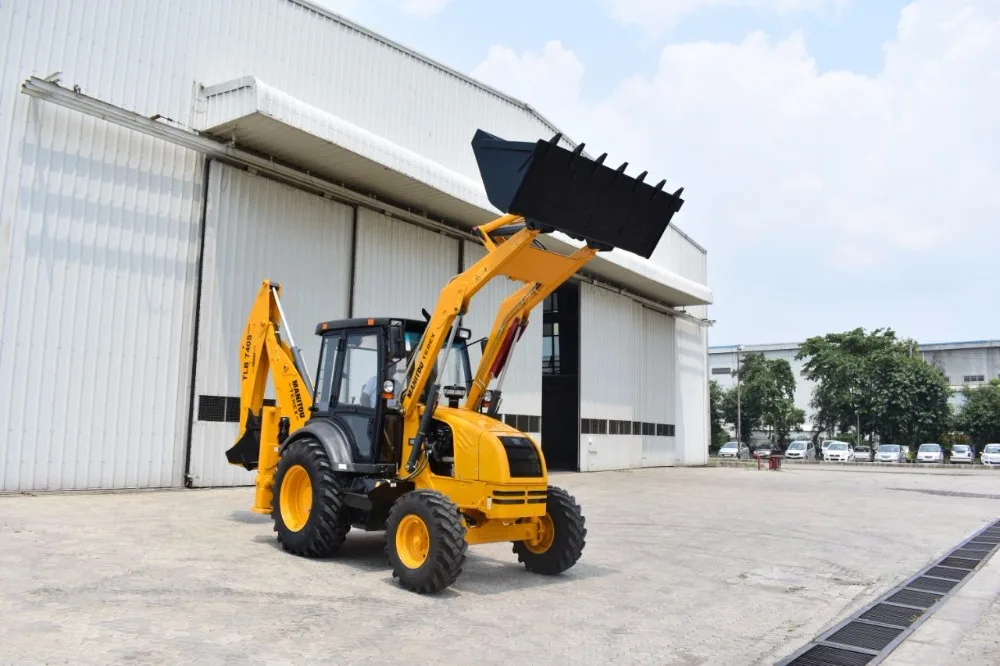

Качественная упаковка Manitou TLB 844S новая версия качественная строительная техника для землеройных работ специально разработанная

Сохранить в закладки 11000002274920:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Packaging & Shipping

We export by two way.
1) By 1x40 Ft HC close container ,in this tyres will be dismantled.This will be cheaper.
2)By 1x20 Ft Flat container .It will be costlier then others.Both are customized .




Product Description

 Product Details:

Capacity4.16 ltr
Gross Power90HP at 2200 RPM
Hydraulic Oil90 L
Machine Kerb Weight7500 kg
Torque350 NM
Machine Kerb Weight with 4 WD7600 kg
Machine Kerb Weight with 4 WD 7 in 17930 kg
Maximum Flow (both pumps)145 LPM (s1+e4) at 2200 RPM
Main Relief Pressure3250 PSI (225 bar)
Torque Converter Stall Ratio2.88:1
Electrical System12V and 65A system with water and dust proof connectors and 130AH low maintenance battery
Overall Length7338 mm
Overall Width2330 mm
Overall Height3762 mm
Wheel Base2130 mm
Color AvailableYellow / Red
Cabin Height2770 mm
Ground Clearance400 mm
Fuel Tank120 L
Engine Coolant16 L
Engine Oil11 L
Transmission15 L
Rear Axle17.5 L

Transmission:

  • Carraro transmission Four-Speed (4 Forward, 4 Reverse gear) Synchro shift reversing shuttle Transmission, with modulated clutch packs
  • Two Wheel Drive is standard (Four Wheel Drive optional)


Axle:

  • Rear Drive Axle rigidly mounted with out board planetary final drives for easy maintenance
  • Front-steer Axle with 16° oscillation for maximum ground contact in undulated conditions


Steering:

  • Reliable hydraulically assisted power steering


Brakes:

  • Sell-actuating and self-adjusting, high capacity, sealed, wet disc brakes, maintenance free


Optional Attachments/Features:

  • AC Cabinet Canopy
  • Four Wheel Drive (instead of 2WD)
  • 7-in-1 Clam-shovel
  • Customised Range of Trenching Buckets
  • Ditch Cleaning Bucket
  • 1.2 cu m Loader Bucket
  • Extendable Dipper



Technical Details:



Backhoe Performance -Range & ForcesUnitStandard DipperExtending Dipper
   Ret.Ext.
A. Max. Dig Depthmm (ft)4741(15'5")4741 (15"6")5815 (19'1")
B. Max. Reach-Ground Level to Slew Centremm (ft)5730 (1s'10")5730 (1s'10")7020 (2s'1")
C. Max. Loading Reachmm (ft)1996 (6"7")1996(6'7")2924(9'7")
D. Max. Operating Heightmm (ft)5659 (18'7")5659(18'7")6637(21'9")
E. Max. Loading Height SAEmm (ft)3553(1 1 '8")3553(11'8")4531(14'10")
Max Load Heightmm (ft)3871 (12'8")3817(12'8")4849(15'11")
F. Max. Straight Wall Dig Depthmm (ft)2602 (8‘54")2602(8'54")3991(13'09")
G. Max. Bucket Rotationdeg194°194°194°
Total Side Shiftmm (ft)1198 (3'93")1198(393H1198 (3'93")
DipperTearoutKgf394639462644
Bucket TearoutKgf521952195219
Hydraulic Lift CapacityK913841184812
Loader PerformanceUnitStandard Shovel7-in-I Shovel
N. Max. Dump Height at 45°mm (ft)2708 (8"11")2708 (8‘11")
O. Max. Loadover Heightmm (ft)3310 (10'10")3319 (10'10")
P. Max. Hinge Pin Heightmm (ft)3550 (11'8")3550 (11'8")
S. Max. Reach at Full Heightmm (ft)1202 (4‘3")1282 (4‘3")
Our Services

 We provide full sales after service including parts.There are globally products so no need any special technician.



2017-11-21-PHOTO-00000150.jpg2017-11-21-PHOTO-00000151.jpg2017-11-21-PHOTO-00000152.jpg

Company Information

 Manitou Equipment India Private Limited is a fully owned subsidiary of Manitou, a diversified global manufacturer of a broad range of equipment that is focused on delivering reliable, customer-driven solutions for many applications, including the construction, infrastructure, quarrying, mining, shipping, transportation, refining, energy, utility, and manufacturing industries. Our exporting countries are Nepal, Russia, Indonesia, UAE, Malaysia, South Africa, Thailand, Oman.

At Manitou, "Handling Your World" is more than a slogan - it's a promise.  It's what you can count on from our equipment and the thousands of Manitou team members around the world who are here to support you.

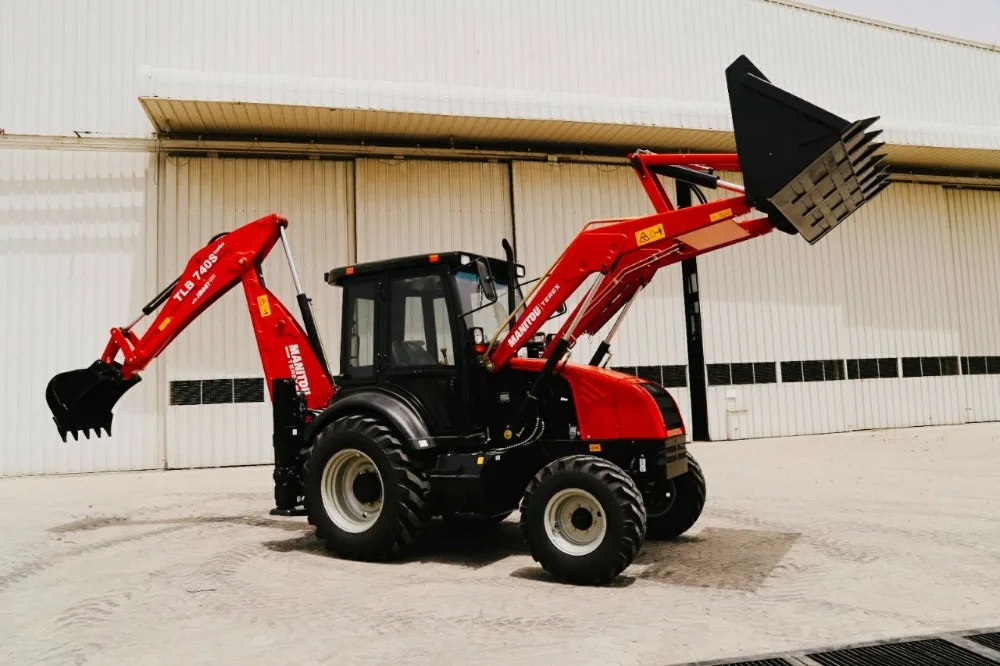

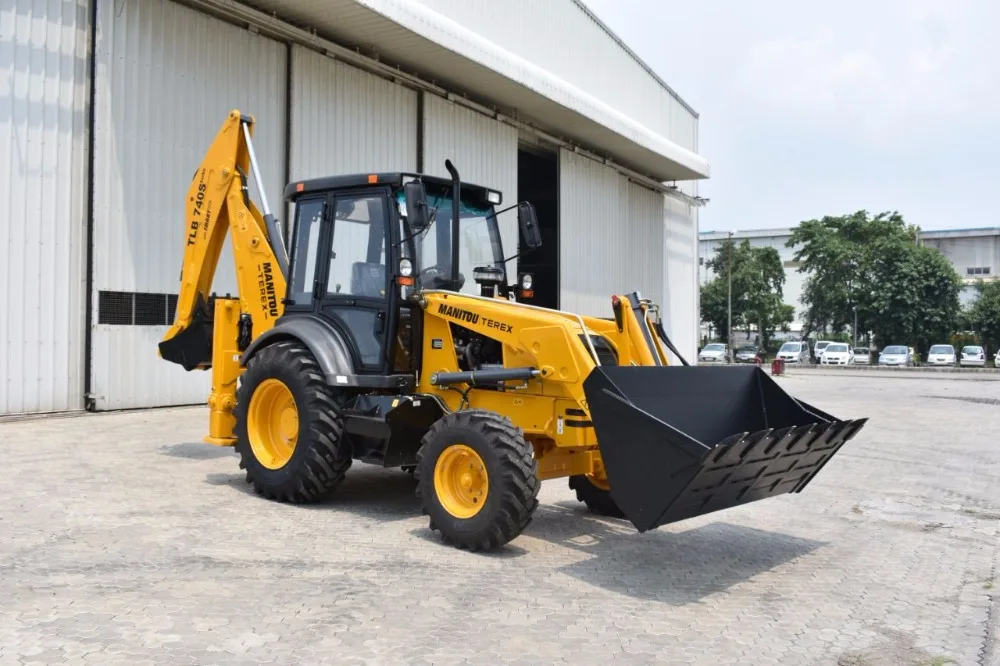

The company launched a new 76 horsepower backhoe model, TLB740SE, at BC India 2014 which has a curved excavator style backhoe boom in contrast to the straight booms used in other models.  Manitou also manufactures certain backhoe loaders such as TLB818 (Centre Mount) & TLB818S with Perkins Engine at the Greater Noida plant which is only meant for the export market.

Recently the company has achieved a historic Milestone by Rolling off 10,000th Backhoe Loader from its assembly Lines, Greater Noida Plant.

A Large Product Range :
Manitou “Handling your world” is providing you the best handling solution whatever your needs. The brand product ranges include all-terrain telescopic forklift-trucks, semi-industrial and industrial all-terrain masted forklift-trucks, aerial work platforms for personnel, truck-mounted forklifts, warehousing equipment and attachments.

A Lot of Applications:
Whether it is a crane that is being used to carry the heaviest boulder, a backhoe loader to dig the roughest terrain, a light tower to light up the darkest stretch, an articulated boom to reach the canopy of a stadium or a screener working at the mines- each of our equipment serves a unique requirement and delivers the end user an experience. Providing engineering support for these machines is not the only work we do….we support in creating experience!!
