Золотистый шламовый насос Tobee и алюминиевый
- Категория: >>>
- Поставщик: Hebei Tobee Pump Co. Ltd.
Сохранить в закладки 11000002392067:
Описание и отзывы
Характеристики
Pump Descriptions

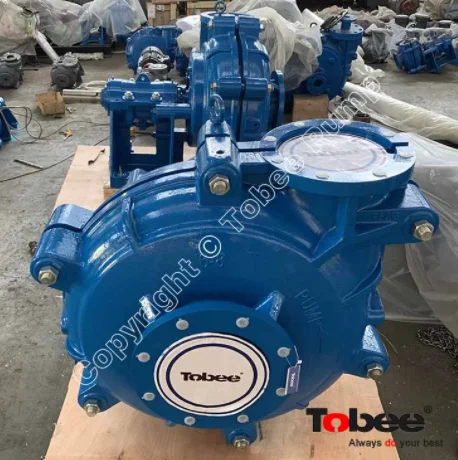

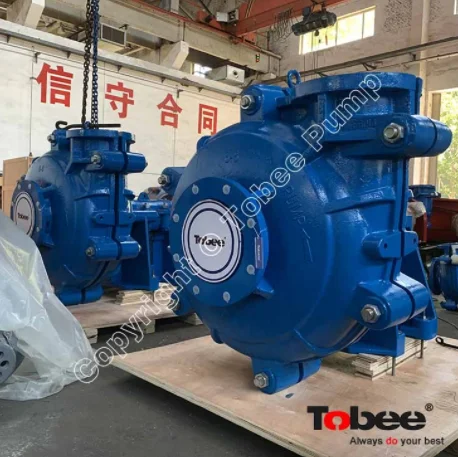

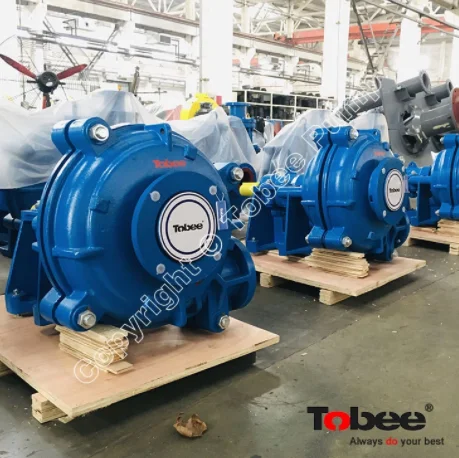

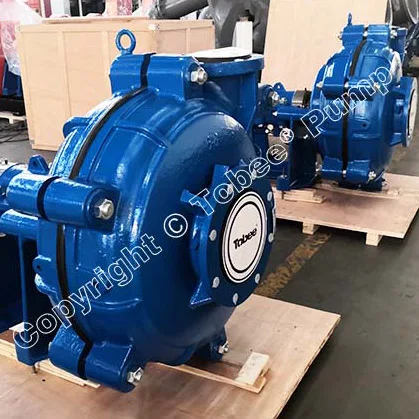

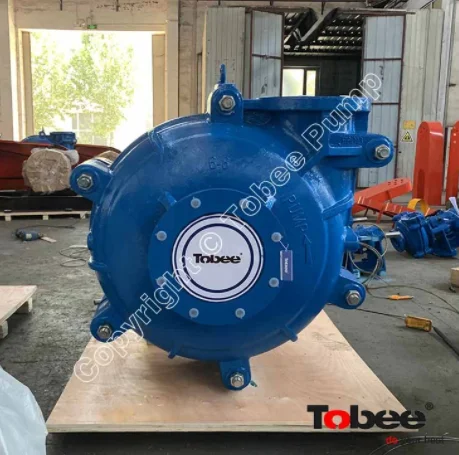

gold slurry pump and aluminium slurry pump
Tobee® gold slurry pump and aluminium slurry pump is fit for a variety of applications ranging from filter press feeds to pipeline transport staging pumps. The high heads along with sturdier wear parts makes these pumps some of the most rugged in the slurry pump line. Extensive exterior ribbing allows for higher heads to be reached with a single slurry pump, and bulked up wet end parts handle the toughest applications in the field today.
Size | 1 to 22 |
Capacity | 126-252 m3/h |
Head | 12-97 m |
Speed | 600-1400 rpm |
NPSHr | 2-5 m |
Eff. | 50% |
Power | Max.120 kw |
Handling solids | 38 mm |
Materials | A05, A07, A12, A49, A51, A61 etc |
gold slurry pump and aluminium slurry pump
√ Multi-stage high pressure operation to 750 psi.
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to maximize wear life and lower operating costs.
√ Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.
√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
Sealing Arrangements
Packing Seal
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
Centrifugal Seal - Expeller
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Mechanical Seal
AHR heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
Centrifugal Seal - Expeller
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Mechanical Seal
AHR heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.
SIMILAR PRODUCTS
APPLICATIONS
Mining & Mineral Processing
The slow running speeds of the Tobee heavy duty rubber lined slurry pump, together with the comprehensive choice of abrasion resistant alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
Dredging Sand Project
Designed for easy and simple strip down and re-assembly, the Tobee heavy duty rubber lined slurry pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.
Sand Mining Project
Wherever abrasive solids are causing premature failure of pumps, the Tobee heavy duty rubber lined slurry pump range has the right combination of performance, wear life and reliability to bring the customer the lowest cost of ownership.
Tobee® gold slurry pump and aluminium slurry pump. :
Mining and mineral processing
Highly abrasive slurries
Mine refuse and tailings
Industrial processing
Coal and power plant ash
Sand and gravel
Mining duty abrasive slurries
Pulp & paper
Lime slurry
Alumina
Fertilizer
Acid Neutralization
In-plant slurry transfer pumps
Dyes & Intermediate
Solvent Transfer
Pharmaceutical & Chemicals
Mining and mineral processing
Highly abrasive slurries
Mine refuse and tailings
Industrial processing
Coal and power plant ash
Sand and gravel
Mining duty abrasive slurries
Pulp & paper
Lime slurry
Alumina
Fertilizer
Acid Neutralization
In-plant slurry transfer pumps
Dyes & Intermediate
Solvent Transfer
Pharmaceutical & Chemicals
FAQ
Q: Are you a factory or trading company?
A:We are a big manufacturing pump factory with 35 years experience.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China. You can fly to Shijiazhuang airport directly. All our
clients, from home or abroad, are warmly welcome to visit us!
Q: What is the material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber, Polyurethane, Cast iron, SS304, SS316, CD4MCu, Duplex SS, Bronze etc. We can also choose material as customers' requirement.
Q: Can I get some technical support?
A: Yes, of course, we will continually provide full support by 7x24.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has 15~20QC.
