Products Description
Tobee® TG Gravel Sand Pumps
Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands, slurry or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of TG Gravel pump, TGH gravel pump has achieved extra high head for special working conditions.
Size: 4" to 18"
Capacity: 36-4320m3/h
Head: 5m-80 m
Max. frame power: 1400kw
Handling solids: 0-260mm
Concentration: 0-70%
Material: High chrome alloy, Cast iron, Stainless steel etc.
Tobee® Dredging Sand Pumps are used for rivers, lakes and sea sand dredging, blowing sand reclamation, river dredging, pumping sand selected iron ore, tailing pumping, coal mines, power plants and mining companies such as transport medium containing solid
particles.
particles.
Pump Desigh Features
√ The unique segmented clamp ring on larger size units and solid on smaller pumps, facilitates casing rotation to any angle, reducing the need for costly high wearing bends. Minimal maintenance is required.
√ Impeller expulsion vanes reduce gland pressure and intrusion of high concentrations of solids in the gland area. Efficiency is maintained by minimising suction side recirculation.
√ Specially designed and shaped impeller vanes allow the handling of extraordinarily large particles. The unique casing design and sealing vanes prevent abrasive solids intrusion at the sealing faces.
√ The large, robust casing has been designed to reduce internal velocities resulting in minimum efficiency loss and improved casing wear life. The casing is made up of three components to reduce maintenance time and costs associated with a one piece design. (Except the 6/4 which has two components)
√ Tobee heavy-duty grease lubricated taper roller bearing assemblies are fitted as standard. A rigid large diameter shaft with reduced overhang minimises deflection and vibration under all conditions ensuring trouble free operation. Unusually high service factors enable the assembly to carry all radial and axial thrusts.
√ A unique “-10” (dash 10) end cover assembly comprising of V-seals, double piston rings and an external flinger with grease lubricated labyrinths are standard with all Sand pumps
√ Impeller expulsion vanes reduce gland pressure and intrusion of high concentrations of solids in the gland area. Efficiency is maintained by minimising suction side recirculation.
√ Specially designed and shaped impeller vanes allow the handling of extraordinarily large particles. The unique casing design and sealing vanes prevent abrasive solids intrusion at the sealing faces.
√ The large, robust casing has been designed to reduce internal velocities resulting in minimum efficiency loss and improved casing wear life. The casing is made up of three components to reduce maintenance time and costs associated with a one piece design. (Except the 6/4 which has two components)
√ Tobee heavy-duty grease lubricated taper roller bearing assemblies are fitted as standard. A rigid large diameter shaft with reduced overhang minimises deflection and vibration under all conditions ensuring trouble free operation. Unusually high service factors enable the assembly to carry all radial and axial thrusts.
√ A unique “-10” (dash 10) end cover assembly comprising of V-seals, double piston rings and an external flinger with grease lubricated labyrinths are standard with all Sand pumps
Tobee® Gravel Sand Pumps Shaft Seal Arrangement:
• Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.
• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.
Tobee® TG Gravel Sand Pumps Component Design

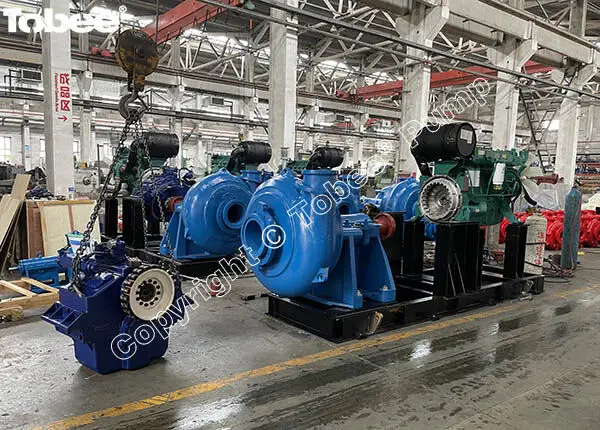

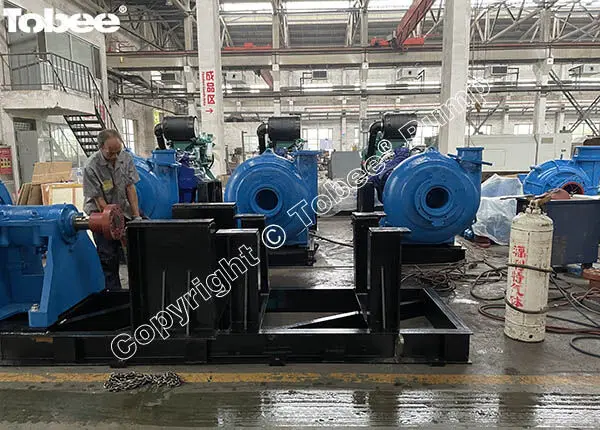

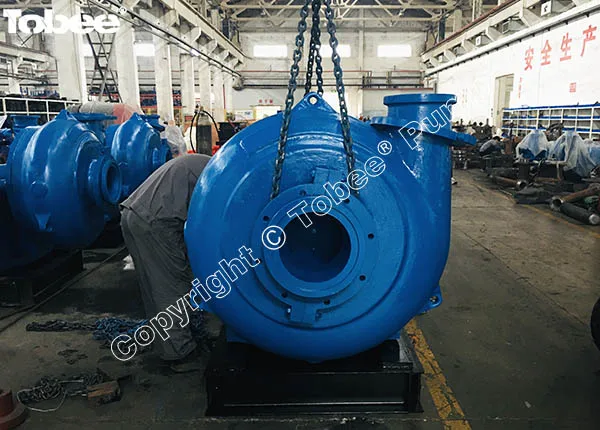

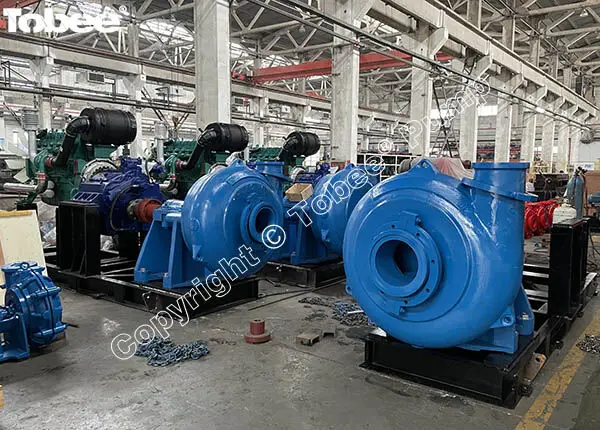

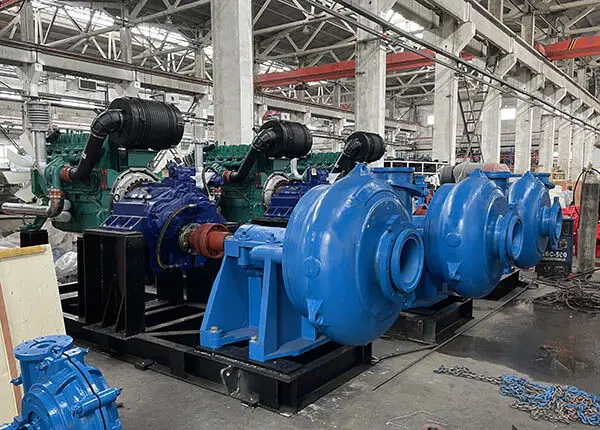

Customer Photos
Tobee® TG Gravel Sand Pumps On-site Applications
TG/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
Gravel Pumps | Sand pumps | Dredge pumps | Dredging pumps | Dredger pumps |
Recommend Products
Company Profile
Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Sand pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
Contact Us
Sales Engineer / International dept.
HEBEI TOBEE PUMP CO.,LIMITED Add: Hi-tech Development Zone | Shijiazhuang City | Hebei Province | China.
Email: Sales6@tobeepump.com | Mob: +86-13833117806 | Fax: +86 311-87221317 | Skype: Sales6_867
Web: www.tobeepump.com | Web: www.slurrypumpsupply.com | Web: www.tobee.cc | Web: www.hydroman.cn | Web: www.tobee.store
Похожие товары
Большой сухой насос для почвы 2RB810H27 7 5 кВт воздушный с высоким выдувом
Wordfik фирменный насос DVT3.100 DVT3.140 без масла ротационный вакуумный компрессор для печати и бумажной промышленности
Водяной насос для аквакультуры
48 492,98 ₽ - 49 595,09 ₽
Заводская продукция распродажа двигатель постоянного тока резиновый шламовый насос для медной промышленности
27 552,83 ₽ - 33 063,39 ₽

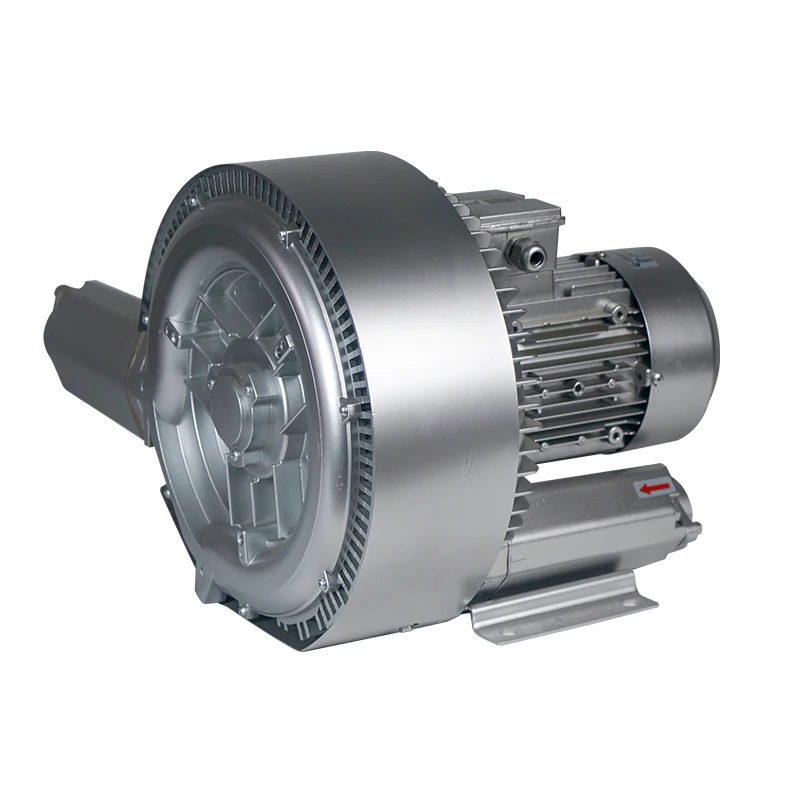

Подводные аэрационные аквариумы 2.2kw 3hp кольцевые воздуходувные насосы электрические воздуходувки с боковым каналом
25 348,60 ₽ - 25 899,66 ₽

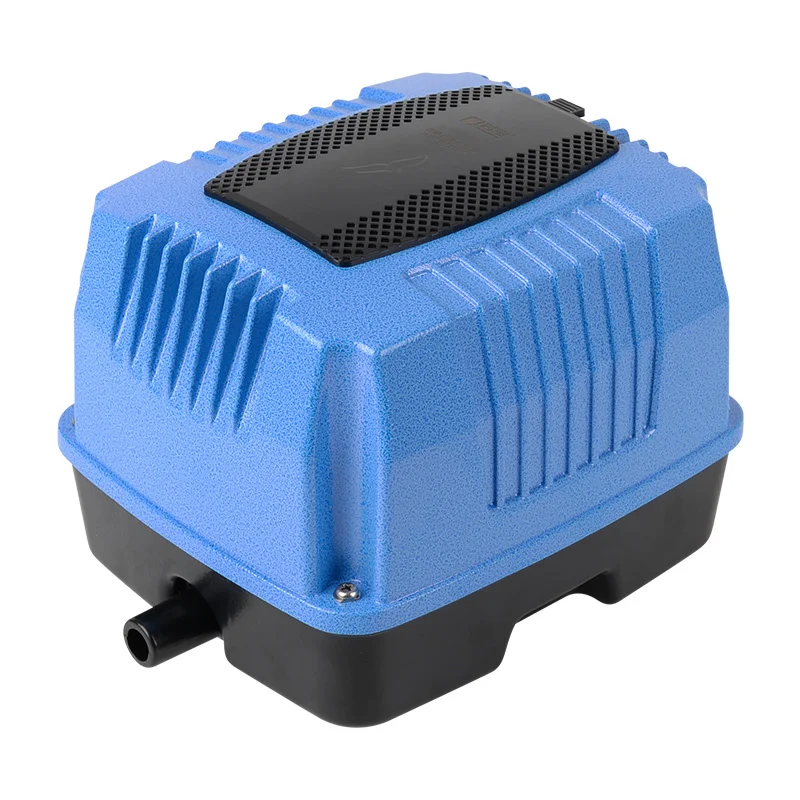

Пневматический насос пруда 85L/мин для аквакультуры очистки сточных вод 40 Вт септик аэратор Aquablue AP-80
