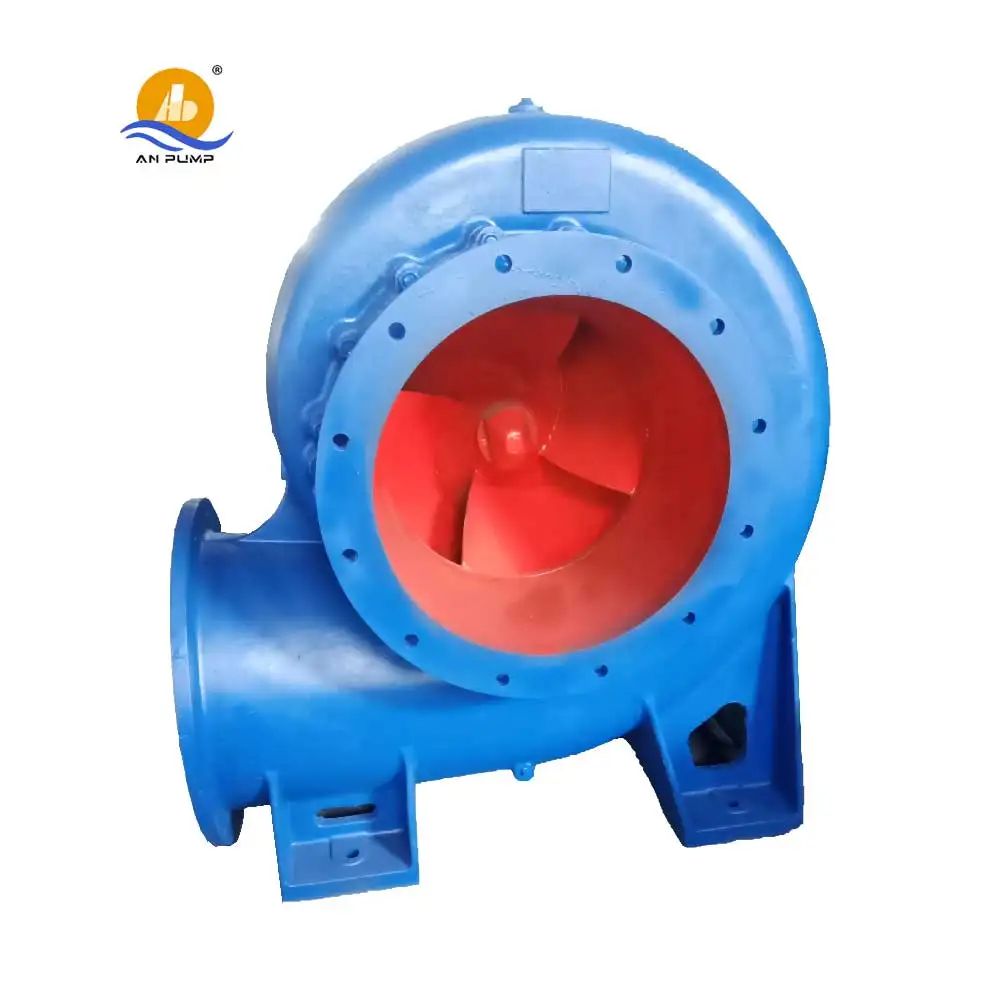

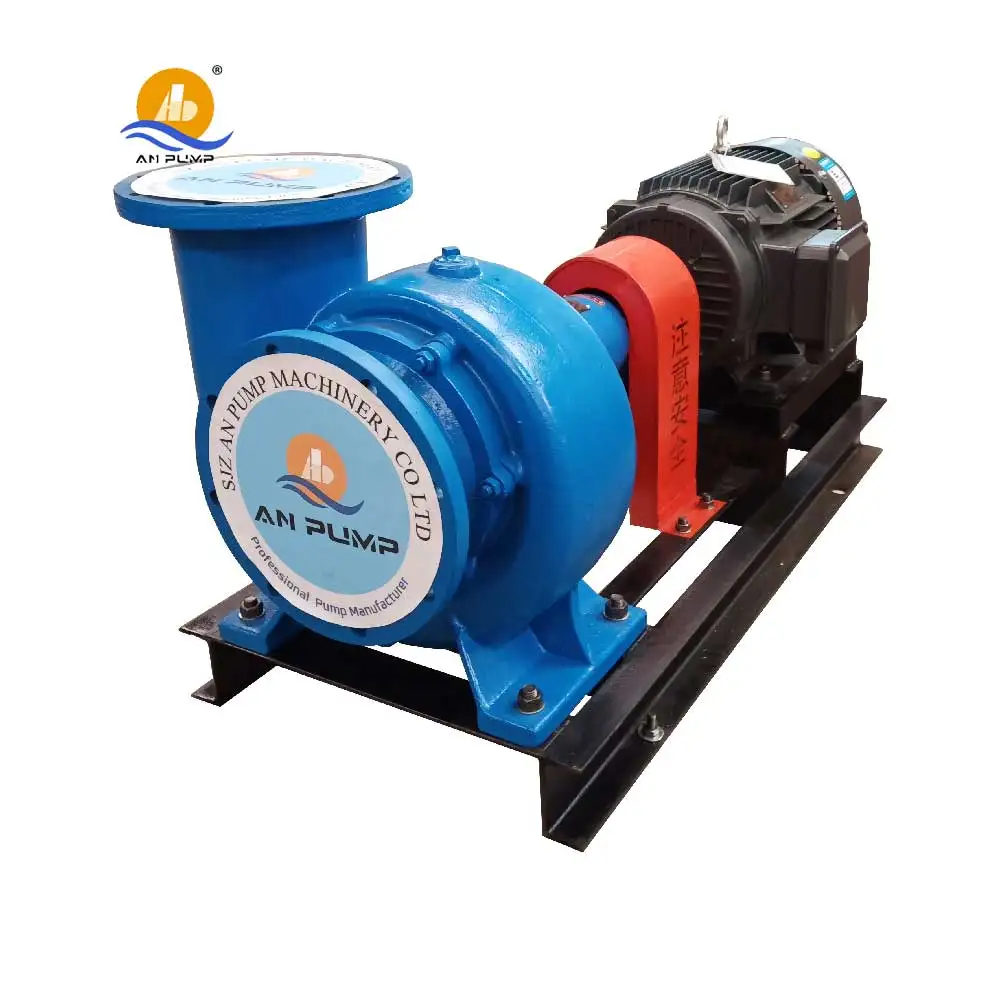

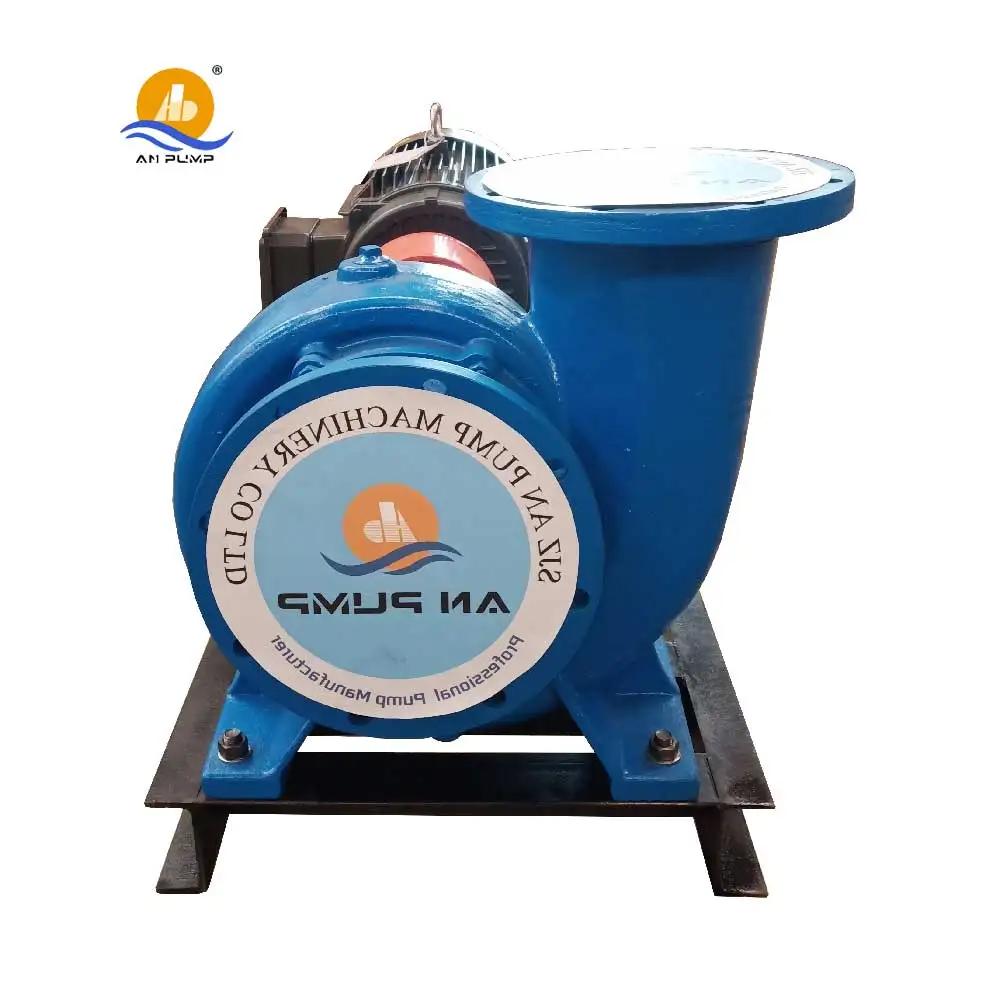

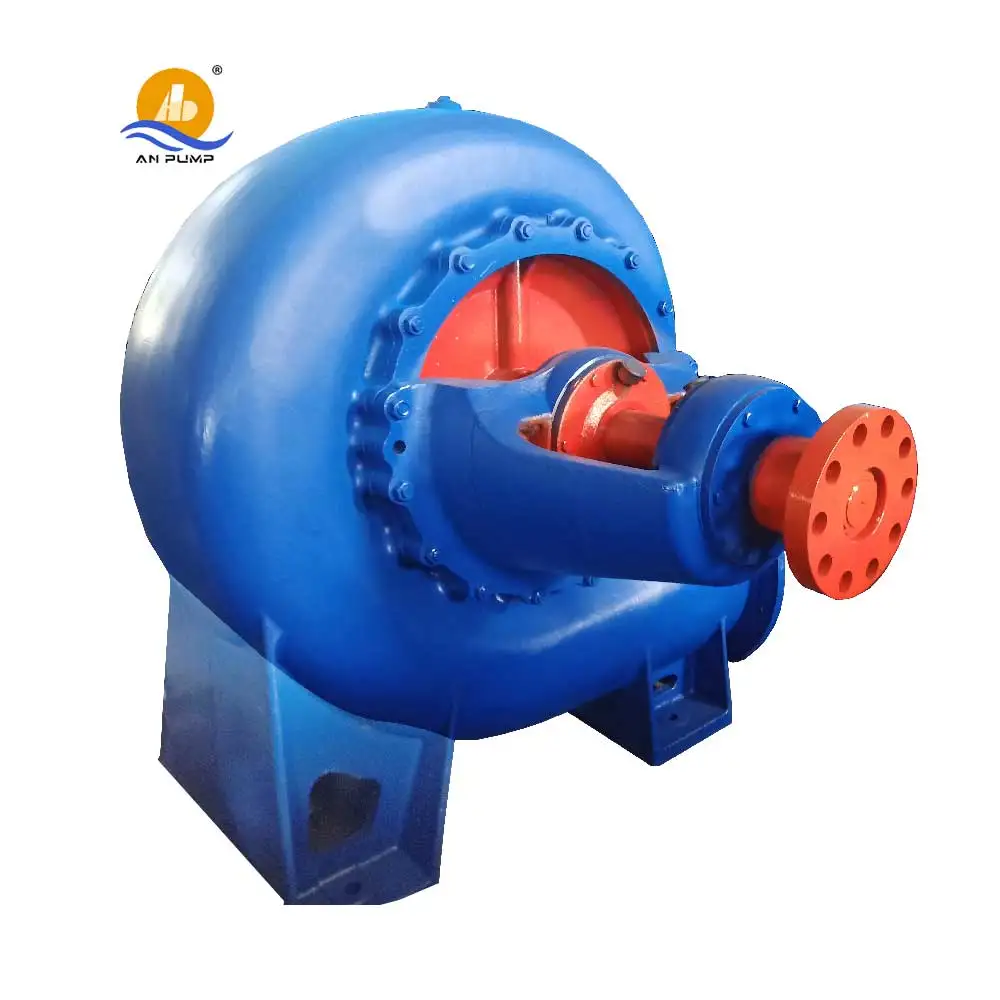

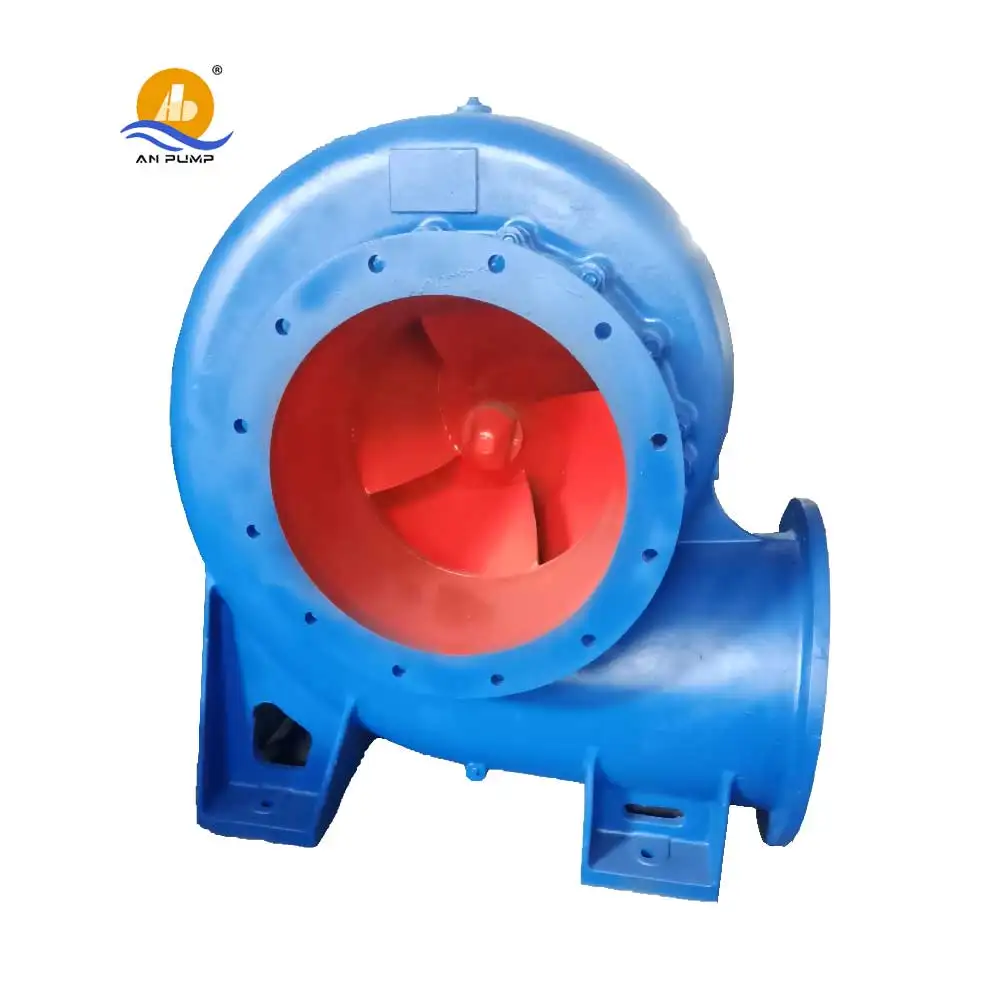

5000m3 axial and mixed flow volute centrifugal water pump for river irrigation

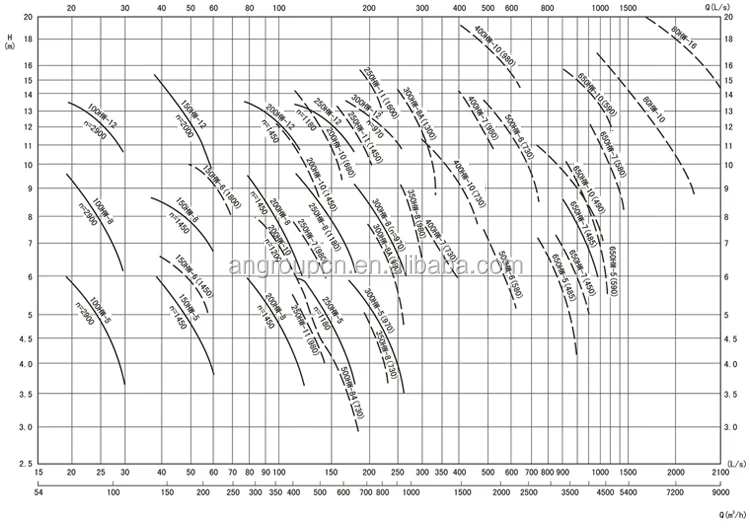

AHW mixed flow pump is a horizontal single stage single suction volute mixed flow pump and suitable for transporting pure water or the other liquid with both physical and chemical natures similar to those of water, with the temperature of the liquid to be transported not over 50℃. The pump's performance range: flow 130~9000m/h, head 3.5~22m.

This mixed flow pump is mainly used in steel mills, seawater transportation, agricultural irrigation, water conservancy, large flow water supply equipment, drainage, flood control, fire fighting, etc., pharmaceutical and chemical stainless steel materials for acid and alkaline liquid transportation.
Mixed Flow Pump Features:

Simple structure, reliable use, easy installation, high efficiency, small body, light weight.

AHW Mixed Flow Pump driving method:

Direct drive and variable speed drive. The common power engines are electric motor and diesel engine. When ordering, the model of the power engine should be specified so as to determine the specifications of the coupling or pulley.

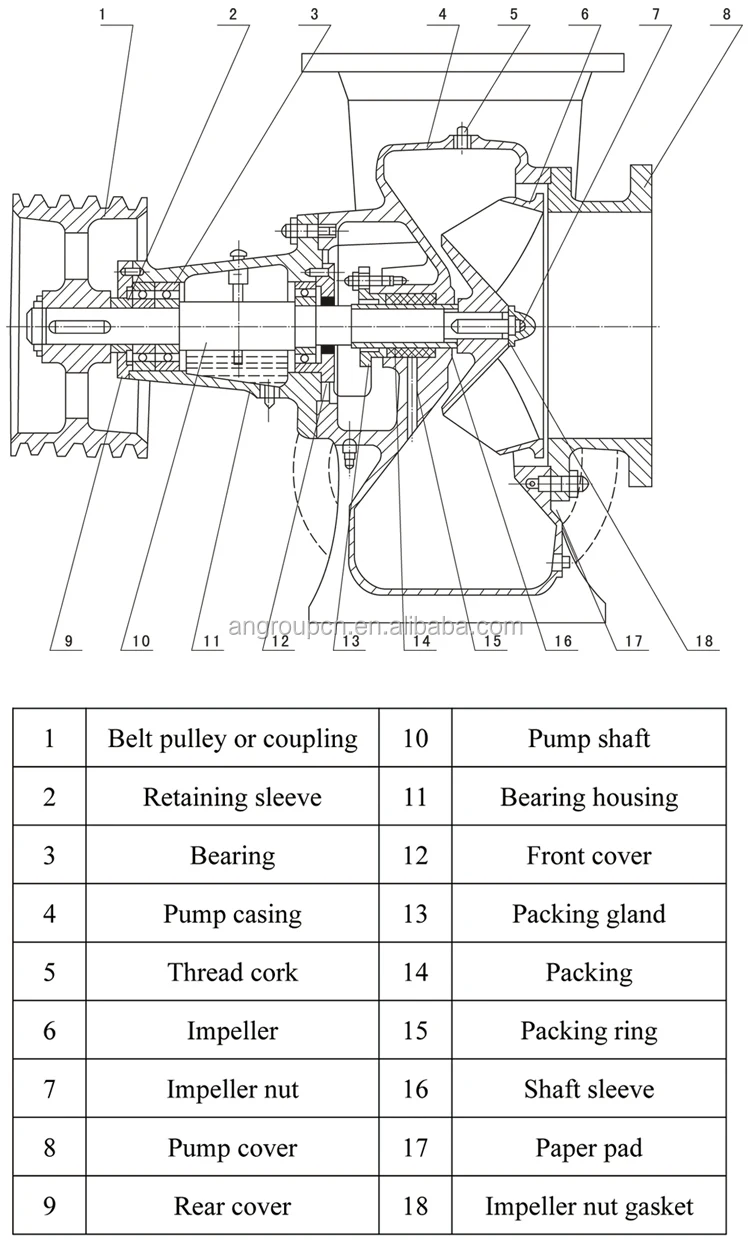

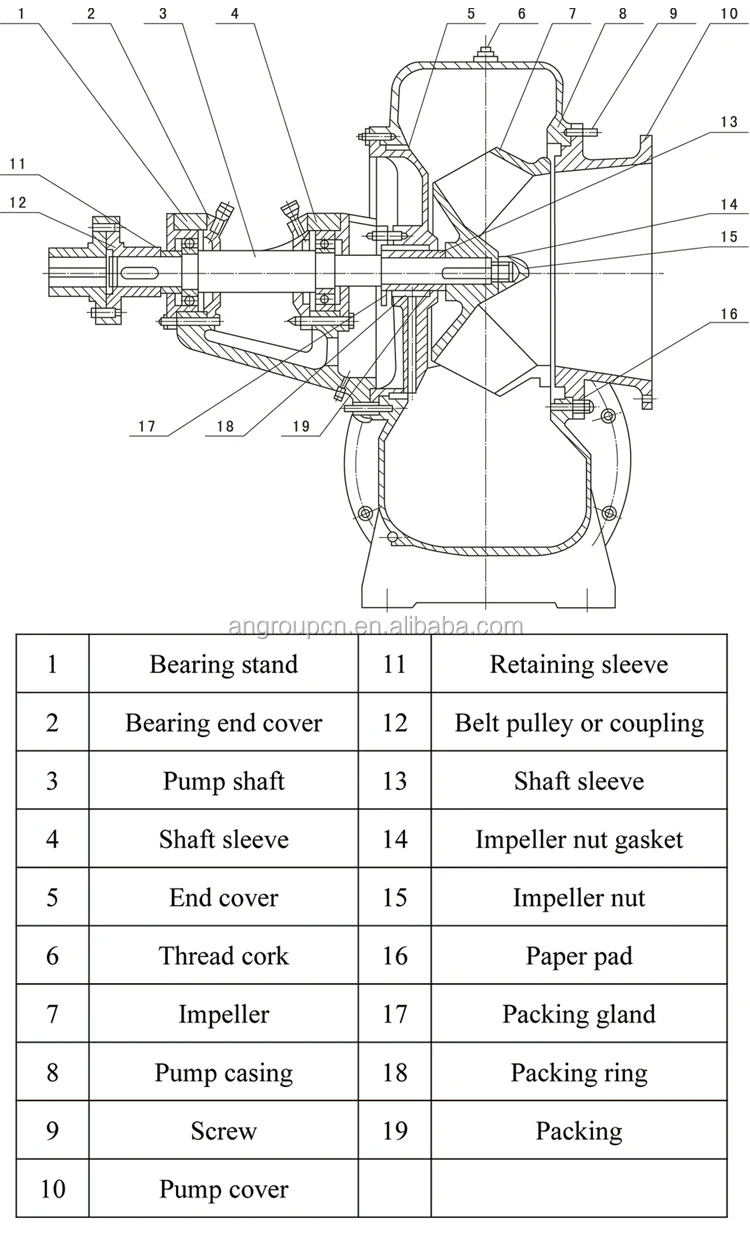

Construction

How can I make order online?
Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.

Can you produce the pump with my own brand?
Yes, we have been offering OEM service for 30 years.

Could we pay a visit to your factory?
Yes, you are always welcome to visit our factory.

Is there any after-sales service?
Yes, we can arrange our engineer to go to your application site for assembly or maintenance.

Can you produce goods with special specification?

First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
