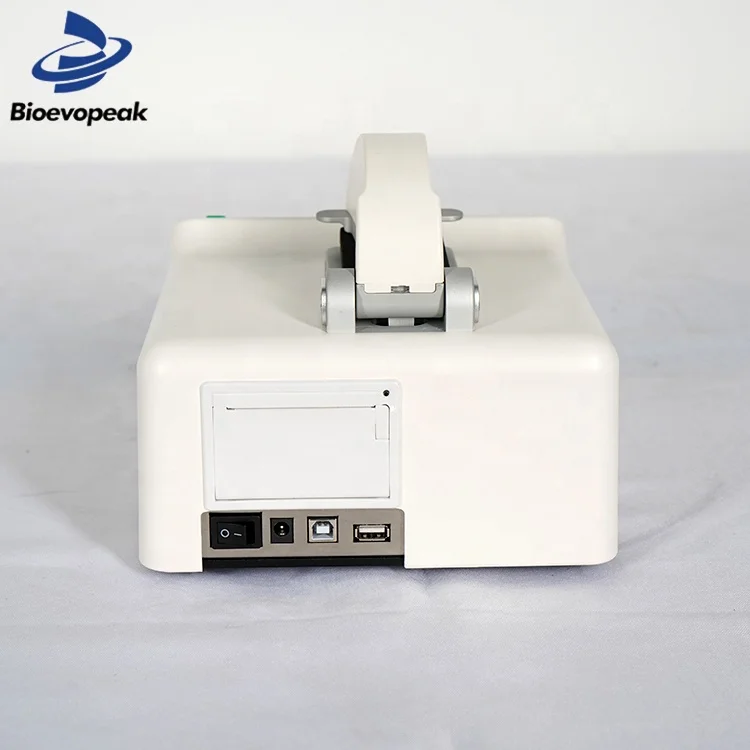

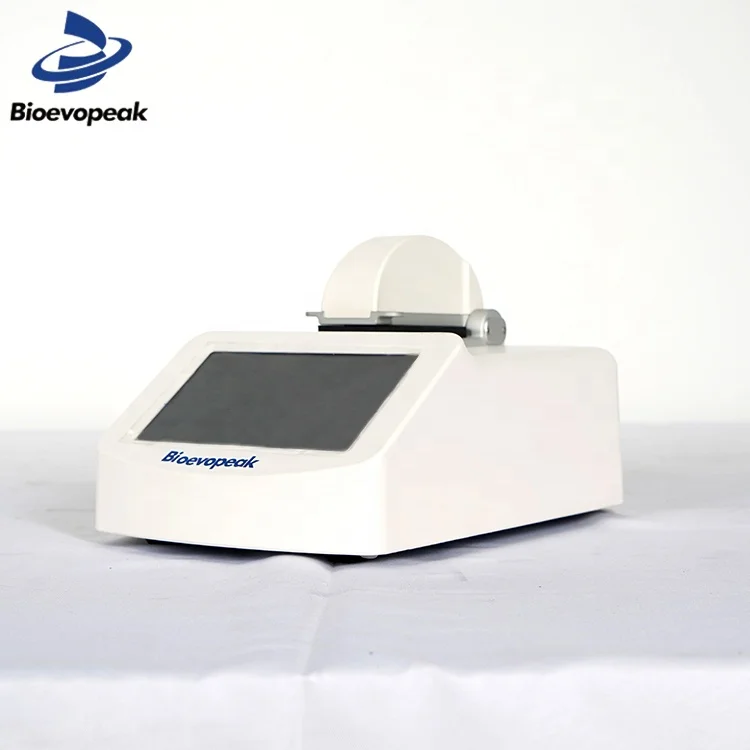

Bioevopeak Microvolume UV/VIS (Nano) Spectrophotometer/ Nucleic Acid Analyzer with Certified



Features


It is an instrument used to detect DNA, RNA purity, concentration, and protein concentration. It can quickly measure the concentration of nucleic acid. We can use two detection modes: pedestal and cuvette, and the amount of sample required for each measurement are only 0.5 to 2ul. Quick, accurate, and repeatable micro-measurement can be carried out without dilution. Please point the sample directly on the sample plate. No accessories such as cuvettes or capillaries are required. After the measurement, you can choose to wipe off the sample directly or use a pipette to recover the sample. The steps are simple and fast. At the same time, it can also detect the concentration of OD600 bacteria/microbes and other culture solutions.
1. 7-inch high-definition capacitive touch screen, no need for computer connection, a single machine can be tested
2. The long-life LED light source component is mainly used to detect the concentration and purity of nucleic acid. The concentration of nucleic acid is detected at 260nm. The purity of nucleic acid can be measured by using the ratio of 260/280
3. Detect the protein concentration at 280nm; SP-MUV2000 has an OD600 optical path detection system and a cuvette mode to facilitate the detection of the concentration of bacteria, microorganisms, and other culture solutions.
4. It has an extremely fast detection speed and can detect samples at any time. The measurement of each sample is completed in a short time.
5. Longer optical component life, intelligent light source control system, no need to preheat, the light source is only used for testing, which greatly extends the life of the instrument.





Specifications


















































































































































ModelSP-MUV2000SP-MUV2000F
Wavelength rangeFixed wavelength: 260nm, 280nm, 365nm (baseline)Fixed wavelength: 260nm, 280nm, 365nm (baseline)
Sample capacity0.5-2 μL0.5-2 μL
Optical path0.2nm, 1.0mm0. 2nm, 1.0mm
Light source/lifeUV LED/8000hUV LED/8000h
DetectorUV silicon photocellUV silicon photocell
Spectral bandwidth8nm8nm
AbsorbancePrecision0. 005Abs0. 005Abs
Accuracy±5ng or 2%±5ng or 2%
Range0. 2-100(Equivalent to 10mn optical path)0. 2-100(Equivalent to 10mn optical path)
Nucleic acid concentration range5-15000ng/ μL dsDNA5-15000ng/μL dsDNA
Detection time6 s6 s
OD600Absorbance range0-4. 000Abs0-4. 000Abs
Absorbance stability[0, 3) ≤0.5% ,     [3,4)≤ 1%[0, 3) ≤0.5%, [3,4)≤ 1%
Absorbance repeatability[0, 3) ≤0.5%,     [3,4)≤ 1%[0, 3) ≤0.5%, [3,4)≤ 1%
Absorbance accuracy[0, 3) ≤0.005A+1%,     [3,4)≤ 2%[0, 3) ≤0.005A+1%, [3,4)≤ 2%
Fluorescence detection/Excitation wavelength: 460nm, Emission wavelength: 525nm
Fluorescence




detection


Linearity/R2>0. 995
Repeatability/<1.5%
Stability/<1.5%
PrintBuilt-in thermal printerBuilt-in thermal printer
Data output methodUSBUSB
Material of sample baseQuartz optical fiber and high hard aluminumQuartz optical fiber and high hard aluminum
Input voltageVAC100-240V: VDC24V 2AVAC100-240V: VDC24V 2A
Power<15W (Standby: 5W)<15W (Standby:5W)
External dimensions208*290*180(WXDXH)208*290*180 (WXDXH)
Weight3. 2kg3. 2kg










Packaging & Shipping







Certificates







About us







FAQ





Q: How about quality of the goods?


A:


All the running products comply with CE standards.


Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.


Well-known third-party testing service available, such as SGS, BV, and TUV, etc.





Q: What are your pre- and after-sales services?


A:


Timely reply to pre-sales enquiries


Real-time update of manufacturing and shipment status


Contracted third-party maintenance company in over 60 countries


Assured availability of parts supply for 10 years at least





Q: Is OEM service available.


A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.





Q: How long is the lead time:


A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
