Horizontal Centrifugal Slurry Pump Description

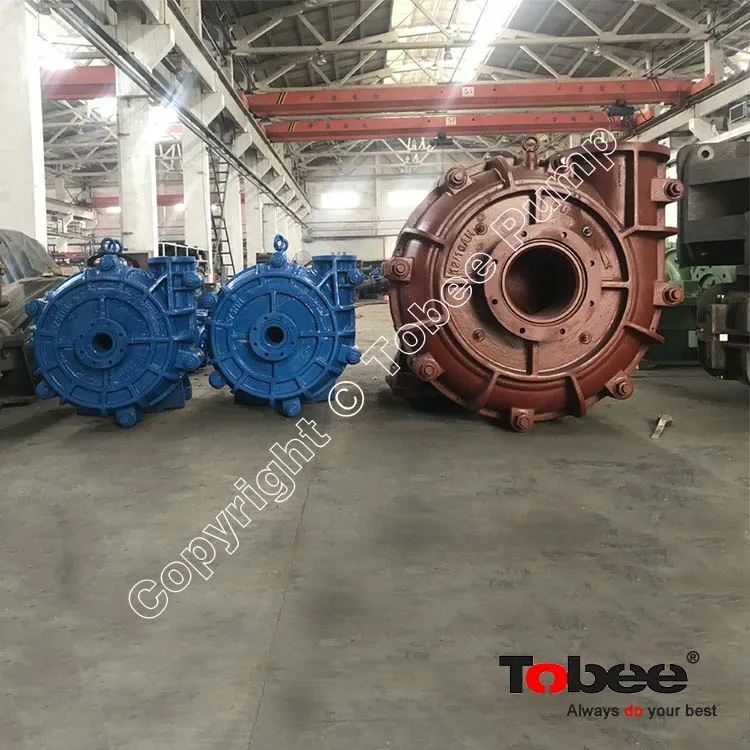

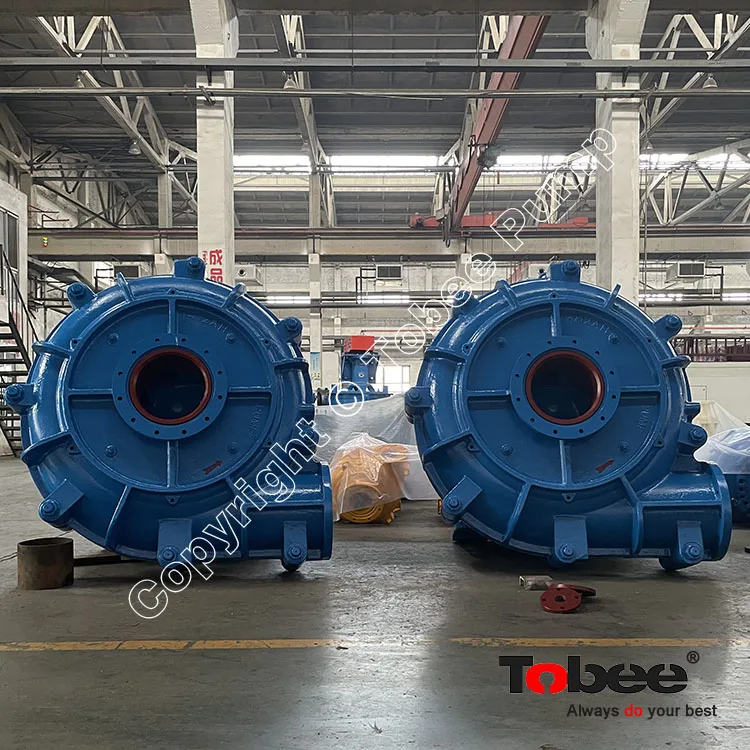

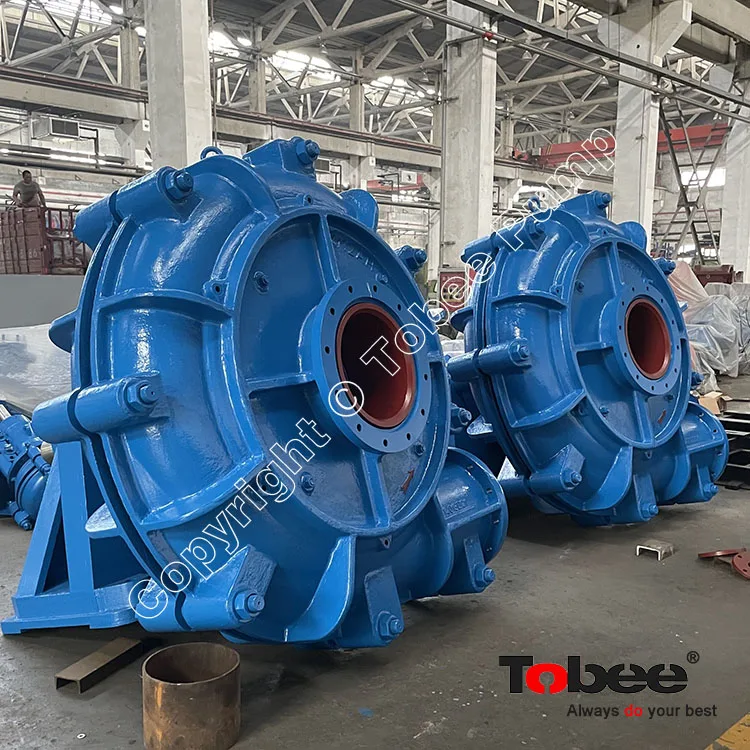

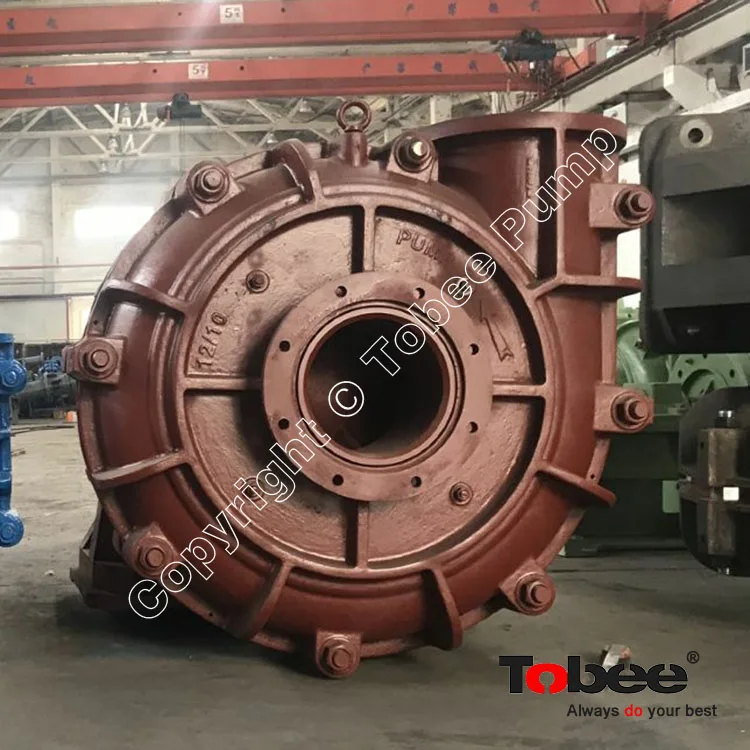

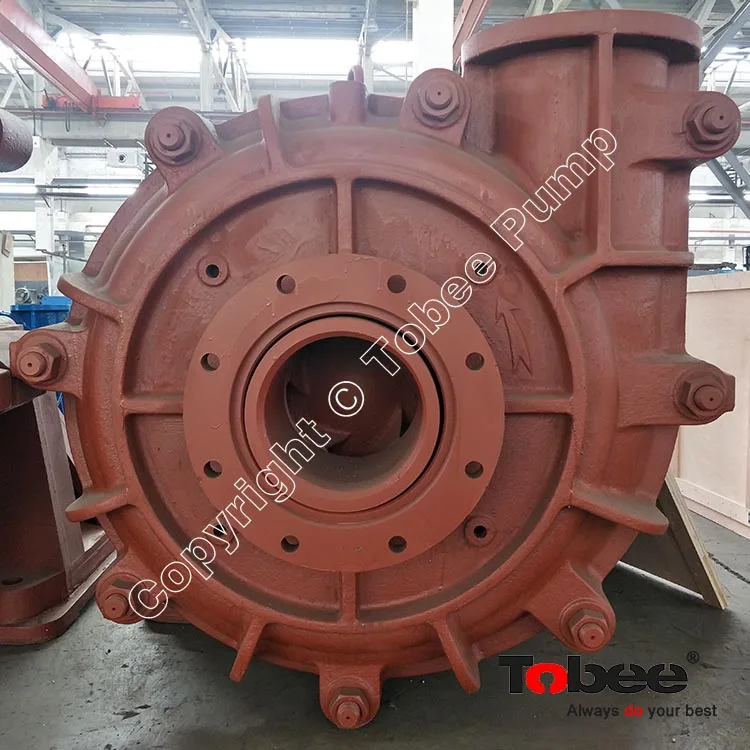

Tobee® Heavy-Duty Centrifugal Slurry Pump
Tobee® Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wet end parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Especially for handling high abrasive, high density slurry.
Size: 1" to 18"
Capacity: 3.6-5400 m3/h
Head: 6-125 m
Max Power: 1200kw
Handing solids: 0-130mm
Concentration: 0%-70%
Seal Arrangement: Gland Packing Seal, Expeller Seal, Mechanical Seal
Materials: High chrome alloy pump, Rubber pump, Polyurethane pump , Ceramic pump, Stainless steel pump, etc.
Usage: Mining, Metallurgy, Electric Factory, Chemical Industry, Quarrying, Sand and Gravel,
Fertilizers, De-watering, Recycling, etc.
Related Slurry Pumps and Pump Spares Parts
Dewatering Slurry Pump Design Features
√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throat bush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throat bush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
Tobee® Heavy-Duty Slurry Sludge Pump Transmission Options:
CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.
ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors.
Tobee® Heavy-Duty Slurry Solid Pump Shaft Seal Arrangement:
• Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.
• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.
Slurry Pump on-site Applications from Customer
The slow running speeds of the Tobee Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion resistant
alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
Such as Copper Mine, Gold Mine, Silver Mine, Tungsten Mine, Coal Washing, Iron Ore dressing, Silica Sand plant, etc.
Recommend Products
Heavy-duty pump | Lined Pump | Metal-lined pump | Rubber-lined pump | Double-casing Pump |
Gravel Sand Pump | Un-lined pump | Ni-hard pump | Gravel Pump | Single-casing pump |
Company Profile
Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, providing wet end pars, shaft seal parts, and drive end parts, According to different working conditions, slurry pumps can be used as minerals process pump, Booster sand pump, Gypsum slurry pump, Classifying Cyclone Feed Pump, Dewatering Screen Pump, Thickener Area Sump Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, DMC Feed Pump, Thickener U/F Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Fines Area Sump Pump, Transfer to feedprep Pump, Metboom Return Pump, Slime Pond Sump Pump, Thickener Underflow Pump, Thickener Tailings Pump, Thickener Underflow Pump, Magnetite Sump Slurry Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Dilute Medium Slurry Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Correct Medium Slurry Pump, Mixing tank slurry Pump, Centrifuge Effl. Transfer Slurry Pump, Fines Refuse Effl. Transfer Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, BPF Filtrate Effl. Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.
FAQ
Q1: Could you share a brief introduction of your factory？
A: We are a professional slurry pump manufacturer in Northern China, with more than 30 years of considerable experience in pumping solutions.
A: Horizontal slurry pumps, Vertical slurry Pumps, Submersible slurry pumps
Q3: What information I need to offer for a quotation?
A: Basic Info: Pump Flow Rate Q: ____m3/h ; Pump Head H: ____m ; Pumping Liquid:____ ;
Further info: Voltage ____V ; Frequency ____Hz., PH Value:_____?
Further info: Voltage ____V ; Frequency ____Hz., PH Value:_____?
Q4: How long is the lead time?
A: Generally Speaking 7-15 working days for normal standard slurry pumps.
Q5: What is the payment terms?
A: TT, West Union, Visa.
Q6: Is OEM Service available ?
Q6: Is OEM Service available ?
A:Yes, We supply OEM Service with drawing you shared.
Contact Us
Sales Engineer / International dept.
HEBEI TOBEE PUMP CO.,LIMITED Add: Hi-tech Development Zone | Shijiazhuang City | Hebei Province | China.
Email: Sales6@tobeepump.com | Mob/Whatsapp: +86-13833117806 | Fax: +86 311-87221317 | Skype: Sales6_867
Web: www.tobeepump.com | Web: www.slurrypumpsupply.com | Web: www.tobee.cc | Web: www.hydroman.cn | Web: www.tobee.store
