2024 высокоэффективный чугунный центробежный двойной всасывающий насос одноступенчатый водяной насос
86 748,72 ₽ - 108 435,90 ₽

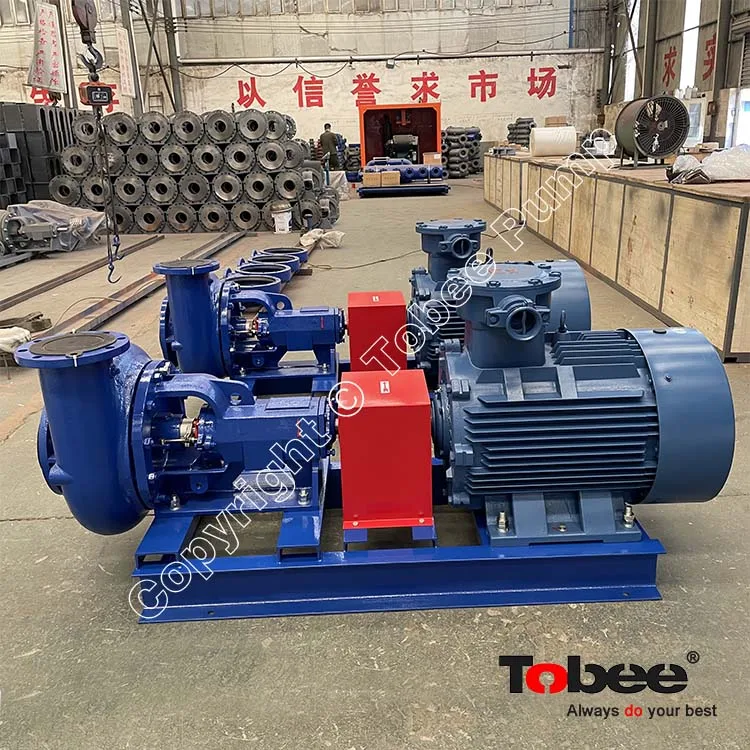

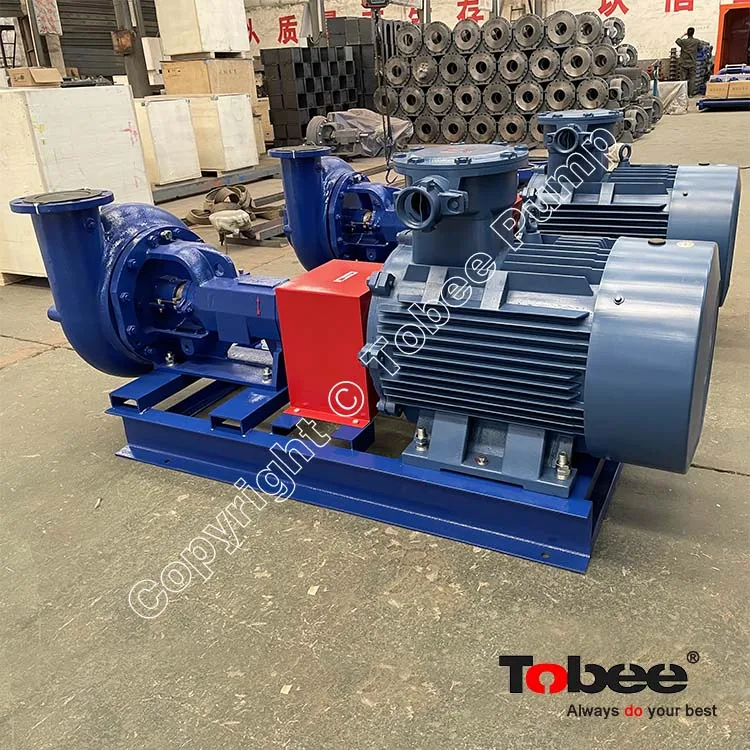

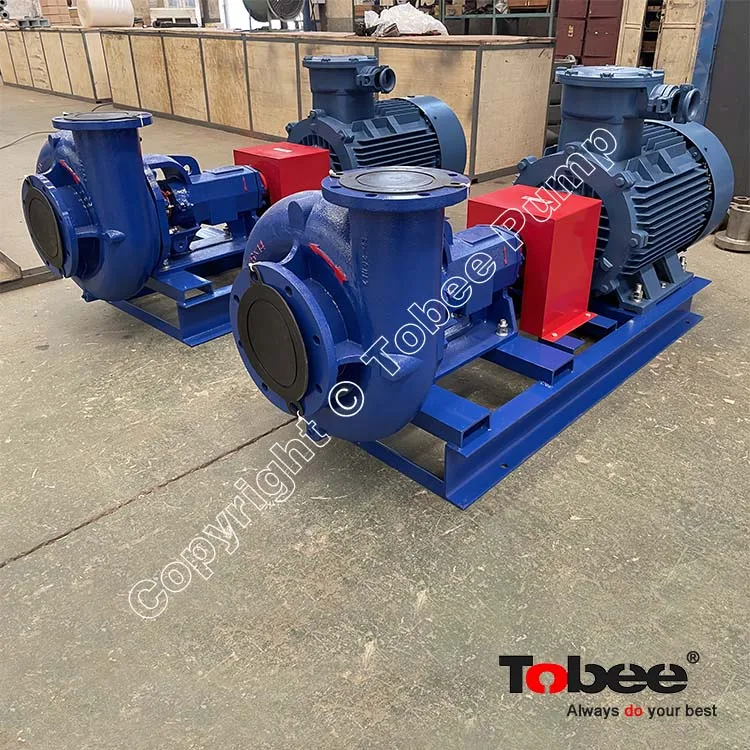

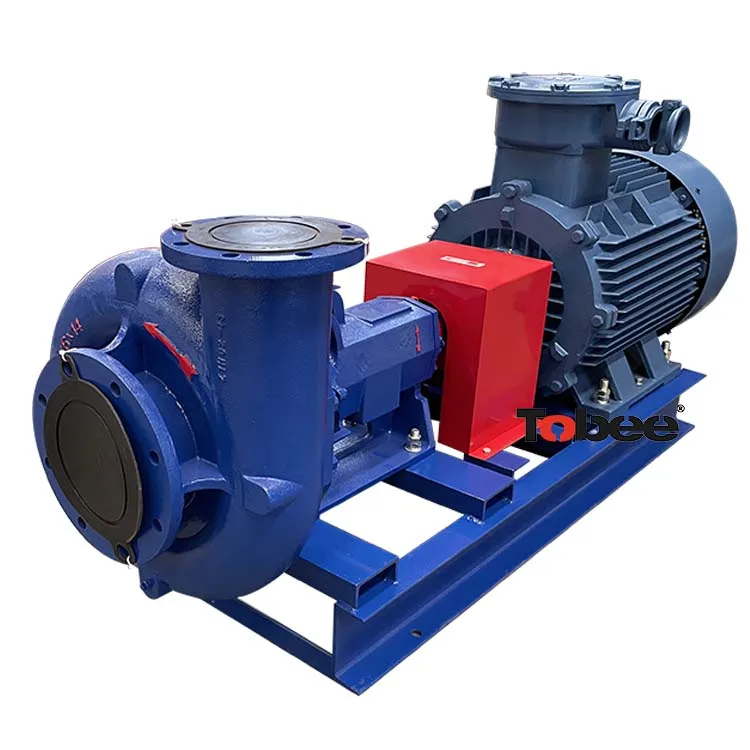

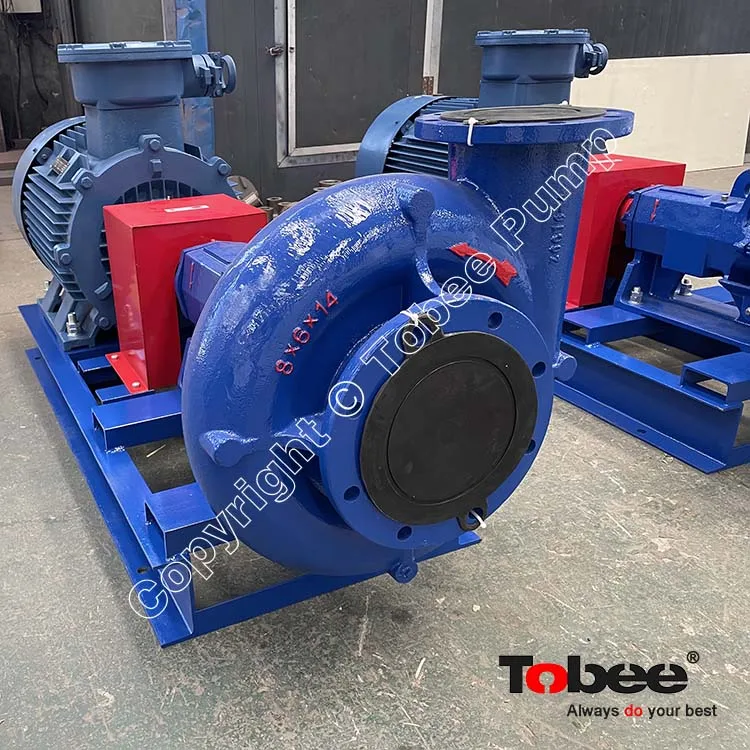

Центробежный насос Tobee смешивающая грязь размер 8x6x14
- Категория: >>>
- Поставщик: Hebei Tobee Pump Co. Ltd.
Сохранить в закладки 11000003767346:
Описание и отзывы
Характеристики
Product Overview
Description

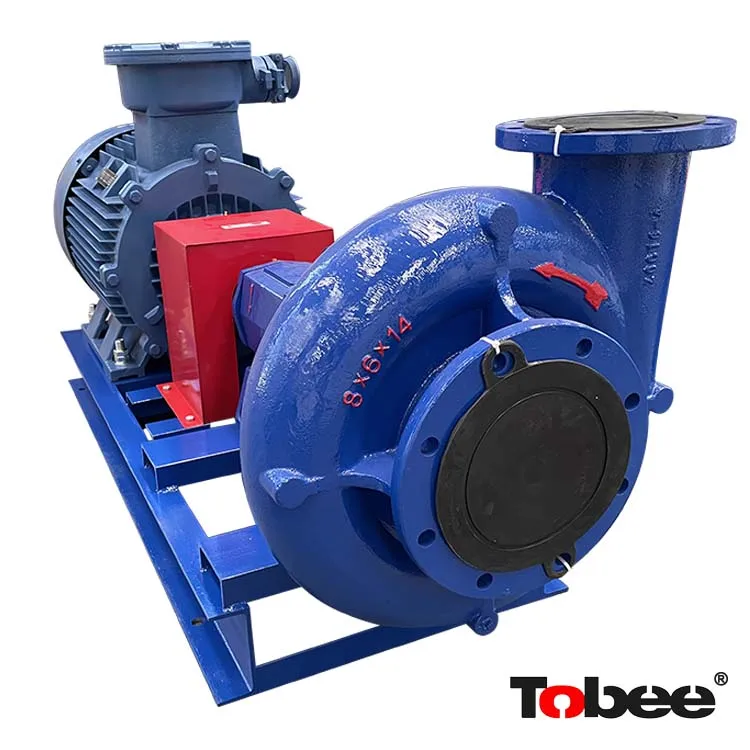

8x6x14 Mission Magnum style Centrifugal Pump with 14 inch impeller 19116-A0-30 and w/Mechanical seal.
Tobee® Mission Magnum I Pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3×2×13 through 8×6×14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications. The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome™, hard iron,stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Also available, Horizontal and Vertical Close Coupled Magnum.
Products Description
Model | Magnum 8X6X14 Pump |
Capacity | 260 m3/h |
Head | 28-33 m |
NPSH | 4.5 m |
Speed | 1450/1750 rpm |
Power | 75 kW |
Pump Desigh Features
• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing
Mission Magnum Pump 4x3x13
Mission Magnum Pump 8x6x14
Sandmaster Pump 4x3x13
Pump Structure
Mission Pump Sizes
Sandman® offers 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14 2500 Supreme Centrifugal Pumps.
Applications
According to the different working conditions, Mission centrifugal pumps can be used as Frac discharge pump, Frac suction pump, Oil drilling centrifugal pump, electric centrifugal transfer pump, Skid mounted mixing pump, Transfer pump, Trash pump, Grinding pump, Circulating mud pump, Centrifugal sludge pump, Drilling fluid centrifugal pump, Horizontal directional drilling pump, Denver pump, Filling pump, Feeding pump, etc
The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
Company Introduction
Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Sand pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
Customer Evaluation
All the products manufactured by Tobee® Pump are well received by our customers and have gained high appraisal from the society noting certain qualities of our products like energy saving, overall efficiency, stable operation and long service life. Some of our customers refer to Tobee® Pumps simply as "Permanent Pumps" because of our quality and defect-free manufacturing ability.
FAQ:
Q: Are you a factory or trading company?
A:We are a big manufacturing pump factory with 35 years experience.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China. You can fly to Shijiazhuang airport directly. All our
clients, from home or abroad, are warmly welcome to visit us!
Q: What is the material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber, Polyurethane, Cast iron, SS304, SS316, CD4MCu, Duplex SS, Bronze etc. We can also choose material as customers' requirement.
Q: Can I get some technical support?
A: Yes, of course, we will continually provide full support by 7x24.
Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has 15~20QC.
A:We are a big manufacturing pump factory with 35 years experience.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China. You can fly to Shijiazhuang airport directly. All our
clients, from home or abroad, are warmly welcome to visit us!
Q: What is the material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber, Polyurethane, Cast iron, SS304, SS316, CD4MCu, Duplex SS, Bronze etc. We can also choose material as customers' requirement.
Q: Can I get some technical support?
A: Yes, of course, we will continually provide full support by 7x24.
Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has 15~20QC.
Contact Us
Email: Sales3@tobeepump.com
Skype: TobeePump
Mob: +86-18000656103
www.tobeepump.com
www.slurrypumpsupply.com
www.tobee.cc
www.hydroman.cn
www.tobee.store
Fax: +86 311-87221317
Skype: TobeePump
Mob: +86-18000656103
www.tobeepump.com
www.slurrypumpsupply.com
www.tobee.cc
www.hydroman.cn
www.tobee.store
Fax: +86 311-87221317
