Company Introduction
HEBEI TUBO Machinery CO.LTD
Hebei Tubo Machinery Co.,LTD is a high-tech enterprise registered in Shijiazhuang City. Hebei Province. It specialized in Developing and Manufacturing for the complete set of equipments and related technical service of High Frequency Welded Pipe Production Line and Large-size Square Tube Cold Forming Line .
HEBEI TUBO MACHINERY CO.
With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 15 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years.
TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.
TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.

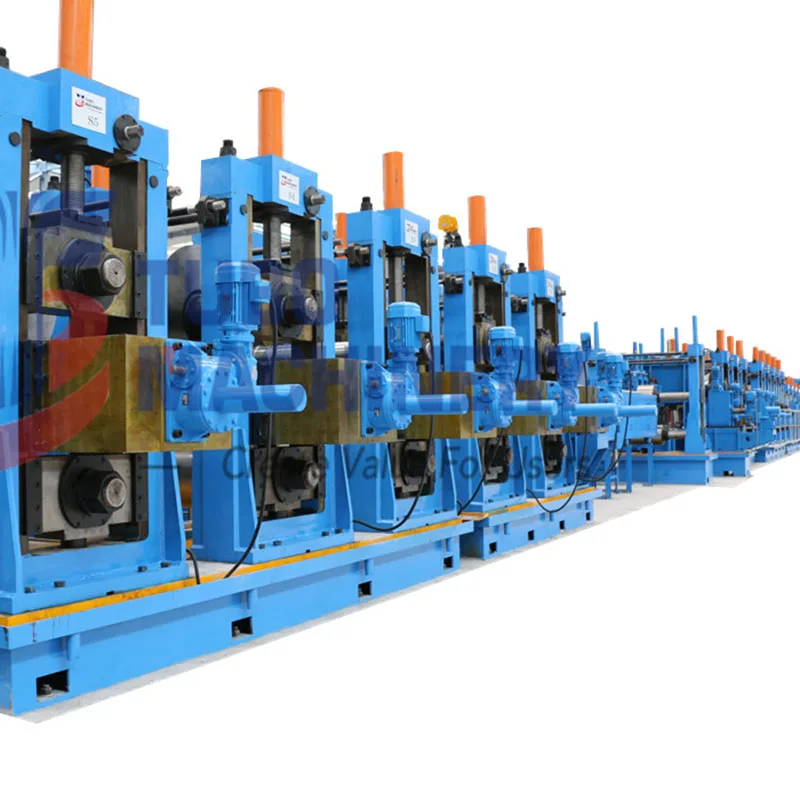

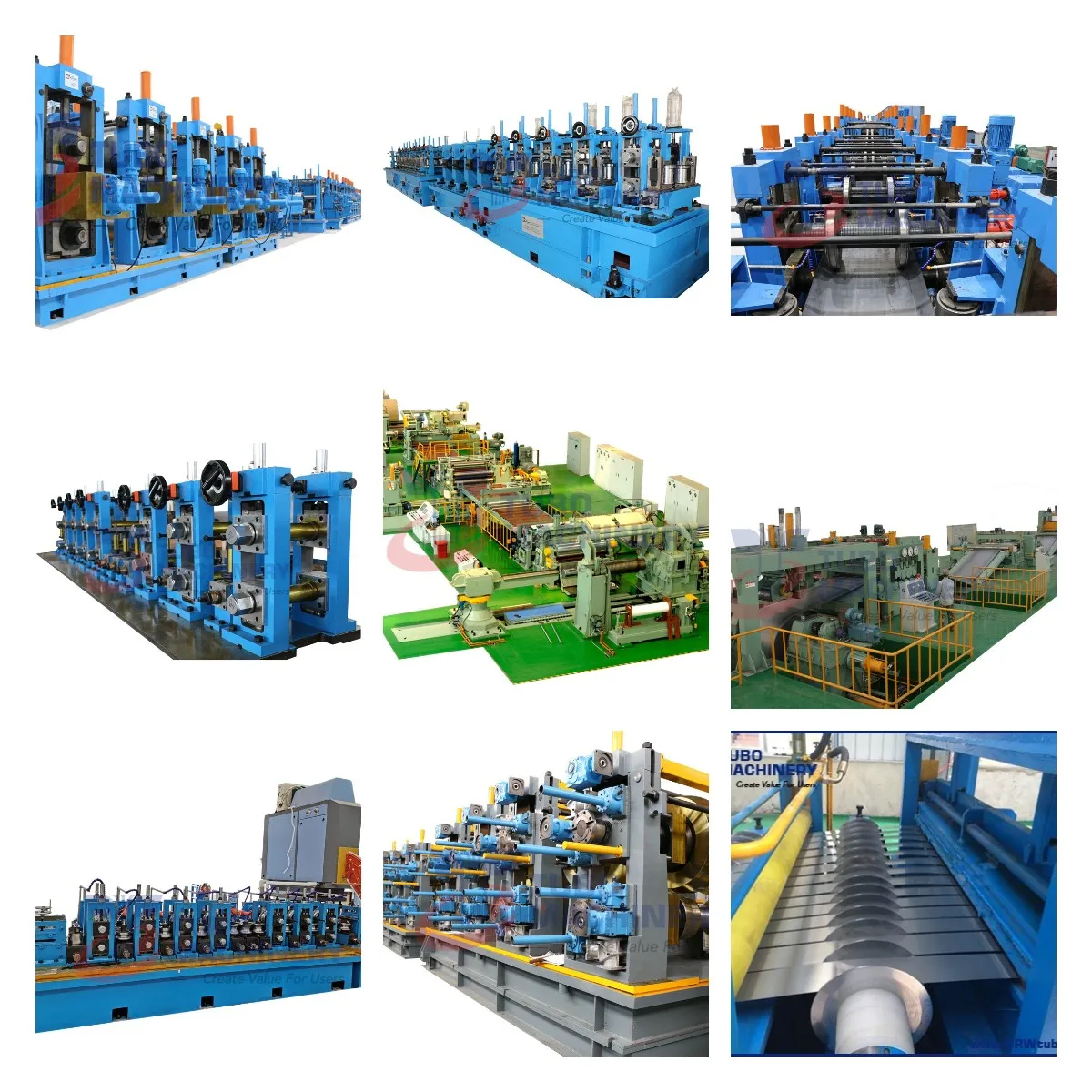

Product Overview
Factory direct selling Automotive Small Water pipes tube production line
This equipment is specially used for producing high-frequency straight seam welded pipe and corresponding square pipe andspecial-shaped pipe. The composition of equipment is from uncoiler to fixed length cutting saw .Rolling speed can be ajustedcorrespondingly within suitable range of pipe diameter and wall thickness.
We can also customized according to customer’s requirements
Technology Flow Chart
{Steel Coil}→→ Double-head uncoiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→ Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out Table & Packing Device.
Modle List of Tube Mill
Model | Round Pipe | Square & Rectangular Pipe | Speed (m/min) | ||||
Dia.(mm) | Thickness(mm) | Dia.(mm) | Thickness(mm) | (m/min) | |||
ERW32 | 10-38mm | 0.5-2.0mm | 10×10~30×30mm | 0.5~1.6mm | Max.120m | ||
ERW50 | 15-51mm | 0.5-2.5mm | 15×15~40×40mm | 0.5~2.0mm | Max.120m | ||
ERW60 | 16-60.3mm | 0.5-3.0mm | 15×15~50×50mm | 0.5~2.5mm | Max.120m | ||
ERW76 | 20-76mm | 1.0-4.0mm | 20×20~60×60mm | 1.0~3.0mm | Max.120m | ||
ERW89 | 25-89mm | 1.0-4.5mm | 20×20~70×70mm | 1.0~3.5mm | Max.120m | ||
ERW114 | 38-114mm | 1.0-5.0mm | 40×40~90×90mm | 1.0~4.0mm | Max.80m | ||
ERW165 | 60-165mm | 2.0-6.0mm | 50×50~150×150mm | 2.0~5.0mm | Max.60m | ||
ERW219 | 89-219mm | 3.0-8.0mm | 80×80~200×200mm | 3.0~8.0mm | Max.50m | ||
ERW273 | 114-273mm | 4.0-10.0mm | 100×100~250×250mm | 4.0~10.0mm | Max.40m | ||
ERW325 | 165-325mm | 4.0-12.7mm | 100×100~300×300mm | 4.0~12.0mm | Max.30m | ||
ERW426 | 219-426mm | 5.0-14.0mm | 150×150~350×350mm | 5.0~14.0mm | Max.30m | ||
ERW508 | 219-508mm | 6.0-16.0mm | 200×200~400×400mm | 6.0~16.0mm | Max.25m | ||
ERW610 | 325-610mm | 6.0-18.0mm | 250×250~500×500mm | 6.0~18.0mm | Max.25m | ||
ERW720 | 355-720mm | 6.0-20.0mm | 300×300~600×600mm | 6.0~20.0mm | Max.25m | ||
Specification | ||||||||
Coil Material | Low Carbon Steel, Q235, Q195 | |||||||
Width | 35~120mm | |||||||
Thickness | 0.5~2.0mm | |||||||
Coil ID | φ450-φ520mm | |||||||
Coil OD | Max φ1200mm | |||||||
Coil Weight | 1.0~1.5 Tons | |||||||
Round Pipe | 8~32mm | |||||||
Square & Rectangular Pipe | 8×8~25×25mm； 5×10~20×30mm | |||||||
Wall Thickness | 0.8~3mm (Round Pipe) 0.8~2.5mm(Square Pipe) | |||||||
Speed | Max. 120m/min | |||||||
Pipe Length | 3~12m | |||||||
Workshop Condition | Dynamic Power | 380V, 3-phase, 50Hz (depends on local facilities) | ||||||
Control Power | 220V, single-phase, 50 Hz | |||||||
Size of the whole line | 50m X 5m （L*W） | |||||||
Product Advantage :
1.High Precision
2.High Production efficiency,Line speed can be up to 120m/min
3.High Strength,The machine works stably at a high speed, which improves product quality
4.High Good product rate, reach to 96.5%
5.Low wastage, Low unit wastage and low production cost
4.High Good product rate, reach to 96.5%
5.Low wastage, Low unit wastage and low production cost
Pipe Shape
Round, Square ,Rectangle, Oval and Shaped Pipe.
Round, Square ,Rectangle, Oval and Shaped Pipe.
Pipe Application
1.Oil & Gas Pipes
2.Wire and Cable Protection Pipe
3.Heating Pipe
4.Structural Support Steel Pipe
5.Low-pressure Process Pipeline
6.Industrial Steel Pipes
7. Low Pressure Fire Fighting Pipeline 8. Decoration Pipe
9. Sewage Pipes
10.Water Pipe
11.Steel Scaffolding Pipe
12. Building pip
2.Wire and Cable Protection Pipe
3.Heating Pipe
4.Structural Support Steel Pipe
5.Low-pressure Process Pipeline
6.Industrial Steel Pipes
7. Low Pressure Fire Fighting Pipeline 8. Decoration Pipe
9. Sewage Pipes
10.Water Pipe
11.Steel Scaffolding Pipe
12. Building pip
Products Description
Step 1 :Uncoiler
Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum,brake.
Three types for your choice:
1. Hydraulic uncoiler
2. Mechanical uncoiler
3.Hydraulic Single-Mandrel Uncoiler
3.Hydraulic Single-Mandrel Uncoiler
Step 2 : Shearing butt welding
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.
Three type for your choice :
1. Pneumatic shear & Automatic Welding.
2. Hydraulic Shear & Automatic Welding .
3.HYDRAULIC SHEAR and BUTT WELDING
3.HYDRAULIC SHEAR and BUTT WELDING
Step 3：Accumulator
Function: storage strip to keep continue production.
Two Types for your choice:
1. Horizontal
2.Vertical
Advantage: Horizontal type can be larger storage.
Vertical type is much cheap and small space occupied.
Step 4 : Forming Section.
Function: forming the tube from strip.
Advantage:
1.Advanced forming technical
2.One-stage molding platform
3.Reliable quality gear box
4.Siemens motor
1.Advanced forming technical
2.One-stage molding platform
3.Reliable quality gear box
4.Siemens motor
Step 5: High Frequency Welding
Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder.
Our advantage: We choose the top grade brands in china .
Two type for your choice .
1. Water-water cooling System
2. Air- Water Cooling System
Our advantage: We choose the top grade brands in china .
Step 6: Sizing Section
Function: sizing the tube to precise size
Advantage:
1.Advanced sizing technical.
2.One-stage molding platform.
3.Reliable quality gear box and Siemens Beide motor.
4.High precision, low error of the pipe size.
Advantage:
1.Advanced sizing technical.
2.One-stage molding platform.
3.Reliable quality gear box and Siemens Beide motor.
4.High precision, low error of the pipe size.
Step 7: Cutting Saw
Function: cutting the tube mill line tube to right length.
Two type for your Choice :
1. Computer Flying Saw.
2. Flying Cold Saw
Computer Fly saw: easy to operation, low investment.
Flying Cold saw: no noise, no burr cutting precision and cross section.
Two type for your Choice :
1. Computer Flying Saw.
2. Flying Cold Saw
Computer Fly saw: easy to operation, low investment.
Flying Cold saw: no noise, no burr cutting precision and cross section.
Step 8: Run Out Table & Stacking Machine
Function: For output and packaging of products
2 Types:
Two type for your Choice :
1.Automatic
2.Manually
Optional Item - Roller
each size need to replace different roller .
Material： Cr12
Hardness of heat treatment: HRC 58-62°;
Squeeze Roll：Material H13，
Hardness of heat treatment: HRC50-53°
Tested with Ultrasonic Tester for each roller.
Hardness of heat treatment: HRC 58-62°;
Squeeze Roll：Material H13，
Hardness of heat treatment: HRC50-53°
Tested with Ultrasonic Tester for each roller.
Optional Item - Automatic Stacking Machine
1. Electromagnetic Model;
2. Tube Length: 6 - 8m
3.With the Soluble Oil Drainage System;
4. Package Storage Station (3 Packages)
2. Tube Length: 6 - 8m
3.With the Soluble Oil Drainage System;
4. Package Storage Station (3 Packages)

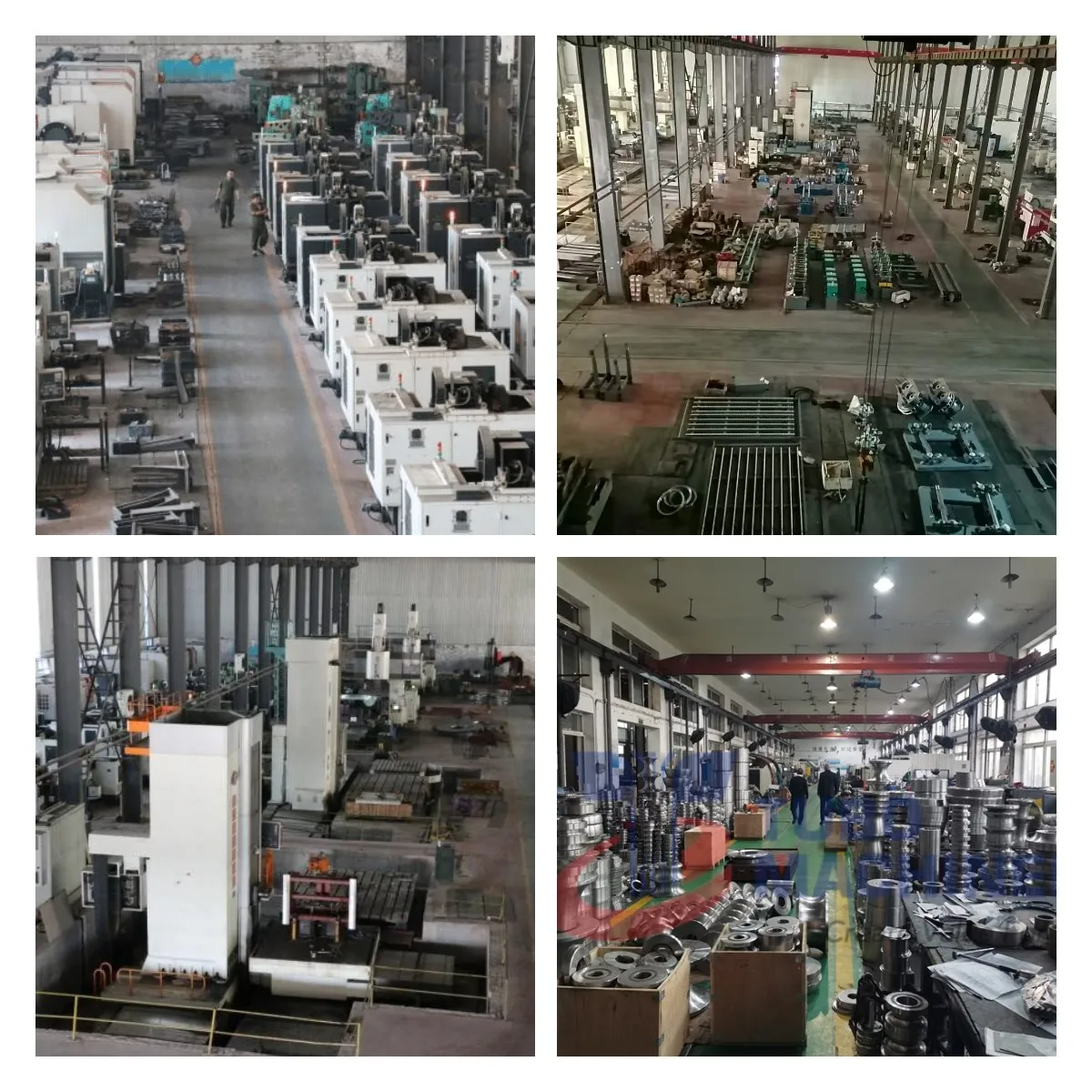

Our Workshop
Field Visits
Successful Project
1.In 2020. Chongqi,China.
ERW300x300x16mm,
Direct Square Forming Technology,
With cold roll forming producing function.
2.In 2020.Guangdong,China.
ERW300x300x14mm,
Direct Square Forming Technology,
Motor Adjusting.
3.In 2020. Shandong,China.
ERW200x200x10mm,YS700MPa,
Direct Square Forming Technology,
Motor Adjusting.
4.In 2019,Argentina.
ERW203/160x160mm. FFX + Direct Square Technology.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.
5.In 2020,Uzbekstan.
ERW76mmUpgrading for Forming,
Welding,Sizing & Flying Saw.
6.In 2020,Brazil.
ERW32x1.6x140m/min.
7.In 2022,Jordan
ERW60x3mm Tube Mill
Speed :95m/min
Cold saw
8.in 2022 , Columbia
Automatic Packing Machine For ERW89 Tube Mill online
Our Advantage
1) We have our own CNC Machining Center, We can control cost and deliverly time.
2）More than 15 years R&D and Manufacturer Experience.
3）We can customized according to customer’s requirements.
4) We have professional researching, designing, processing, testing and after-sale service teams.
5) We can Strict quality control in raw material, processing accuracy,heat treatment,assembling accuracy,standard components and so on. Strict inspection for equipment before delivery.
2）More than 15 years R&D and Manufacturer Experience.
3）We can customized according to customer’s requirements.
4) We have professional researching, designing, processing, testing and after-sale service teams.
5) We can Strict quality control in raw material, processing accuracy,heat treatment,assembling accuracy,standard components and so on. Strict inspection for equipment before delivery.
Packing&Shipping
FAQ
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipmentsto guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipmentsto guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
Похожие товары
Круглый вытяжной вентилятор

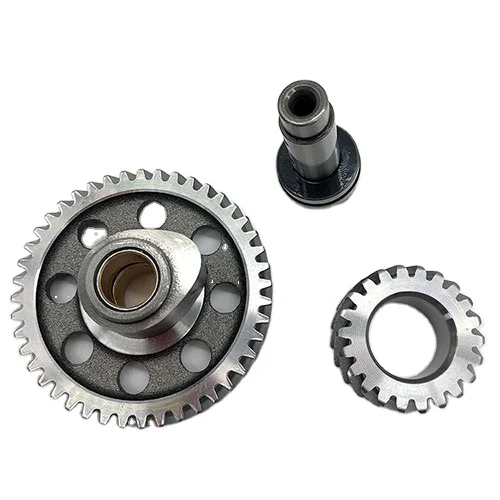

Производство Китай, под заказ, запчасти для двигателя мотоцикла, скутера, распредвала для мотоцикла
1,12 $ - 1,21 $

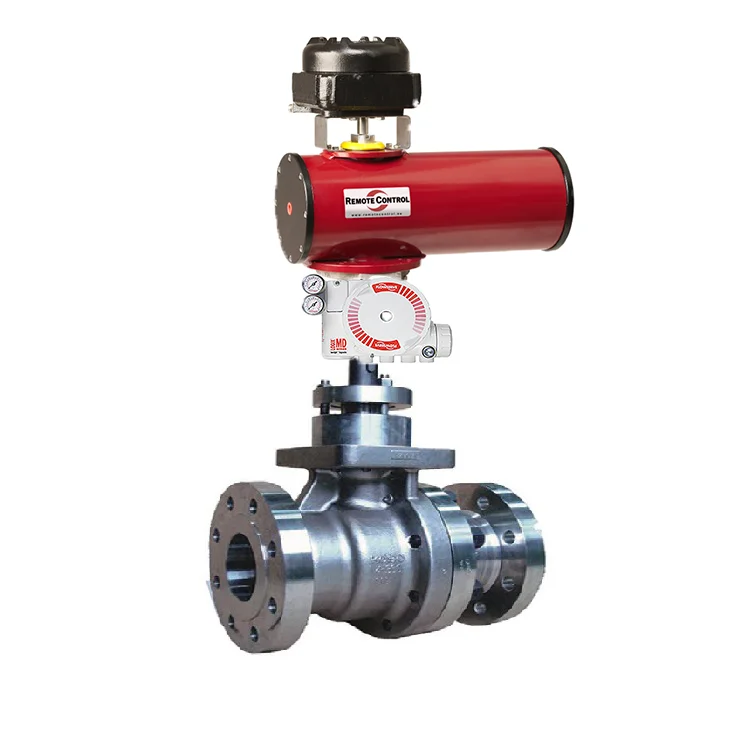

Регулирующий клапан KOSO 300 Вт с пневматическим приводом Для Пневматического клапана rotork RC и flowserve 3200MD

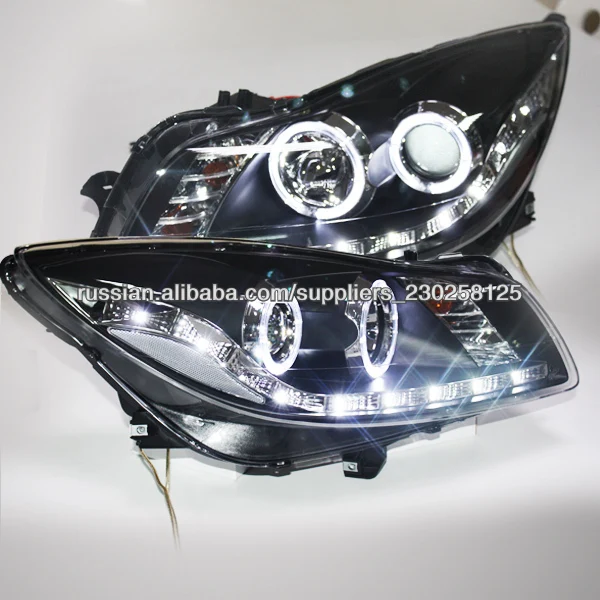

Головная лампа СИД для Buick для Verano/царственного/Insignia Opel

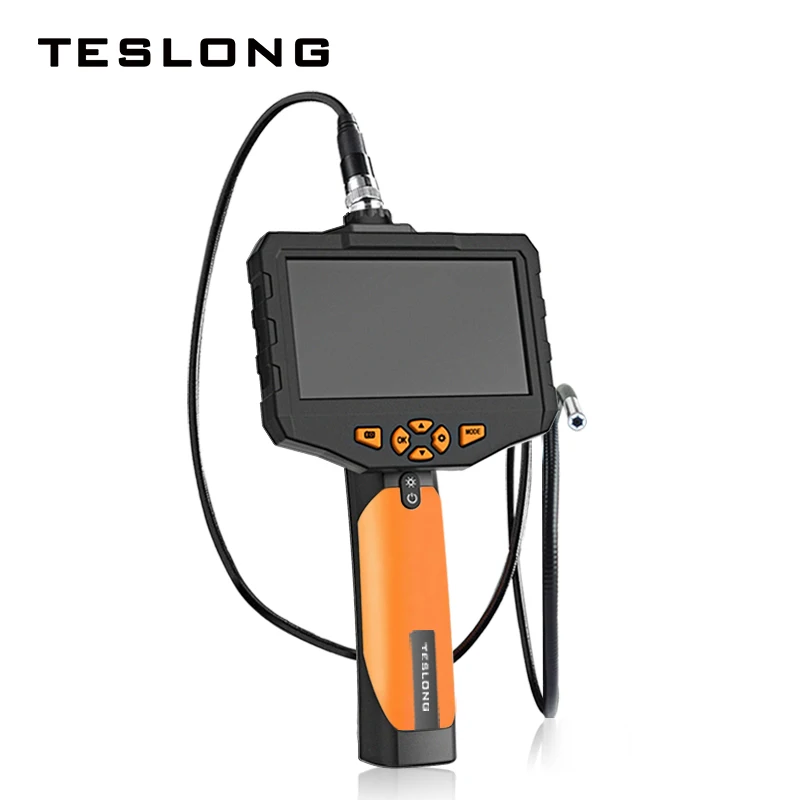

Teslong автомобильный Кондиционер для канализации диагностический инструмент 3,9 мм Цифровой бороскоп эндоскоп камера с кабелем 1 м промышленная камера
101,90 $ - 119,90 $
Оптовая продажа 2023, экологически чистый популярный молодежный футбольный мяч с индивидуальным логотипом, Размер 5
2,05 $ - 2,90 $

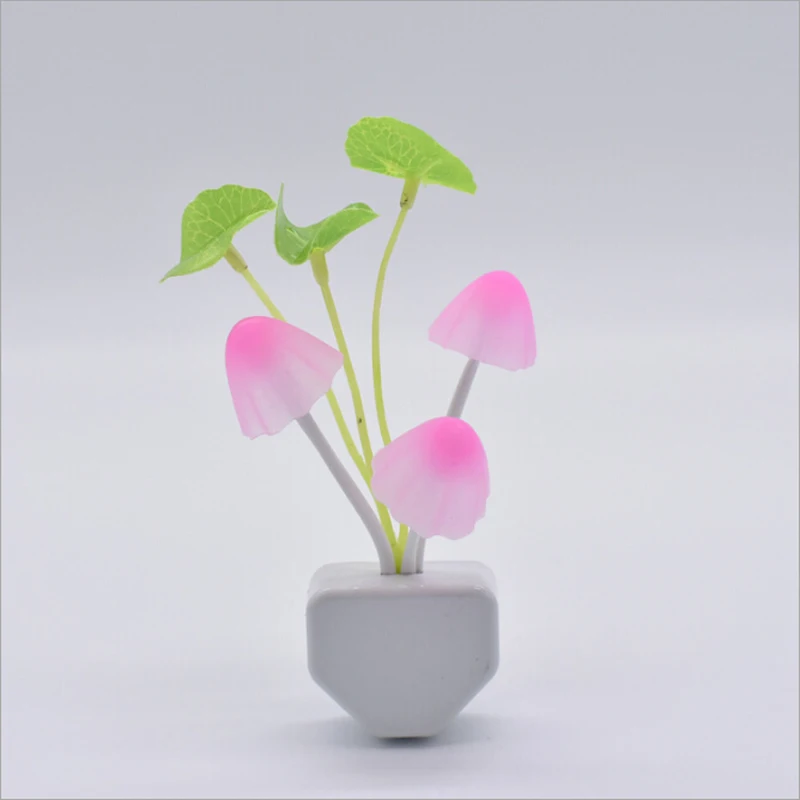

Цветной светодиодный сенсорный ночник в виде грибов настенный светильник для украшения
0,30 $ - 0,46 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
