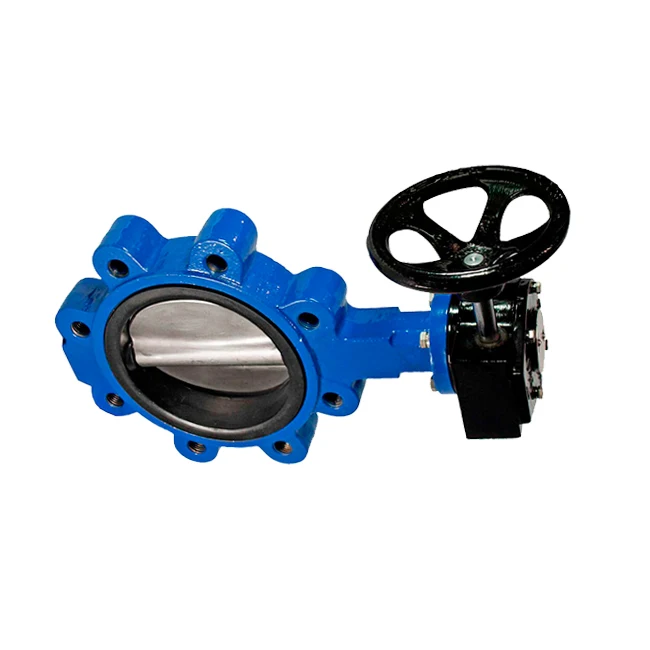

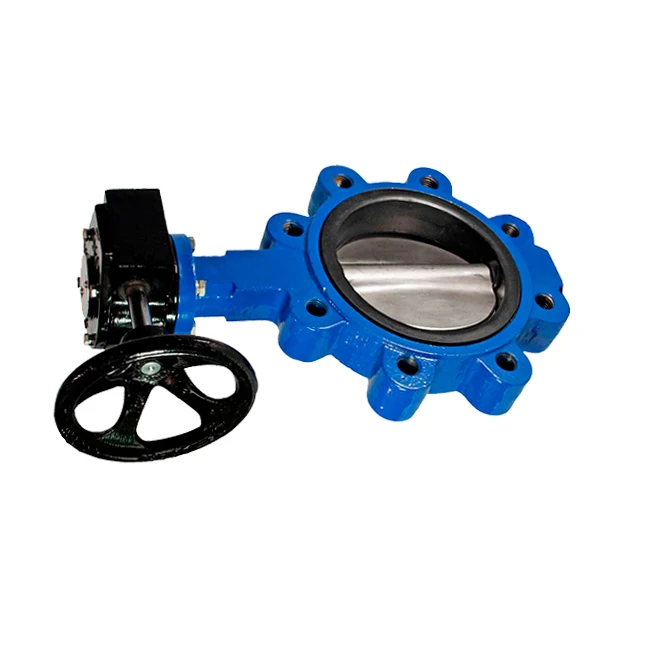

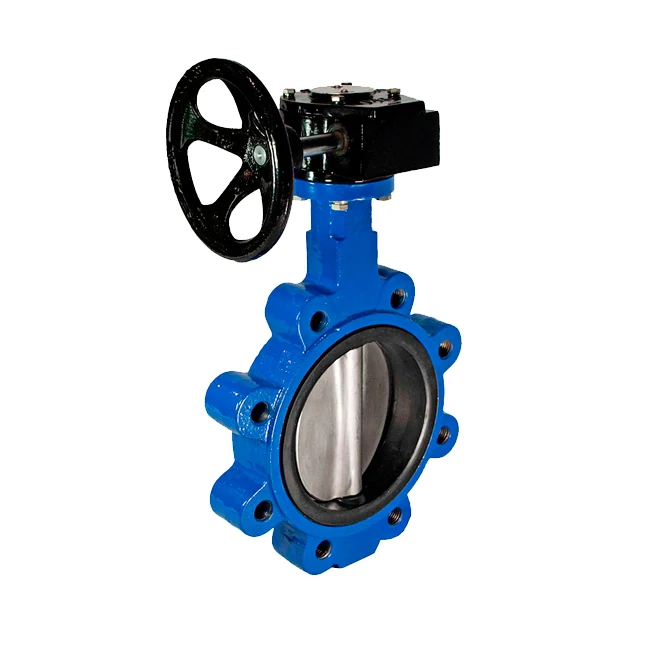

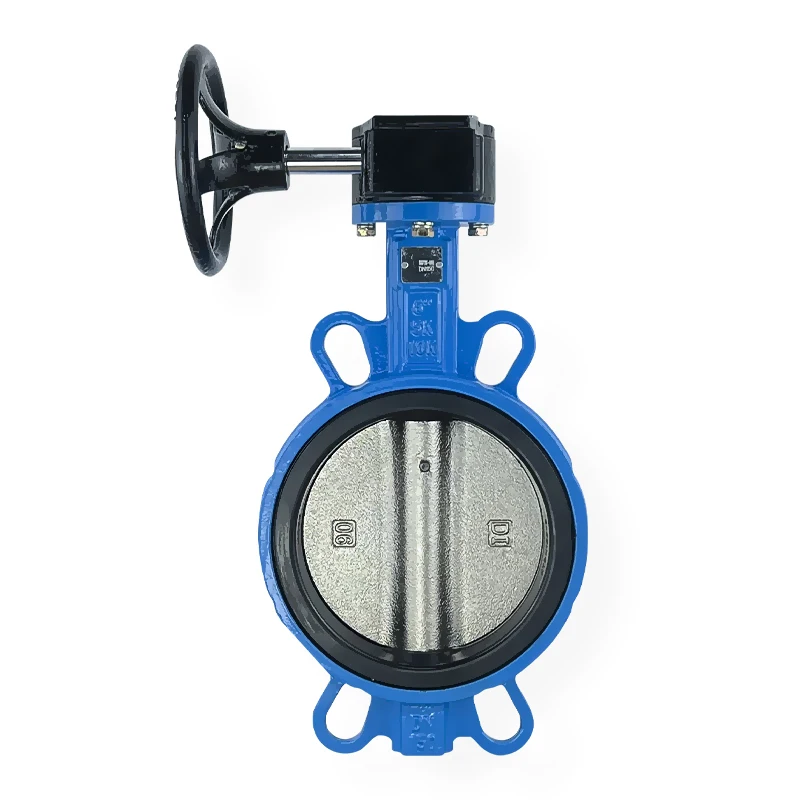

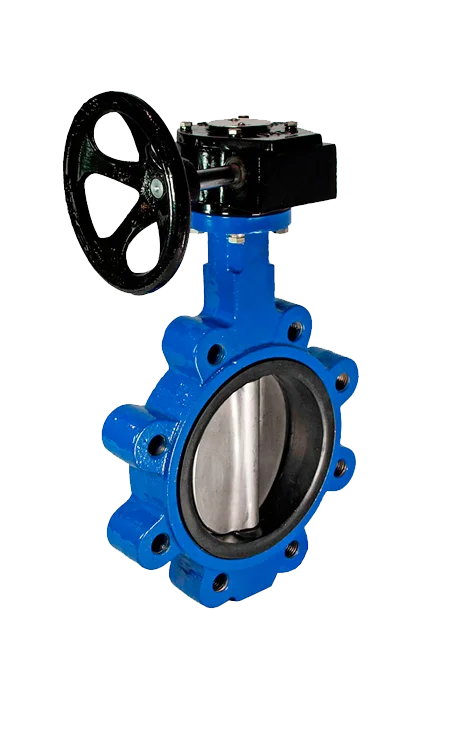

Концентрические бабочные клапаны центральный стержень вафельного типа бабочный клапан
- Категория: >>>
- Поставщик: Chongqing Xinlurun Pipe Industry Co. Ltd.
Сохранить в закладки 11000003907042:
Описание и отзывы
Характеристики
PN10 PN16 Double Flange Eccentric Butterfly Valve | ||
Type | Butterfly valve | |
Surface treatment | Epoxy paint 250 microns RAL5017 | |
Material | Ductile iron/Cast Iron/WCB | |
Connection | Flange | |
Pressure | PN16 PN10 | |
Dimensions | DN50-DN3000 | |
Driving mode | Manual | |
Media: | Water,oil, gas,no corrosive media | |
Suitable temperature | -10℃~80℃ | |
Technical data | ||||||||
Nominal pressure(Mpa) | PN10 | PN16 | Design standard | GB/T24924-2010 | ||||
Strength test pressure (Mpa) | 1.5 | 2.4 | Structure length | GB/T12221-2005 | ||||
Seal test pressure | 1.1 | 1.76 | DIN3202 F4 | |||||
Applicable medium | Water,oil,gas,non corrosive media | Flange standard | GB/T17241.6-1998 | |||||
Applicable temperature | -10℃~80℃ | Test standard | GB/T13927-2008 | |||||
Brief introduction for general double eccentric butterfly valves
Features:
1.Range from ND50 up to ND3000
Application of product:
Water, HVAC installations, pressurized air, industry, etc.
1.Range from ND50 up to ND3000
2.Bidirectional
3.Top Flange according to ISO 5211.
Epoxy paint 250 microns RAL5017
3.Top Flange according to ISO 5211.
Epoxy paint 250 microns RAL5017
General Characteristics:
Material construction in ductile iron GJS450
Working pressure 1.0Mpa 1.6Mpa 2.5Mpa
flanged ends DIN NP 10/16/25/40
Face to face DIN 3202 F-4/BS5155
Epoxy paint FBE Min 250 Mic
Material construction in ductile iron GJS450
Working pressure 1.0Mpa 1.6Mpa 2.5Mpa
flanged ends DIN NP 10/16/25/40
Face to face DIN 3202 F-4/BS5155
Epoxy paint FBE Min 250 Mic
Norms and Standard Quality
Face to Face: ISO 5752 Series 14(DIN3202 F4)
Mounting between flanges: PN10/16/25/40 EN 1092-2.
Pressure Test: EN 12266-1, DIN 3230, BS6755 y ISO 5208:
Manufacture acc. to the requirements of the EU directive 2014/68/EU
Equipment’s under pressure: mod. H.
According to EN 1074-2, with WRAS Certificate for potable Water
Working Conditions:
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa 4.0 Mpa
Working Temperature:-10C- 80C
Suitable Media: Water
Consult Factory for other applications
Face to Face: ISO 5752 Series 14(DIN3202 F4)
Mounting between flanges: PN10/16/25/40 EN 1092-2.
Pressure Test: EN 12266-1, DIN 3230, BS6755 y ISO 5208:
Manufacture acc. to the requirements of the EU directive 2014/68/EU
Equipment’s under pressure: mod. H.
According to EN 1074-2, with WRAS Certificate for potable Water
Working Conditions:
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa 4.0 Mpa
Working Temperature:-10C- 80C
Suitable Media: Water
Consult Factory for other applications
Application of product:
Water, HVAC installations, pressurized air, industry, etc.
Founded in 2012, chongqing xinlurun pipe industry co.,ltd has committed to manufacture cast iron products and fittings in the past ten years.
Our main productions are DN80mm-DN2600mm ductile cast iron pipe& fittings, cast iron pipes &fittings,Valves and rubber rings. The annual production capacity of 300,000 tons for casting iron pipes, and 30,000 tons for the casting iron fittings . Our main customers are from U.A.E, South Africa, Iraq, Syria, Bangladesh,Singapore and so on.
Our factory covers an area of 80,000 square meters, with own advanced production equipment, laboratory, independent R & D, and innovation department. We have an whole producing& assembly line consist of medium frequency electric furnace, spectrum analyzer, centrifugal molding, annealing, zinc spray, finishing, and packaging.
The casting iron pipes&fittings are widely used in gas transmission, water supply, water launching, drainage, electric power and other projects. The fabricated products are strictly inspected and complied with ISO 2531, EN545, BS EN598. Meanwihile, the blast furnace cement internal protection complies with the standard ISO 4179, metallic zinc complies with the standard ISO8179.
Our main productions are DN80mm-DN2600mm ductile cast iron pipe& fittings, cast iron pipes &fittings,Valves and rubber rings. The annual production capacity of 300,000 tons for casting iron pipes, and 30,000 tons for the casting iron fittings . Our main customers are from U.A.E, South Africa, Iraq, Syria, Bangladesh,Singapore and so on.
Our factory covers an area of 80,000 square meters, with own advanced production equipment, laboratory, independent R & D, and innovation department. We have an whole producing& assembly line consist of medium frequency electric furnace, spectrum analyzer, centrifugal molding, annealing, zinc spray, finishing, and packaging.
The casting iron pipes&fittings are widely used in gas transmission, water supply, water launching, drainage, electric power and other projects. The fabricated products are strictly inspected and complied with ISO 2531, EN545, BS EN598. Meanwihile, the blast furnace cement internal protection complies with the standard ISO 4179, metallic zinc complies with the standard ISO8179.
Q1. Are you trading company or manufacturer?
A:We are a manufacturer with own branch company and sales department, you will get a factory-direct price from us if you buy from us.
Q2. How Can I order?
A:Please contact our sales representatives, they are able to communicate in English and will provide the most suitable purchase solutions for you.
Q3. How does your factory do regarding quality control?
A:Quality is priority. Our people always attach great importance to quality control from the production beginning to the end. We have well-trained and professional workers and strict QC system in each production link, and each product has to be 100% inspected before shipment.
Q4. What are the terms of payments?
A:We accept T/T、Western Union、LC、Paypal etc.
Q5. What's your delivery time?
A:In general, the items which are in stock will be shipped out within 3 working days, for customized products and huge order, the delivery time will be based on our negotiation. Please be assured we'll make the delivery as soon as possible with the guaranteed quality.
A:We are a manufacturer with own branch company and sales department, you will get a factory-direct price from us if you buy from us.
Q2. How Can I order?
A:Please contact our sales representatives, they are able to communicate in English and will provide the most suitable purchase solutions for you.
Q3. How does your factory do regarding quality control?
A:Quality is priority. Our people always attach great importance to quality control from the production beginning to the end. We have well-trained and professional workers and strict QC system in each production link, and each product has to be 100% inspected before shipment.
Q4. What are the terms of payments?
A:We accept T/T、Western Union、LC、Paypal etc.
Q5. What's your delivery time?
A:In general, the items which are in stock will be shipped out within 3 working days, for customized products and huge order, the delivery time will be based on our negotiation. Please be assured we'll make the delivery as soon as possible with the guaranteed quality.
Please keep me reached out whenever you need helps.
Mobile:+0086 18723476419
Whatsapp:+86 18723476419
Email: xinlunrun@xlrgy.cn
Contact : Erin Zhang
Похожие товары
Логотип, графеновое керамическое покрытие, спрей, нано-керамическое покрытие, 9 ч, спрей для ухода за автомобильной краской
0,89 $ - 1,10 $
Лидер продаж, кольцо для салфеток с дизайном в виде дракона Fly, Современная эксклюзивная Роскошная Пряжка для салфеток для отелей, ресторанов, свадеб

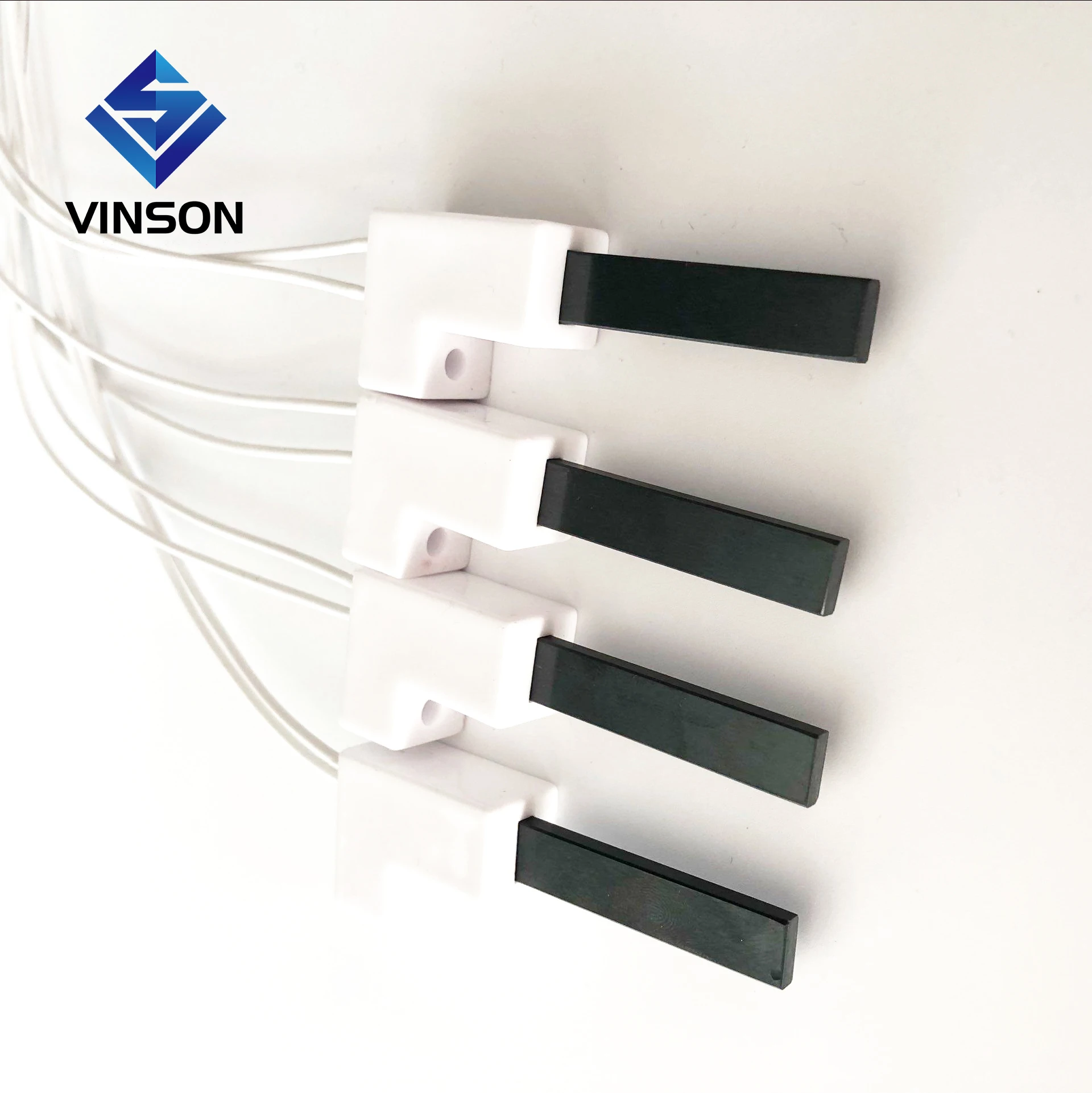

Воспламенитель гранул 24 В/200 Вт нагреватель из нитрида кремния с керамической изоляцией

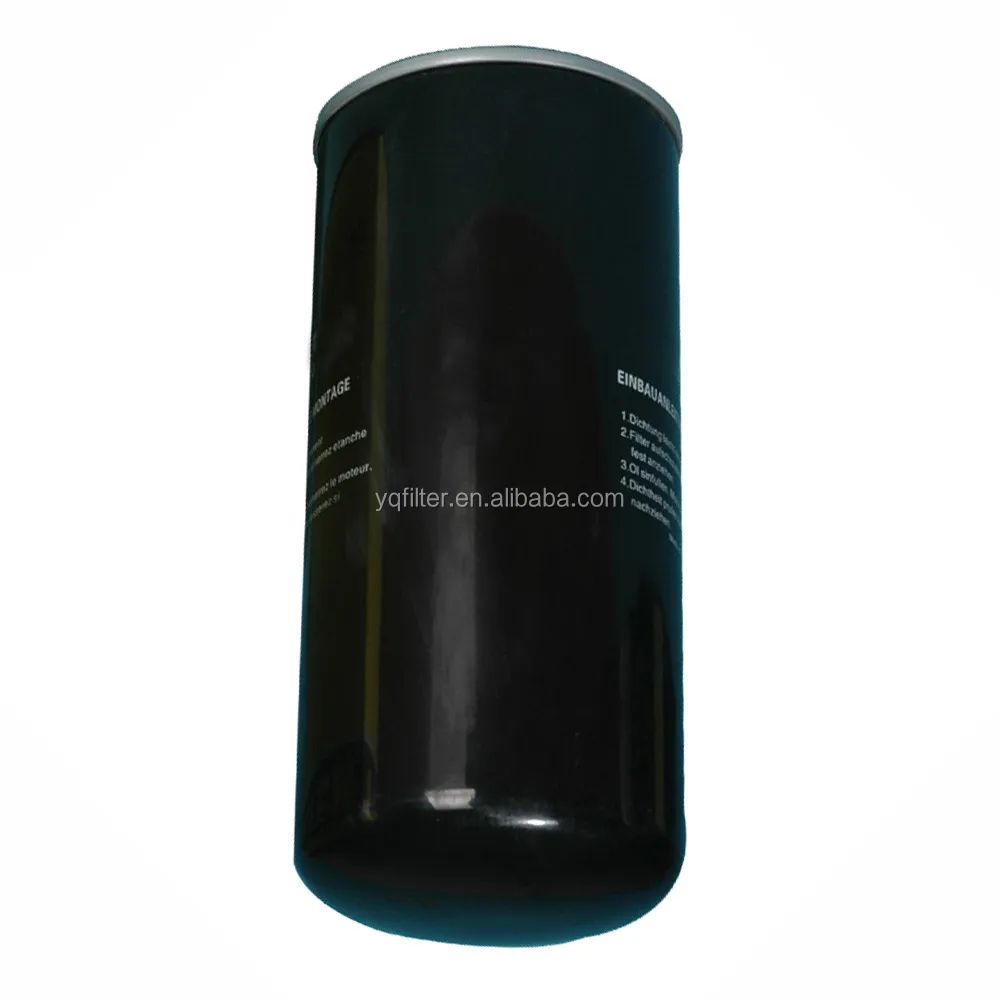

Масляный фильтр компрессора хорошего качества 9054201
15,00 $
Подшипники для вилочного погрузчика, размер 20X42X34X80, набор боковых роликов 84904A

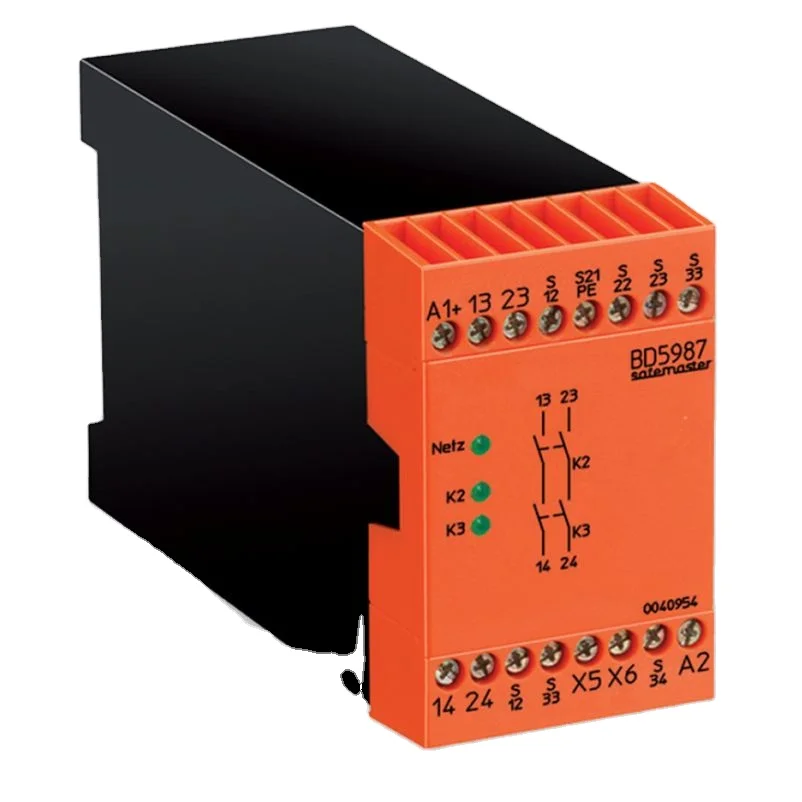

0061807 SL5880.12/300 AC50-400HZ 220-240V реле безопасности

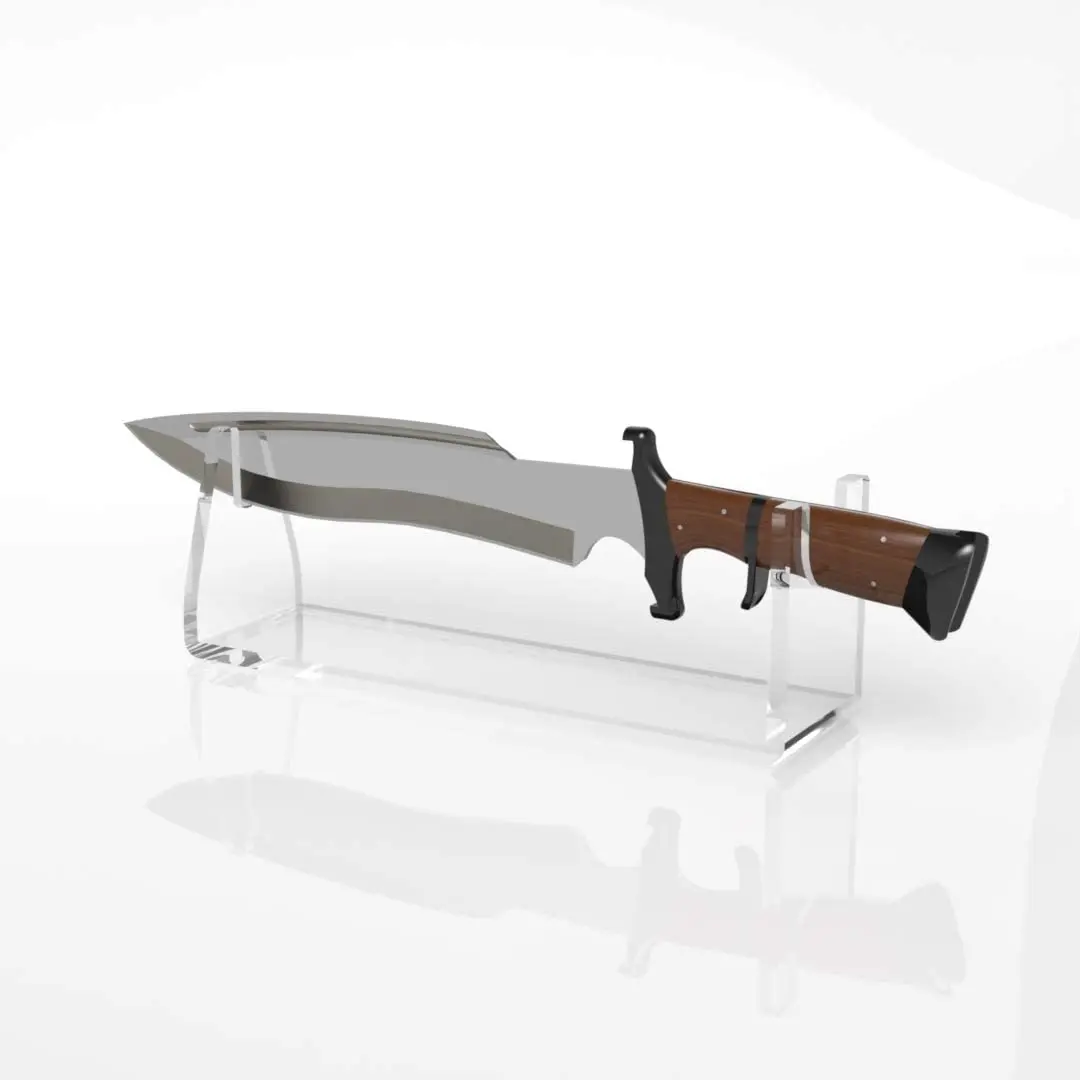

Настенный кронштейн для меча прозрачная акриловая подставка ножа держатель
