Резервуар для хранения из нержавеющей стали с гигиеническим покрытием паровой Электрический обогрев и охлаждение двойной резервуар
- Категория: Chemical Storage Equipment >>>
- Поставщик: Wenzhou Compass Machinery Co. Ltd.
Сохранить в закладки 11000004570834:
Описание и отзывы
Характеристики
Technology Parameter
Drawings of Stainless Steel Sanitary Jacketed Storage Vessel Steam Electrical Heating and Cooling Double Jacket storage Tank
Specification (L) | Referance Size (mm) | ||||||||||||
D | D1 | H1 | H2 | H3 | H | DN | |||||||
200L | 700 | 800 | 400 | 800 | 235 | 1085 | 32 | ||||||
250L | 800 | 900 | 400 | 850 | 235 | 1135 | 32 | ||||||
300L | 800 | 900 | 460 | 910 | 235 | 1195 | 32 | ||||||
500L | 900 | 1000 | 640 | 1140 | 270 | 1460 | 40 | ||||||
600L | 900 | 1000 | 830 | 1130 | 270 | 1450 | 40 | ||||||
800L | 1000 | 1100 | 880 | 1430 | 270 | 1750 | 40 | ||||||
1000L | 1100 | 1200 | 880 | 1480 | 270 | 1800 | 40 | ||||||
1200L | 1100 | 1200 | 1100 | 1700 | 270 | 2020 | 40 | ||||||
1500L | 1200 | 1300 | 1150 | 1800 | 270 | 2120 | 40 | ||||||
2000L | 1400 | 1500 | 1220 | 1970 | 280 | 2300 | 40 | ||||||
2500L | 1500 | 1600 | 1150 | 1980 | 280 | 2310 | 40 | ||||||
3000L | 1600 | 1700 | 1220 | 2120 | 280 | 2450 | 40 | ||||||
4000L | 1800 | 1900 | 1250 | 2250 | 280 | 2580 | 40 | ||||||
5000L | 1900 | 2000 | 1500 | 2550 | 320 | 2950 | 50 | ||||||
7000L | 2200 | 2300 | 1450 | 2650 | 320 | 3050 | 50 | ||||||
8000L | 2200 | 2300 | 1750 | 2950 | 320 | 3350 | 50 | ||||||
S/N | Items | Description | ||||
1 | Applicantion | Dairy, Industry, Food, Pharmaceutical, Chemical, Beverage, Biological and so on. | ||||
2 | Type of Tanks | Storage Tank, Agitator Tank , High Shear Emulsification Tank, ect. | ||||
3 | Material | Stainless Steel SS304, Stainless Steel SS316L | ||||
4 | Capacity | 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 5000L, 10000L,20000L | ||||
5 | Pressure | Atmosphere,1bar, 2bar, 3bar, 4 bar, 5bar, 6bar, 7bar | ||||
6 | Type of Jacket | Dimple Jacket, Coil Jacket, Barrel Jacket | ||||
7 | Type of Insulation | Polyurethane Foam, Thermal Insulation Rock Wool, Pearl Particles | ||||
8 | Type of agitator | 15-120r/min, 0-200rpm/min, 0-400rpm/min, | ||||
9 | Internal Polished | Mirror Polish Ra0.28um-Ra0.45um | ||||
10 | External Polished | Mirror Polished or Matte Polished | ||||
11 | Position of Tanks | Vertical or Horizontal | ||||
Product Desplay

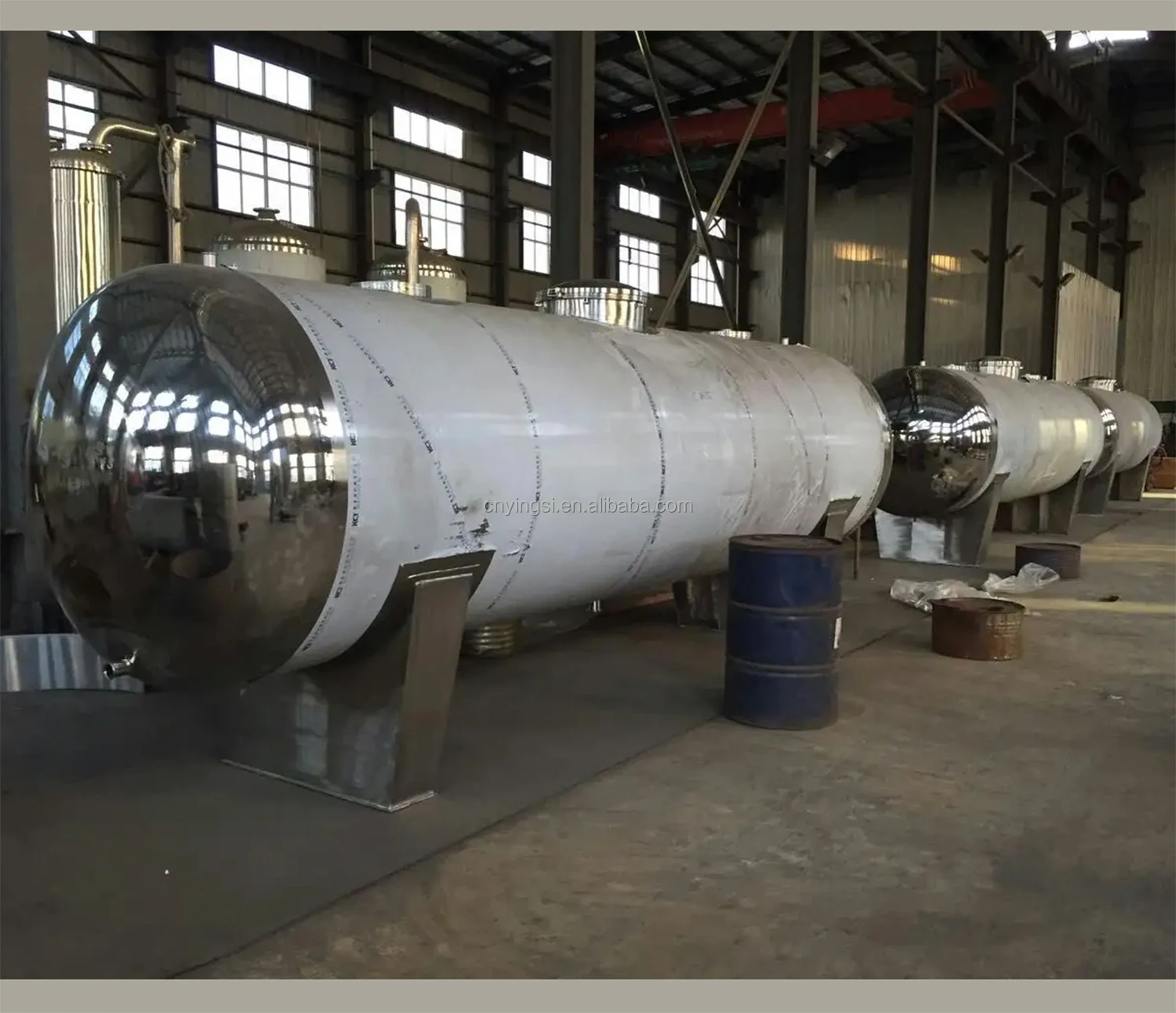

Vertical Pressure Storage Tanks, OEM Pressure Storage Tanks, Pressure Storage Tanks, Storage Tanks with Mixing, Agitator Tanks with Electric heating, Three-layer Agitator Tanks, Single-layer Storage Tanks, Horizontal Storage Tanks, Horizontal Storage Tanks
Product Despription
Product name | Stainless Steel Sanitary Jacketed Storage Vessel Steam Electrical Heating and Cooling Double Jacket storage Tank | ||||||
Material | Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not | ||||||
Tank shell thickness | 3mm at least (according to the design or your required) | ||||||
Design work pressure (MPa) | -0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases) | ||||||
Design work temperature | -4~~+150C | ||||||
General accessories(If required) | Manhole, CIP, respirator, sight glass, mixing(Top side or bottom) | ||||||
Finish | Mirror or Matt Polish; Ra<0.4um | ||||||
Application:
The machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application 1.Cosmetics: Skin cream, hair gel, lotion, liquid soap, shampoo, etc.
2.Food: Jam, chocolate, sauce, etc.
3.Pharmacy: Ointment, syrup, paste,etc.
4.Chemicals: Painting, adhesive, detergent.etc.

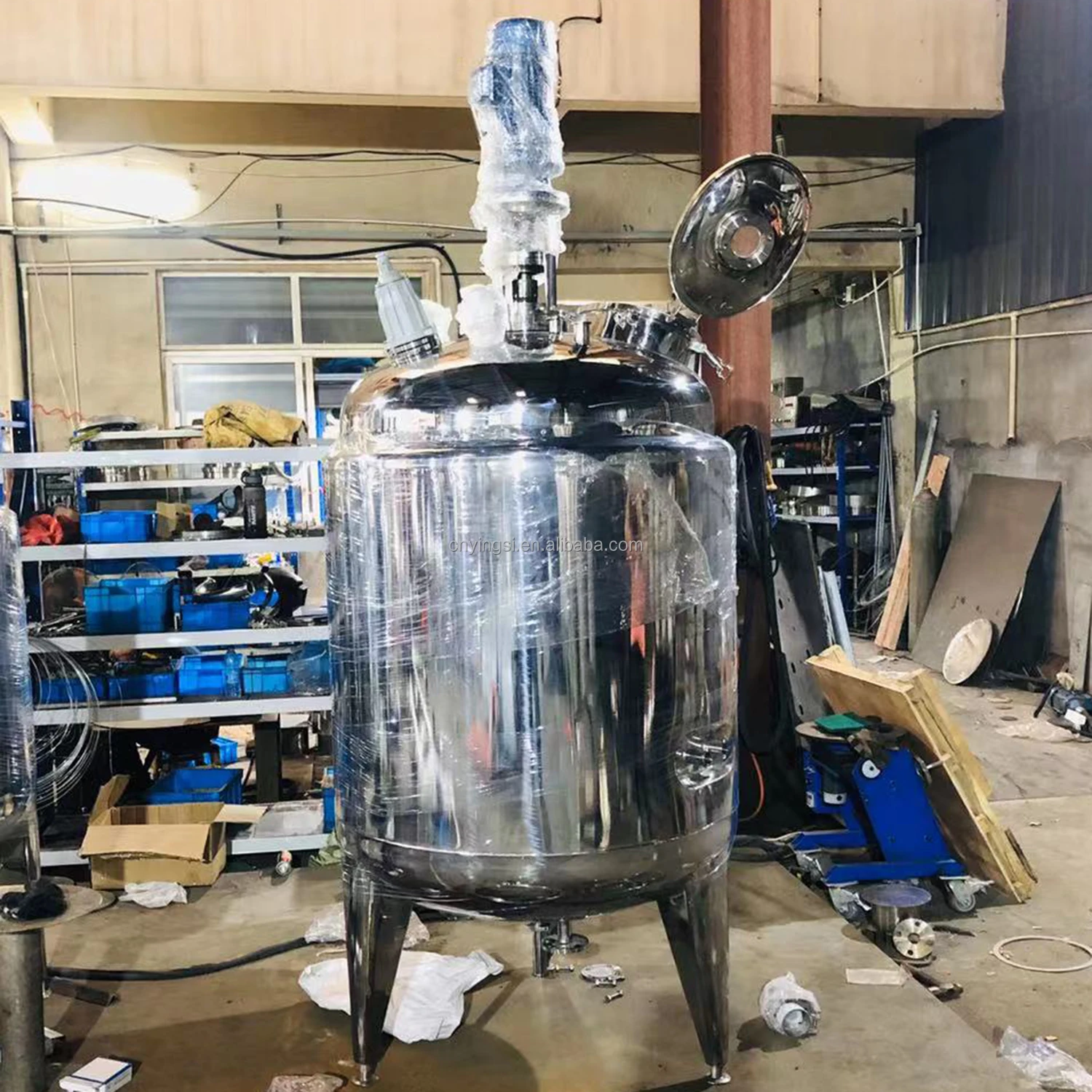

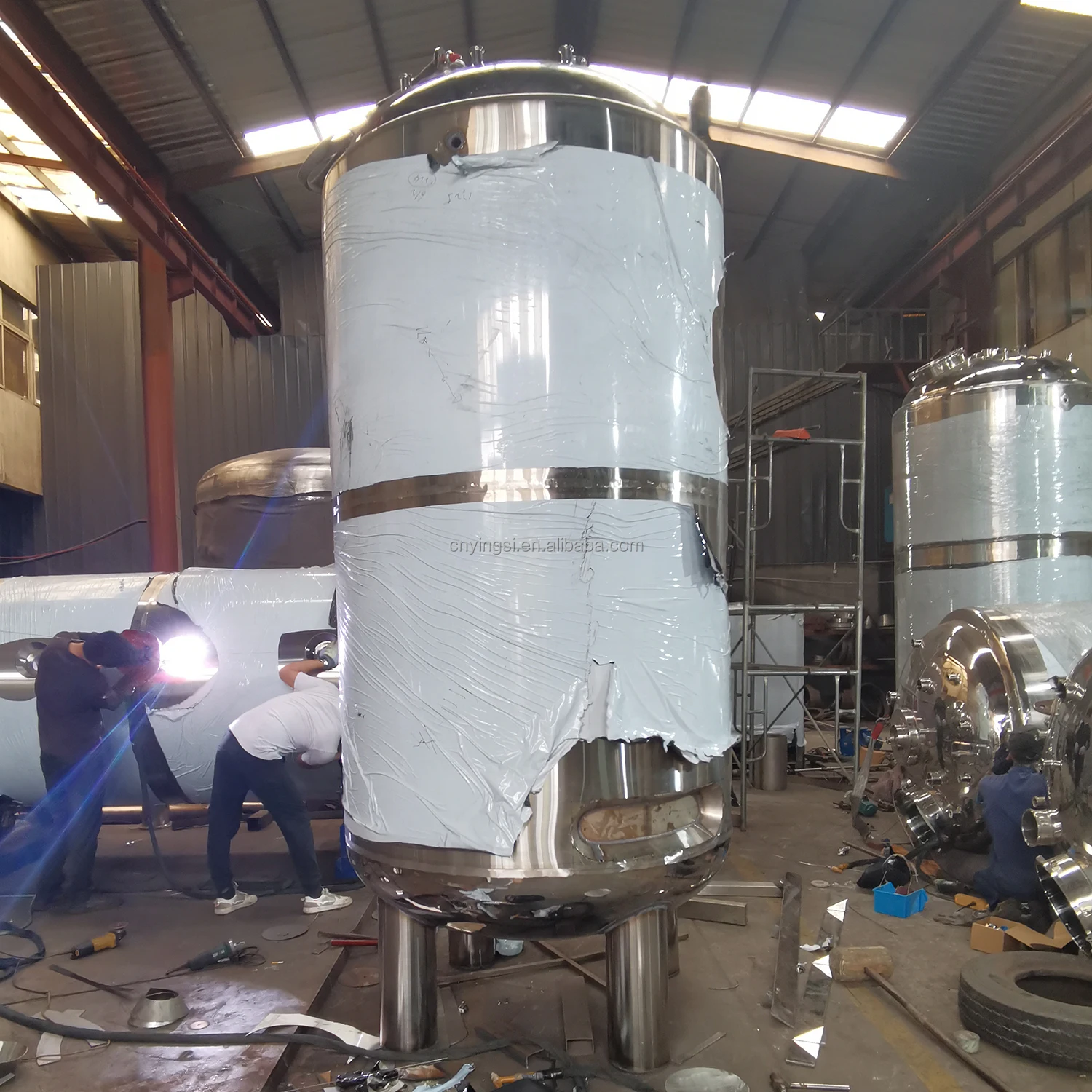

Storage tank adopts vertical circular tank. The top is standard elliptic or dished head, the bottom is standard conical,elliptic or dished head. The transition section of inner shell uses circular arc transition, which is without dead leg, easy to clean. It can be single layer, double layer (tank body and bottom head are with insulation), jacket type ( tank body and bottom head with jacket and insulation) or make according to customer’s requirements. Inner surface is mirror polish, which meets CIP, SIP and sanitary requirements.
Storage tank structure is vertical or horizontal structure.
Feature
Insulation material is rock wool (keep warm) or PU (keep cold).
The connection adopts Tri-clamp, inner shell use 304 or 316L, inner surface is 0.28~0.6μm by mirror polish,outer surface polished by satin finish or sand blasting according to customers’requirements.
Volume range is 1000L~20000L, and we can make other specification according to customer’s actual requirements.
Storage tank structure is vertical or horizontal structure.
Feature
Insulation material is rock wool (keep warm) or PU (keep cold).
The connection adopts Tri-clamp, inner shell use 304 or 316L, inner surface is 0.28~0.6μm by mirror polish,outer surface polished by satin finish or sand blasting according to customers’requirements.
Volume range is 1000L~20000L, and we can make other specification according to customer’s actual requirements.
Company Profile
Founded in 2011,Wenzhou Compass Machinery Co.,Ltd as a global sanitary valves manufacturer,has grown to become one of leading valves manufacturers for high precision stainless steel sanitary valves, pipe fittings,pumps and tanks.
Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.
To assure better quality, we have the full inspecting quality control equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.
Wenzhou Compass Machinery Co.,Ltd is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.
Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.
To assure better quality, we have the full inspecting quality control equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.
Wenzhou Compass Machinery Co.,Ltd is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.
Certifications
Application
Pcakaging&Shipping
FAQ
Q1. How to order tank ?
Fisrtly, please confirm which application for tank, such as food, beer, pharmaceutical, chemical or other industry.
Secondly, pls confirm which material, capacity, presure, temperature, material composition,need or not agitator, jacket,
insulation, and so on.
Q2. What’s surface finishing?
Internal surface is 0.4um to up standard to pharmaceutical standard.
External surface is 0.8um
Q3. What’s maximum capacity ?
We can produce 20000liters for tank, which can be designed vertical and horizental.
Q4.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
After tanks are finished, and we will hyraulic test for each tanks to make sure no leakage and safe.
Q5. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q6.How long is your delivery time?
For normal production in 10-15days.For bulk order in 20-25days.
Q7.Warranty
One year warranty for all of our stainless steel products,but excluding wearing parts
Q8.More questions are appreciated.
Fisrtly, please confirm which application for tank, such as food, beer, pharmaceutical, chemical or other industry.
Secondly, pls confirm which material, capacity, presure, temperature, material composition,need or not agitator, jacket,
insulation, and so on.
Q2. What’s surface finishing?
Internal surface is 0.4um to up standard to pharmaceutical standard.
External surface is 0.8um
Q3. What’s maximum capacity ?
We can produce 20000liters for tank, which can be designed vertical and horizental.
Q4.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
After tanks are finished, and we will hyraulic test for each tanks to make sure no leakage and safe.
Q5. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q6.How long is your delivery time?
For normal production in 10-15days.For bulk order in 20-25days.
Q7.Warranty
One year warranty for all of our stainless steel products,but excluding wearing parts
Q8.More questions are appreciated.
