Диод высокого напряжения быстрого восстановления
- Категория: Diodes >>>
- Поставщик: Yangxin Huantai Technology Co. Ltd.
Сохранить в закладки 11000005049648:
Описание и отзывы
Характеристики
Product Description

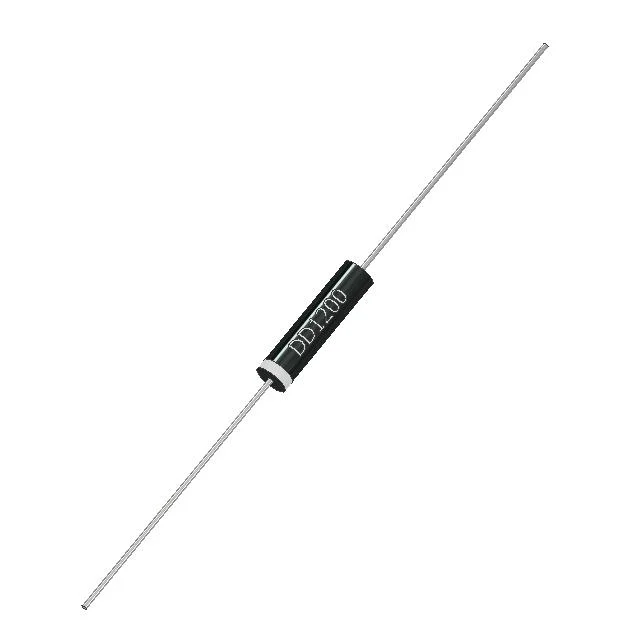

▼Fast Recovery High Voltage Diode
DD1200
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
DD600 | 6 | 20 | 2 | 2 | 15 | 80 | ∅2.5x6.5 |
DD800 | 8 | 20 | 2 | 2 | 20 | 80 | ∅2.5x6.5 |
DD900 | 9 | 35 | 3 | 2 | 25 | 100 | ∅3.0x8.0 |
DD1000 | 10 | 20 | 3 | 5 | 20 | 150 | ∅3.0x12.0 |
DD1200 | 12 | 20 | 3 | 5 | 25 | 150 | ∅3.0x12.0 |
DD1400 | 14 | 20 | 3 | 5 | 30 | 150 | ∅3.0x12.0 |
DD1600 | 16 | 20 | 3 | 5 | 35 | 150 | ∅3.0x12.0 |
DD1800 | 18 | 20 | 3 | 5 | 40 | 150 | ∅3.0x12.0 |
DD2000 | 20 | 30 | 3 | 5 | 40 | 150 | ∅3.0x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
More Products
Certifications
Company Profile
Yangxin Huantai Technology Co., Ltd. The company's main products include power device chip, a full series of high frequency high voltage diode, high voltage rectifier bridge. Accept the customization of various high-voltage components.
The company covers an area of 40,000 square meters, with 120 employees, including 12 R & D engineers and 8 quality engineers.
The company has been carrying out technical cooperation with universities and professionals. At present, it carries out Industry-University-Research cooperation around chip, package testingand process automation equipmentwith Jiangsu University, Fudan University and University of Electronic Science and Technology of China, targeting at new applications and miniaturization of high-frequency high-voltage diodes.
We now hold 6 production lines of different models.It has a monthly production of 600 million pieces including various high-frequency high-voltage diodes high- voltage rectifier bridges. The market share has reached 43%.
The application areas of the product are as follows: high-frequency electrostatic dust-removal, negative ion generator , medical X-ray machine, high-frequency high-voltage test power supply, microwave energy application, etc.
The specifications of high-frequency and high-voltage diodes and high- voltage rectifier bridges are as follows:
Operating Voltage: 3KV to 1000KV
Operating current: 1mA-100A
Operating Frequency: 50HZ-200KHZ
We have all kinds of reliable inspection equipment. Ensure the high quality of the product
We are looking forward to cooperating with you!
The company covers an area of 40,000 square meters, with 120 employees, including 12 R & D engineers and 8 quality engineers.
The company has been carrying out technical cooperation with universities and professionals. At present, it carries out Industry-University-Research cooperation around chip, package testingand process automation equipmentwith Jiangsu University, Fudan University and University of Electronic Science and Technology of China, targeting at new applications and miniaturization of high-frequency high-voltage diodes.
We now hold 6 production lines of different models.It has a monthly production of 600 million pieces including various high-frequency high-voltage diodes high- voltage rectifier bridges. The market share has reached 43%.
The application areas of the product are as follows: high-frequency electrostatic dust-removal, negative ion generator , medical X-ray machine, high-frequency high-voltage test power supply, microwave energy application, etc.
The specifications of high-frequency and high-voltage diodes and high- voltage rectifier bridges are as follows:
Operating Voltage: 3KV to 1000KV
Operating current: 1mA-100A
Operating Frequency: 50HZ-200KHZ
We have all kinds of reliable inspection equipment. Ensure the high quality of the product
We are looking forward to cooperating with you!
Packing & Delivery
● Regular packaging or custom packaging according to customized requirements
● We will recommend the most suitable shipping method based on your order quantity
Our Advantages
Contact us
