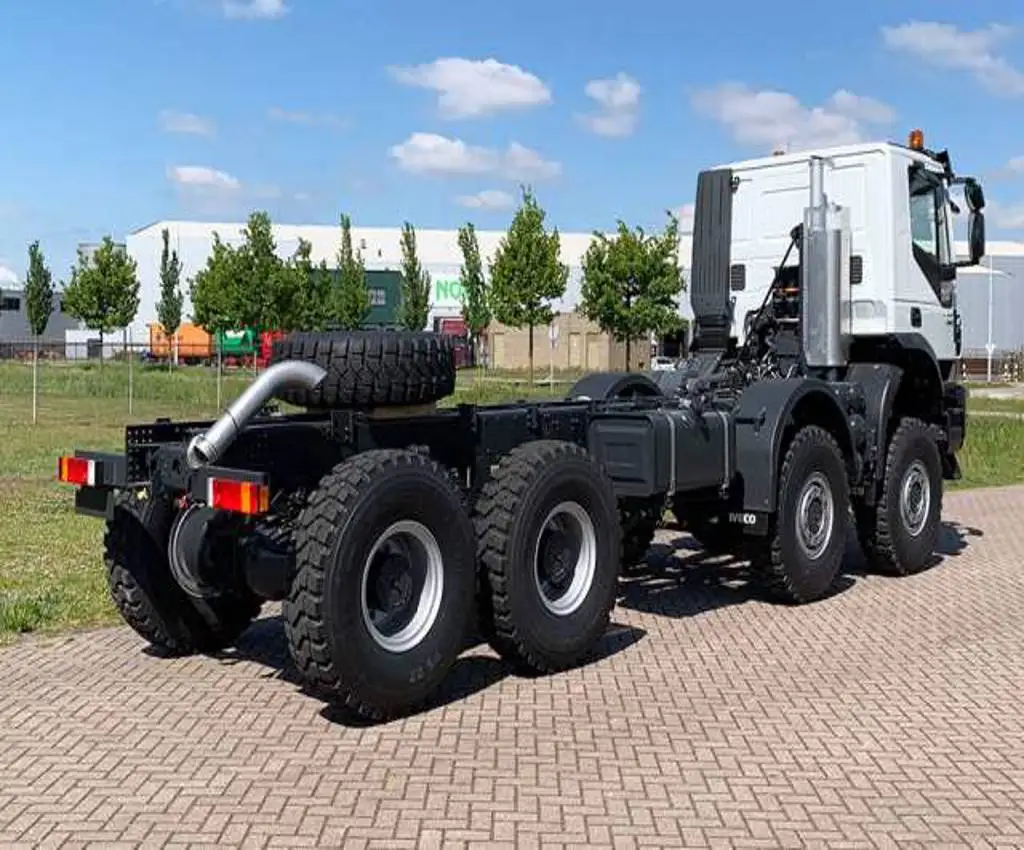

IV ECO Trakker AD410T44WH 5020 на шасси 8x8 кабина для леворульных

•




  Vehicle status




  New / Unused







•




  Construction




  Chassis Cabin







•




  Axle-configuration




  8x8







•




  Engine power




  440 hp / 324 kw







•




  Emission code




  EURO-3







•




  Engine type




  F3BEE681C







•




  Transmission




  Automatic







•




  Gearbox




  Eurotronic ZF16AS2630TO







•




  Suspension




  Spring







•




  Wheel base




  5.020 mm







•




  GVW




  40.000 kg







•




  Tyres




  14.00R20







•




  Cabin




  Day







•




  Production year




  2022







•




  Model year




  2022







•




  External dimensions




  877x250x342cm







•




  Remarks




  PTO: NH/4C
  Fuel tank: ltr.
  Air conditioning









  ENGINE Iv eco Cursor 13 (F3BEE681C*B)
  Turbocharger Variable Geometry Turbine
  Cylinders in line 6
  Bore (mm) 135
  Stroke (mm) 150
  Capacity (litres) 12,88
  Max power (HP/kW) 440/324
  @ rpm 1900
  Max torque (Nm/Kgm) 2100/214
  @ rpm 1000
  Engine brake power 306 Kw @ 2400 rpm
  Cooling system Water
  Fuel system Unit pump injector
  Speed limiter 90kmh
  GEARBOXES ELECTRICS
  Tension 24v negative earth return
  Ratios Alternator 28v, 90A
  1st 1st Starter 24v, 5.5kW
  2nd 2nd Batteries 2 x 12v, 170Ah
  3rd 3rd Circuits protected By fuse
  4th 4th System Multiplex - CAN line data bus
  5th 5th
  6th 6th SUSPENSIONS
  7th 7th Front Parabolic spring
  8th 8th Rear Semielliptical suspension
  9th 9th Anti roll bar Front and rear
  10th 10th Shock absorbers 2 on front
  11th 11th
  12th 12th STEERING
  13th 13th Type ZF 8098 Power assisted
  14th 14th Steering wheel diameter 470 mm
  15th 15th
  16th 16th AXLES
  Rev 1 Rev 1 Steering with single wheels Iveco 5985/2D. Rigid, hub reduction
  Rev 2 Rev 2 Second axle Iveco 5985/2D. Rigid, hub reduction
  Tandem 453291/2D. Rigid, hub reduction
  PERFORMANCE
  Type: 16S 2220 TO FUEL TANK
  Axle ratios available 4,67 4,227 5,01 5,56 6,096 Type and capacity 300lt., steel, filter, fuel pump, prefilter.
  Geared speed (km/h) 99 109 92 83 76
  Gradeability % @ 40 t G.C.W. 80 69 91 100 100 CAB INTERIOR
  Gradeability % @ 44 t G.C.W. 69 60 77 92 100 Active Day
  Type: 16AS 2630 TO
  Axle ratios available 5,01 4,227 4,67 5,56 6,096
  Geared speed (km/h) 93 111 100 84 77
  Gradeability % @ 40 t G.C.W. 95 71 83 100 100
  Gradeability % @ 44 t G.C.W. 80 62 71 96 100
  CLUTCH
  Type Single dry plate, pull type.
  Diameter 17 inches/430 mm
  BRAKES
  Type 2 independent pneumatic circuits
  Service A.B.S. + E.B.L.
  First axle Drum brakes. 410 mm
  Friction area: 2884 cm2 CAB EXTERIOR
  Second axle Drum brakes. 410 mm Active Day
  Friction area: 2884 cm2
  Tandem Drum brakes. 410 mm
  Friction area: 3220 cm2
  Parking Mechanical with spring cylinder, rear.
  Emergency Combined with parking brake.
  Air reservoirs 6 x 20 litres, steel
  Air compressor 352cc – single cylinder CHASSIS
  Heated air dryer Air Processing Unit
  Trailer connections 15 pin plug
  TRANSFER BOX Wheelbase Height (mm) x width (mm):
  Type TC 2200 - gearbox independent. 4.750 - 5.020 289x80
  Ratio On road: 1/1 – Off Road: 1/1,60.
  Torque distribution Front 1 / Rear 2,2
  4,57
  Ladder construction. Pressed steel side members and riveted and bolted cross
  members. (C section)
  NOTE: The information in this literature is intended to be of a general nature only. Iveco reserves the right to modify or change specification at any time.
  Forward control cab. Galvanised pressed steel construction, with SMC for
  vulnerable parts. Helical spring suspension and dampers. Hydraulic cab tilt to 60
  deg. Tinted electric door windows and tinted laminated screen. Manual rear-view
  mirrors plus kerb and wideangle mirrors, according to 2003/97/EC. Blind rear cab
  panel. Steel front bumper.

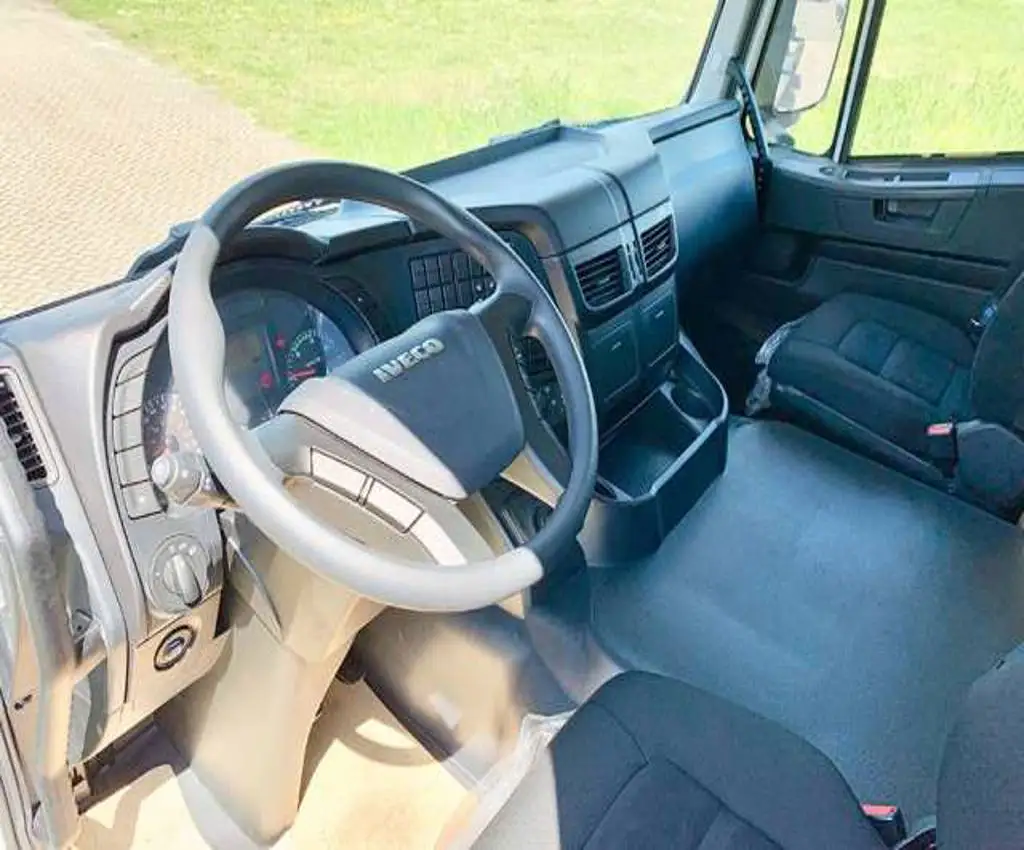

  Interior incorporating, air suspended 3-way adjustable driver's seat, inertia reel belt.
  Passenger seat 2 way adjustable with inertia reel belt. Soft feel dashboard with
  multi-functional steering wheel incorporating touch button menu controls for the real
  time digital dash display. Dual scale speedometer. All gauge functions monitored
  using international symbols. Heater. Left and right hand entry assist handles.
  Pneumatic adjustable steering column, 2 column mounted control stalks, left stalk
  operating the indicators, main beam, windscreen wash wipe, (if provided) right stalk
  operating Eurotronic 2 gear change, engine brake, cruise control and variable
  speed limiter. If provided, on the left of the steering column there is the dash
  mounted Eurotronic gearbox controls D - N - R mode (forward and reverse).
  Overhead console for CB radio. Courtesy and map reading lights. Electronic PTO
  switch and in cab preparation. Expansio Module. Fabric trim cab interior. Rear bulk
  head storage with writing pad.
