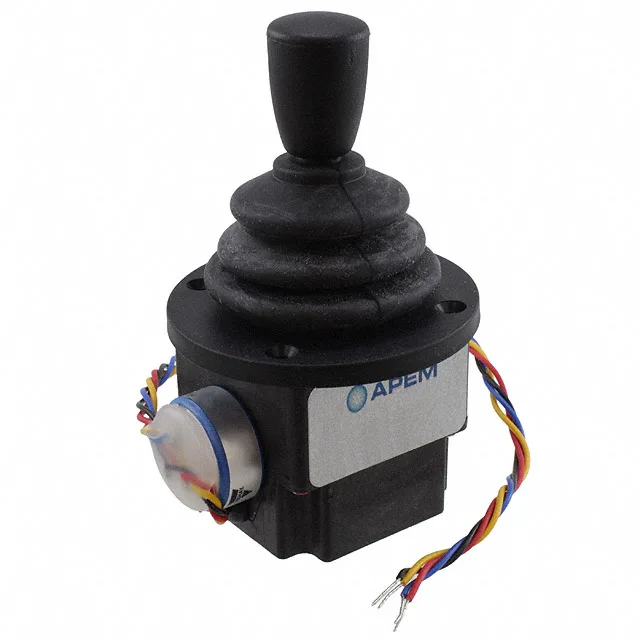

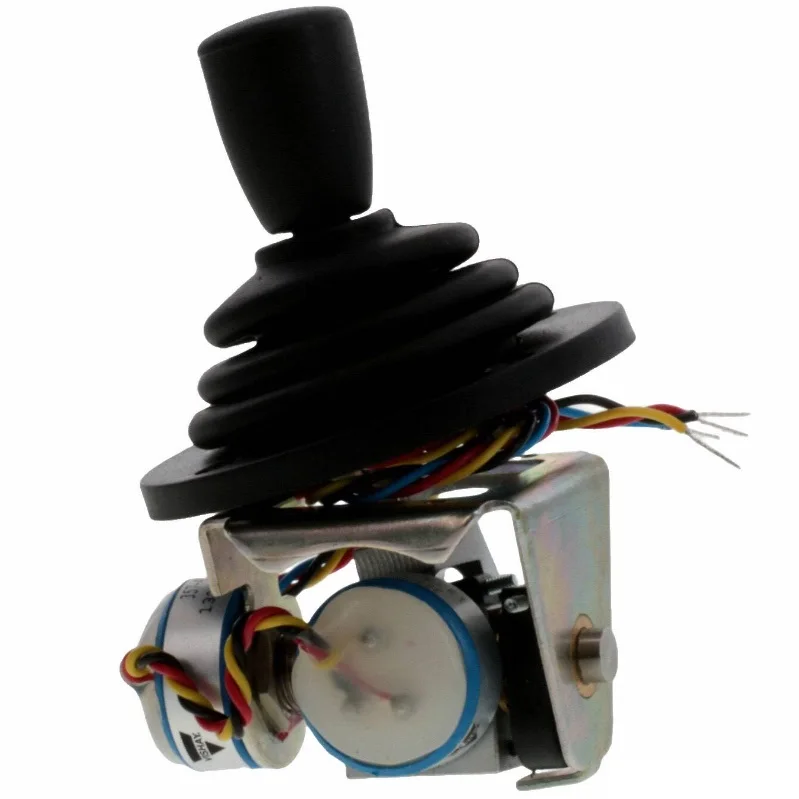

Analog Resistive output crane industrial joystick 4P25-2S1E-55-00 Proportional potentiometer finger tip controller
The 4000 Series is a range of robust, industrial quality potentiometer joysticks for internal and external applications. All 4000 Series share the same, all metal mechanism to provide the finest performance and service life over a wide range of temperatures and loads. All 4000 Series employ high quality plastic film potentiometers, yielding a service life of many millions of cycles.
Features
General specification
Two standard mounting options
Low current drain
Variety of potentiometer options
Robust
All metal mechanism
IP65 above panel
Inherently immune to RFI
Optional center-detect microswitching
Available in two body variants
Environmental specifications
Temperature Range: -20°C to +55°C (-4°F to +131°F)
Linearity: ±2%
Output Smoothness: 0.1% max.
Power Rating: 1W at 70°C (158°F) - Derate to 0W at 125°C (257°F)
Above Panel Seal Ingress Protection : IP65 - Dust Tight, Water Resistant
Electrical specifications
Insulation Resistance: 1000MΩ 500VDC
Maximum Voltage: 24 VDC
Reverse Polarity Max: -24 VDC
Overvoltage Max: 70 V
Output Impedance: 0 to 5 K Ω or 0 to 10 K Ω (subject to potentiometer)
Return to Center Voltage Tolerance: V/2 ±(V*2%)
Materials
Lever Material: Stainless Steel
Body Material: Glass Filled ABS or Steel
Boot Material: Neoprene or santoprene
Other Materials: Brass
mechanical specifications
Operating Force: 1.3 N (0.29 lbf) (Dependant on configuration)
Resistance Tolerance: ±20%
Mechanical Angle of Movement: 27.5° X & Y axis ; and 50° (Z)
Expected Mechanical Life Cycles : >5 million lifecycles
Panel Cutout Dimensions : Circular - 23.00mm Dia
Mass/weight: 110 g (3.88 oz) (Dependant on configuration)
4P25-2-S-1-E5500
BODY P : Open
AXIS 2 : Two
POTS 5 :5K 340°
SPRING S : Standard

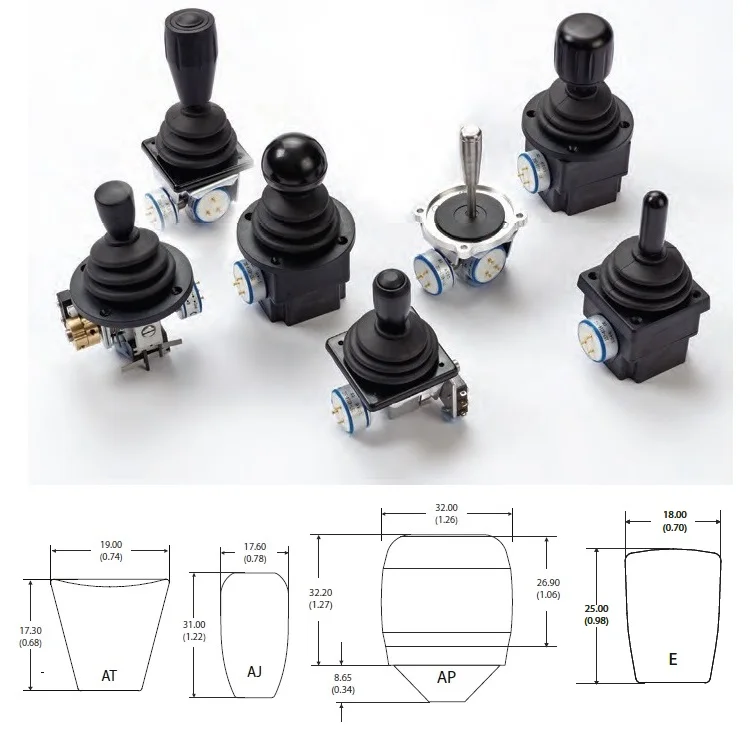

HANDLE E : Conical
BEZEL 5 : Circular
4P112S1E01113 , 4P11-2-S-1-E01113
4P182F1C5500 , 4P18-2-F-1-C5500
4P182F1D0100 , 4P18-2-F-1-D0100
4P182F1E55475 , 4P18-2-F-1-E55475
4P252S1E5500 , 4P25-2-S-1-E5500
4P282F1E55475 , 4P28-2-F-1-E55475
4P282S1C0500 , 4P28-2-S-1-C0500
4P382H1Y0100 , 4P38-2-H-1-Y0100
4R112S1E3500 , 4R11-2-S-1-E3500
4R182S1E3200 , 4R18-2-S-1-E3200
4R182S1E5500 , 4R18-2-S-1-E5500
4R192S1E3200 , 4R19-2-S-1-E3200
4P112S1E01113 , 4P11-2-S-1-E01113
4P18-2F1C-55-00 , 4P18-2FIC-55-00
4P18-2F1D-01-00 , 4P18-2FID-01-00
4P18-2F1E-55-475 , 4P18-2FIE-55-475
4P25-2S1E-55-00 , 4P25-2SIE-55-00
4P28-2F1E-55-475 , 4P28-2FIE-55-475
4P28-2S1C-05-00 , 4P28-2SIC-05-00
4P38-2H1Y-01-00 , 4P38-2HIY-01-00
4R11-2S1E-35-00 , 4R11-2SIE-35-00
4R18-2S1E-32-00 , 4R18-2SIE-32-00
4R18-2S1E-55-00 , 4R18-2SIE-55-00
4R19-2S1E-32-00 , 4R19-2SIE-32-00
4R212S1E-0500 , 4R21-2S1E-05-00 ,
4R21-2S1-E-0500 ,
4R21-2-S-1-E0500 ,
4R252S1E5500 ; 4R25-2-S-1-E5500 ,
4R252S1N5500 , 4R25-2-S-1-N5500
4R282H ,
4R282H1AT5500 , 4R28-2-H-1-AT5500
4R28-2H1AT-5500 ,
4R282H1E55475 , 4R28-2-H-1-E55475
4R28-2H1E-55-475 , 4R28-2HIE-55-475 ,
4R282S , 4R282S
4R282S1E0500 , 4R28-2-S-1-E0500
4R28-2S1E-0500 , 4R28-2-S-1-E0500
4R28-2S1E-05-00 , 4R28-2SIE-05-00 ,
4R28-2S1J-35-135 , 4R28-2-S-1-J35135
4R292S1E3200 , 4R29-2-S-1-E3200
4R382S1Y5500 , 4R38-2-S-1-Y5500
