Токарный станок с ЧПУ швейцарского типа токарный для резки стали производственного завода

Сохранить в закладки 11000005604310:


Цена:15 499,10 $ - 16 478,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики













item
AK164
value
Mechanic
System
FANUC 0i TF-PLUS
SYTENC 22TB
Max.RPM
Main10,000min-1/Sub8,000min-1
Main8,000min-1/Sub6,000min-1
Max.Turning Diameter
φ16mm
Main Spindle Stroke
150mm
Rapid traverse speed
24m/min

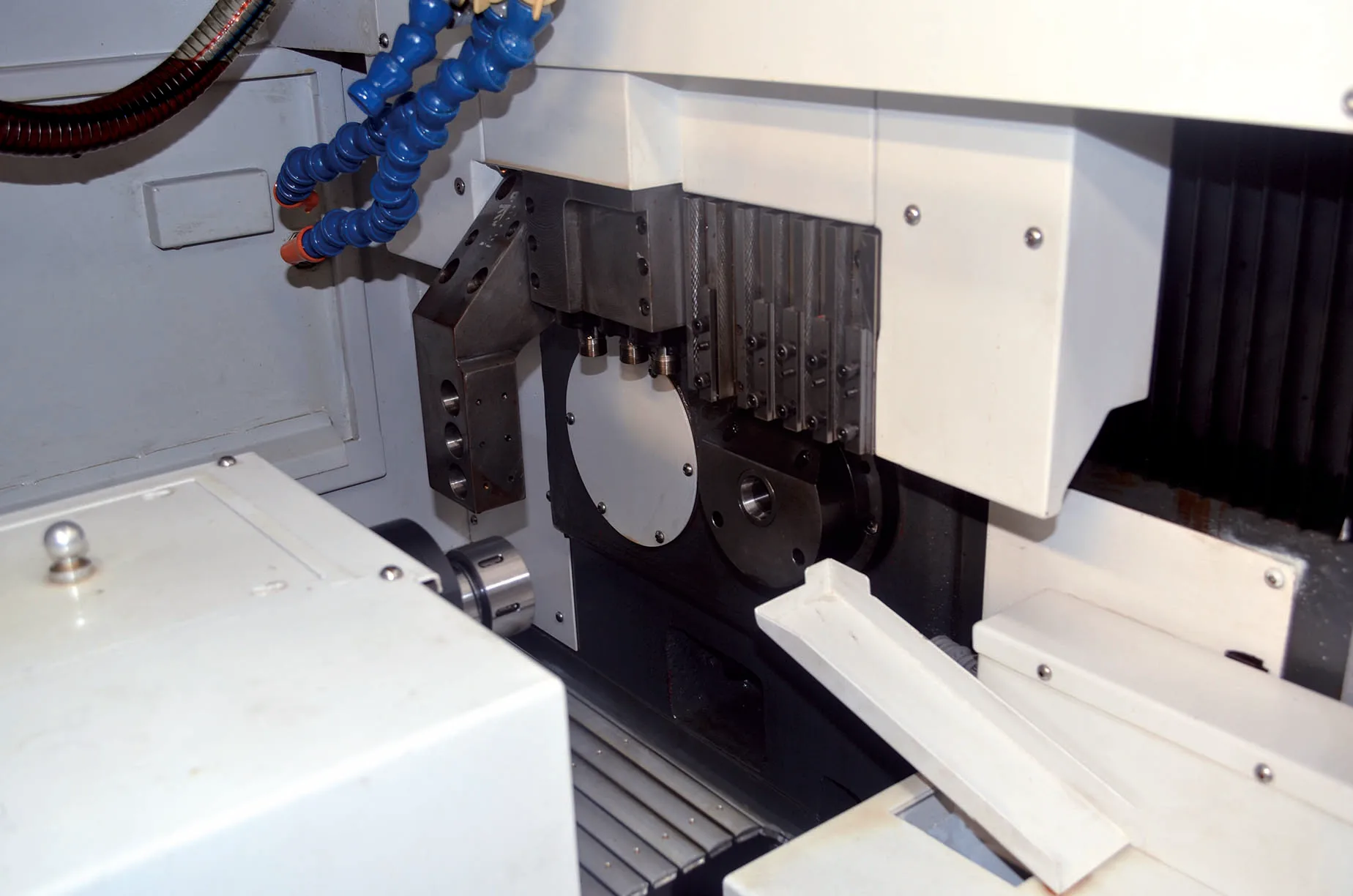

Tools
 O.D Tools
6X [□12×12]
I.N Tools
3X[φ25-ER16]

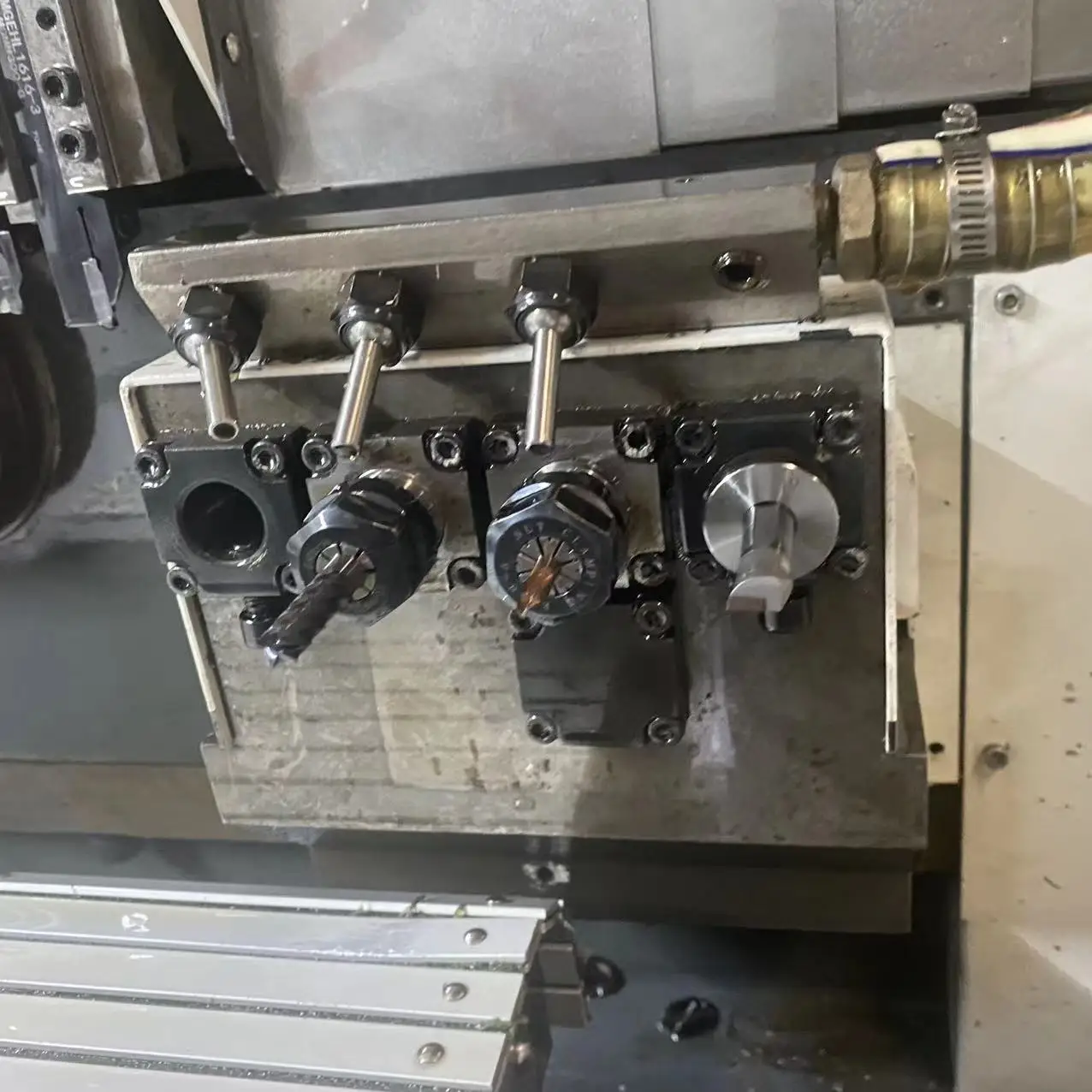

Cross Driven Tools(integration)
3X[ER16]
Motors
 Main
3.7/5.5KW
3.9KW
Sub
0.55/1.1KW
0.75KW
Cross
0.5KW
0.75KW
Drive
0.75KW
Coolant
0.25KW
Others
Coolant tank capacity
180L
Lubrication tank capacity
1.8L
Central Height
1,050mm
 Weight
3,000Kg
The size (L×W×H)
1985×1321×1692mm
NC  Control

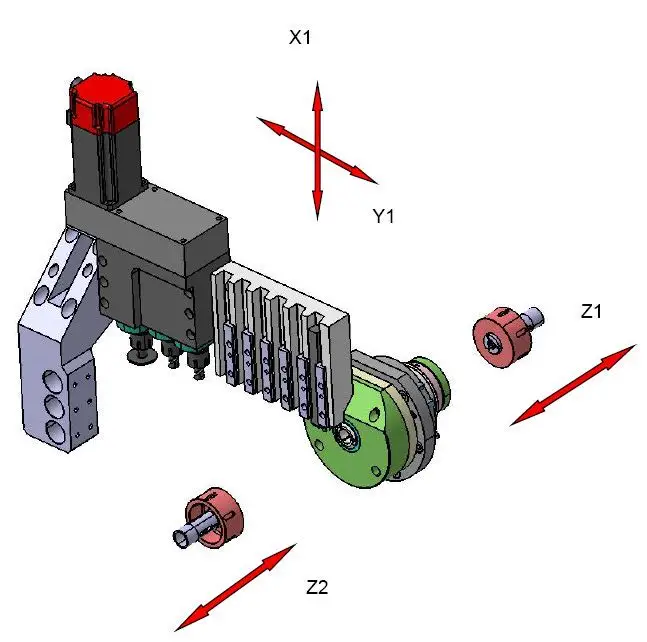

Controllable Axes
5axis/4axis
LCD
LCD 8.4"
System standard parameters
标准 Standard
Rigid tapping
标准 Standard
NC Control
Helical interpolation
标准 Standard


ITEM
Standard units
 Floodlight
The product output device
Transformer
Centralized lubrication system
The spindle axis C + brake
Synchronus rotary guide bush holder unit
C axis resolution: 0.001 °
Auxiliary shaft workpiece ejection device
Air blow on Sub spindle
Cooling box
0ptionanl units
Bar feeder
Front power tools
Oil cooler
4axis cross tools
Chip conveyor
cut-off tool detector
High pressure pump
4axis or 5axis I.N tools
Thread whirling rings
10axis I.N tools










Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Angular live tool
- Automatic chip conveyor
- Automatic bar feeder




Company Profile




Liaocheng Dongyuan Materials Industry Co., Ltd was established in August 2010 with a registered capital of CNY 50,000,000.00. As the wholly-owned subsidiary of local state-owned enterprise, Liaocheng Dongyuan, with years of precipitation and accumulation, has developed into a modern enterprise specialized in the CNC machinery industry, integrating research & development, manufacturing and sales of CNC machines. Our products include CNC lathe machines, CNC pipe threading lathes, CNC pipe cutting machines, rim repair machines and machining centers. Our company has established strategic partnership with Shenyang Institute of Computing Technology of Chinese Academy of Sciences and industry-university-research cooperation with several universities. Thanks to the hard work of the research & development team and strong technology support from the scientific research institutions and universities, our company has won 20 patents for utility models, 5 patents for invention and the ISO 9001 quality management system certification. Taking customer demand as its top priority, Liaocheng Dongyuan has been devoting itself to providing one-stop and overall machine solutions to customers from all over the world. Excellent machine performance, competitive price and reliable after-sales service makes our product quick seller in South America, Southeast Asia and Africa etc. Adhering to the vision of achieving mutual benefit and win-win situation, Liaocheng Dongyuan aims to provide customers with top quality CNC machines to help them raise their products quality and technical level and achieve maximum benefits from their investment. Let us work together for a brighter future.






FAQ


1. who are we?
We are based in Shandong, China, start from 2010,sell to Africa(80.00%),Southeast Asia(10.00%),South America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Lathe Machine,VMC,Manual Lathe

4. why should you buy from us not from other suppliers?
We are wholly-owned by local state-owned enterprise and we have more than ten years experience in cnc machinery industry. We offer professional after-sale service and excellent performance machine at competitive price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
