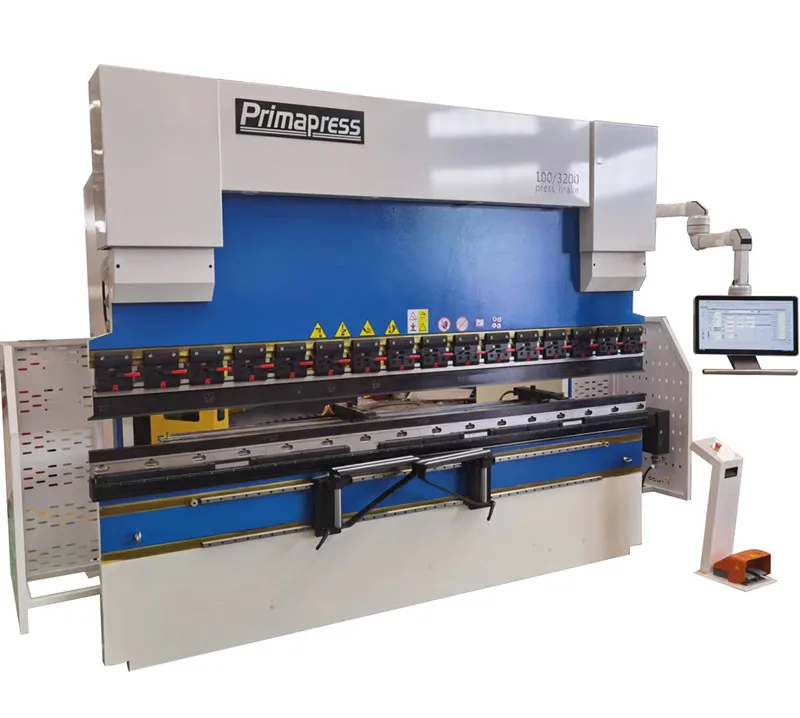

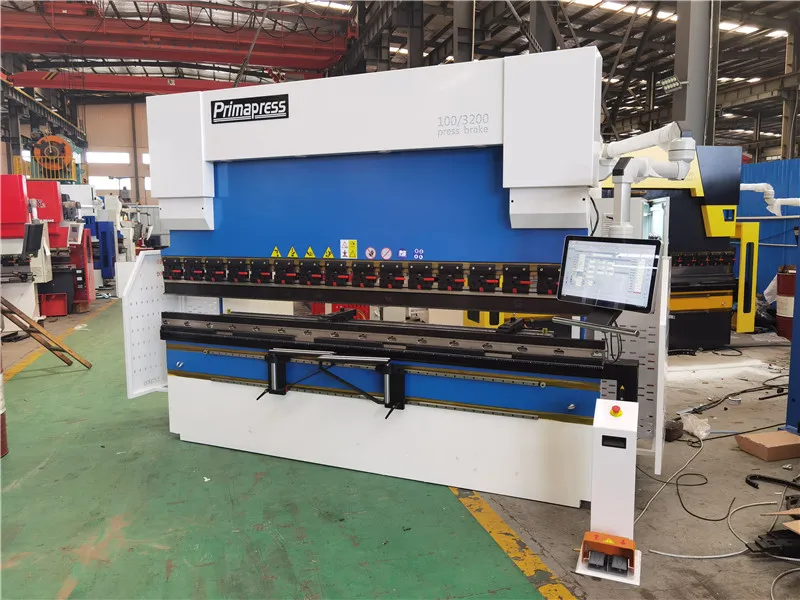

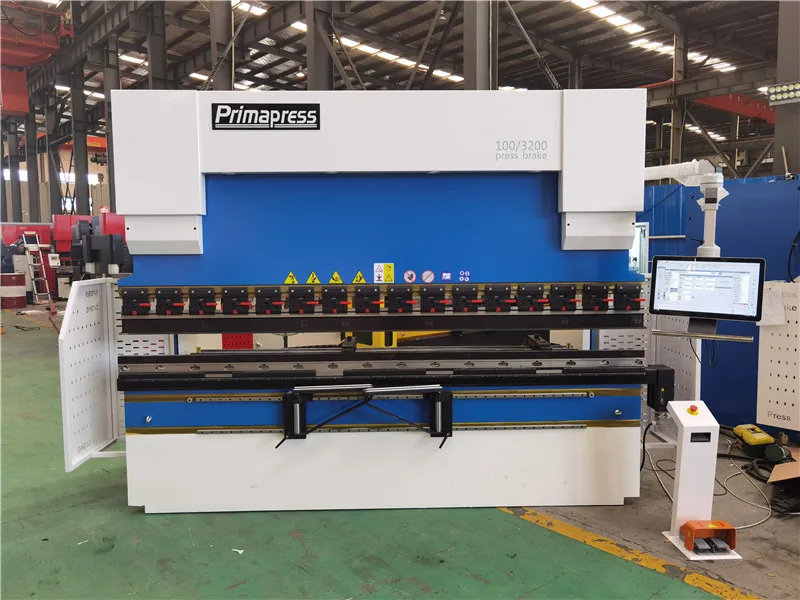

125T/3200 6 1 осевой гибочный станок для листового металла с ЧПУ ESA S875 листогибочный

The Whole Structure of Press Brake:

1. Main Features:
1) Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2) Oil seals by Japanese, NOK.
3) Overload & overflow protection to ensure there is no leakage and protect hydraulic system,
and the oil level can be read directly.

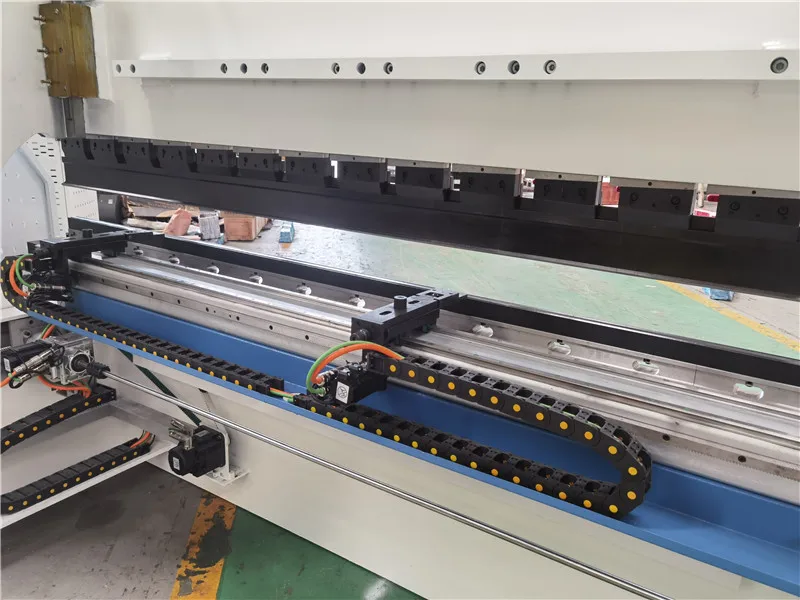

2.Servo motorized backgauge:
1) CNC backgauge system with X axis by AC servo motor driven ball screw shafts and on linear
bearings with an accuracy of 0.01mm.
2) Backgauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3) High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range
of backgauge.

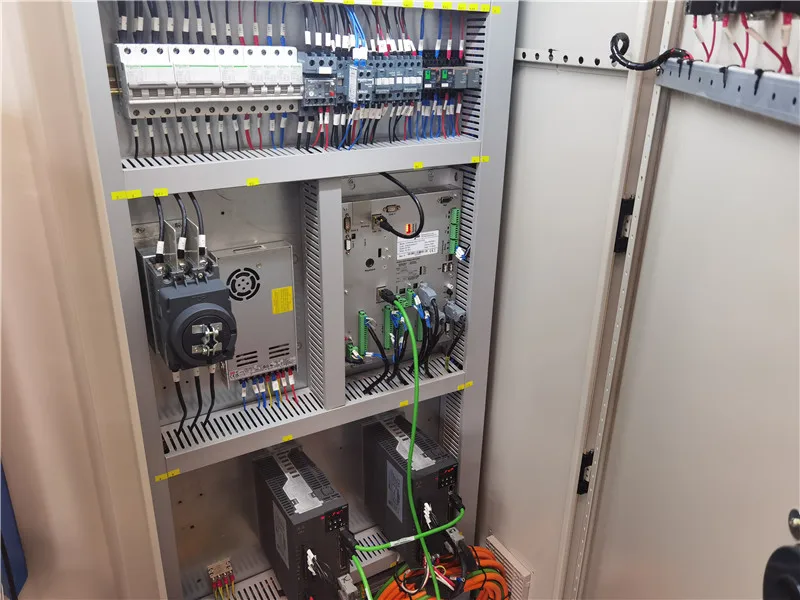

3.Electrical parts and protection device:
1) Schneider or Siemens Low-voltage apparatus. In accordance with international standards,
reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake
3) Light screen protection.
4.CNC press brake control system:
1) 6.4" VGA colour LCD (TFT)
2) Numerical, one page programming
3) Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
4) CNC crowning control
5) USB, peripheral interfacing
6) Servo, frequency inverter and AC control for backgauge axes.

Prima CNC control hydralic metal plate bending machine new product for sale

 2. Standard Equipment:

 CNC Control System

 Powered Depth Y-axis&Back gauge X-axis

 DELTA Inverter controlled back gauge

 HIWIN Ball screws & Polished rod with 0,05mm accuracy.

 Plate Support Arms

 Germany Bosch-Rexroth Hydraulic

 Germany EMB Tubing connector

 Germany Siemens Main Motor

 Telemecanique/Schneider Electrics

 Hydraulic &Electrical overload protection

 Top and Bottom Tooling

 3. Safety Equipment:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

.South Korea Kacon Foot Switch(Level 4 of safety)

.Safety relay with Monitor the pedal switch and safety protection
