Products Description
Note:If you need to buy multiple pieces . Please click her.

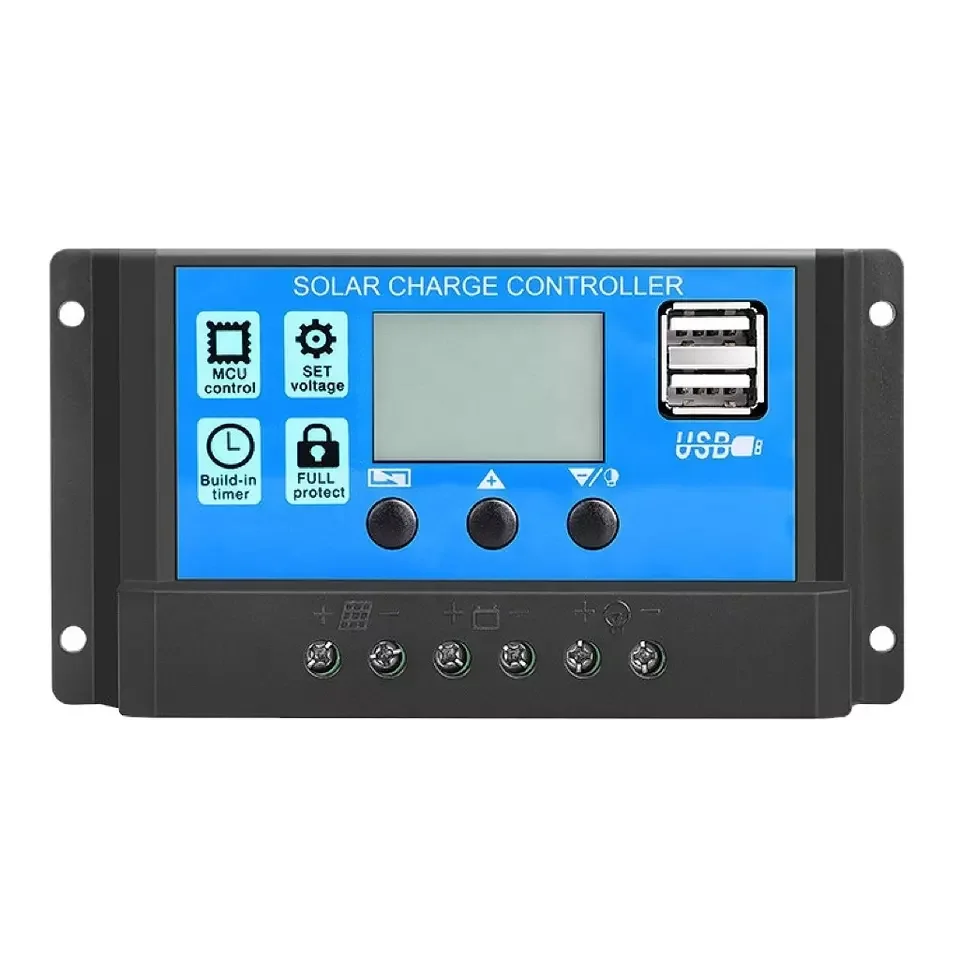

10A 20A 30A 40A 50A 60A Solar Charge Controller PWM 12V 24V Controller LCD Dual USB PV Home Solar Cell Panel Battery Charger SCC
This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
Features
1.Build-in industrial micro controller.

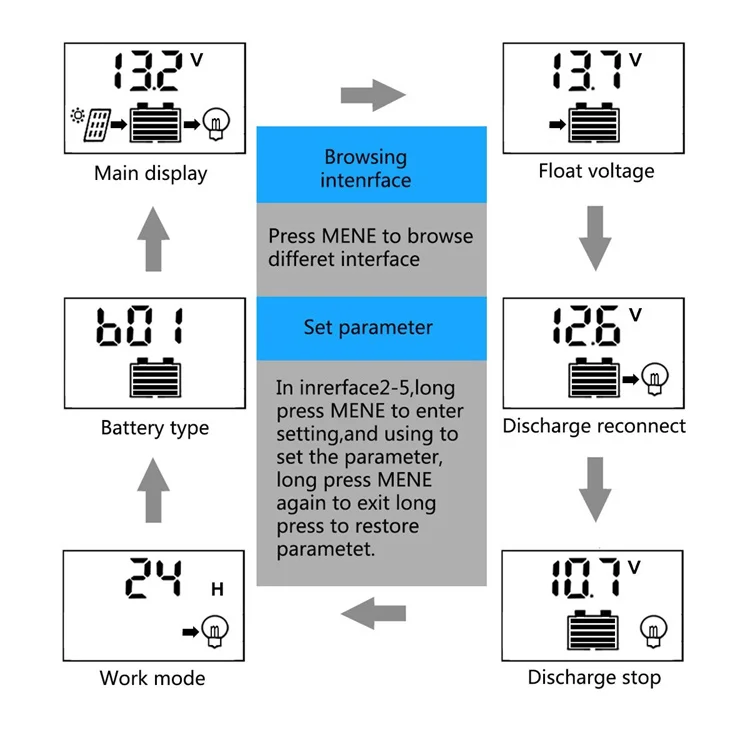

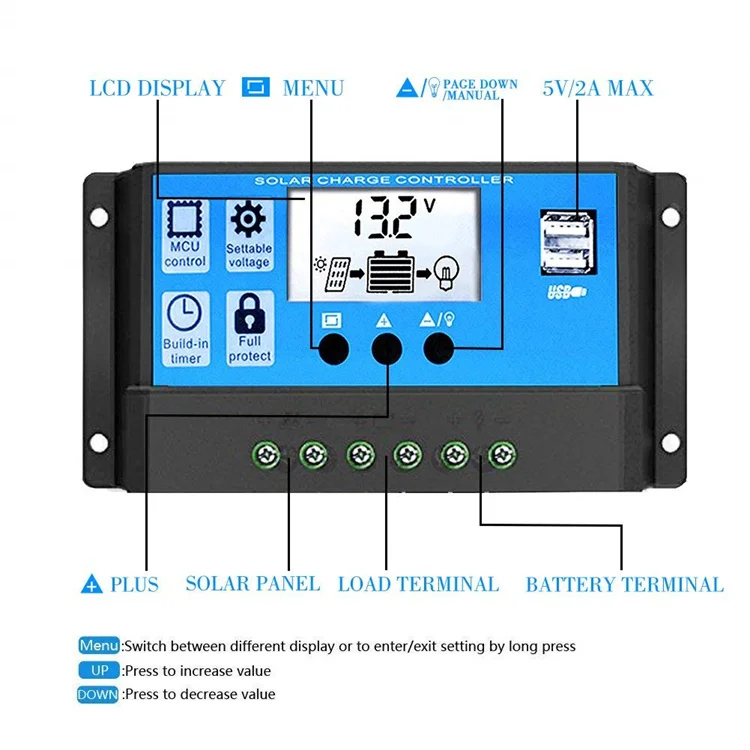

2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Recently, there are many similar products on the market, their prices are different, and the sales volume are also large, but please note that only Yong Hui Store products are 100% authentic and the highest quality. If you are a distributor, we can provide permanent after-sales Service, we can provide you with free samples and competitive prices!
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Recently, there are many similar products on the market, their prices are different, and the sales volume are also large, but please note that only Yong Hui Store products are 100% authentic and the highest quality. If you are a distributor, we can provide permanent after-sales Service, we can provide you with free samples and competitive prices!

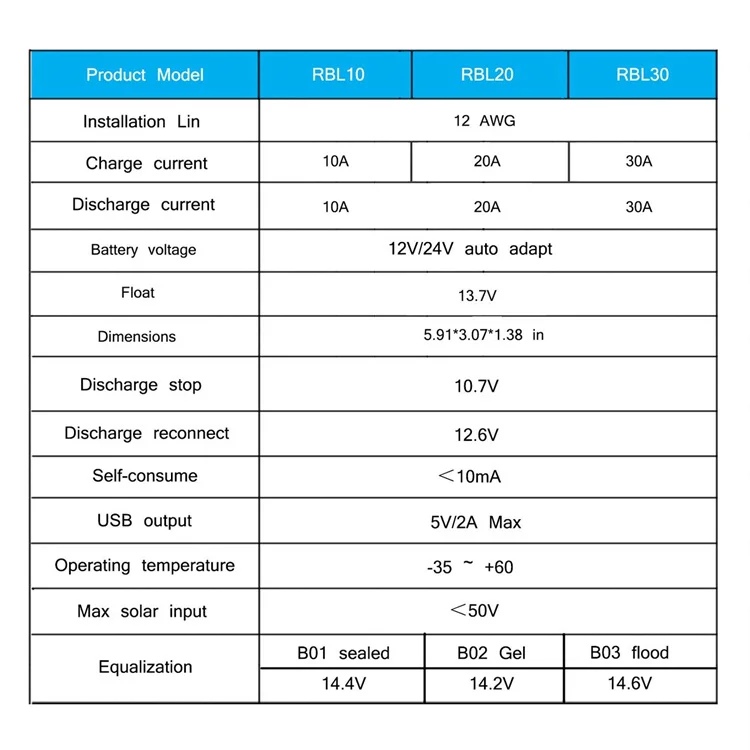

Product Specification:
MODEL | RBL-10A | RBL-20A | RBL-30A | RBL-40A | RBL-50A | RBL-60A | |||||
Battery Voltage | 12V 24V Auto | ||||||||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A | |||||
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A | |||||
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | ||||||||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | ||||||||||
Float charge | 13.7V(defaul,adjustable) | ||||||||||
Discharge stop | 10.7V(defaul,adjustable) | ||||||||||
Discharge reconnect | 12.6V(defaul,adjustable) | ||||||||||
Charge reconnect | 13V | ||||||||||
Voltage of open light | Solar Panel8V(Light lights delay) | ||||||||||
Voltage of close light | Solar Panel8V(Light off delay) | ||||||||||
USB output | 5V/3A | ||||||||||
Self-consume | <10mA | ||||||||||
Operating temperature | -35°C~+60°C | ||||||||||
Size | 133.5*70*35mm | 188*90*47mm | |||||||||
*all red color voltage X2 ,while using 24V system.

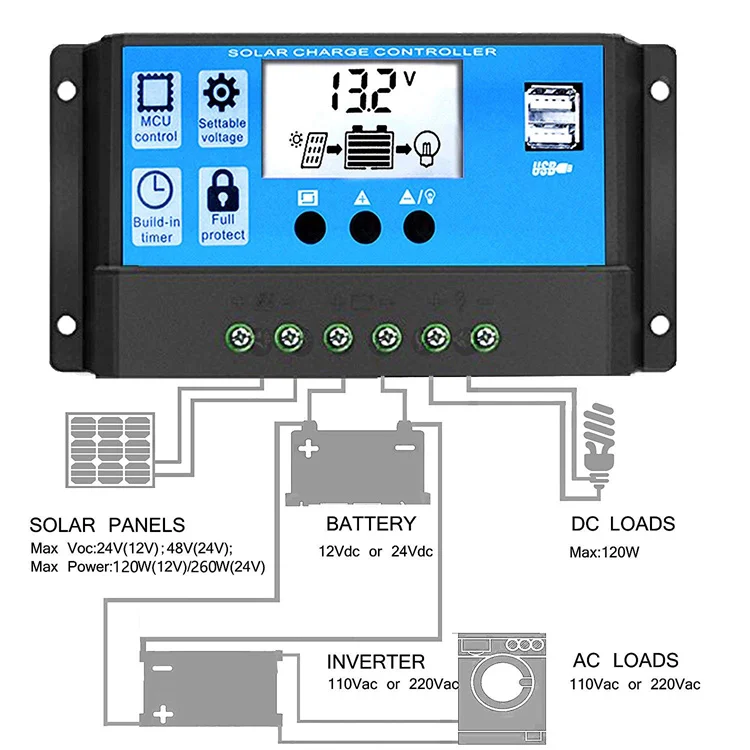

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

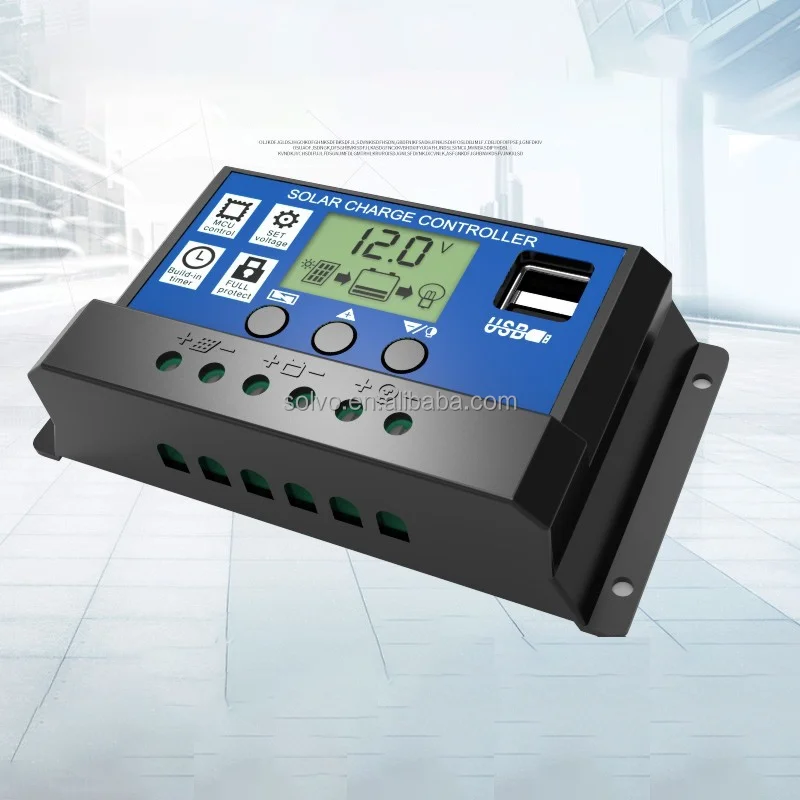

Product Show
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Похожие товары
Оптовая Продажа с фабрики 80A 12V 24V 36V 48V двойной USB 5V 2A PWM контроллер солнечной зарядки
2 962,62 ₽
Неэлектрифицированная солнечная система PWM 10A 20A 30A USB светодиодный дисплей Солнечная Панель 12v 24v Солнечный контроллер заряда
220,34 ₽ - 385,59 ₽

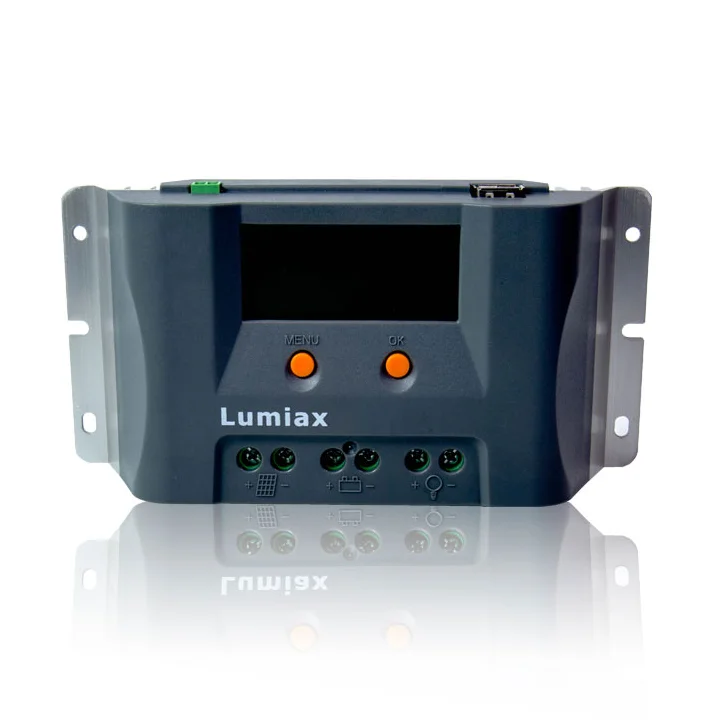

Контроллер Lumiax 40A, 12 В/24 В, USB-регулятор, солнечная зарядка, система питания для дома, ЖК-экран, PWM 2 USB
2 419,34 ₽ - 2 678,56 ₽

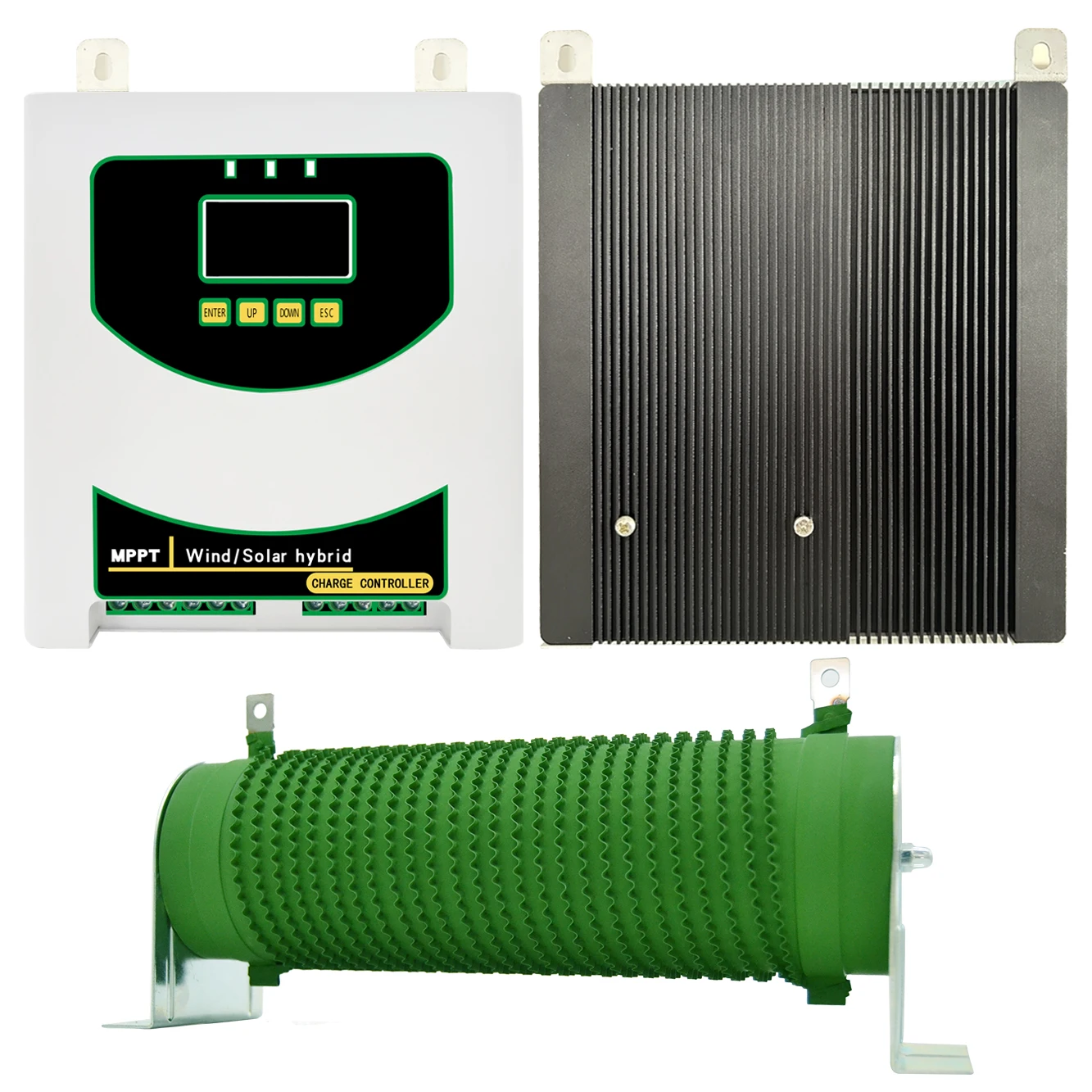

Высоковольтный контроллер солнечной энергии Mppt 12 В/24 В/48 В 1500 Вт двухканальный Ветер солнечный гибридный контроллер заряда
