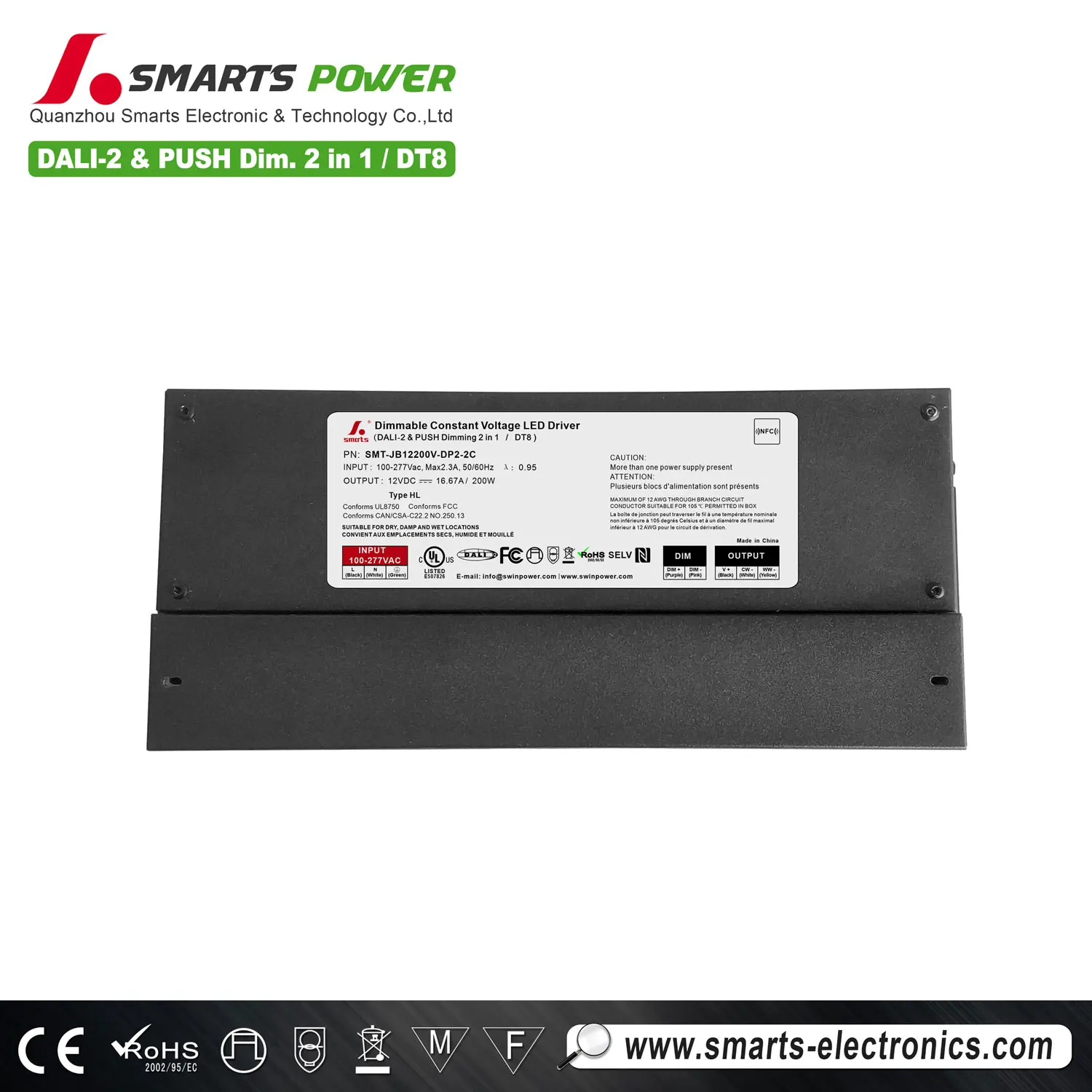

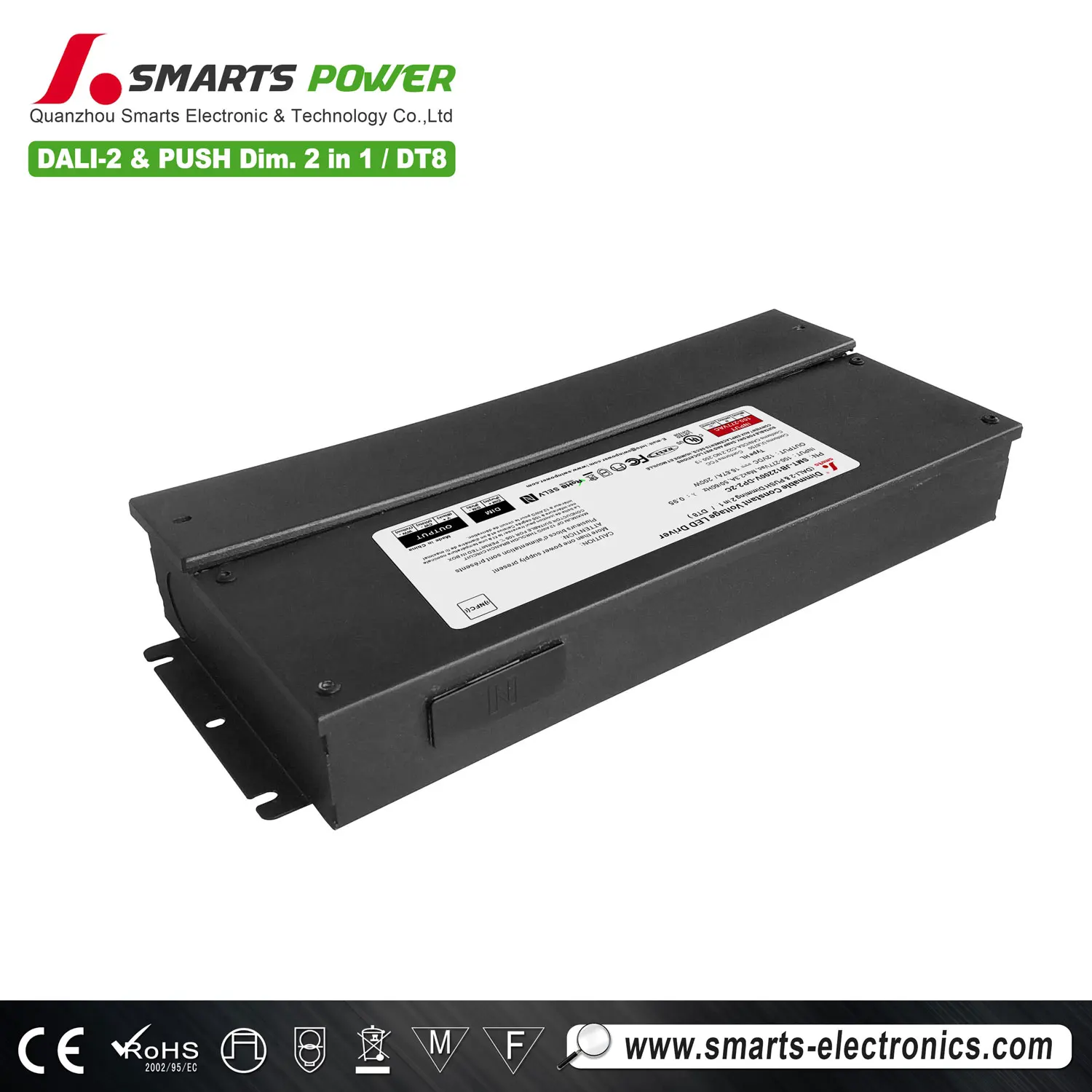

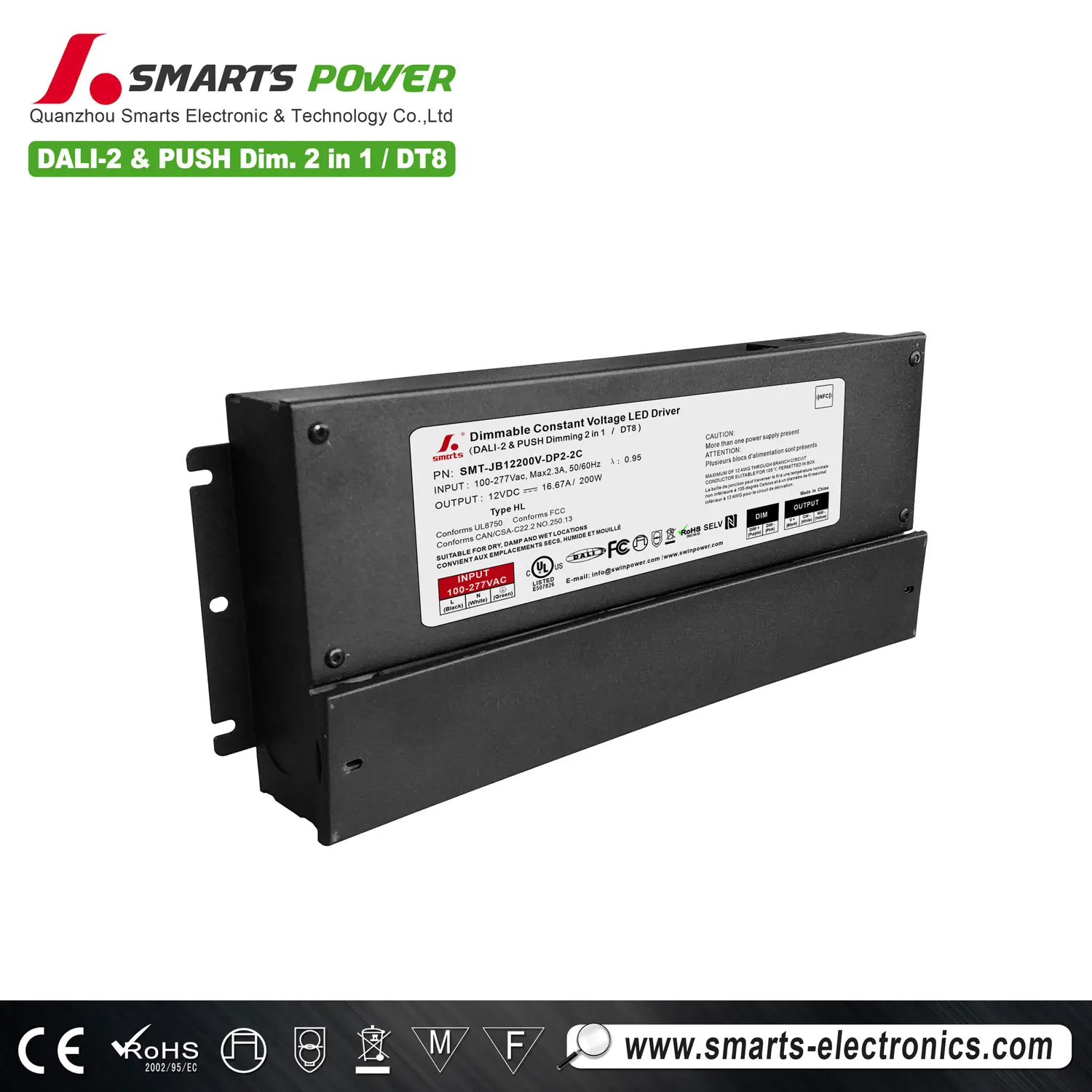

Водонепроницаемый светодиодный драйвер DALI 2 с регулируемой яркостью 100 Вт постоянное напряжение 12 В/24 В/36 В/48 в

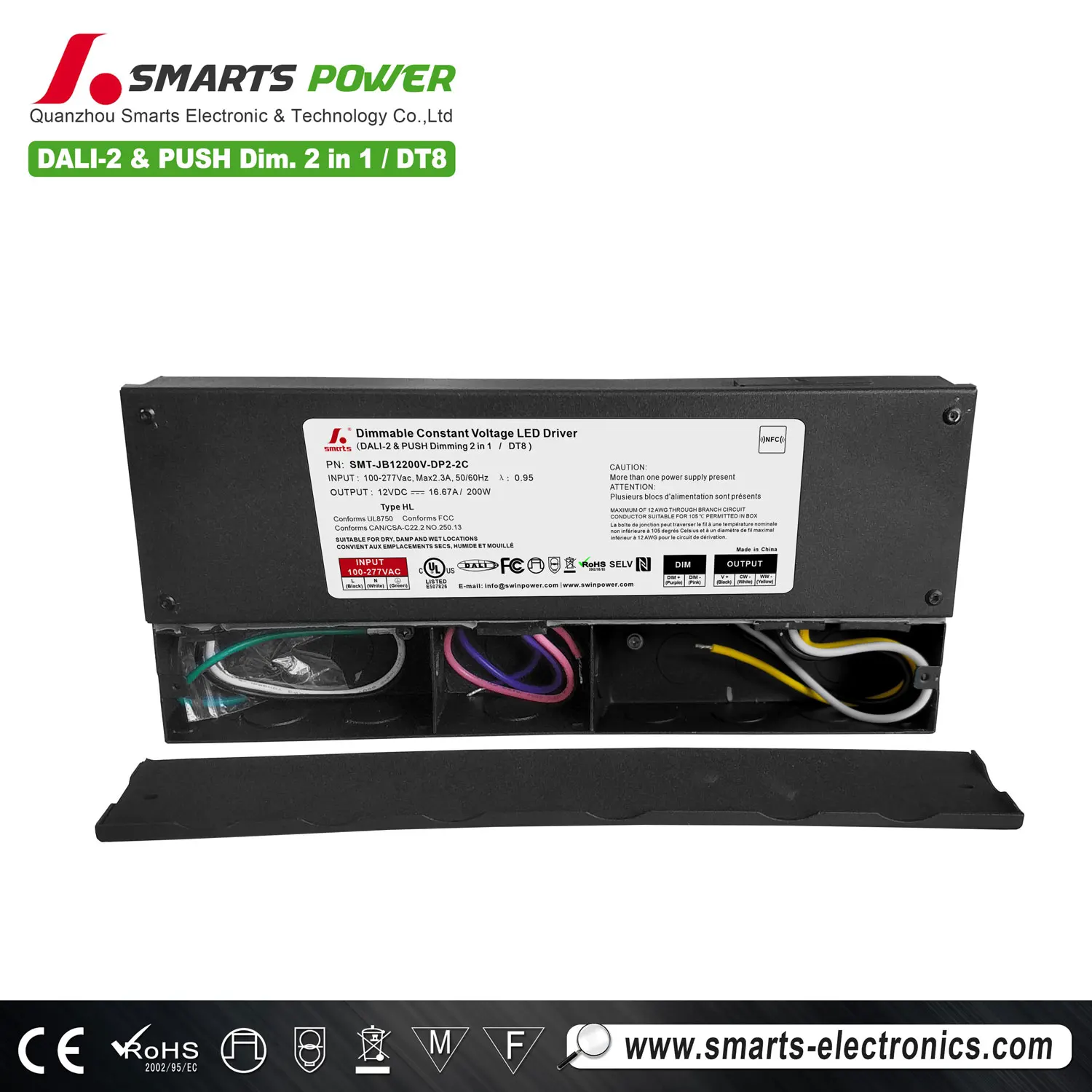

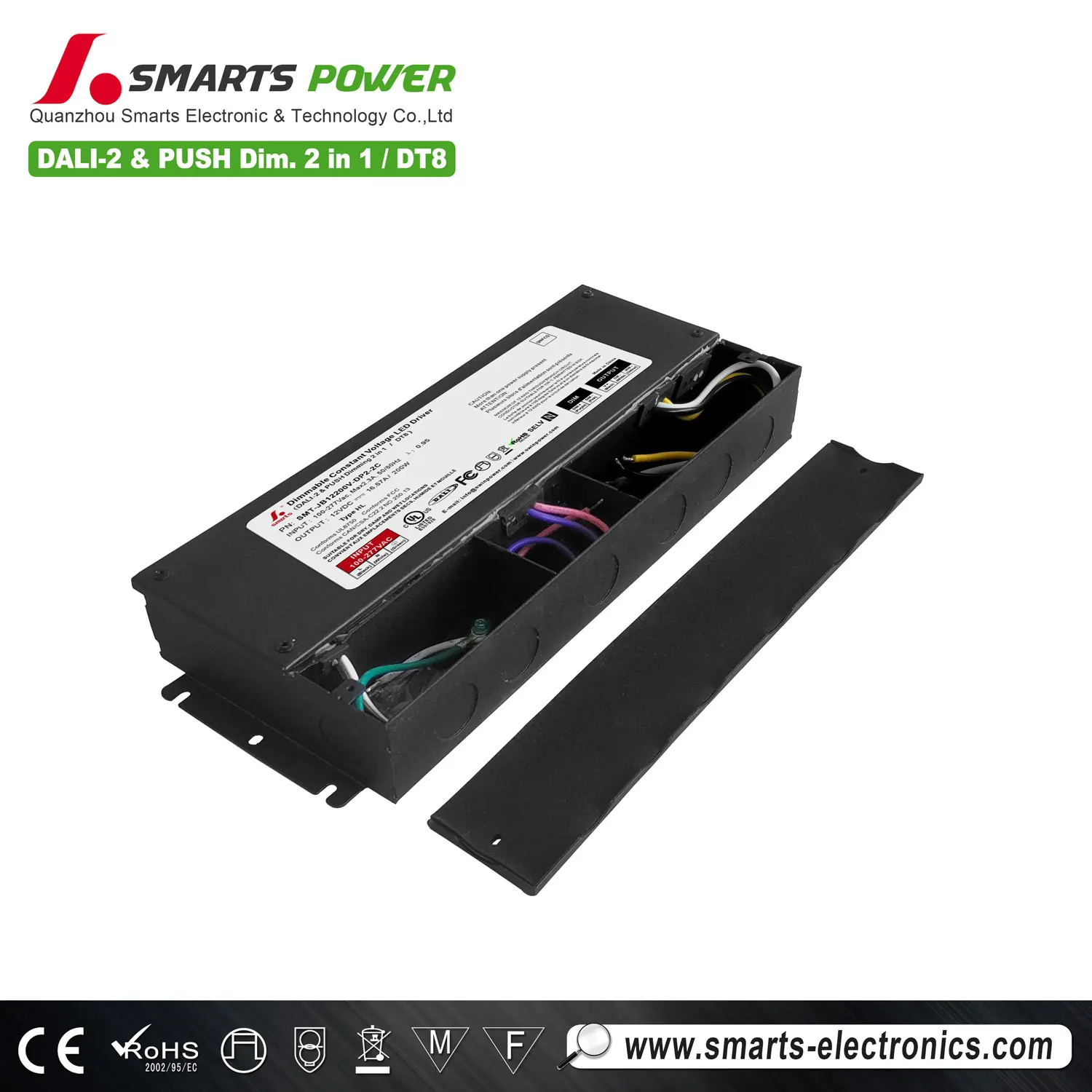

Input & Output wiring

Input electronic cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);

Output : 12V electronic cable 3*16AWG to be connected to LED Light;

          24V electronic cable 3*18AWG to be connected to LED Light;

Dimming cable

Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and pink (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.

Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

Note:  there is external antenna at output side.  Don't disassemble!

Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.

 DALI-2 address setting Operation

The default address for the DALI-2 LED driver is 001.

Address settings device:

Address settings:

 RDM setting address:

Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

 NFC setting address:

The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.

 Adjust output voltage Operation

Adjust output voltage slightly for DALI-2 LED drivers

1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.

2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.

 How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?

Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)

Ø Mobilephone NFC APP setting:
