Product Description

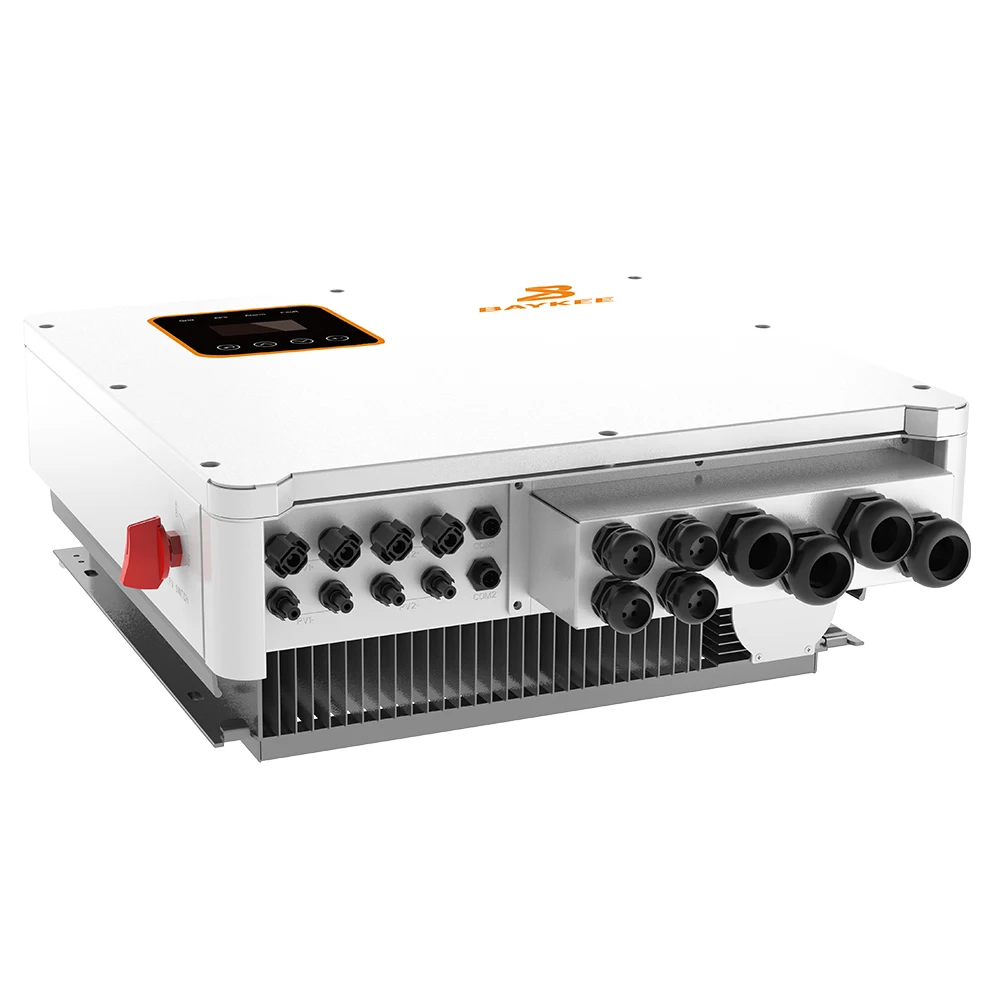

BAYKEE Residential Energy Storage Inverters
Single phase ESS hybrid inverter
Technical Features:
Safe & reliable
* Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1:2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test certification;
Friendly& flexible
* Support multi-parallel connection;
* Support flexible access of diesel generator;
* Compatible with lead-acid and lithium-ion battery;
Economical & practical
* Support intelligent EMS management function;

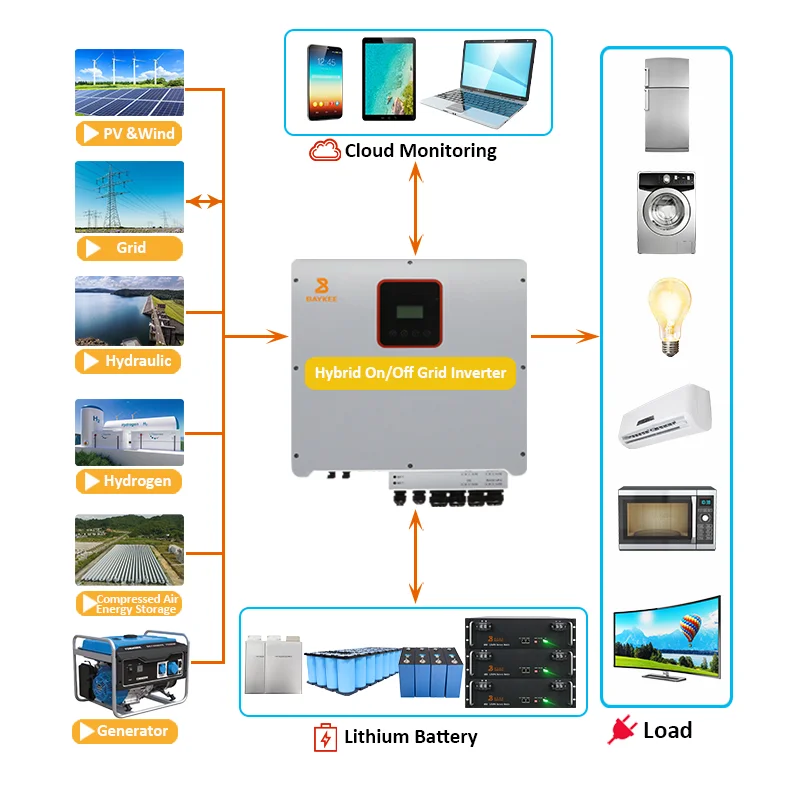

* Support on/off-grid automatic switching function to ensure uninterrupted power when important loads are off-grid;
Specification
Technical specification | R3KL1 | R3K6L1 | R4KL1 | R4K6L1 | R5KL1 | R6KL1 | ||||||
Input(PV) | ||||||||||||
Max.power(kW) | 4.6 | 4.6 | 6 | 6 | 7 | 7 | ||||||
Max.DC voltage(V) | 550 | |||||||||||
MPPT voltage range(V) | 125-500 | |||||||||||
Max.input current of single MPPT(A) | 14 | |||||||||||
MPPT tracker/strings | 2/1 | |||||||||||
AC output | ||||||||||||
Rated output power(kVA) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | ||||||
Max.output current(A) | 13 | 16 | 17.4 | 20 | 21.7 | 26 | ||||||
Grid voltage/range(V) | 230/176-270 | |||||||||||
Frequency (Hz) | 50/60 | |||||||||||
PF | 0.81agging-0.81eading | |||||||||||
THDi | <3% | |||||||||||
AC output topology | L+N+PE | |||||||||||
Battery | ||||||||||||
Battery voltage range(V) | 40-58 | |||||||||||
Max.charging voltage(V) | 58 | |||||||||||
Max.charge/discharge current(A) | 95/62.2 | 95/75 | 95/83.3 | 95/95.8 | 95/104.2 | 95/110 | ||||||
Battery type | lithium/Lead-acid | |||||||||||
Communication interface | CAN/RS485 | |||||||||||
EPS output | ||||||||||||
Rated power (kVA) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | ||||||
Rated output voltage(V) | 230 | |||||||||||
Rated output current(A) | 13 | 16 | 17.4 | 20 | 21.7 | 26 | ||||||
Rated frequency (Hz) | 50/60 | |||||||||||
Automatic switching time(ms) | <20 | |||||||||||
THDu | <2% | |||||||||||
Overload capacity | 110%,30S/120%,10S/150%,0.02S | |||||||||||
General data | ||||||||||||
Battery chage/dischage efficiency | 0.95 | |||||||||||
DC Max.efficiency | 0.976 | |||||||||||
Europe efficiency | 0.97 | |||||||||||
MPPT efficiency | 0.999 | |||||||||||
Ingress protection | IP65 | |||||||||||
Noise emission (dB) | <35 | |||||||||||
Operation temperature | -25℃-60℃ | |||||||||||
Cooling | Natural | |||||||||||
Relative humidity | O-95%(non-condensing) | |||||||||||
Altitude | 2000m(>2000 Derating) | |||||||||||
Dimensions W*D*H(mm) | 550*200*515 | |||||||||||
Weight(kg) | 25 | |||||||||||
Isolation transformer | No | |||||||||||
Self-consumption(W) | <3 | |||||||||||
Display and communication | ||||||||||||
Display | LCD | |||||||||||
lnterface:RS485/Wifi/4G/CAN/DRM | Yes/ Opt/ Opt/ Yes/ Yes | |||||||||||
Safety standard | IEC/EN62109-1/-2,IEC/EN62477-1 | |||||||||||
EMC | IEC/EN61000-6-1,IEC/EN61000-6-3 | |||||||||||
On-grid | South Africa NRS097-2-l:2017,UK G98,G99 | |||||||||||
