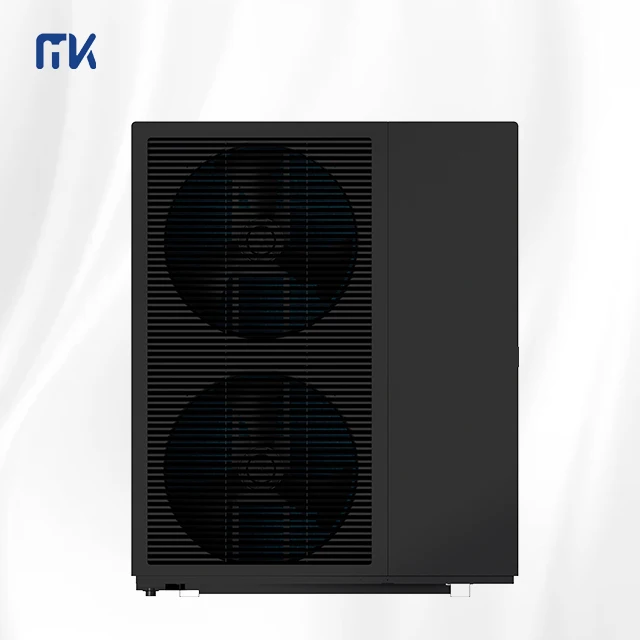

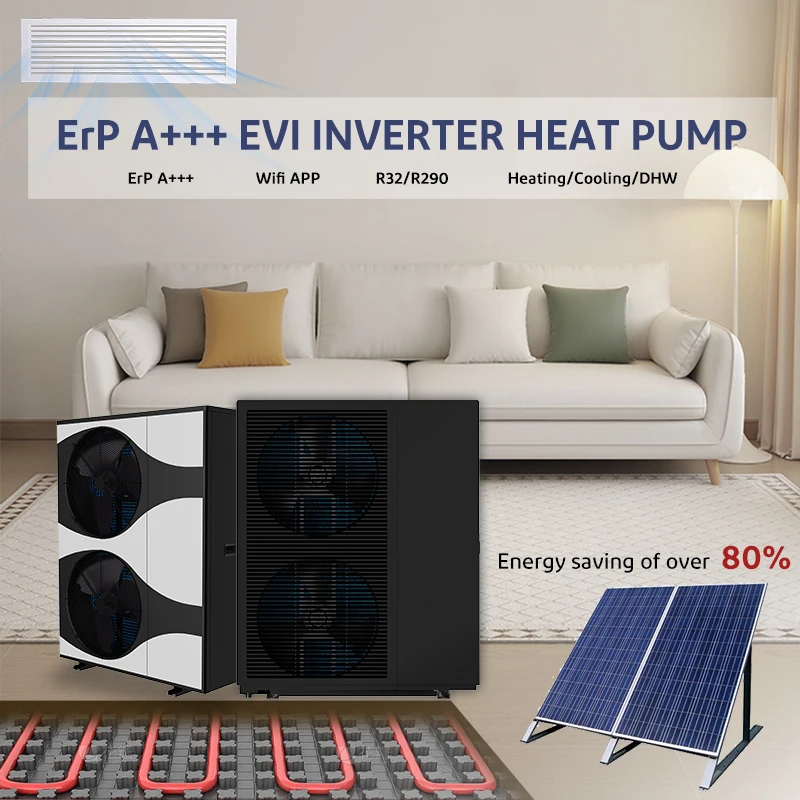

Belgium Russia Poland Dc инвертор Evi Erp A Oem pompa ciepla моноблок r290 тепловые насосы от производителей водяного

Сохранить в закладки 11000009535152:


Цена:2 080,00 $ - 2 200,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

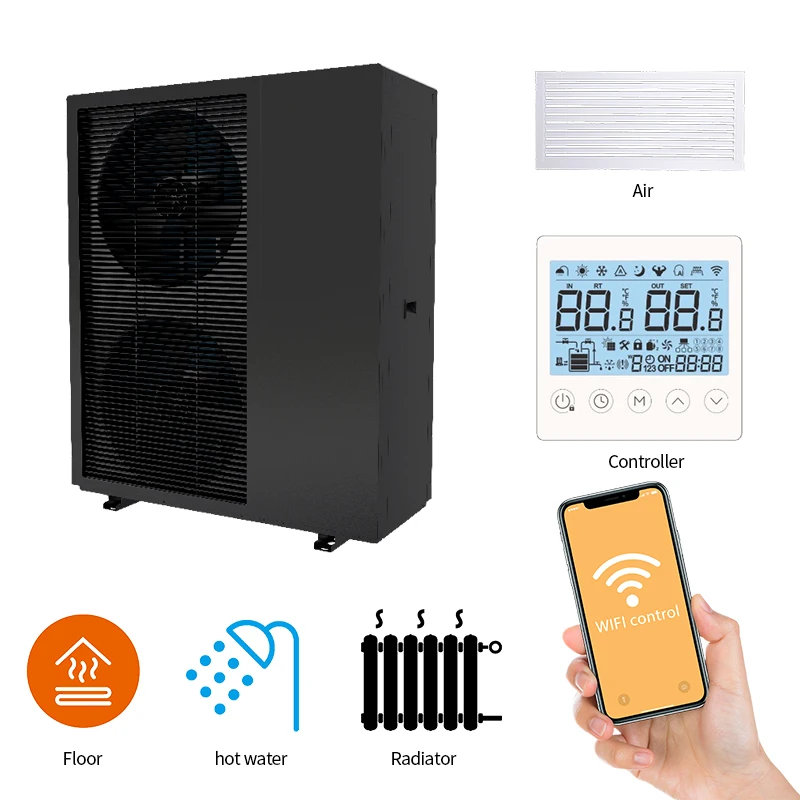

Products Description




Features:

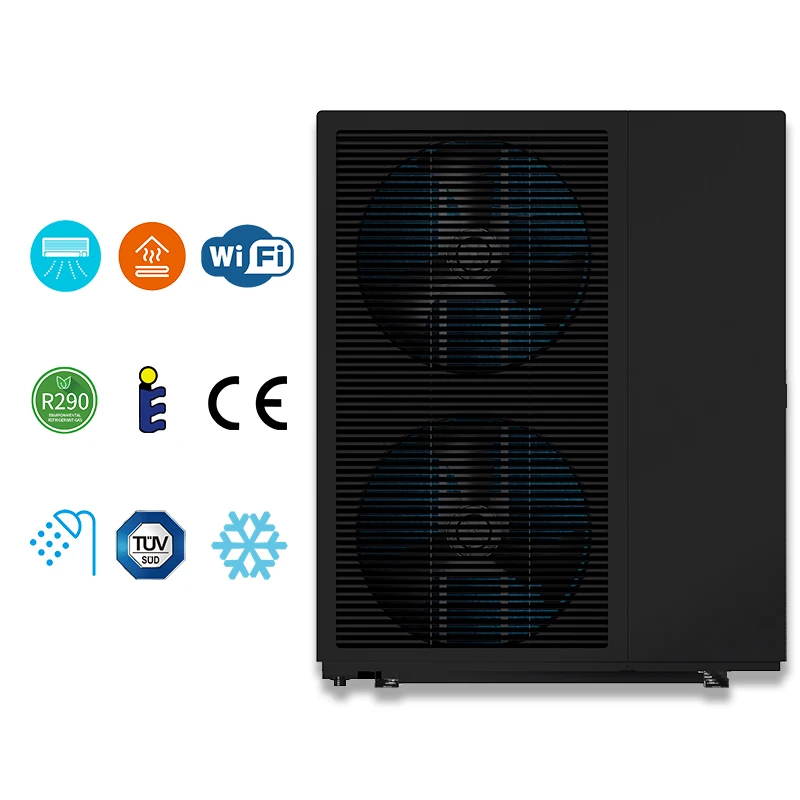

R290 refrigerant,low GWP(GWP=3)
Energy class: A+++

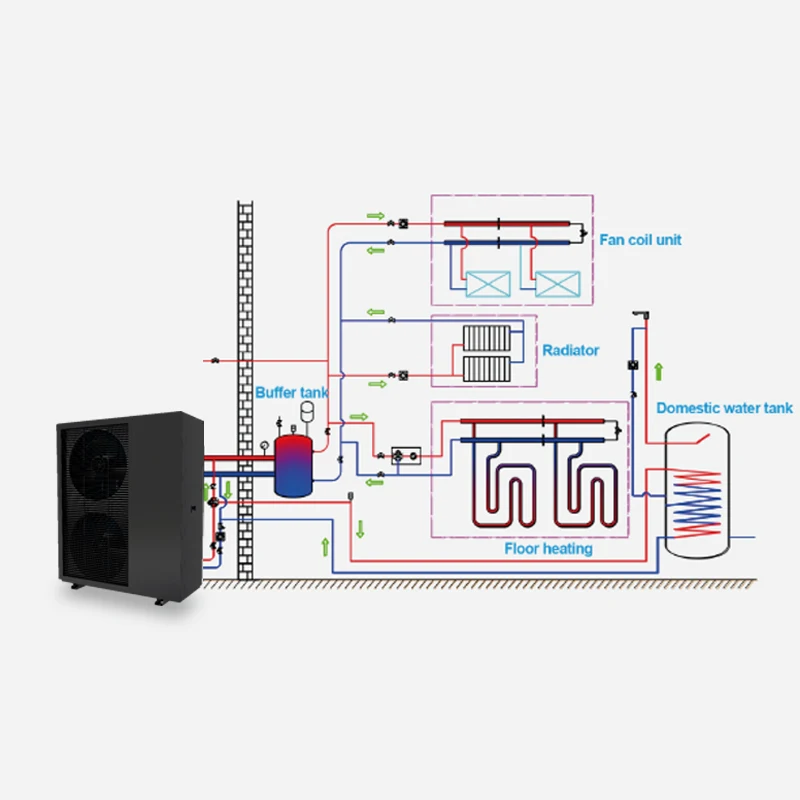

Heating+Cooling+DHW
Full DC inverter compressor and fan motor
-30℃ inverter
WIFI smart control
Outlet water temperature up to 75℃




There are 82 production inspection standards, 14 first inspections and 206 process inspections
Core components
Inspection standards
1
Enamel liner
1. 12 inspection standards
2. Pulse test standard (life test): 100,000 times
3. Withstand pressure: 3 times the rated operating pressure
2
Electrical/mechanical life
100.000 times
3
Water-side heat exchangers
1. Pulse test standard (life test) 100,000 times
2. Withstand voltage: 14.5Mpa
3. The performance is up to standard
4
Machine shell spraying
1. Adhesion: 0 level
2. Salt spray test: 500h, aging test≥ 500h
3. Paint film thickness inspection, alcohol resistance test
5
Compressor
30000h or 10 years
6
Factory inspection
There are 15 factory inspections, covering appearance, accessories, pressure, air tightness, electrical strength, operation
experiments.










Product categories








Product Paramenters


Model
BLN-018TC1
Power supply
V/Ph/Hz
220~240/1/50
Nominal Heating (Max)
(A7/6℃,W30/35℃)
Heating Capacity
kW
7.5~22.1
Power Input
kW
1.5~6.8
Current Input
W/W
6.9~31.1
Nominal Heating (Max)
(A7/6℃,W47/55℃)
Heating Capacity
kW
7.0~18.9
Power Input
kW
2.15~7.35
Current Input
W/W
7.0~31.3
Nominal Cooling (Max)
(A35/24℃,W12/7℃)
Cooling Capacity
kW
4.5~17.7
Power Input
kW
1.80~7.30
Current Input
W/W
7.8~32.4

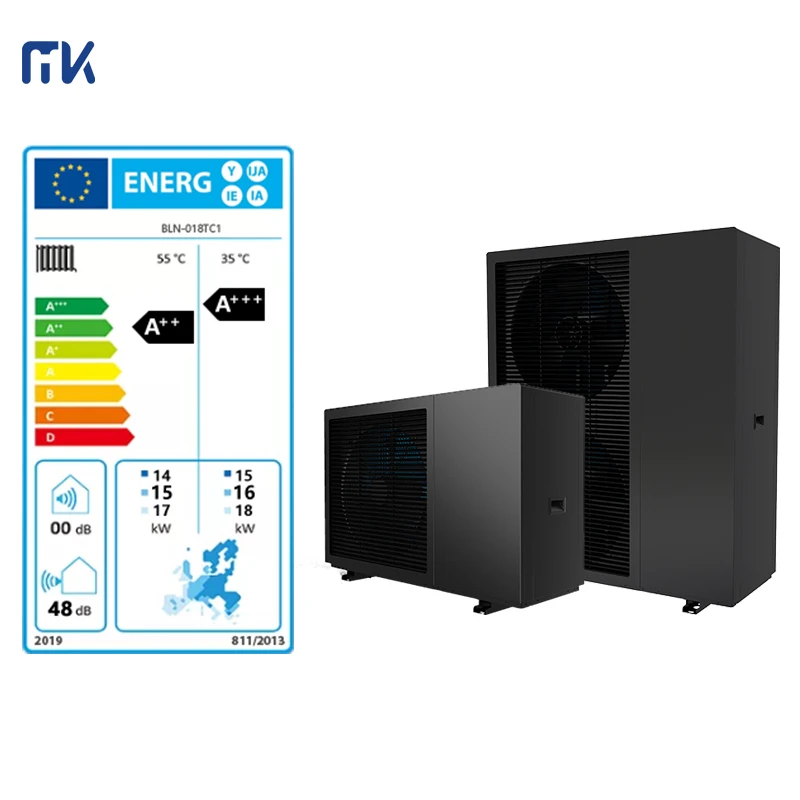

ERP Level(Outlet water temp. at 35℃)
/
A+++
MAX. input power
kW
7.50
MAX. input current
A
35.00
Refrigerant
/
R290
Rated water flow
m³/h
3.00
Fan quantity
/
2
Fan motor type
/
DC inverter
Compressor
/
DC inverter
Circulating pump
/
Inverter type / Built-in
IP Class
/
IPX4
Sound pressure at 1m distance
dB(A)
48
Max outlet water temperature
°C
75
Water piping connections
/
DN 32 (1-1/4")
Water Pressure drop(max)
kPa
60
Operating temperature range (Heating mode)
°C
-30~45
Operating temperature range (Cooing mode)
°C
16~45
Unpacked Dimensions ( L×D×H )
mm
1285×455×1350
Packed Dimensions ( L×D×H )
mm
1450×530×1450
UnPacked Weight
kg
145
Packed Weight
kg
160


Company Profile






Guangzhou Mikee New Energy Co., Ltd.


Guangzhou Mikee New Energy Co., Ltd. is a subsidiary of Sunrise Oriental Group (SH: 603366), a listed technology enterprise. Our factory is located in Shunde, Guangdong Province, covering an area of 69000 square meters, with a total investment of 75 million dollars. It is one of the best scale air energy production bases in Asia, and undertakes ODM and OEM of air energy and energy storage products.
We have a number of pre automated assembly lines for commercial and civil products, with an annual production capacity of more than 100W sets and an investment of 150W dollars to build the industry's top heat pump laboratory. We have core data in the fields of hot water dedicated compressors, aerospace level leakproof enamel liners, 3-minute intelligent defrosting technology, super class energy technology, microchannel fast heating technology, etc.




Our Advantages/Workshop




Commercial machine production line
▶▶ The commercial workshop has 3 production lines, 15 automated commodity inspection stations, which can be packaged and wound online. The maximum test capacity is 200P units, and 300 standard units can be produced in a single shift.
▶▶ The household workshop has two production lines, which can produce fluorine machines and water machines below 3P, 10 automatic vacuum pumping stations and 10 commodity inspection stations respectively. Robots are used for offline palletizing, and 700 standard units can be produced in a single shift.




The sheet metal workshop has 3 laser cutting machines, 3 CNC punching machines, 6 CNC bending machines, 2 laser welding machines, and several equipment such as blanking and leveling, angle forming, spinning and pulling, plate shearing, deep throat punching, riveting, welding and grinding, with strong processing capacity.



Automatic spraying line
The total length of the line is more than 520 meters, and the maximum workpiece can be sprayed 3 * 1.8 meters. The materials include galvanized plate, cold plate, brushed stainless steel plate, aluminum plate. The pre-treatment process includes degreasing and vitrification. QC inspection capabilities include: color detection, film thickness detection, hardness detection, adhesion detection, solvent resistance detection, ultraviolet aging test, impact resistance detection. The workpiece can be picked up and sent.





R&D and testing capability
More than 10 million investment
Has ultra-low 60p temperature laboratory, enthalpy difference laboratory, data monitoring center, long-term operation laboratory
Ke - 30 ℃ environmental conditions




Certifications




Exhibition




FAQ


A) Are you a manufacturer?
Yes, we are a company and factory integrating R&D, production, and sales. Besides, our products have been exported to more than 100 countries and regions, such as the United States, Russia, the United Kingdom, and Australia.

B)Why should you select our heat pumps over those of other manufacturers?
We have more than 19 years of experience in the heat pump field. Besides, we have a professional technical team, the industry's top heat pump laboratory, and automatic production lines. We can meet your diverse order requirements.

C) Do you offer OEM/ODM customised services?
Yes. We are able to produce European-standard heat pumps under your brand according to your special needs.

D) I need to buy in bulk. Can you provide a sample service?
Yes, we are able to provide sample services. We have professional engineers who can help you solve after-sales installation problems.

E) How can we guarantee product quality?
1) There will be multiple tests during the production process.
2) Products will be strictly inspected before shipment.
