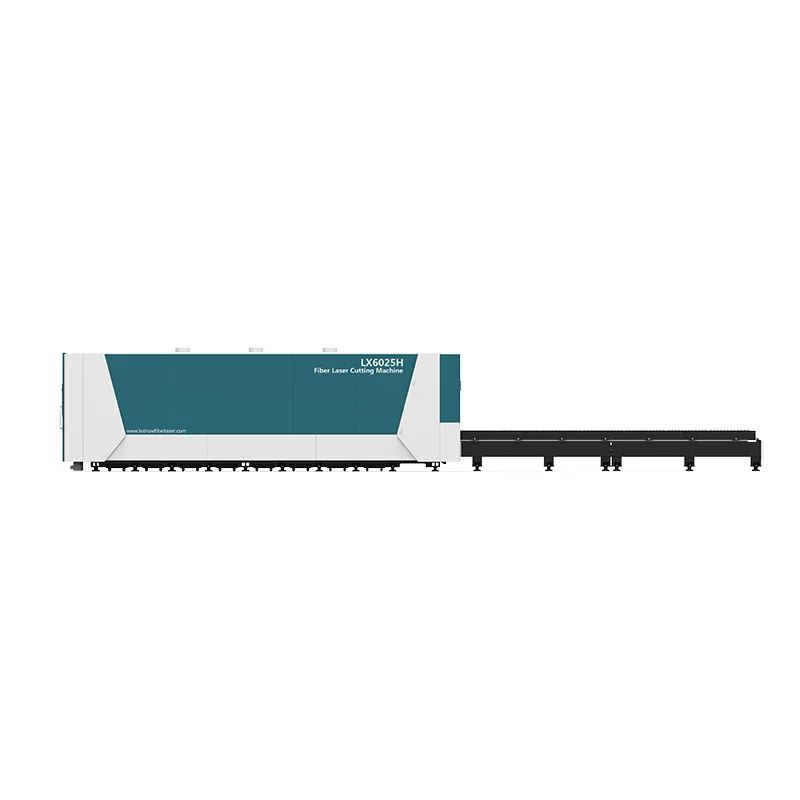

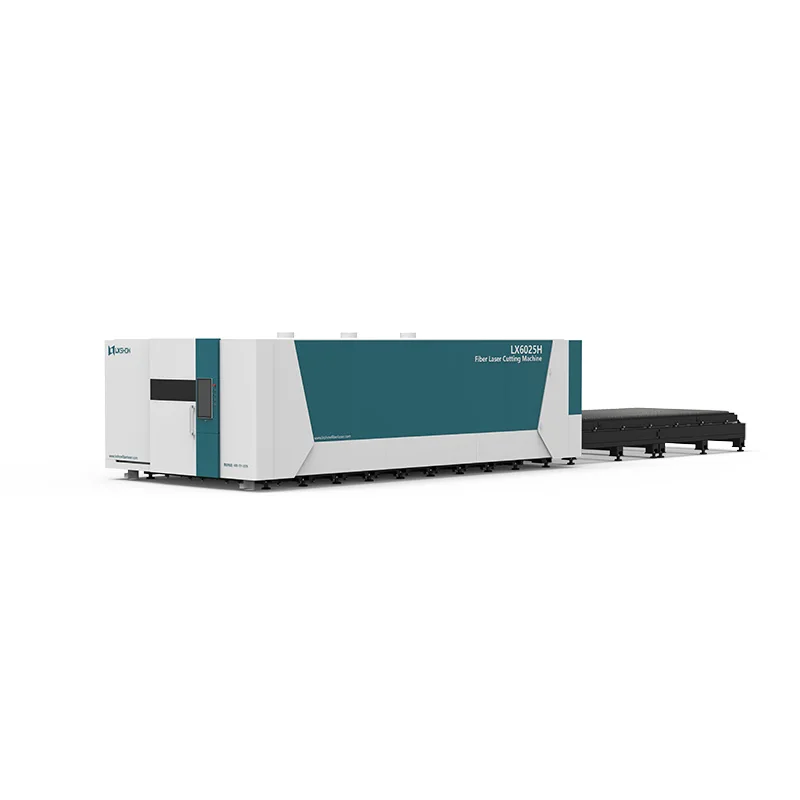

Широкоформатный Полностью покрывающий медно волоконный лазерный оптический 1000 ватт для резки листа из нержавеющей стали
- Категория: >>>
- Поставщик: LXSHOW Laser Manufacture LLC
Сохранить в закладки 11000010605398:
Описание и отзывы
Характеристики
Product Overview
Product Details

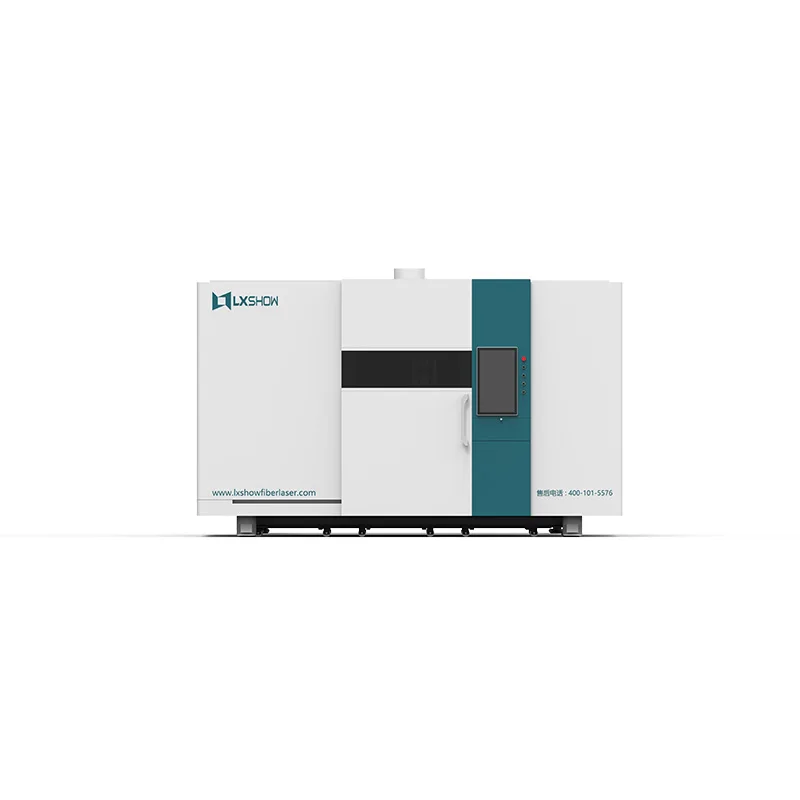

The closed workbench is safer and more environmentally friendly; the monitoring equipment can monitor the working status in real time; the exchange table increases the working area and improves work efficiency; the quality of the aviation aluminum beam is higher.
laser cutting head
The cutting head can make the spot energy higher in industrial processing and improve processing efficiency. And according to the actual processing scene, the laser spot shape and processing depth can be adjusted when emitting light.
laser source
Raycus/MAX/IPG, multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from 1kw to 12kw, and more higher 15kw, 20kw, 30kw.
water chiller
With excellent quality and leading research retrength, SY has become a leading enterprise in the China industrial refrigeration industry.
auto height adjustment system
auto height adjustment system, give more easier control between Laser Head and Cutting Software. Could control by both the button inside cabinet and the manual inside the software.
Servo Motor
Imported from Japan, use top brand Yaskawa, Fuji, etc. High power motor system on X, Y, Z axis. High precision give better cutting effect, high speed give faster cutting speed.
Cypcut Control System
It is loaded with CypNest flat nesting software, which is a set of nesting software for CypCut planar laser cutting CNC system. It is developed for CypCut laser cutting software, which can realize drawing processing, fast nesting, tool path generation and
remote Push processing and other functions.
Important parameters

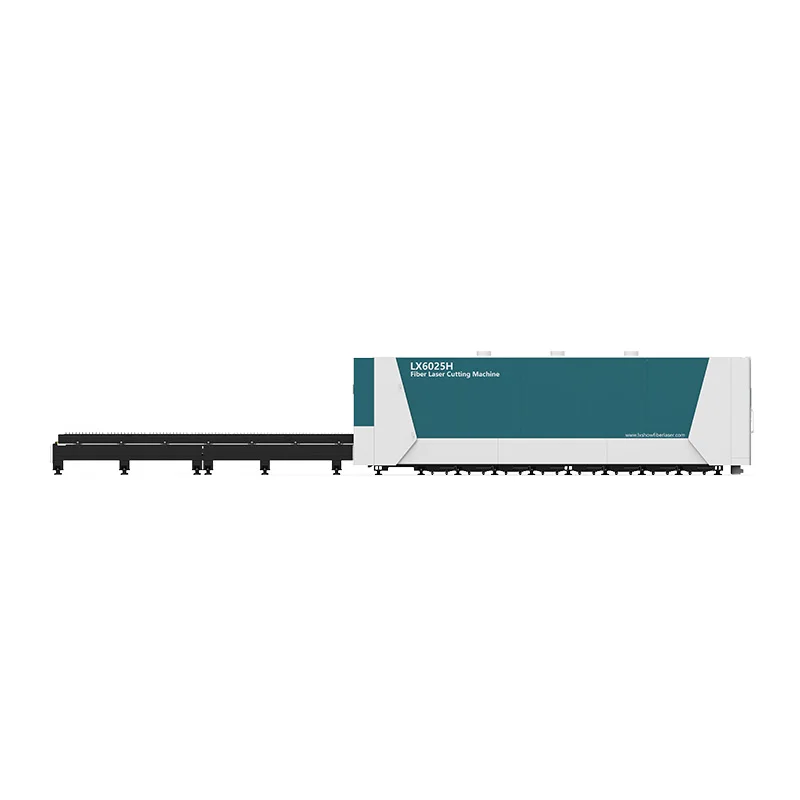

No | Model | LX6025H | ||||
1 | Power | 1000-15000W | ||||
2 | Working Area | 6100*2550mm | ||||
3 | Operating weight | 3000KG | ||||
4 | Repeated Positioning Accuray | ±0.02mm | ||||
5 | Laser wave length | 1064nm | ||||
6 | Transmission system | Gear + rails | ||||
7 | Max Acceleration | 1.5G | ||||
8 | Dimension | 14718*4097*2530mm | ||||
9 | Max Running Speed | 120m/min | ||||
10 | Specified Voltage And Frequency | 380v 50/60HZ | ||||
11 | Machine Warranty | 3 years | ||||

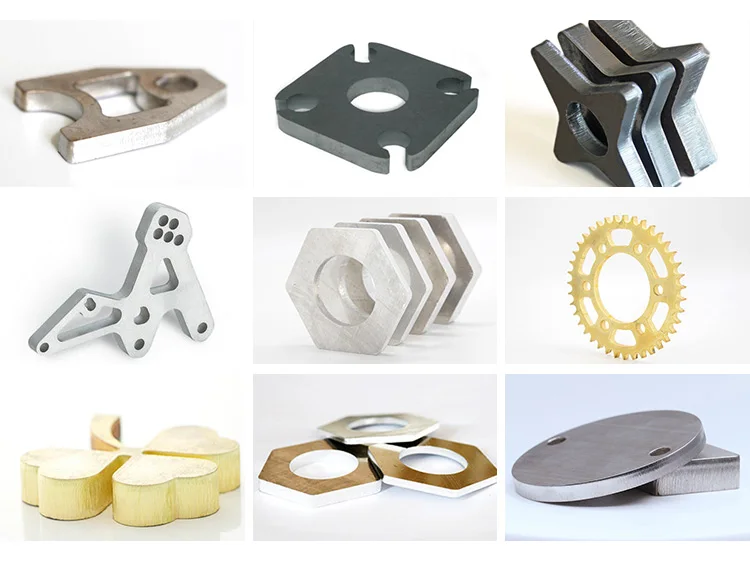

Samples
What materials can be cut?
1.Carbon steel 2.Stainless Steel 3.Aluminum 4.Metals 5.Brass 6.Iron 7.Galvanized
There are many factors to consider when cutting thickness, such as the type of material, cutting power, and so on.
Exhibition & Visit
Since the establishment of the company, LXSHOW Laser Manufacture LLC. has never stopped moving forward. Through unremitting efforts, it has expanded the laser equipment market to foreign countries. For several years, we have participated in exhibitions all over the world, including but not limited to Russia, South Korea, Vietnam and other countries.
We will also invite customers from all over the world to visit our factories and offices. The countries that came include: Russia, South Korea, Kosovo, Jordan, Saudi Arabia and many other countries.
Honor Certificate
Factory &Company
LXSHOW Laser Manufacture LLC. is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
The company attaches great importance to the personal development and team building of employees. Not only do they help each other and make progress together during the work process, but they are also good friends who can play together after work. The company organizes various activities every year to enhance the cohesion of employees and inject more energy into the development of the enterprise.
After-sales Service
The warranty of the machine is 3 year.
3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
professional after sale service group
We have professional after sale service group, no matter before sale or after sale, we always here.If you need after sale service, just contact us, and we also support door to door service.
Production and transportation process
Before the product is delivered to the customer, we will debug and inspect the product to ensure that the product is out of the warehouse without problems. After the inspection is completed, it will be packed in wooden boxes and shipped to the port.
Customer Reviews
The recognition of each subject is the driving force for our progress.
FAQ
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
Похожие товары

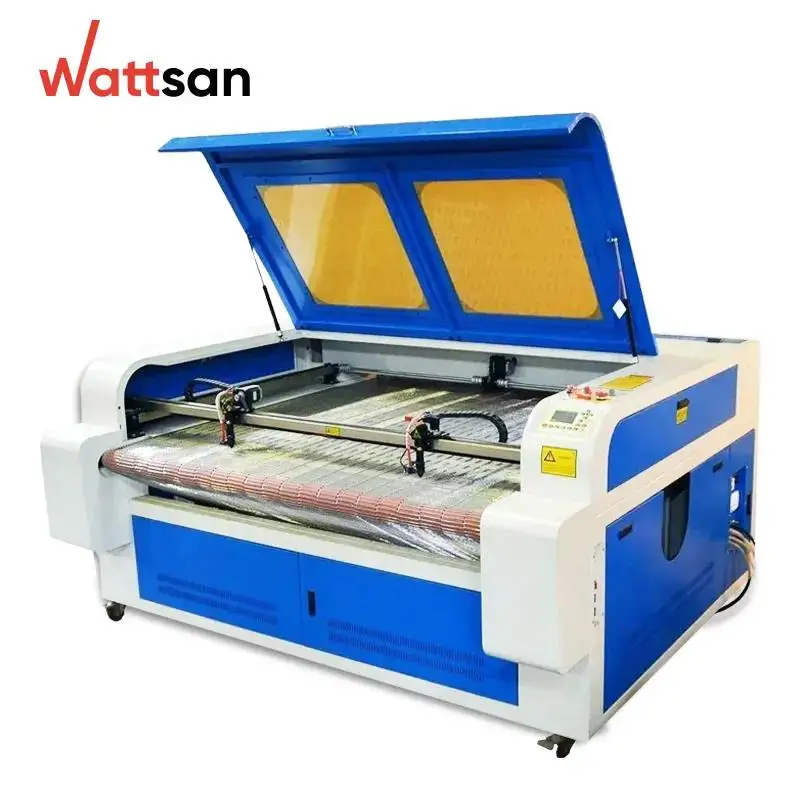

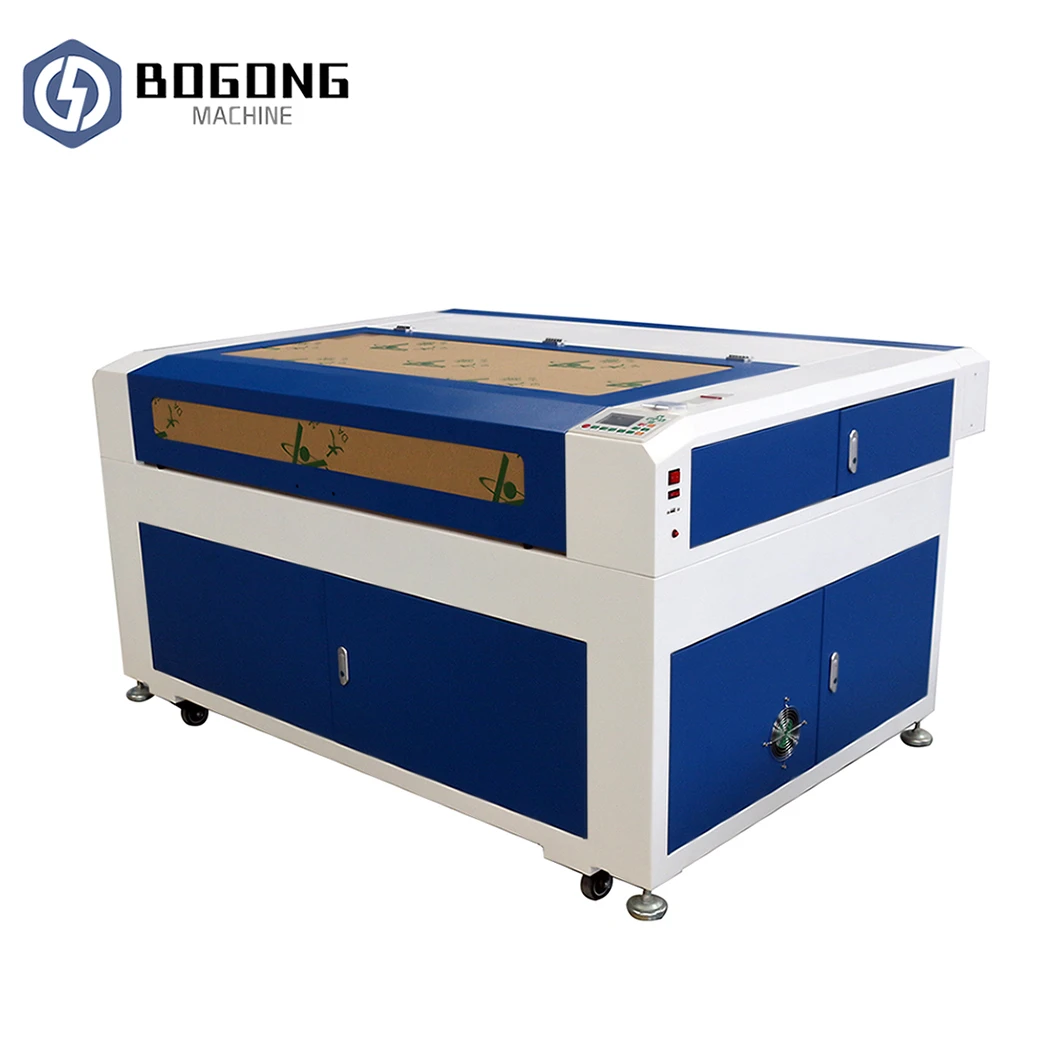

1610 машина для лазерной резки ткани Wattsan 100 Вт 130 150 1600*1000 мм
529 000,32 ₽ - 562 062,84 ₽

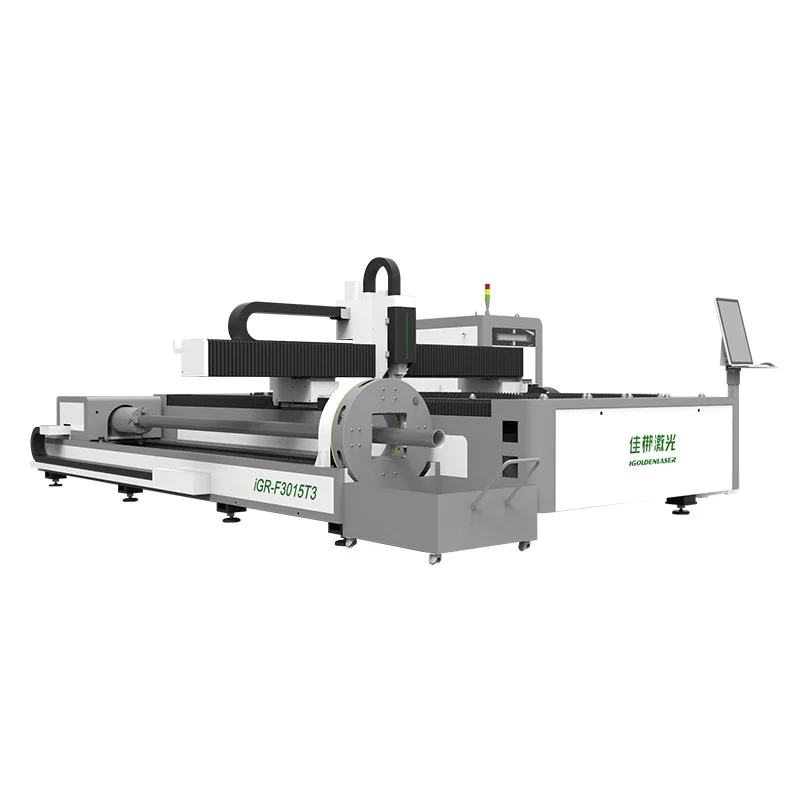

Китай лазерный резак 3d металлическая трубка труба из нержавеющей стали трубы Волоконно-Лазерная резка машина
3 085 835,20 ₽ - 3 306 252,00 ₽
Станок для лазерной резки

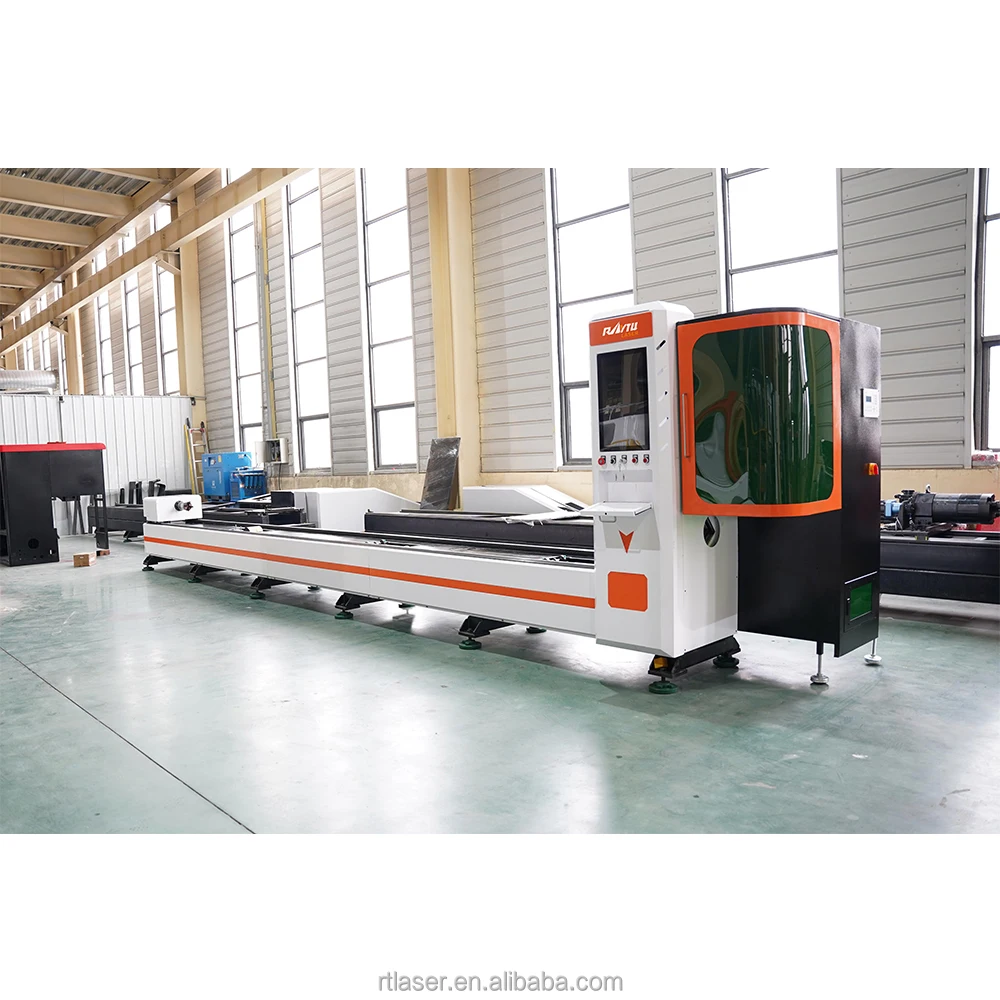

Автоматический многофункциональный станок для лазерной резки труб 10 мм
