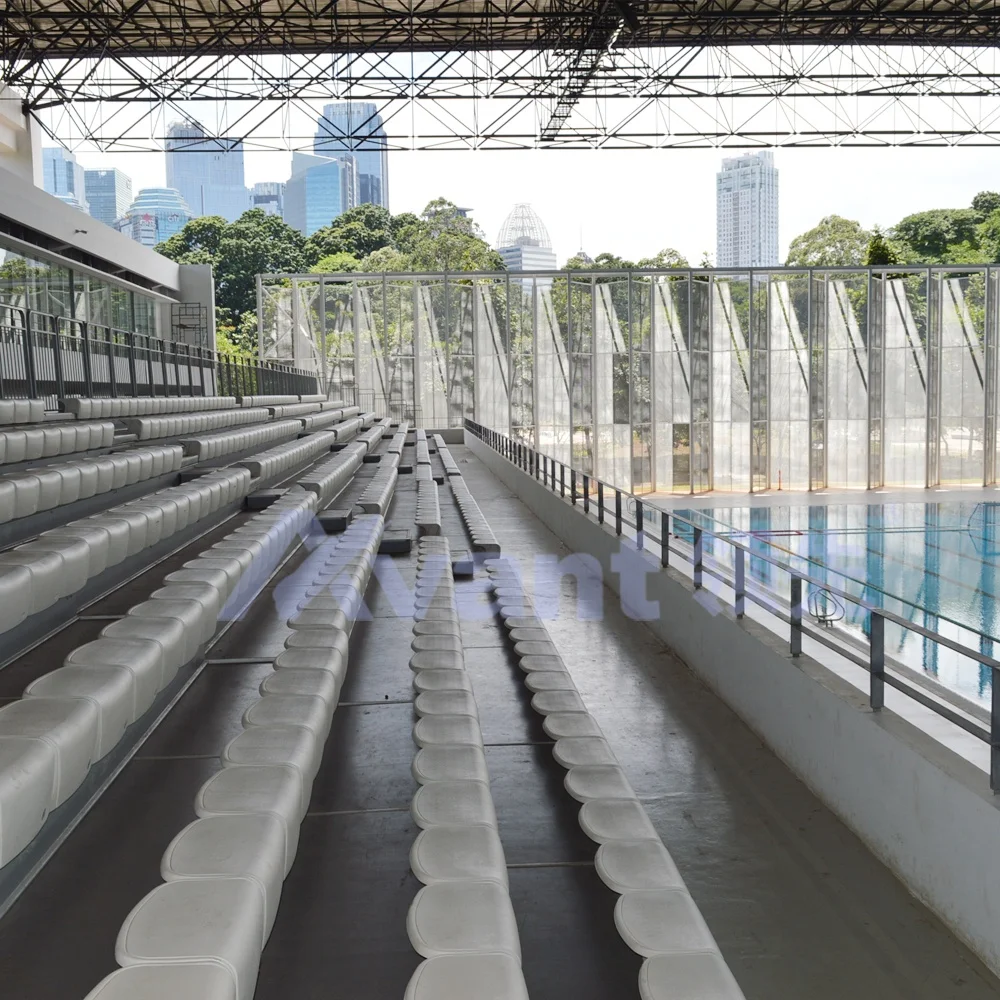

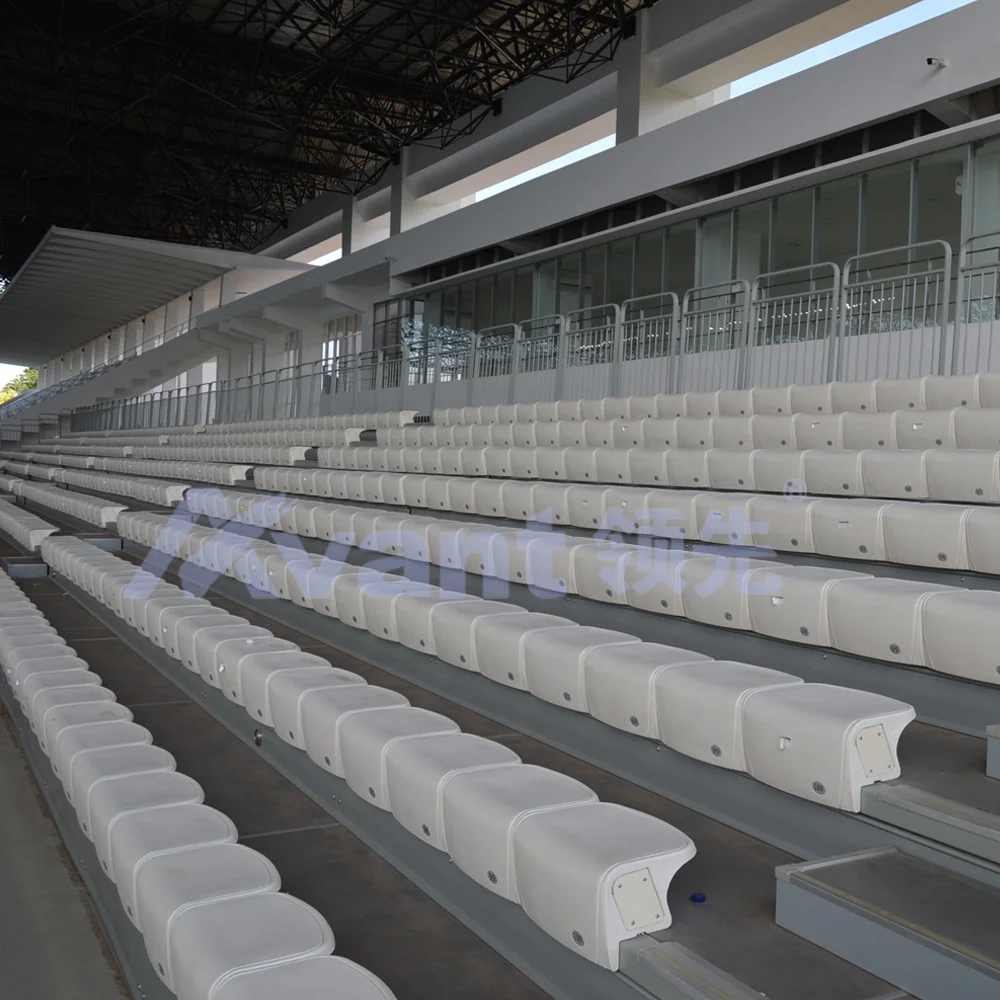

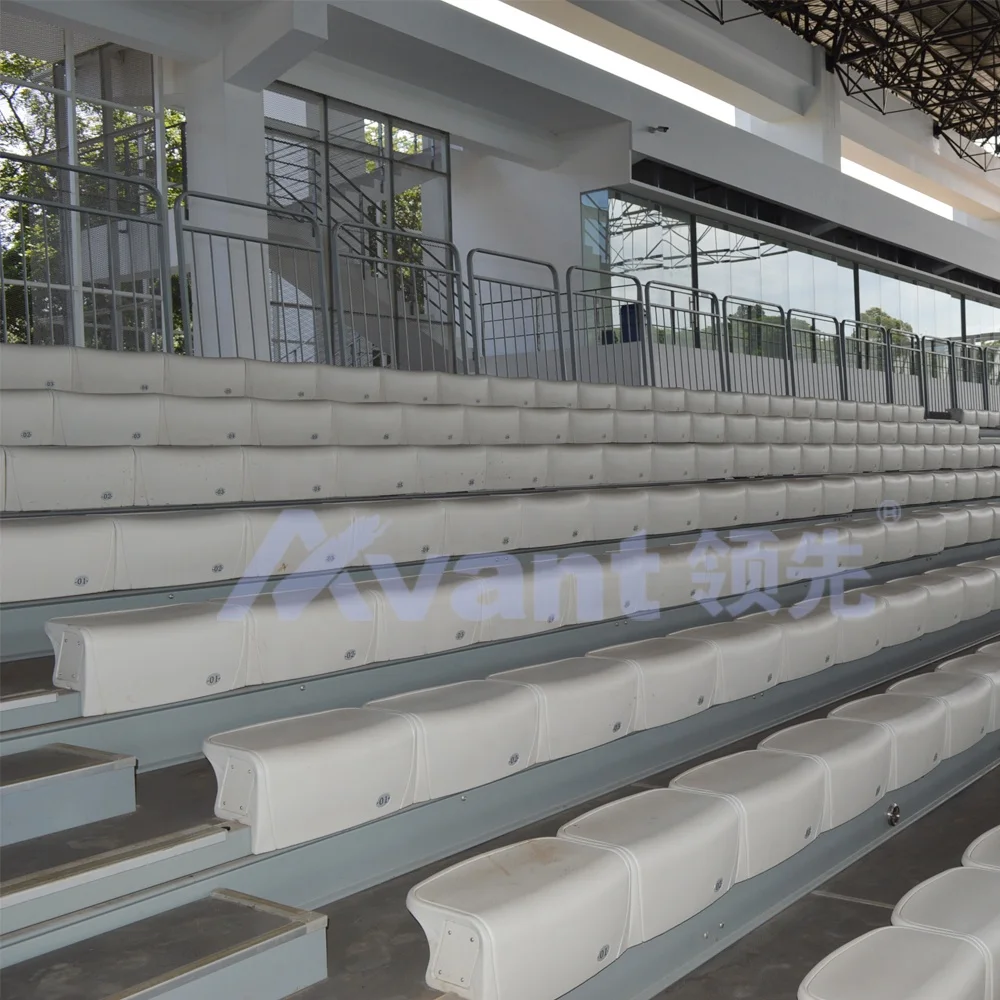

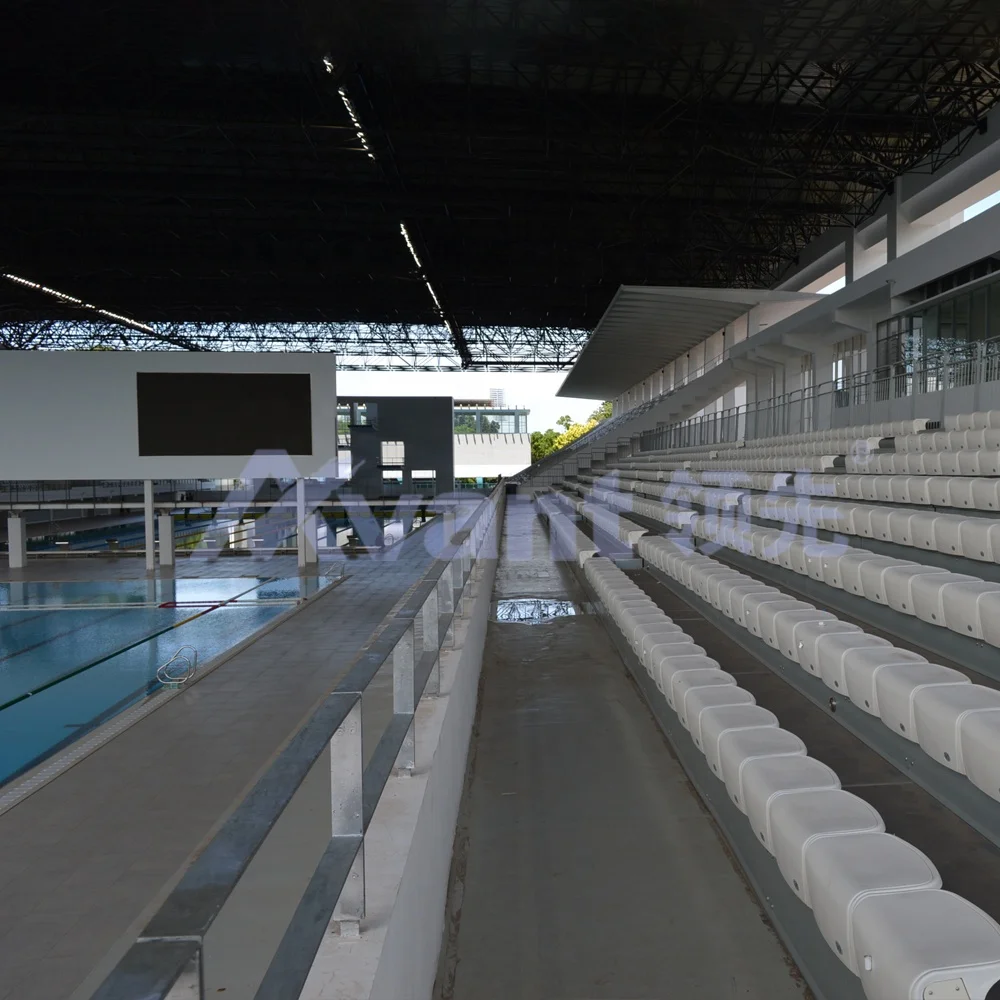

Авангардная ручная выдвижная система сидений для бассейна дайвинга переносные трибуны телескопическая трибуна фиксированные стулья стадиона

Сохранить в закладки 11000014776465:


Цена:1 398,57-2 034,28 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Avant Manual Retractable Seating System Swimming Pool Diving Portable Event Bleachers Telescopic Grandstand Fixed Stadium Chairs






Application
Schools, Sports Venues, Universities, Stadiums, Concert halls
Seat Base Height
Step Depth
Type
Sundon
Material
plastic seats, aluminum bleacher

Size
Module span :3656 mm
Rows pacing:632 mm/764mm
Color:
17 standard colors, and customized other Pantone color.

Installation Service
1:We send you the installation mannual
2: Guarranty : 3 years

Dimension
PASSAGE AISLE WIDTH: 914 mm
HEIGHT OF STEP: 250 mm
CENTER DISTANCE: 457 mm
HEIGHT OF GUARDRAIL ≥1100 mm
Standard
Comply with EN13200-6:2012 and EN1993-2005
Delivery time
In 40-50 days.


Main Support system
1: the column, it is H Beam with surface hot galvanized, the dimension is 300* 150* 6.5* 9 . 2: Main Beam is H Beam with surface
hot galvanized, the dimension is 300* 150* 6.5* 9 . 3: Connection: The column and main bean is fixed by M20 tor-shear type high
strength bolt, using welded H Beam (H100) to be lateral brace for the support of the main beam, besides, using the Φ 20 round
steel tube to be the cross diagonal bracing to keep the stabilization. For the columns, using 100*10 angle steel to be the
supporting member.
430mm
470mm
Performance
2020 Tokyo Olympic Games
2019 Lima Pan American Games
2018 Asian Games- Indonesia
2017 National Games-Tianjin
2016 Brazil Olympic Games.
416mm
470mm




Specification
