Horizontal Ceramsite Sand Rotary Kiln Ceramic Making Machine For Ceramsite Production Plant
Product Description
Profile of Ceramic Making Machine
Ceramsite production plant made of high quality bauxite and other additive material, granulating and calcining to increase the strength and density. It's a substitute of natural quartz sand, glass sand, metallic sand and other low intensity proppant, Ceramic sand is the best proppant to increasing oil and natural gas output. In brief, the process of manufacturing ceramic sand
is crushing→dosing→grinding →granulating→calcining cooling →screening packing.
is crushing→dosing→grinding →granulating→calcining cooling →screening packing.
Ceramsite sand is a kind of ceramic particle product which is mainly produced by sintering bauxite and other similar raw materials. With high fracturing strength, ceramsite is a substitute for medium and low-strength petroleum proppants such as natural quartz sand. It has good effects for improving production of natural gas.
Ceramsite sand rotary kiln designed by Zoomjo group for petroleum fracturing proppant industry is featured in strong calcination capacity, high thermal efficiency and uniform product.
Ceramsite sand rotary kiln designed by Zoomjo group for petroleum fracturing proppant industry is featured in strong calcination capacity, high thermal efficiency and uniform product.
We can supply Zoomjo group rotary kiln (titanium pigment kiln, Ceramsite Sand Rotary Kiln, sintering furnace, industrial furnace, kiln, acid pellet) made by Zoomjo group. whose specifications are
Φ3.2×52m,Φ3.5×54m,Φ4.0×60m,Φ4.3×64m,Φ4.8×74m and Φ5.0×78m and used for 8000tpd, 5000tpd and 2500tpd new dry basis complete rotary kiln equipments. Zoomjo group rotary kiln is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc. It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Φ3.2×52m,Φ3.5×54m,Φ4.0×60m,Φ4.3×64m,Φ4.8×74m and Φ5.0×78m and used for 8000tpd, 5000tpd and 2500tpd new dry basis complete rotary kiln equipments. Zoomjo group rotary kiln is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc. It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Our Advantages
★★ Ceramsite Sand Rotary Kiln has simple configuration, it can reduce the investment costs and improve productivity.
★★ ICeramsite Sand Rotary Kiln has high beneficiation efficiency, and it can produce good quality the calcination process.
★★ The entire Ceramsite Sand Rotary Kiln has smooth operation and large production capacity, in the smelting process, it can also greatly reduce the fuel cost.
★★ The Ceramsite Sand Rotary Kiln offer a robust and reliable design that delivers the benefits of low resource consumption and high operational reliability.
★★ ICeramsite Sand Rotary Kiln has high beneficiation efficiency, and it can produce good quality the calcination process.
★★ The entire Ceramsite Sand Rotary Kiln has smooth operation and large production capacity, in the smelting process, it can also greatly reduce the fuel cost.
★★ The Ceramsite Sand Rotary Kiln offer a robust and reliable design that delivers the benefits of low resource consumption and high operational reliability.
Working Flow
Size Information of Ceramsite Sand Rotary Kiln
Rotary Kiln For Ceramsite Working Principle
The barrel of rotary kiln for ceramsite has a slope of 3%-4% with a horizontal plane. The kiln body is immobilized in wheel gear by two-wheel band. The principle of rotation is that inverter motor drives the pinion to rotate through reducer and its associated coupling. Then gears mesh with fixed large ring gears in the kiln. Finally, the large ring gears drive the cylinder to make a rotary motion.
Rotary kiln for alumina ‘s drying process is that materials go into kiln through feed pipe. Materials stay rotation with kiln at the same time slip from kiln tail to kiln head because of kiln’s tilt state and slow rotation. The high temperature from calcining kiln is released into drying kiln through connecting devices. Materials are dried through the motion process and be unloaded into calcining kiln from kiln head.
The details of Rotary kiln for alumina ‘s calcining process is below: Burning pipe injects flame. Materials catch heat by radiation, convection, and conduction. After calcining, materials be unloaded to the next process in the kiln head.
The barrel of rotary kiln for ceramsite has a slope of 3%-4% with a horizontal plane. The kiln body is immobilized in wheel gear by two-wheel band. The principle of rotation is that inverter motor drives the pinion to rotate through reducer and its associated coupling. Then gears mesh with fixed large ring gears in the kiln. Finally, the large ring gears drive the cylinder to make a rotary motion.
Rotary kiln for alumina ‘s drying process is that materials go into kiln through feed pipe. Materials stay rotation with kiln at the same time slip from kiln tail to kiln head because of kiln’s tilt state and slow rotation. The high temperature from calcining kiln is released into drying kiln through connecting devices. Materials are dried through the motion process and be unloaded into calcining kiln from kiln head.
The details of Rotary kiln for alumina ‘s calcining process is below: Burning pipe injects flame. Materials catch heat by radiation, convection, and conduction. After calcining, materials be unloaded to the next process in the kiln head.
Technical Parameter
Model | Capacity （t/h） | Speed (rpm) | Slope (%) | Support No. | Power (kw) | Remark |
Ø1.6×32m | 2 | 0.58-2.85 | 4 | 3 set | 18.5 | |
Ø1.6/1.9×36m | 2.5~3 | 0.53-1.59 | 4 | 3 set | 22 | |
Ø1.9×39m | 3~3.5 | 0.53-1.59 | 4 | 3 set | 37 | |
Ø2.2×38m | 5~6 | 0.214-1.64 | 3.5 | 3 set | 37 | ★ |
4 | ||||||
Ø2.2×45m | 4~5 | 0.214-1.64 | 3.5 | 3 set | 45 | |
4 | ||||||
Ø2.5×40m | 6~7 | 0.62-1.5 | 3.5 | 3 set | 55 | ★ |
7.5 | ||||||
Ø2.5×50m | 5~6 | 0.62-1.5 | 3.5 | 3 set | 55 | |
7.5 | ||||||
Ø2.8×43m | 7~8 | 0.62-1.5 | 3.5 | 3 set | 75 | ★ |
11 | ||||||
Ø2.8×55m | 6~7 | 0.62-1.5 | 3.5 | 3 set | 75 | |
11 | ||||||
Ø3×50m | 9~10 | 0.5-1.5 | 3.5 | 4 set | 125 | ★ |
11 | ||||||
Ø3×60m | 7~8 | 0.5-1.5 | 3.5 | 4 set | 125 | |
11 | ||||||
Ø3.2×53m | 10~12 | 0.4-1.5 | 3.5 | 3 set | 125 | ★ |
22 | ||||||
Ø3.2×64m | 8~10 | 0.4-1.5 | 3.5 | 3 set | 160 | |
15 | ||||||
Ø3.5×70m | 12~14 | 0.4-1.5 | 3.5 | 3 set | 250 | |
22 | ||||||
Ø3.6×55m | 14~16 | 0.4-1.5 | 3.5 | 3 set | 250 | ★ |
22 | ||||||
Ø3.8×58m | 18~20 | 0.4-1.5 | 3.5 | 3 set | 250 | ★ |
22 | ||||||
Ø4.0×60m | 104 | 0.4-1.5 | 3.5 | 3 set | 315 | ★ |
If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us

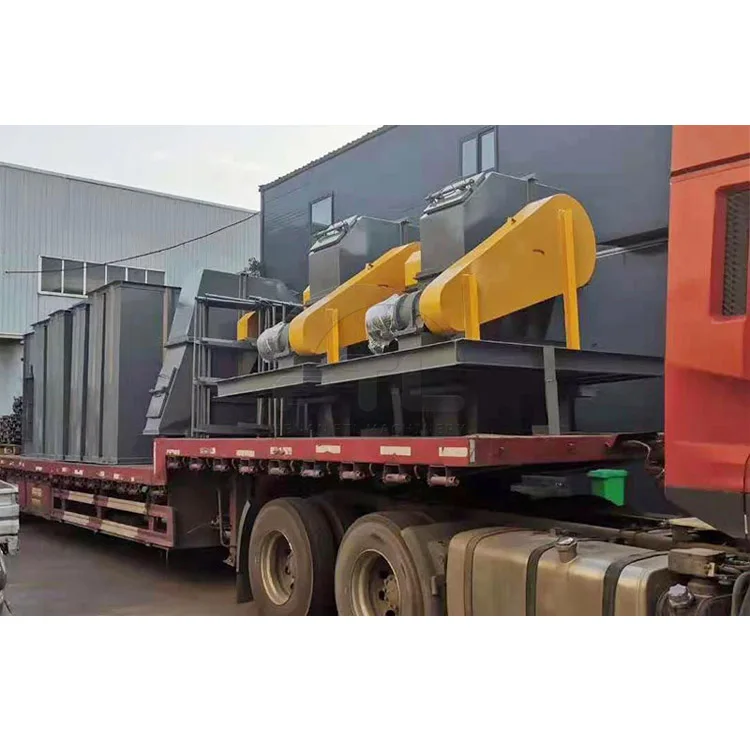

Packing & Delivery
1. These machines are processed to be rustproof and moisture proof before delivery.
2. Large mainframes are in nude,small parts and motors are in wooden box.
3. All items are in bulk or container, details can be negotiated .
4. Motor control is packed with carton box.
5. All items are in bulk or container, details can be negotiated .
2. Large mainframes are in nude,small parts and motors are in wooden box.
3. All items are in bulk or container, details can be negotiated .
4. Motor control is packed with carton box.
5. All items are in bulk or container, details can be negotiated .

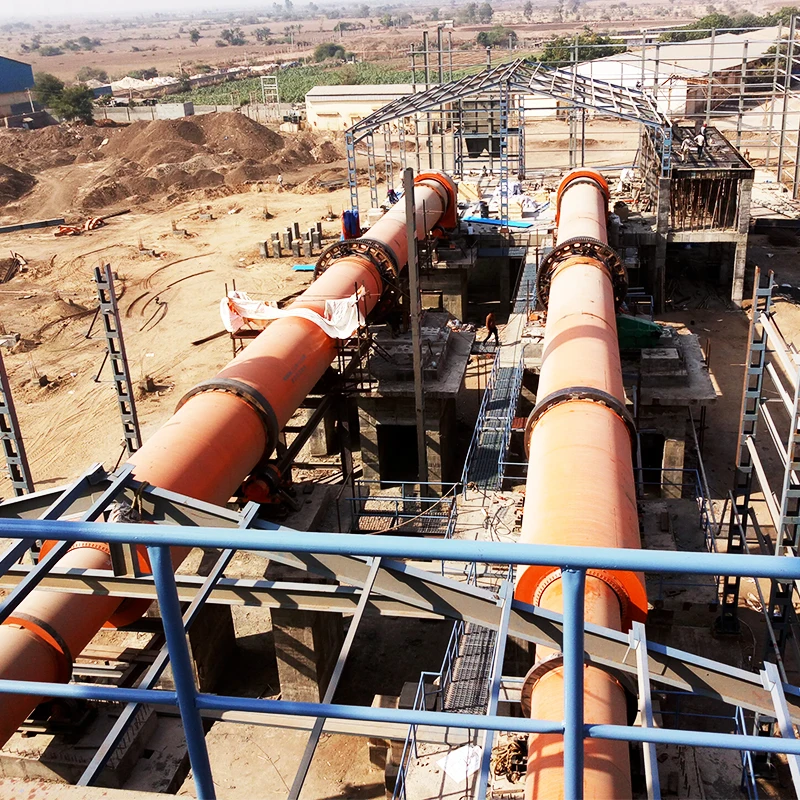

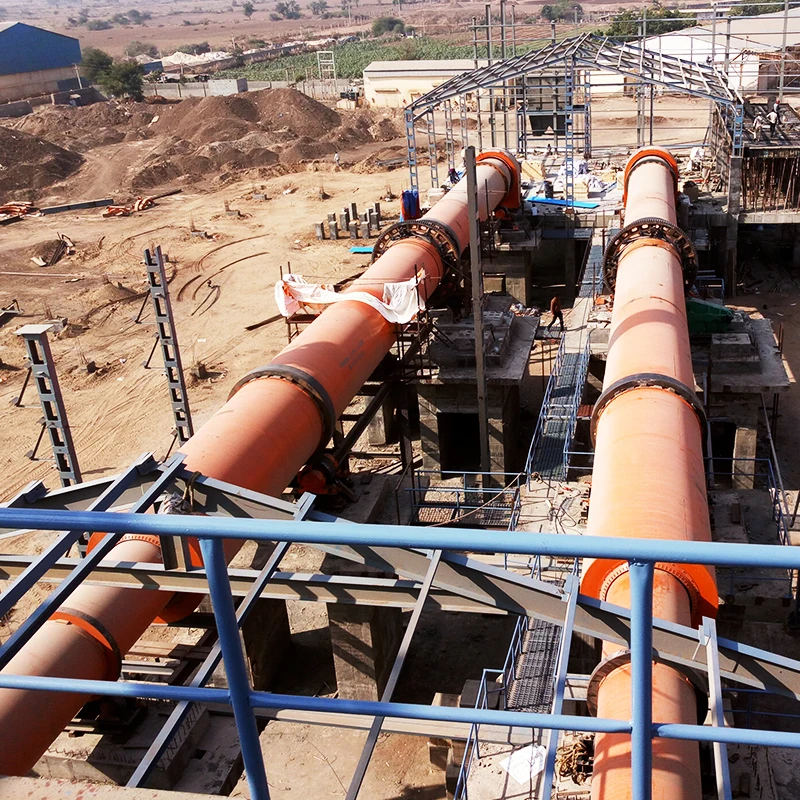

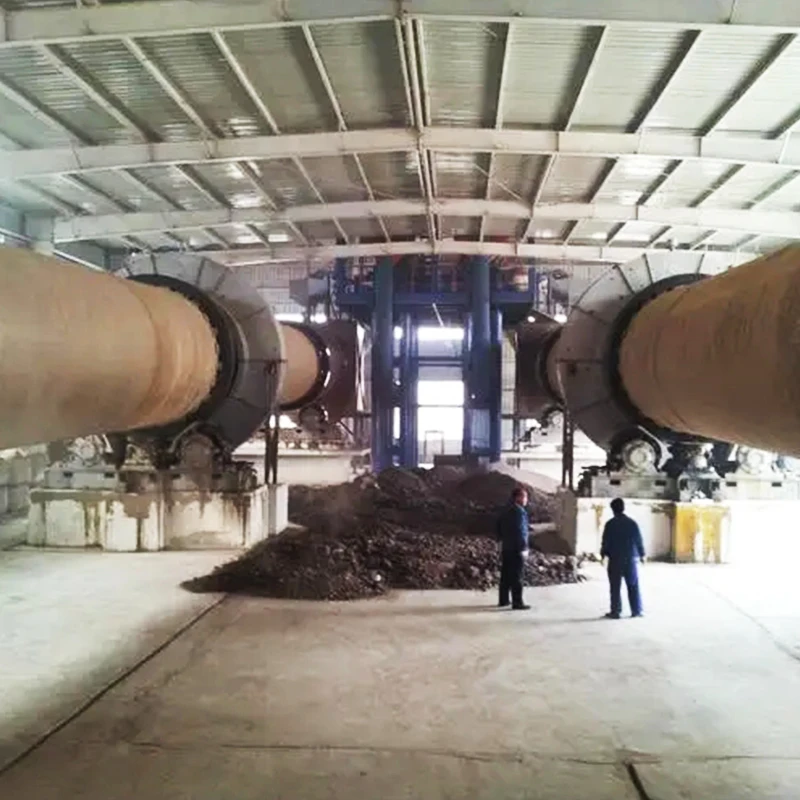

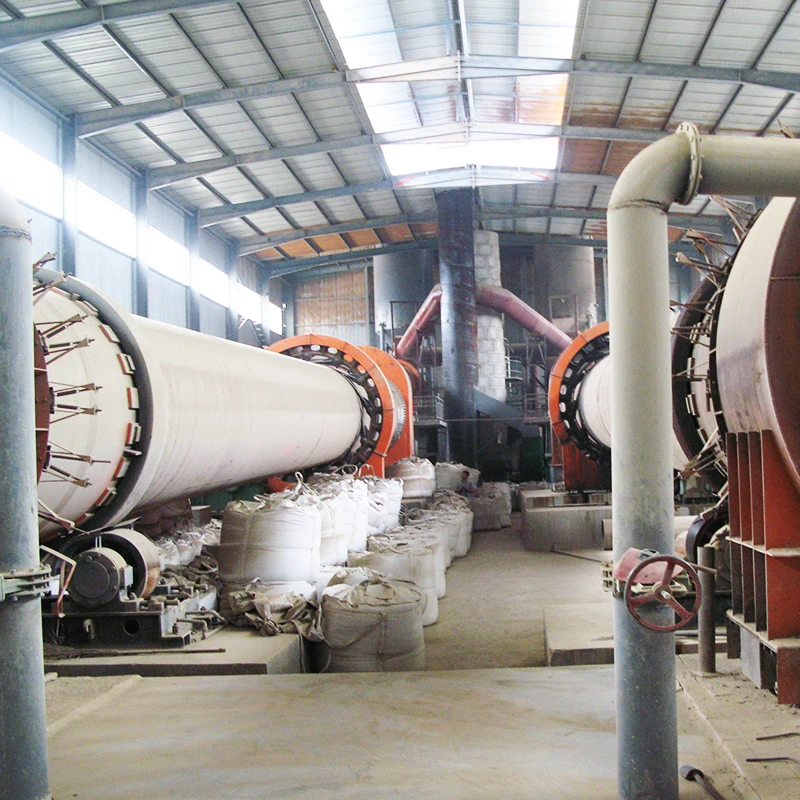

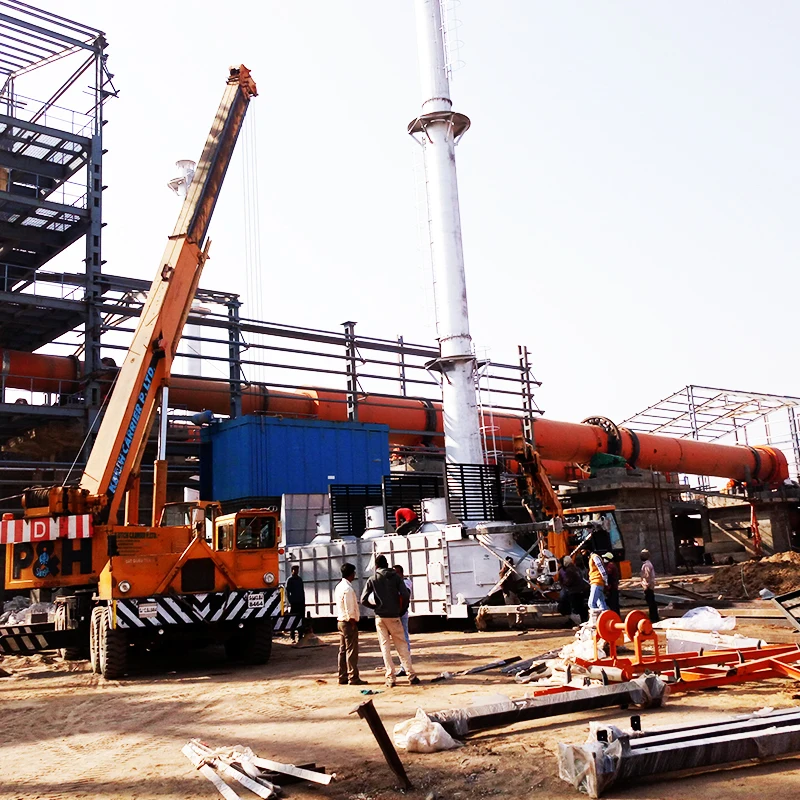

Customer Cases

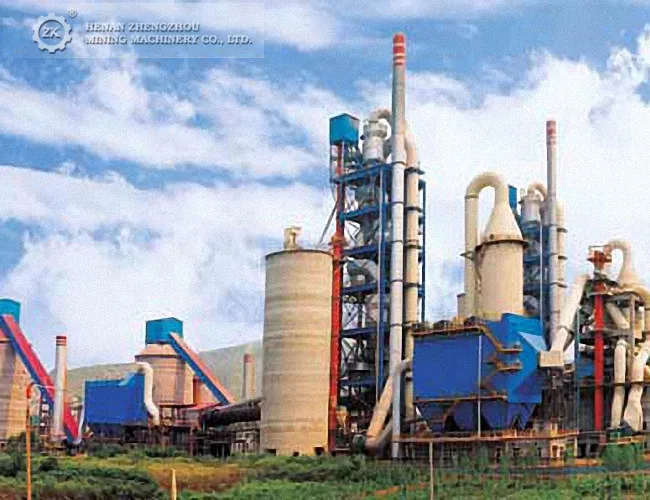

Company Profile
ZOOMJO is a large-scale enterprise that mainly produces heavy mining machinery and integrates scientific research, production and sales. It mainly produces various large and medium-sized crushing equipment, sand making equipment, drying and calcining equipment, mineral processing equipment and other series of products.
ZOOMJO has developed steadily from its establishment to the present with its technical strength, and has grown stronger day by day, and has gathered a large number of high-level management and scientific research personnel. Our company covers an area of 50,000 square meters, and another 10,000 square meters of modern office space, R&D center and sales center. The company has more than 500 employees, including more than 20 intermediate technicians. With strong technical strength, scientific management system and high product quality, ZOOMJO will rapidly grow into an important production and export base of mining machinery.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
