LED production line high quality welding machine hot air SMT lead-free energy-saving reflow oven
Product Description

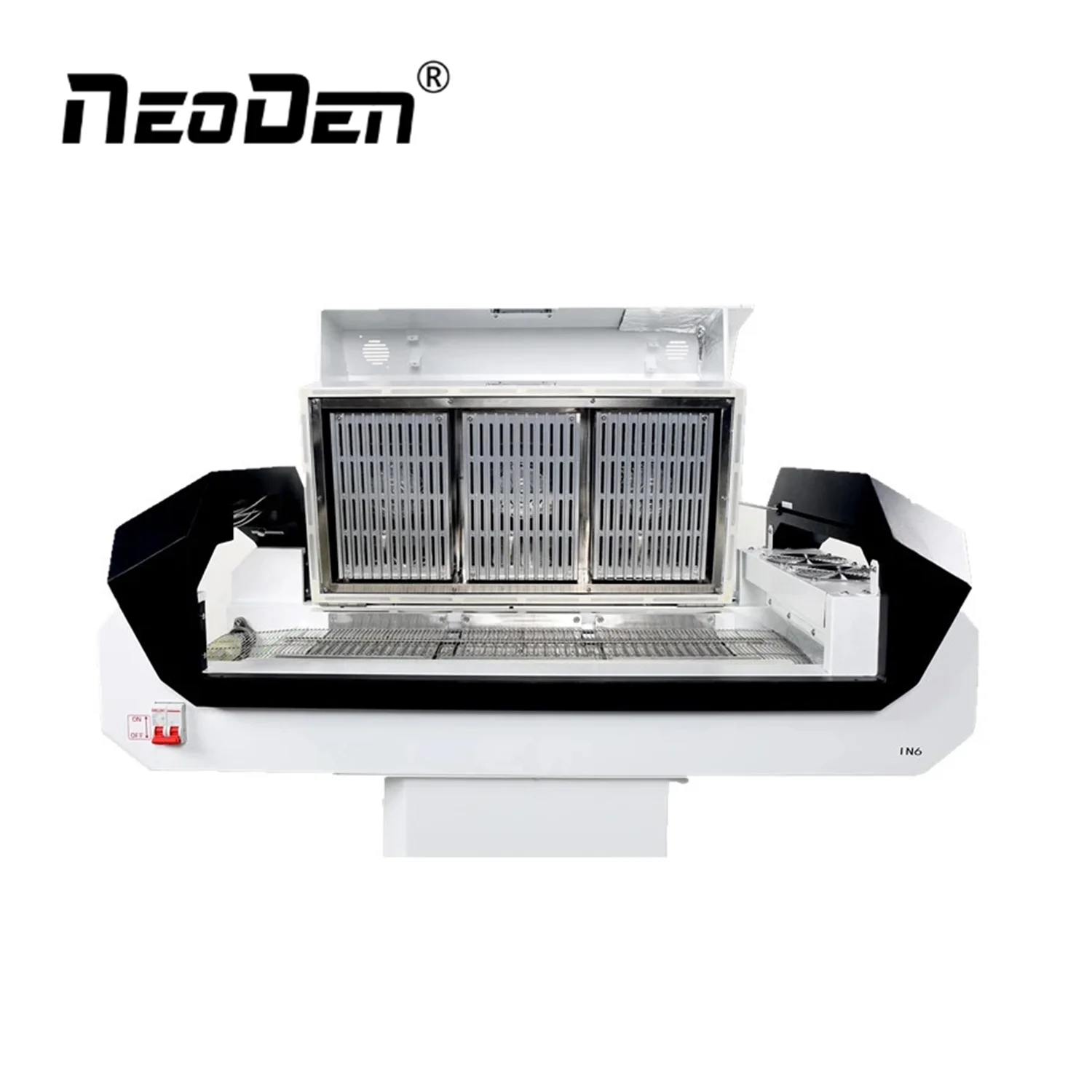

NeoDen IN6 is a power-saved soldering equipment, which can be used in pcb prototype project or small batch PCBA manufacturing. It is a good choice for labs or universities with small body and beautiful design.
1. Full convection, excellent soldering performance.
2. 6 zones design, light and compact.
3. Smart control with high sensitivity temperature sensor, the temperature can be stabilized within +2℃.
4. Original high-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature difference is less than 2℃.
5. Original built-in soldering smoke filtering system, elegant appearance and eco-friendly.
6. Heat insulation protection design, thecasing temperature can be controlled within 40℃.
7. Household power supply, convenient and practical.
8. ESD tray, easy to collect PCB after reflowing, convenient for R&D and prototype.

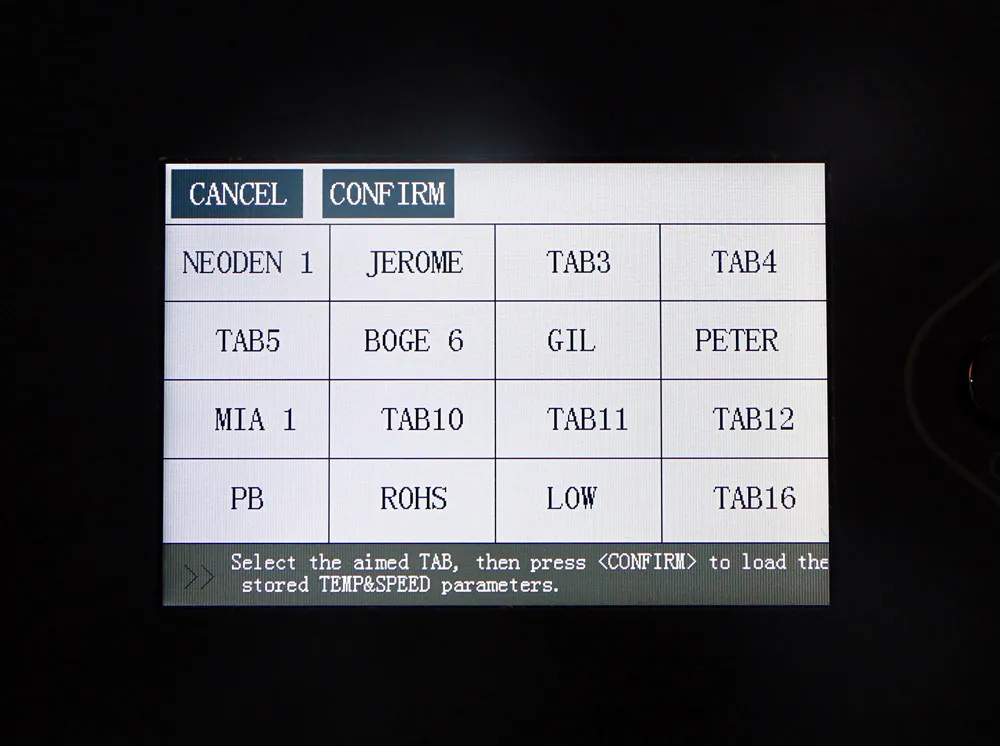

9. Several working files can be stored, freely switch between Celsius and Fahrenheit, flexible and easy to understand.
10. Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.
11. Reinforced heavy-duty carton package, light-weight and environment-friendly.
12. PCB soldering temperature curve can be displayed based on real-time measurement.
13. Approved by TUV CE, authoritative and reliable.
2. 6 zones design, light and compact.
3. Smart control with high sensitivity temperature sensor, the temperature can be stabilized within +2℃.
4. Original high-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature difference is less than 2℃.
5. Original built-in soldering smoke filtering system, elegant appearance and eco-friendly.
6. Heat insulation protection design, thecasing temperature can be controlled within 40℃.
7. Household power supply, convenient and practical.
8. ESD tray, easy to collect PCB after reflowing, convenient for R&D and prototype.
9. Several working files can be stored, freely switch between Celsius and Fahrenheit, flexible and easy to understand.
10. Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.
11. Reinforced heavy-duty carton package, light-weight and environment-friendly.
12. PCB soldering temperature curve can be displayed based on real-time measurement.
13. Approved by TUV CE, authoritative and reliable.

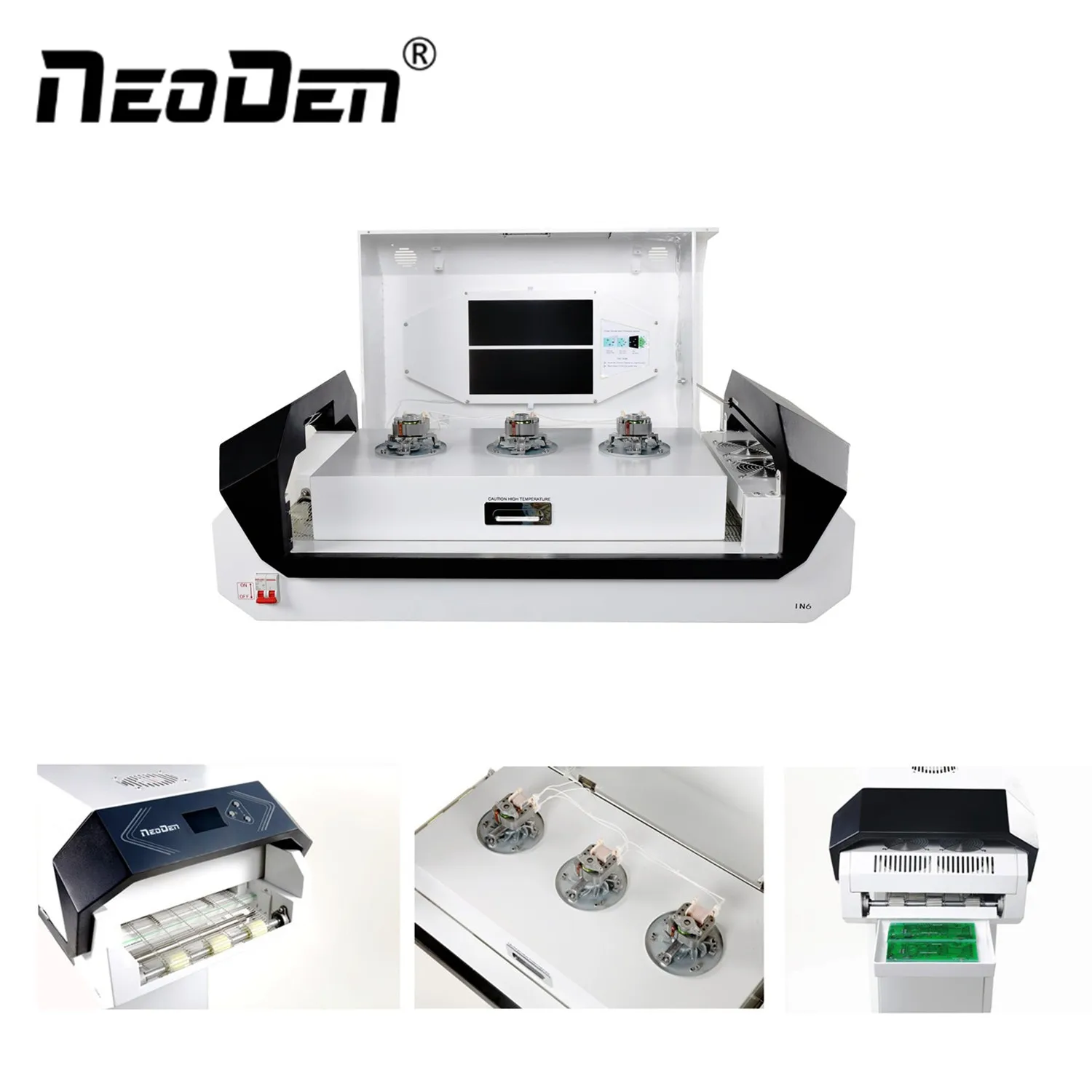

Detailed Pictures
Specification
Model | NeoDen IN6 | ||||||
Power requirement | 110/220VAC 1-phase | ||||||
Power max. | 2KW | ||||||
Heating zone quantity | upper3/down3 | ||||||
Conveyor speed | 5 - 30 cm/min (2 - 12 inch/min) | ||||||
Standard Max Height | 30mm | ||||||
Temperature control range | Room temperature~300 degree celsius | ||||||
Temperature control accuracy | ±0.2 degree celsius | ||||||
Temperature distribution deviation | ±1 degree celsius | ||||||
Soldering width | 260 mm (10 inch) | ||||||
Length process chamber | 680 mm (26.8 inch) | ||||||
Heat-up time | approx. 20-30 min | ||||||
Dimensions | 1020 x 507 x 350 mm (L x W x H) | ||||||
Packing Size | 112x 62x 56cm(without working table) | ||||||
N.W./ G.W. | 49KG/ 66kg (without working table) | ||||||
Any question,pls feel free to contact us!

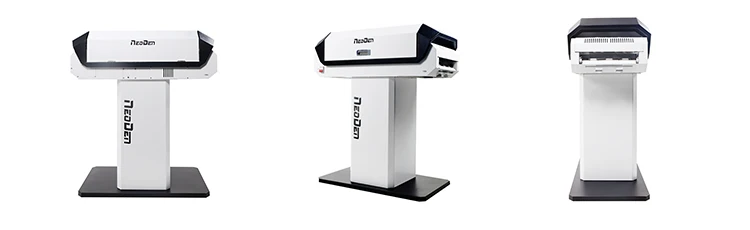

Pedestal for NeoDen IN6
SMT Line
Related Products
Manual Solder Printer FP2636
SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen K1830
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop
Exhibition
Certification
Payment & Shipping
FAQ
Q1:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q2:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q3:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q2:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q3:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
Похожие товары
Мини-печь для оплавления
263 120,03 ₽ - 266 115,08 ₽
Легко установить демонтируемый энергосберегающий Shenzhen Smt паяльная машина алюминиевая печь оплавляющая Китай
2 329 477,50 ₽ - 2 551 332,50 ₽
Лидер продаж алюминиевая печь для опрессовки
1 442 057,50 ₽ - 3 327 825,00 ₽
Горячая распродажа хорошее обслуживание алюминиевая печь для оплавления паяльная сделано в Китае
2 329 477,50 ₽ - 2 551 332,50 ₽
Новое поступление большая емкость алюминиевая печь для оплавления паяльная с низкой ценой
2 329 477,50 ₽ - 2 551 332,50 ₽

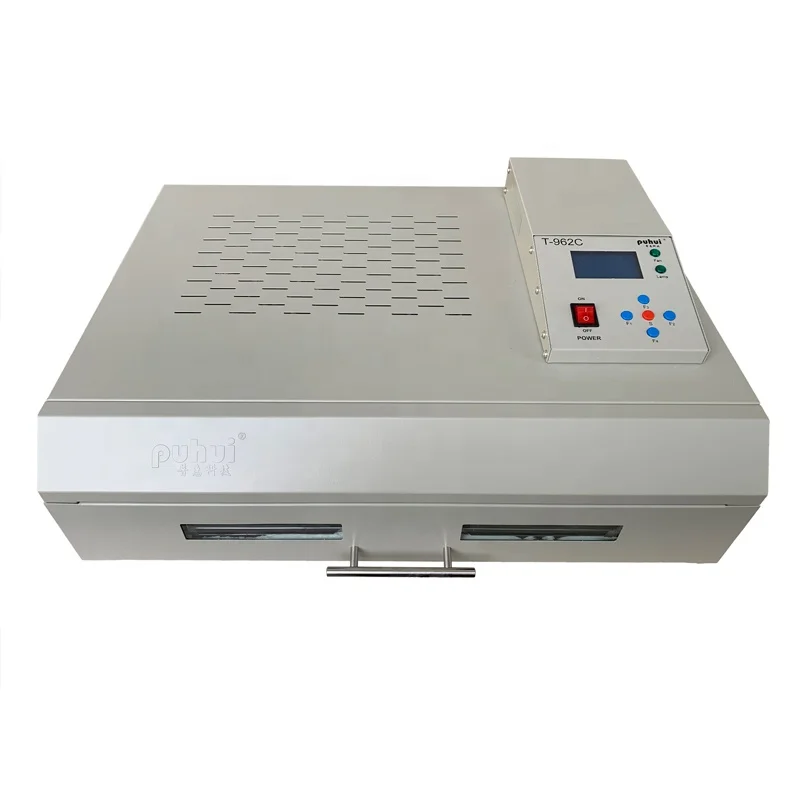

T-962C инфракрасный нагреватель 400*600 мм
