OEM вакуумное литье/полиуретановое/уретановое литье услуги по быстрому изготовлению прототипов пластмассовых изделий
0,90-3,60 $
Полиуретановое литье это метод прототипирования и изготовления небольших объемов подходящий для создания партий до 25 единиц.
- Категория: >>>
- Поставщик: Anqing Wayne Hand Model Technology Co. Ltd.Anqing Ltd.
Сохранить в закладки 11000017432684:
Описание и отзывы
Характеристики
What is Vacuum Casting | Urethane Casting ?

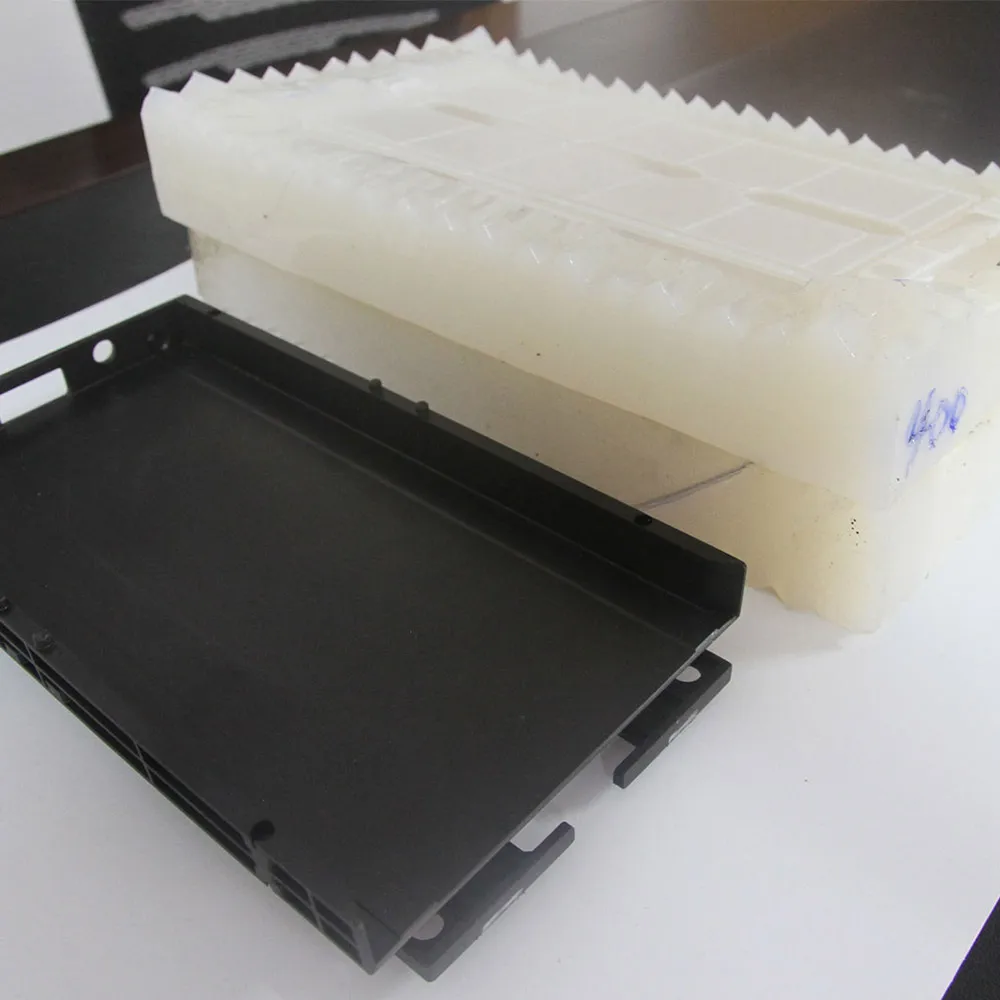

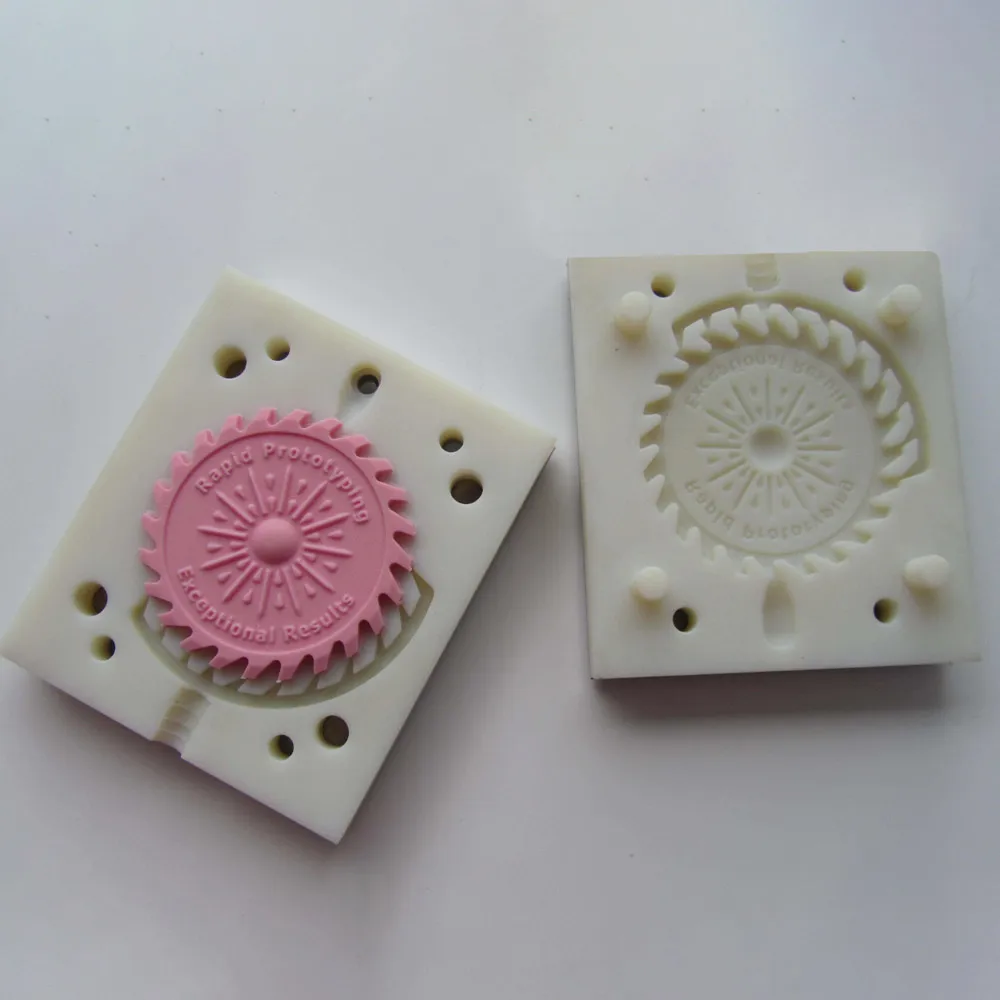

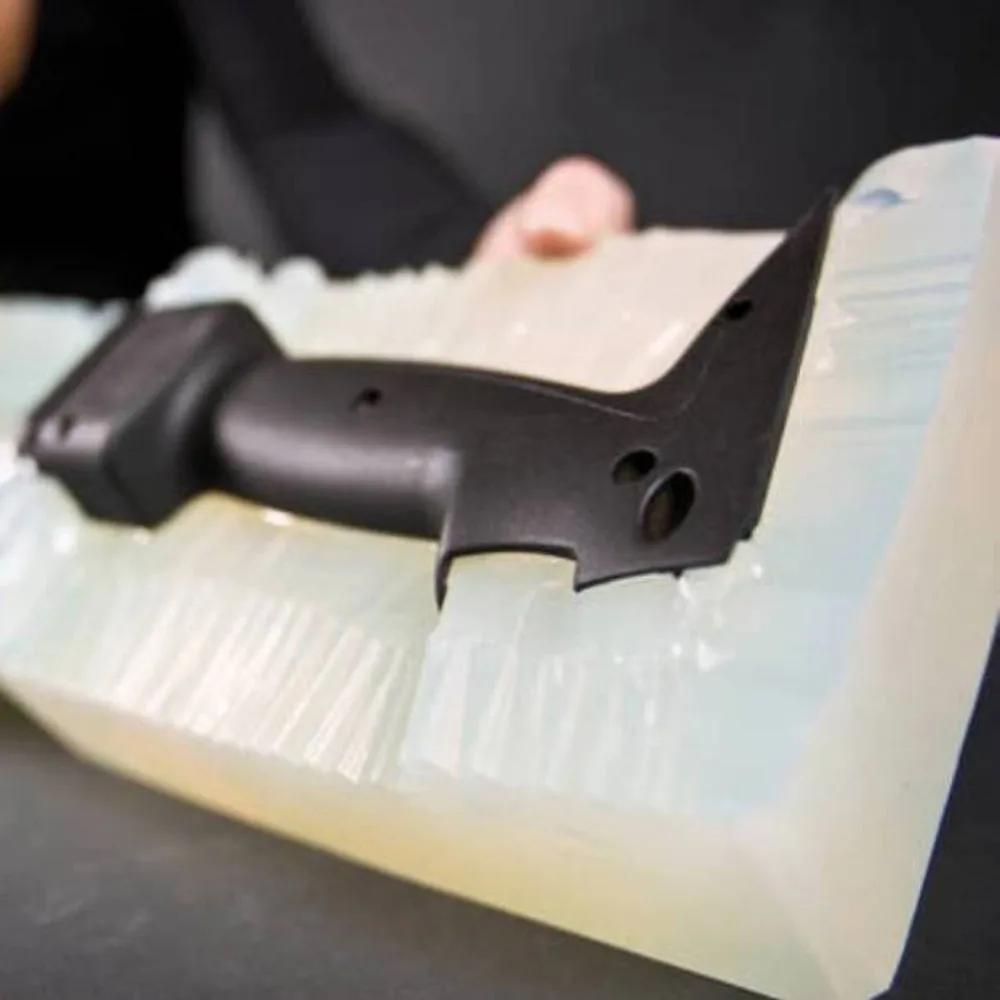

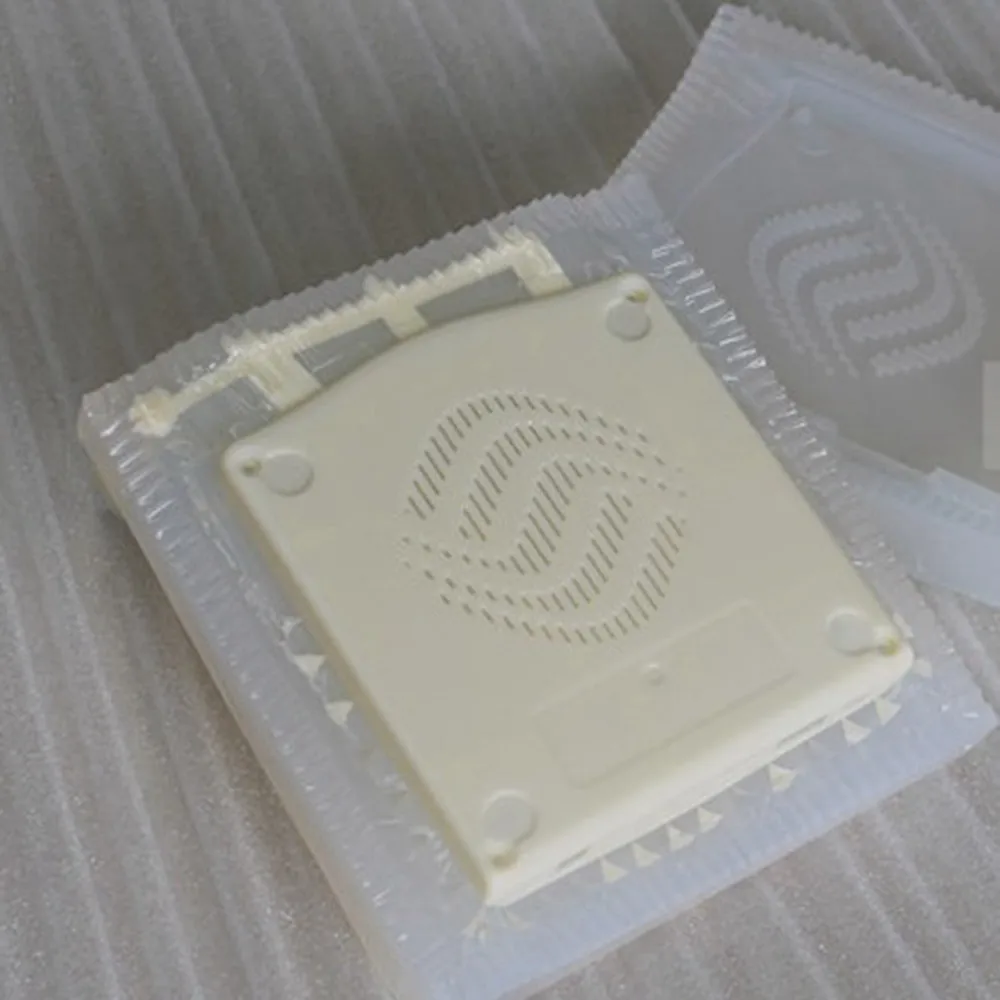

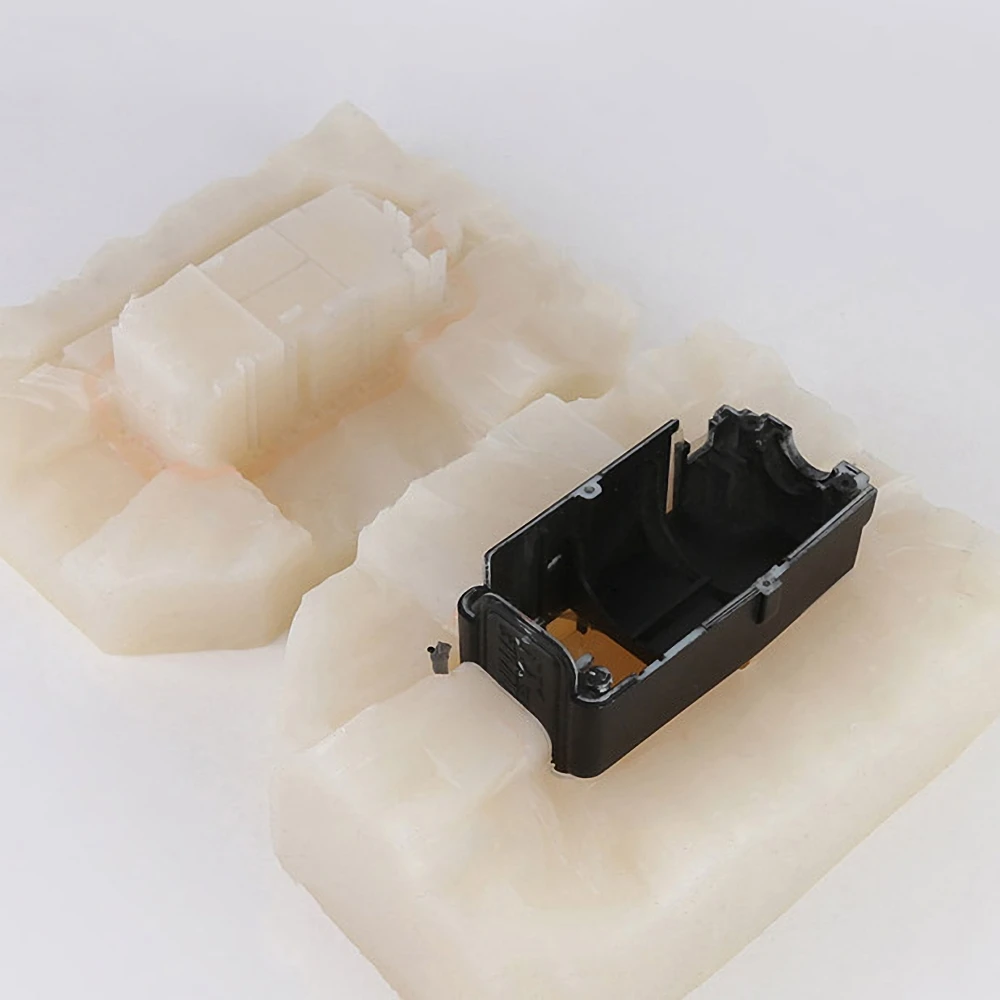

Urethane casting provides end-use, rigid plastic parts or rubber parts with production-level quality. Built without expensive and time-consuming hard tooling, urethane casting process uses a 3D printed master pattern and silicone molds to deliver high-quality, short-run parts up to 30” long. The finished dimensions of urethane cast parts depend on the accuracy of the master model, part geometry, and casting material. In general, a shrinkage rate of + 0.15% is expected. Cast urethane parts are frequently used when color, surface quality, and toughness are required. Urethane molding is a perfect alternative for insert molding or over molding in low volumes with diverse material choices. Polyurethane casting can also be used for bridge-tooling between a 3D printed rapid prototype and an injection molding with a balance of quality, cost, and time. Urethane cast parts can also be clear, color-matched, painted (including EMI shielding), have installed inserts, and even custom finished.
Materials
Cast urethane parts are often compared to injection molding materials. For example, a stiff urethane cast part may be described as
"polycarbonate-like," and a more flexible plastic may be "polypropylene-like." We group our urethane materials into general categories to help you make quicker decisions and get the best performance on your project. The list below describes the categories of materials and technical examples when selecting polyurethanes.
"polycarbonate-like," and a more flexible plastic may be "polypropylene-like." We group our urethane materials into general categories to help you make quicker decisions and get the best performance on your project. The list below describes the categories of materials and technical examples when selecting polyurethanes.
Material Name | Shore Hardness | Description | Technical Information |
ABS-Like | Shore D 78-82 | A tough Shore 80D flame retardant material that is UL Listed with a flammability rating at 1/16" (1.6 mm). | TC-891-FR or equivalent |
Polycarbonate-Like | Shore D 82-86 | A stiff, high impact, high HDT, material with a wide variety of uses. Simulates polycarbonate (non-clear), Shore 84D. | TC-854 or equivalent |
Glass-Filled Nylon-Like | Shore D 85 | A stiff, USP Class VI, high-performance urethane with high impact strength and a HDT of 190°F (88°C). | PT8902 or PT8952 (FR) |
Rubber-Like Polyurethane | Shore A 25-95 | A Shore A elastomer with a high elongation to break. | F-130 to F-190 or equivalent |
Clear Rubber-Like Polyurethane | Shore A 40-95 | A colorless Shore A elastomer with a high elongation to break. Matte finish will give a frosted appearance, and higher gloss will increase its transparency. | WC-540 to WC-595 or equivalent |
Tolerances
Description | Tolerance Notes |
Distance Dimensions | +/- 0.010” or +/- 0.003” per inch, whichever is larger, is typical. Irregular or overly-thick geometries may cause deviances or deflection due to shrinkage. |
Shrink Mitigation | A shrinkage rate of +0.15% can be expected due to thermal expansion of the liquid, and the response of the flexible mold. |
Surface Quality | Surface finish is externally smoothed to a satin or matte surface. Grow lines may be present on internal or difficult-to-access features. Polishing or custom finishes must be clearly defined and agreed upon at the point of order. |
Feature Definition | Sharp corners and text may appear slightly rounded. |
Size Recommendation | We can offer urethane cast parts as large as 30” (0.762 m) long. |
Surface Finish
Clear
Clear (colorless)
Matte/Frosted and Color-Match
Parts have a smooth, satin-like finish due to the master pattern being bead-blasted matte. Clear and translucent parts with this finish will appear frosted. Matte finishes are useful for handheld and high-touch areas as it reduces fingerprint visibility.
Semi-Gloss
A finish that includes some sheen but not high reflectivity. Semi-gloss finishes are in between high-gloss and matte, resulting in a smooth, easy-to-clean surface.
High-Gloss
A highly reflective finish is made by polishing the master pattern before making the mold. High-gloss has a high sheen and will have the highest transparency for clear parts. High-gloss is useful for cosmetic models, cleanable surfaces, and lenses.
Custom
We can provide additional processing, including custom textures, secondary finishes, painting, and more
Applications of Urethane Casting
Low-Volume Production
Urethane cast parts are perfect for low-quantity production—when volumes do not justify investment in injection mold tooling—as well as for first run production parts, which can be completed weeks before production tooling is ready.
Advanced Prototyping
The urethane casting process and relatively inexpensive tooling involved makes it easy and economical to make any necessary design changes. Additionally, different materials can be used with the same mold, making it possible to test designs with a variety of materials.
Market Testing
End-user functionality and a high-quality finish makes urethane cast parts ideal for consumer testing, user evaluation and concept models. Using the cast urethane process means that changes can be incorporated quickly for either further testing or market launch.
Recommend Products
Metal/plastic 3d printing service
Plastic injection molding service
Sheet metal fabrication
Metal/Plastic cnc machining service
Company Profile
WAYNE PROTOTYPE
WayNe ProtoType is a Design and Engineering company from your concept stage to prototyping and fabrication of the completed product with injection molding. Our main focus is to help all the small and big sized companies to turn their dream projects into reality. We work very closely with our clients and strive to give them the best services at all times.
Our 3D printing equipment includes SLA SLS, HP MJF machines and metal 3D printer. With multiple years of experience and with an impressive portfolio. We are your partner in production, we process your project all the way from Zero to hero. We make all projects possible. Getting your idea valued, designed, tested, prototyped or manufactured shouldn’t be a long and dawning process.
We want to offer the future of rapid prototyping and additive manufacturing. A process that is fast, reliable, easy and supportive. You think it, we make it ! We make this with a few things in mind: precision, timely delivery, low cost structure
Customer Photos
Packing & Delivery
Похожие товары
Производитель литья пластмасс под давлением 3D печать быстрый прототип для прецизионной обработки деталей

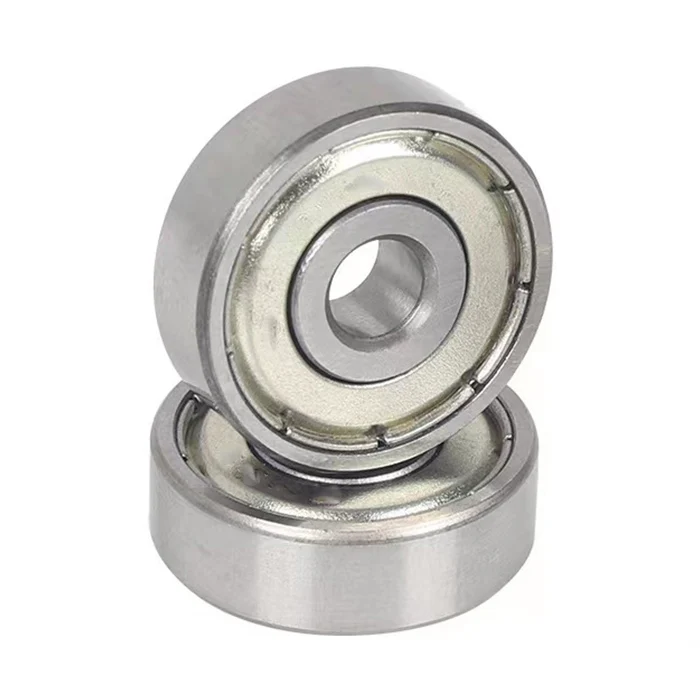

Высокоточный стальной моторный подшипник шариковый микро-подшипник с глубоким желобом
1,00-6,00 $
Изготовленная на заказ конструкция из холоднокатаной нержавеющей стали для трубы большого диаметра
0,86-6,30 $
Изготовленная на заказ форма втулка вала фланца из углеродистой стали

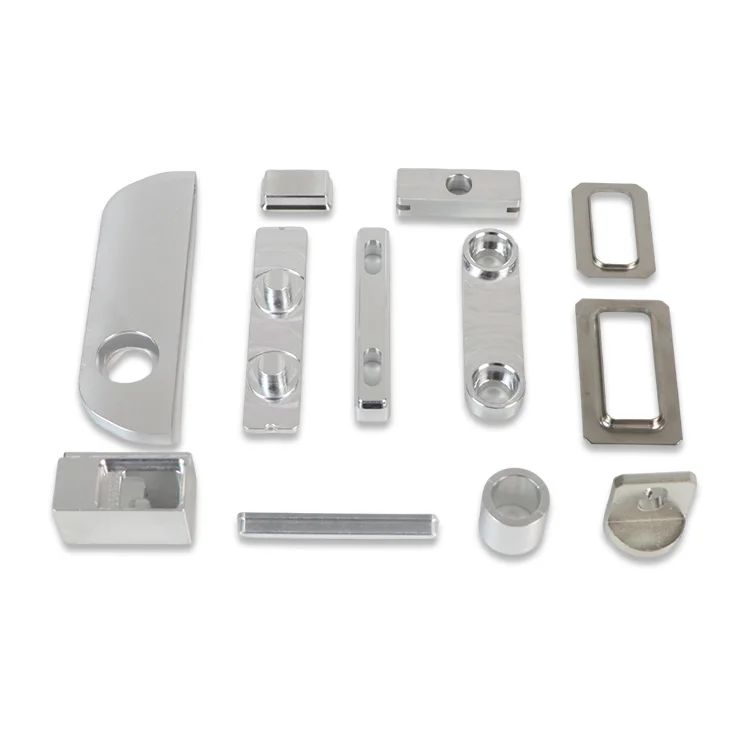

Высокоточная изготовленная на заказ алюминиевая часть цинкового литья из нержавеющей стали алюминиевые детали для обработки ЧПУ
0,08-0,68 $

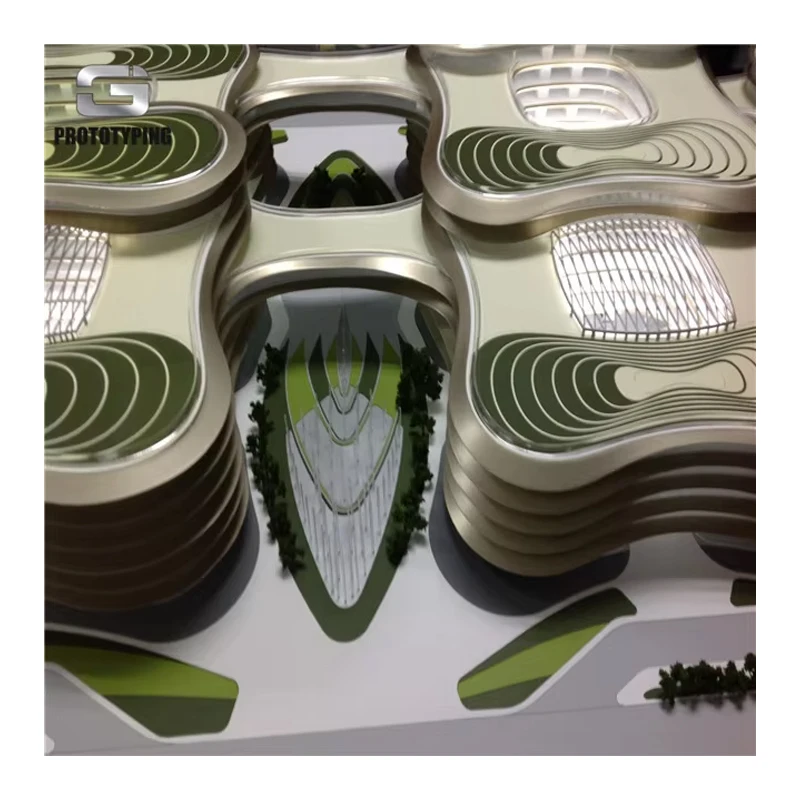

Модель 3d печати модель здания SLA служба быстрой в других вариантах применения

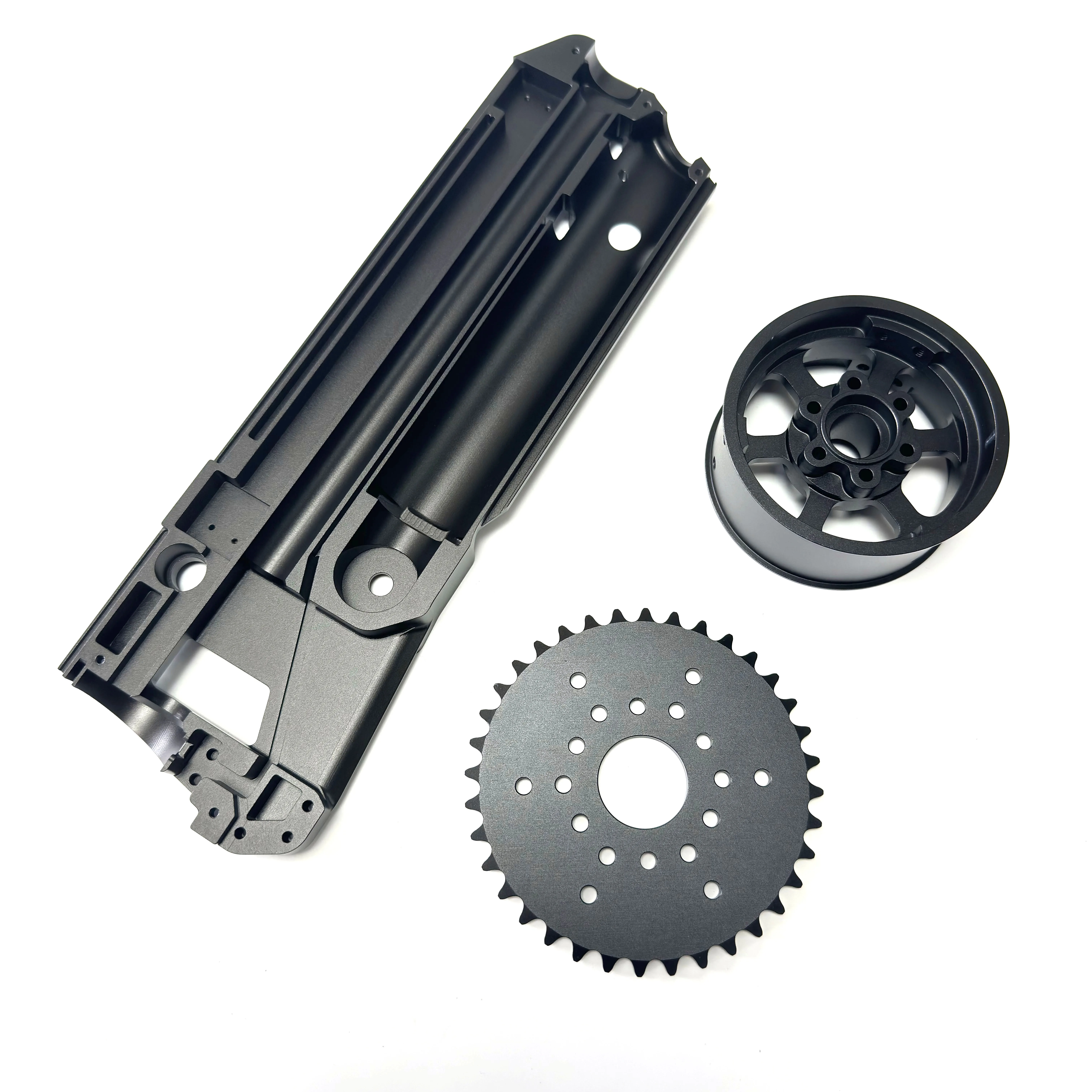

Изготовленный на заказ производитель CNC алюминиевый продукт детали с черным анодированным обслуживанием обработки
