Products Description

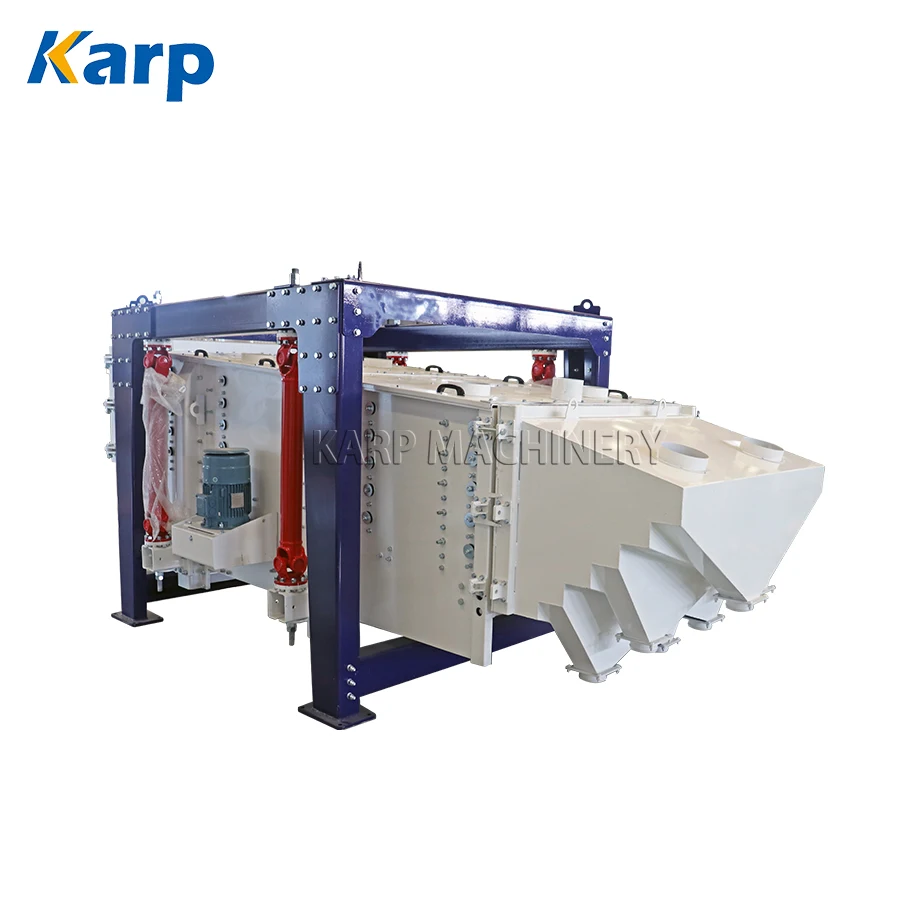

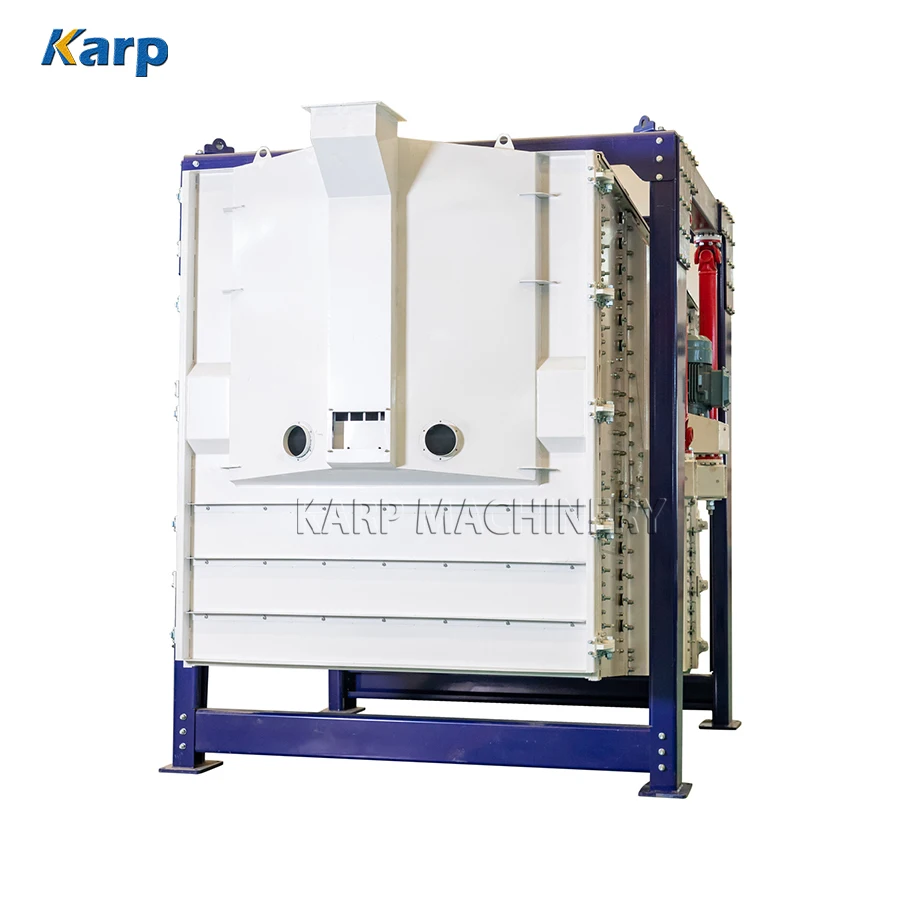

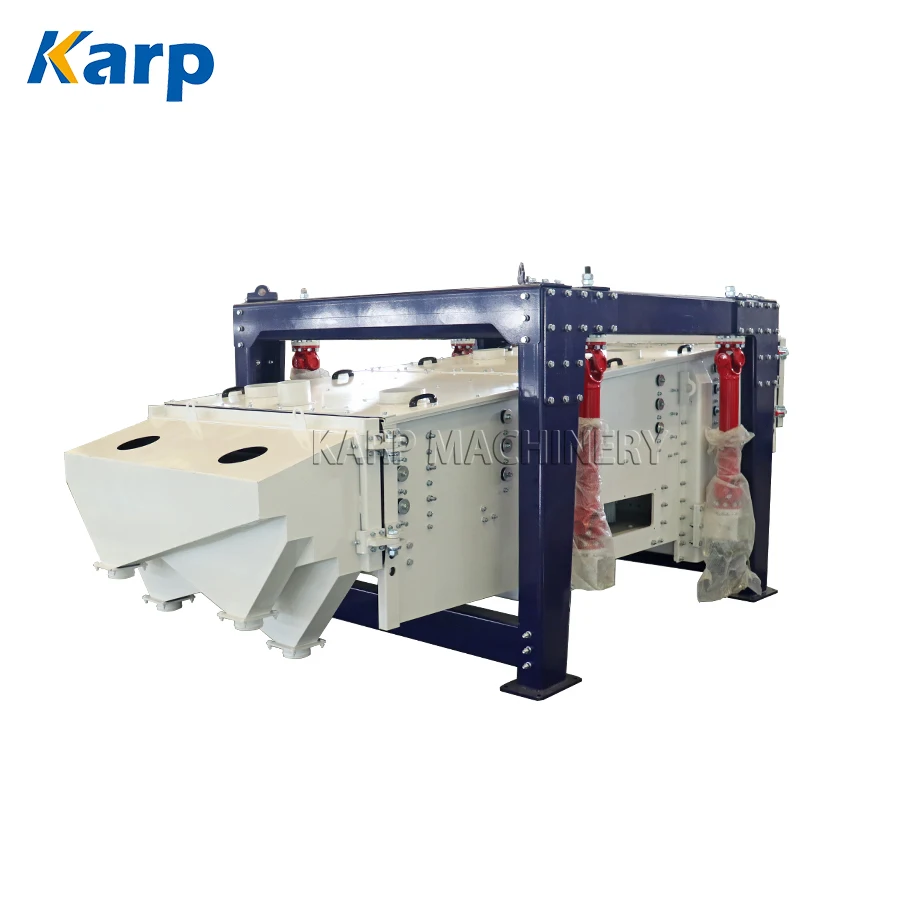

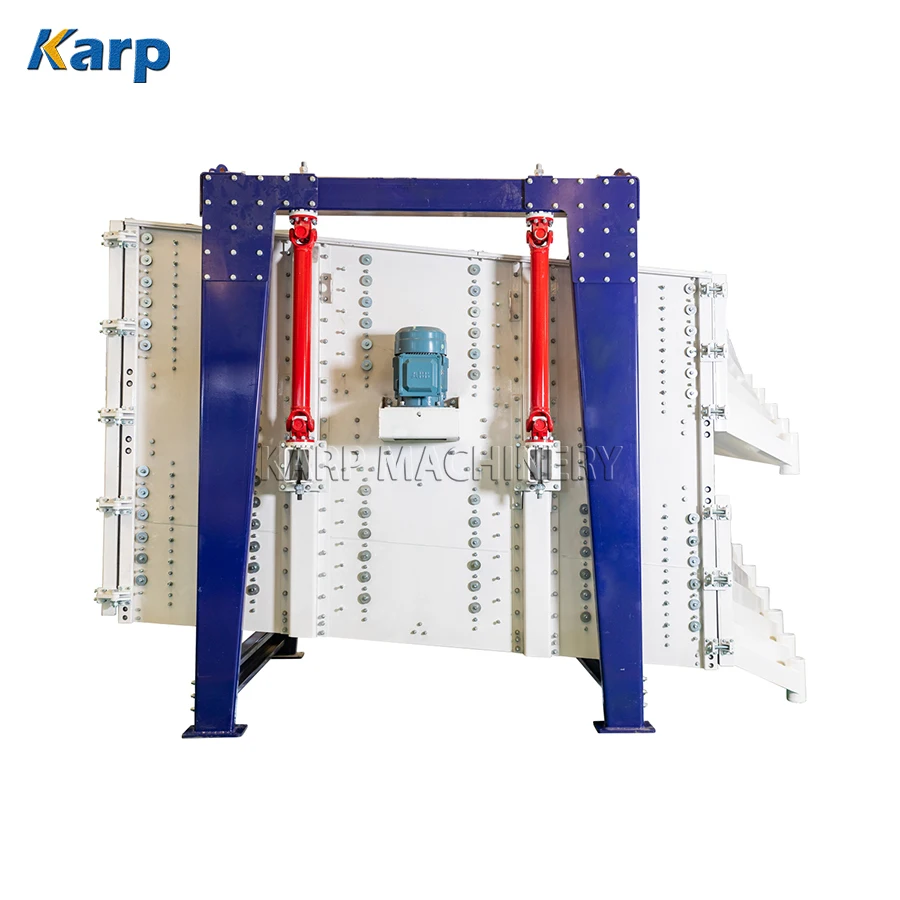

Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter
Brief Introduction
Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter is a screening machine designed for high-capacity applications requiring accurate separations. The motor drives the vibration exciter to rotate through belts. It generates eccentric inertial centrifugal force by a counterweight mounted on the exciter, make the screening case moved and do the plane gyratory motion, the materials on the screening mesh will do an elliptical motion with the angle of screen surface.
Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter can sieve the materials into 2-7 kinds of sizes with 20 TPH capacity. It is used in various industries and sectors, including metallurgy, abrasives, non-ferrous metals, chemicals, food, and more, with materials like salt, sugar, quartz sand, potassium carbonate, clay, borax, calcium carbonate, etc.
Product Details
Main Features
# High screening precision, tumbler screen is special for fine screening.
# Easy to replace screening mesh, pulling type of screening frame structure solves the problems of changing mesh.
Product Show
Manufacturing material: Stainless steel
Silicone gel bouncing balls cleaning system, rebound rate 85%
General Structure
Duplex structure
Strict process of making and gluing mesh, longer service life. Can be customised with 10-150mesh
333
Easy and quick screen replacement, just need 2 people, within 5 minutes, reducing downtime
Product Application Site
222
Product Flow
Application Fields
Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter is suitable for screening, separating and grading non-ferrous metals, chemical, food, mineral and other industries, especially for screening heavy alkali, all kinds of sand (silica sand, frac sand, quartz sand, building sand, etc), calcium carbonate, salt, resin, fertilizer, urea, feed, reduced iron powder, zirconium oxide, ceramic, barite and etc.
Specification
Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter | ||||||||||
Model | Effective sifting area (㎡) | Power(kw) | Leaning angle of screen (°) | Layer | Screening box travel (mm) | |||||
FYBS1536 | 5.4 | 5.5 | 5-8 | 1-5 | 25-60 | |||||
2FYBS1536 | 2*5.4 | 7.5 | ||||||||
FYBS2036 | 7.2 | 7.5 | ||||||||
2FYBS2036 | 2*7.2 | 11 | ||||||||
1. If you have ever used a sieving machine, kindly pls tell us its SIZE, LAYERS, MESH SIZES, MATERIALS.
2. If never use the machine until now, pls offer us the info about material as below:
• Raw Material to be screened? Bulk density?
• Will you do a separation or dust-removal?
• Screening Capacity per hour (KG/H)?
• How many Layers do you need? Mesh size of each layer?
• Manufacturing material? (Stainless steel or Mild Steel)
• Voltage(V), Frequency (Hz), Phase(P)?
Please click on the below picture to contact us to get an accurate solution.
• Raw Material to be screened? Bulk density?
• Will you do a separation or dust-removal?
• Screening Capacity per hour (KG/H)?
• How many Layers do you need? Mesh size of each layer?
• Manufacturing material? (Stainless steel or Mild Steel)
• Voltage(V), Frequency (Hz), Phase(P)?
Please click on the below picture to contact us to get an accurate solution.
Packing & Delivery
- Packing for Self-cleaning sugar Square Swing Screen salt vibrating sieve gyratory vibro sifter.
- Outside package: standard export wood box.
- Inner package: stretch film for machine, accessories in carton.
- Inner package: stretch film for machine, accessories in carton.
333
Company Profile
Xinxiang KARP Machinery Equipment CO., Ltd is one of leading manufacturers of vibrating screen sifters, conveying machines, feeding machines, elevating machines and related products with 11 years designing and manufacturing experiences.
We are committed to solving all screening and conveying problems of bulk materials. Depending on the quality of the life of the enterprise, we will with professional solutions, high quality products, perfect service to win our customers' identity.
Our main products are vibrating screen, round separator, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, chemical, metallurgy, building materials, mining, environmental protection and other fields.
We warmly welcome friends from all over the world to our company, we are looking forward to sincere cooperation and mutually beneficial development with you.
We warmly welcome friends from all over the world to our company, we are looking forward to sincere cooperation and mutually beneficial development with you.
Customer Visit
CE-Certificates
333
FAQ
Q: What details do I need to provide if I want to confirm a precise model?
A: 1. Raw Material to be screened: _____
2. Bulk density: _____
3. Screening capacity: ______kg/hour
4. Screen layer: _______
5. Screen mesh size: ______ mesh. ______ mesh. ______ mesh.
6. Voltage: ______V, Frequency: ______HZ, 3 phase
Q: How long for the manufacturing time?
A: 10-15 working days.
Q: How long for warranty time?
A: 13 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
Q: How can we guarantee the quality?
A: We provide a set of the sealing parts and installation tools of vibrating screen with our machine for free. And one year
warranty period.
Q: What can you buy from us?
A: We provide one stop solution for powder materials: screening, conveying, weighing, mixing, packing and dumping.
A: 1. Raw Material to be screened: _____
2. Bulk density: _____
3. Screening capacity: ______kg/hour
4. Screen layer: _______
5. Screen mesh size: ______ mesh. ______ mesh. ______ mesh.
6. Voltage: ______V, Frequency: ______HZ, 3 phase
Q: How long for the manufacturing time?
A: 10-15 working days.
Q: How long for warranty time?
A: 13 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
Q: How can we guarantee the quality?
A: We provide a set of the sealing parts and installation tools of vibrating screen with our machine for free. And one year
warranty period.
Q: What can you buy from us?
A: We provide one stop solution for powder materials: screening, conveying, weighing, mixing, packing and dumping.
