980s Автоматический виниловый резак плоттер для лазерной резки co2 плоттер для продажи 980 мм плоттер для декорации лазера Гуанчжоу
143 815,00-166 825,40 ₽

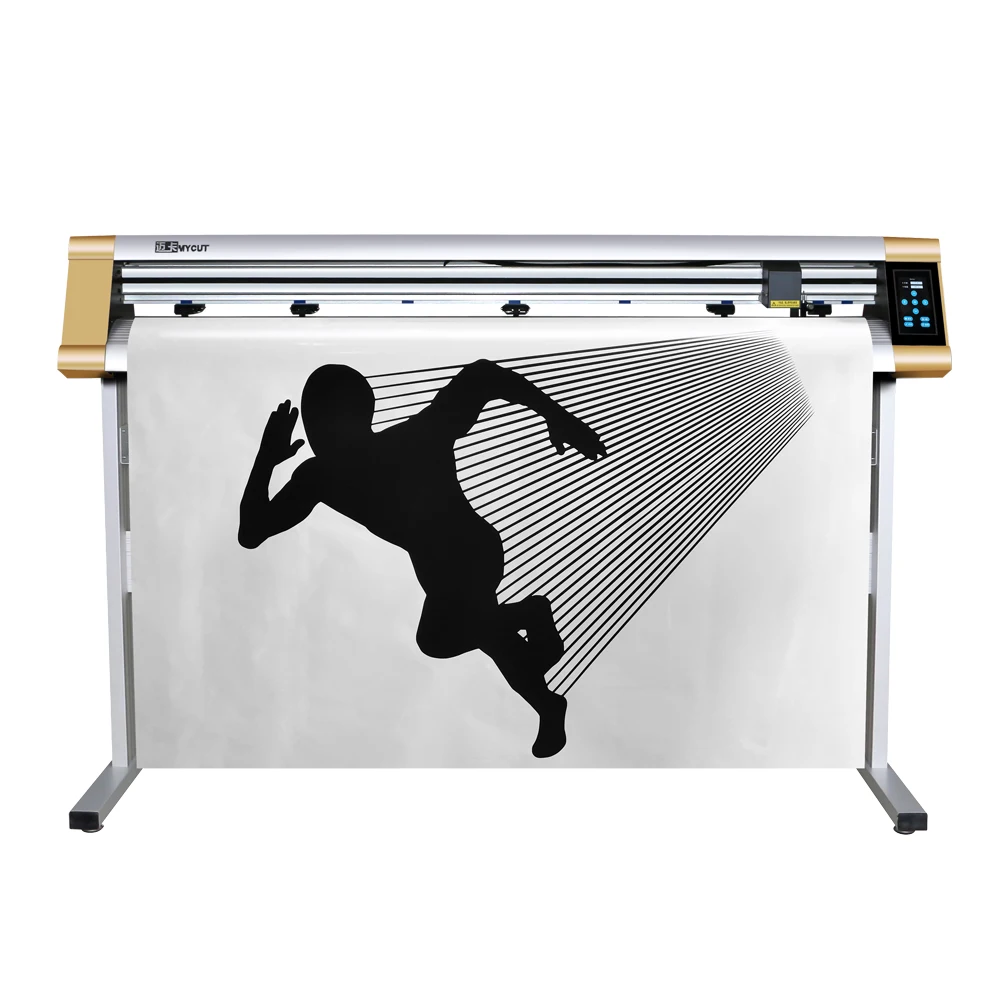

MC1200 MYCUT с камерой Автоматический контурный интерфейс USB/Ethernet
- Категория: >>>
- Поставщик: Huansheng Intelligence (shenzhen) Co. Ltd.Huansheng Ltd.
Сохранить в закладки 11000018216130:
Описание и отзывы
Характеристики
Factory Info
Shenzhen Huansheng Machinery Co.,Ltd Source Manufacturer MYCUT Cutting Plotter Factory
As a professional manufacture of vinyl cutter, ,cutting plotter,engraving machine and flatbed cutter. Our factory comply with ISO 9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service. For all our vinyl cutter,mobile screen protector cutter we can guarantee zero-defect before delivery.
Our vinyl cutter have been widely used in the following areas:Advertise sign,sticker,paper cutting,traffic signs and heat transfer industries. For sublimation area get high reputation too.
Keywords:Cutter Plotter,Cutting Plotter,Vinyl Cutter,Laser cutter,mobile film cutting machine ,heat transfer cutting machine,sticker cutter, sublimation etc
Product Description
MYCUT MC Series With CCD Camera
MYCUT MC Series vinyl cutter can work without computer.Just output you file to U-DisK.More convinient! Also support internet port. Another function is repeat function.
1.With CCD camera (automatic contour cut function software signmaster)
2.High force to cut reflective film/retro film 3M (optional )
3.Real high speed 256MB memory
4.High precision steel roller: guaranteed 5m without deviation of paper feeding
5.Low noise:ultra quiet design
6.High performance 32-bit processor with ARM Cortex-M3
7.Work with U disc directlly
8.Interface : USB/U-disk/Ethernet ports

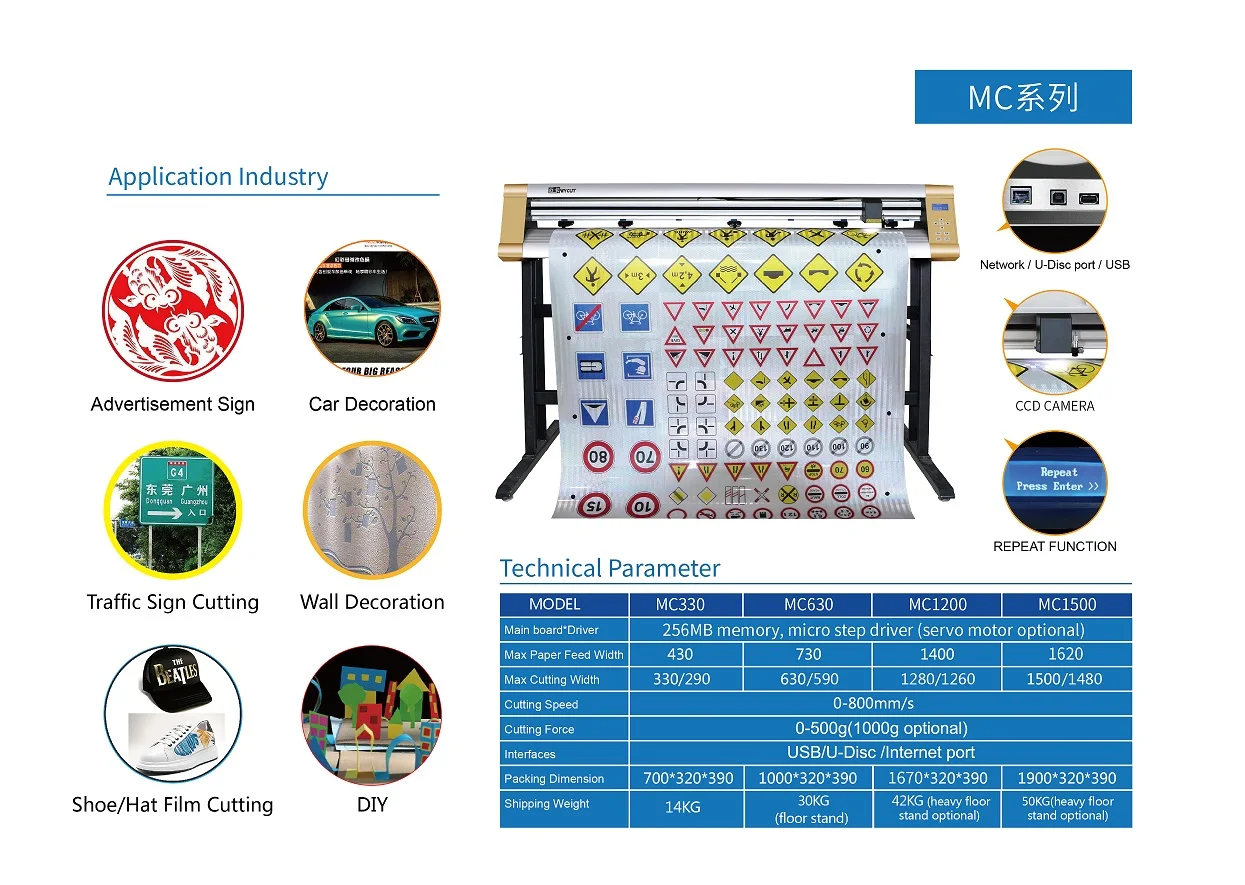

Model | MC330(12'') | MC630(24'') | MC1200(48'') | MC1500(59'') | |||
Media Way | Desk cutter | Floor Stand | Floor Stand | Floor Stand | |||
Main Board | High-performance & intelligent ARM 32 CPU; 128MB memory | ||||||
Driver | High speed stepping motor, micro-step driver | ||||||
Max Paper Feed Width | 430mm | 730mm | 1370mm | 1600mm | |||
Max Cutting Width | 330mm | 630mm | 1270mm | 1500mm | |||
Max Cutting Speed | 800mm/s | ||||||
Cutting Force | 0-500g/0-1000g (optional configuration) | ||||||
Mechanical Precision | 0.05mm | ||||||
Repeatable Precision | < +-0.1mm | ||||||
Plotter Instruction | DM-PL/HP-GL Automatic Identification | ||||||
Interfaces | USB /Ethernet port / U-Disk port | ||||||
Power Supply | AC110V /220V±10%, 50Hz/60Hz | ||||||
Software | Contour cutting function; software signmaster included | ||||||
Noise at Work | ≤45 DB | ||||||
External Dimension | 750*330*400mm | 1045*330*400mm | 1590*330*400mm | 1890*330*400mm | |||
Shipping Weight | 15kgs | 23kgs | 33kgs | 50kgs | |||
Strong Integrated Carriage
wider range of applications
Integrated Grit Roller
High precision
Big LCD Display
easy-touch silicone keypad with highlight
Strong Pinch Roller
attractive and durable
Three Interfaces
U Disc Port(MH,MG,MS Series only),work without Computer
Standard Blade
Each machine with 1 blade holder,3 blades
MYCUT Vinyl Cutter Performance Video Link
U Disc auto contour cutting(NO need link with Computer!!)
https://www.youtube.com/watch?v=WzRUTo6sPBY&feature=youtu.be
2mm cutting(even 2mm Letter can cut ,so high precision!!)
https://www.youtube.com/watch?v=D1sWWCc7_S4
coreldraw auto contour cutting (Free coreldraw Plug-in, supporting Coreldraw X3-X7 edition!)
https://www.youtube.com/watch?v=LQ3zchv05fE
MYCUT cutting plotter 1cm+3cm circle cutting(Perfect and stable MYCUT Vinyl Cutter!)
https://www.youtube.com/watch?v=SJvdZTqeTaU
MYCUT cutting plotter 5CM circle (high precision to cut the circle)
https://www.youtube.com/watch?v=k9MTgYetpsg

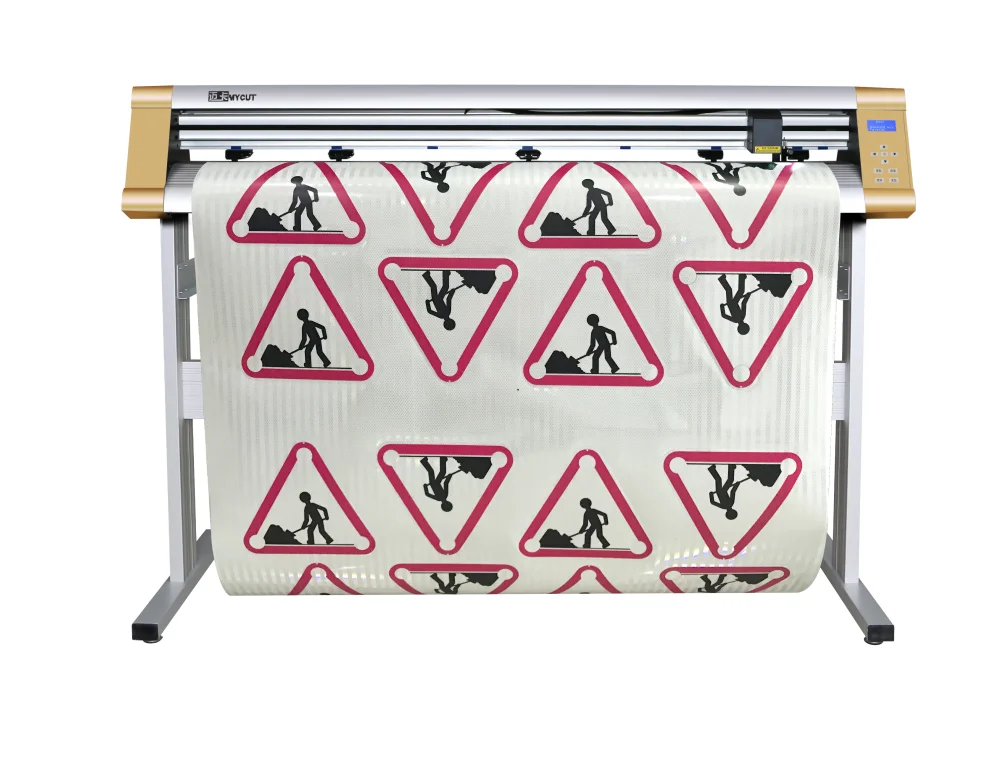

MYCUT cutting plotter 3M Reflective film cutting (High force to cut 3M Refective film!)
https://www.youtube.com/watch?v=nbk0kqpq1j8
Standard Accessories
1) User Manual(CD) 2) software signmaster 3) 1 Power cable and 1 USB cable
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card
MC630 and MC1200 cutting plotter already included floor stand, software signmaster and CCD camera automatic contour cut function. Only big force need additional cost.The big force is mainly to cut 3M reflective film or what we call Retro
Optional Choices
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card
MC630 and MC1200 cutting plotter already included floor stand, software signmaster and CCD camera automatic contour cut function. Only big force need additional cost.The big force is mainly to cut 3M reflective film or what we call Retro
Optional Choices
1)floor stand
2)CCD camera
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer) internet port
2)CCD camera
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer) internet port
8) Repeat function, can repeat last job sending from computer.
Note:we will extra charge for optional configuration,please contact us for details.
Note:we will extra charge for optional configuration,please contact us for details.
MYCUT Vinyl Cutter Application
Label /Paper Cut
Advertise Sign
Wall / Window Sticker
Heat Transfer
Car Sticker
Packing & Delivery
Standard Packing
With great quality Foam and Carton Packing
Make sure the machine won't be damaged during shipping
Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.
Warranty &Service
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.
Contact Us
SHENZHEN HUANSHENG MACHINERY CO.,LTD
Tel: 86-755-89265458 Fax:86-755-89265459
Contact Person:Ms.Shirley
Mobile & Whasapp: +86 18820966962
Wechat: +86 18820966962
Website: www.mycutcutter.com www.mycut.com.cn
Add: Building #17, 228 Industrial Zone,HengGang,Longgang District,ShenZhen,China
