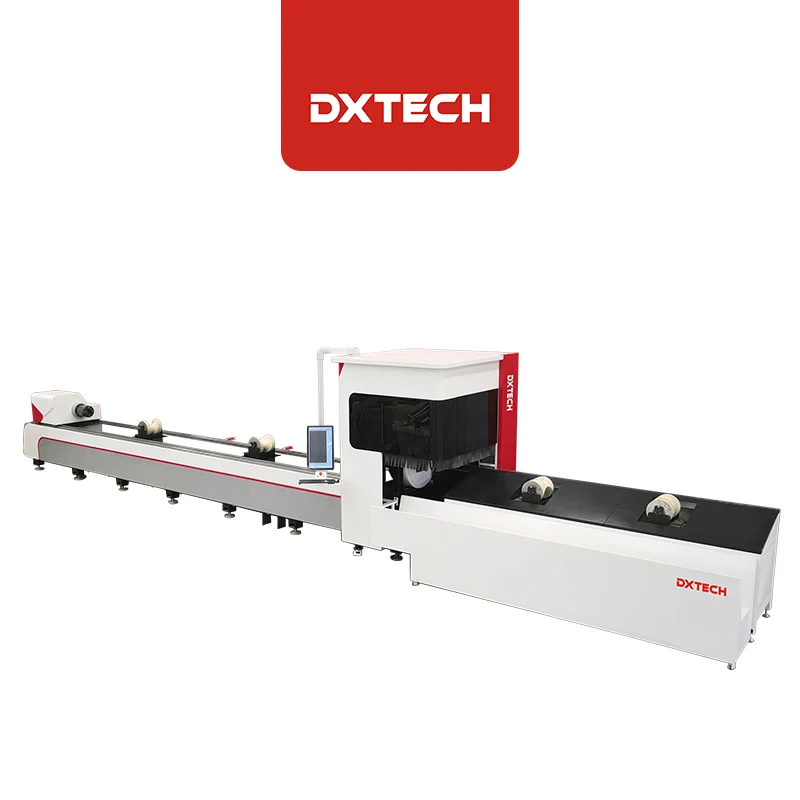

Автоматическая подача трех патронных труб резак для металла 15-350 мм труба с нулевой хвостовой трубкой Лазерная резка машина
98 000,00-125 000,00 $
Профессиональная машина для лазерной резки металла из нержавеющей стали
- Категория: >>>
- Поставщик: Dxtech CNC Machine Co LtdDxtech Ltd
Сохранить в закладки 11000018593867:
Описание и отзывы
Характеристики
T-Series Bevel Professional Metalmetal Processing Stainless Tube Fiber Laser Metal Cutting Machine for Sale
Products Description
Tube fiber laser cutting machine is specially designed for pipes, easy to operate. This fiber laser cutting machine improves cutting quality and cutting efficiency. The fiber laser cutter is widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries.
1. Heavy-duty mechanical structure
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
2.Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg.
3.Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
4.Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
2.Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg.
3.Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
4.Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Fully automatic double pneumatic chuck
——One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
——Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the
cutting accuracy.
——The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service
life of the chuck.
——Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the
cutting accuracy.
——The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service
life of the chuck.
Intelligent focusing laser head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which
effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which
effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
TubePro tube cutting software
1. Tube cutting system
It is a professional tube cutting system, which can realize automatic centering and eccentric compensation of metal pipes to ensure cutting accuracy.
2. Common edge cutting:
It can reduce the residual material and save the production cost.
3. Corner cutting process:
The corners are not burnt, and the section quality is good.
It is a professional tube cutting system, which can realize automatic centering and eccentric compensation of metal pipes to ensure cutting accuracy.
2. Common edge cutting:
It can reduce the residual material and save the production cost.
3. Corner cutting process:
The corners are not burnt, and the section quality is good.
Product Paramenters
Model | DXTECH-T6160/T9160 | DXTECH-T6220/T9220 |
Max. tube weight | 100kg 16kg/m | 200kg 30kg/m |
Max. tube length | 6.5/9.2m | 6.5/9.2m |
Tube shape | Round/square/rectangular | Round/square/rectangular |
Positioning accuracy | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm |
Chuck | Two pneumatic chucks | Two pneumatic chucks |
Laser power | 1kW – 4kW | 1kW – 4kW |
Laser | Multiple options | Multiple options |
Focusing method | Auto/manual | Auto/manual |
Clamping range | Φ10-Φ160mm | Φ20-Φ220mm |
Sample Show
Product category
Company Profile
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Certifications
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
Похожие товары

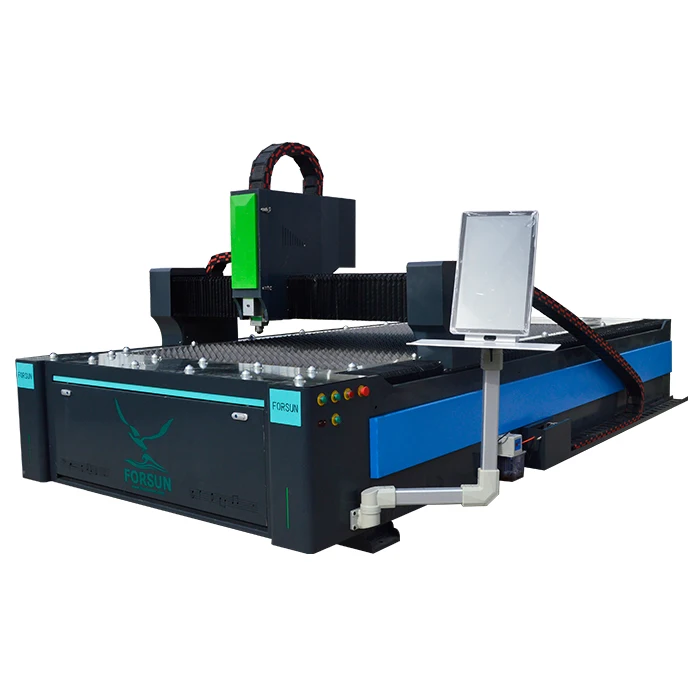

Прецизионный волоконно-лазерный станок для резки металла 6060 золотого и серебряного резака
11 000,00-14 000,00 $
Лазерная резка канальная стальная труба металлическая из нержавеющей стали высокоточная машина
20 416,00 $
Лазерная резка канальная стальная труба металлическая из нержавеющей стали высокоточная машина
20 416,00 $

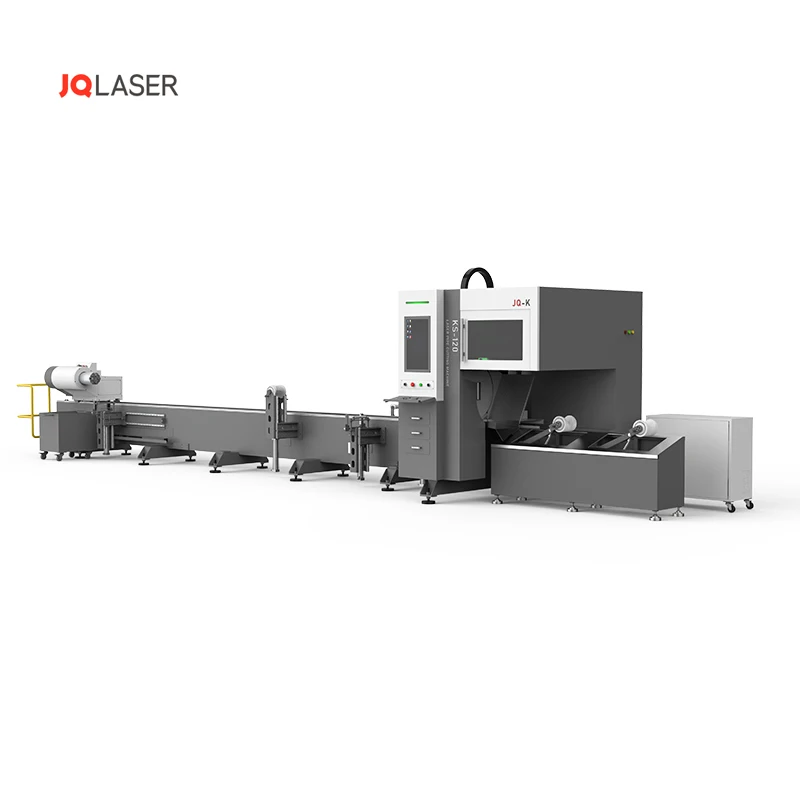

Высокая точность 15 ~ 120 мм диаметр трубки лазерная резка автоматическая загрузка Лазерная машина для металлической трубы
