41% скидка! Максимальная мощность лазера 4 мм лист из углеродистой стали нержавеющей сварка с помощью Ручной Волоконно лазерной сварочной машины
- Категория: >>>
- Поставщик: Jinan Forsun Cnc Machinery Co. Ltd.Jinan Ltd.
Сохранить в закладки 11000018856166:
Описание и отзывы
Характеристики

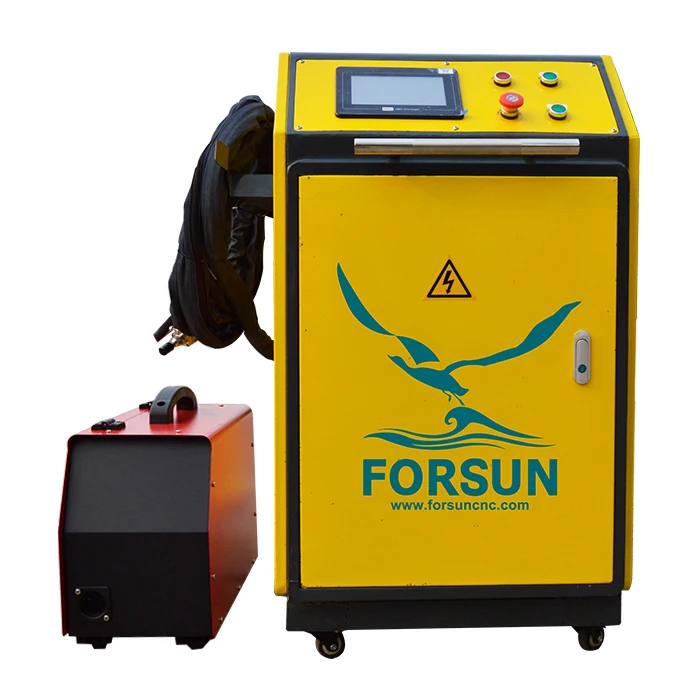

41%discount!Max laser power 4mm Carbon Steel Sheet, Stainless Steel Sheet Welding by handheld Fiber Laser Welding Machine ![Welding-Machine-2.jpg]()
Features
What's the feature of our CNC Fiber Laser Welding Machine?
Ø1000W/1500w Laser Source Power
ØMAX or Raycus Laser Source
ØEffective Water Cooling Mode
ØAdjusted spot range 0.1-3mm
ØMinimum Welding pool 0.1mm
What’s the Technical data of Forsun Fiber Laser Welding Machine ?
No. | Technical Index | Parameters |
1 | Model name | FS-1000W |
2 | Laser source model | MAX or Raycus |
3 | Laser source power | 1000W |
4 | Laser source wavelength | 1080m |
5 | Laser source frequency | 50-20000Hz adjustable |
6 | Controller | Qilin Brand |
7 | Welding head | Qilin Laser Head |
8 | Cooling Mode | Water cooling |
9 | Water chiller | 2P ,built-in chiller |
10 | Adjusted spot range | 0.1-3mm |
11 | Minimum Welding pool | 0.1mm |
12 | Gas source | 0.2Mpa (Argon ) |
13 | Working Voltage | AC220V / 50Hz / 60HZ |
Advantages
What's the advantage of Fiber Laser Welding Machine?

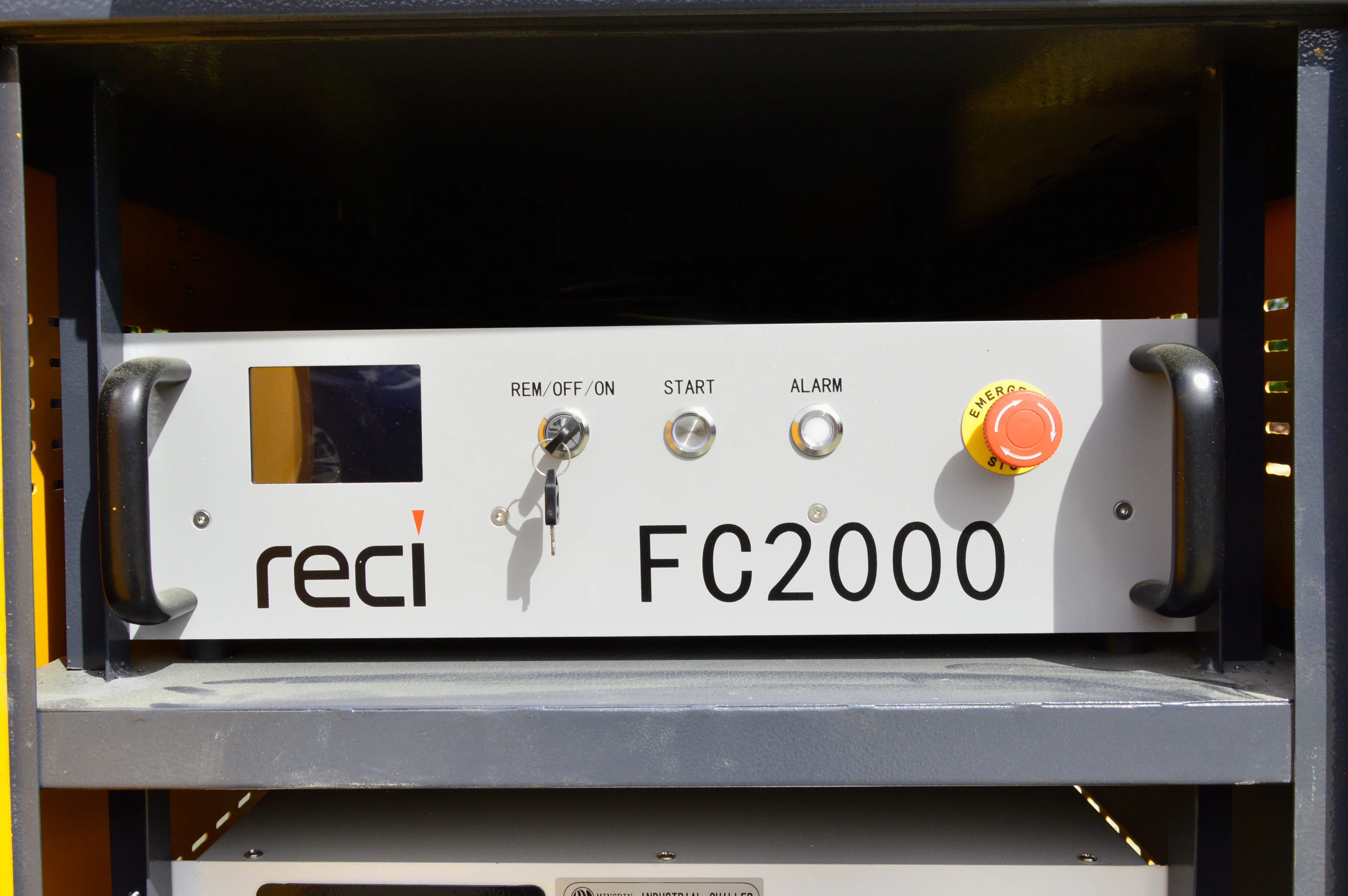

| 1.RAYCUS 1000w Laser source | 1. 100,000 hours of lifetime, free maintenance. 2. High electronic optical conversion efficiency (up to 25-30%), excellent beam quality. 3. High energy density, and reliability, a wide modulation frequency |

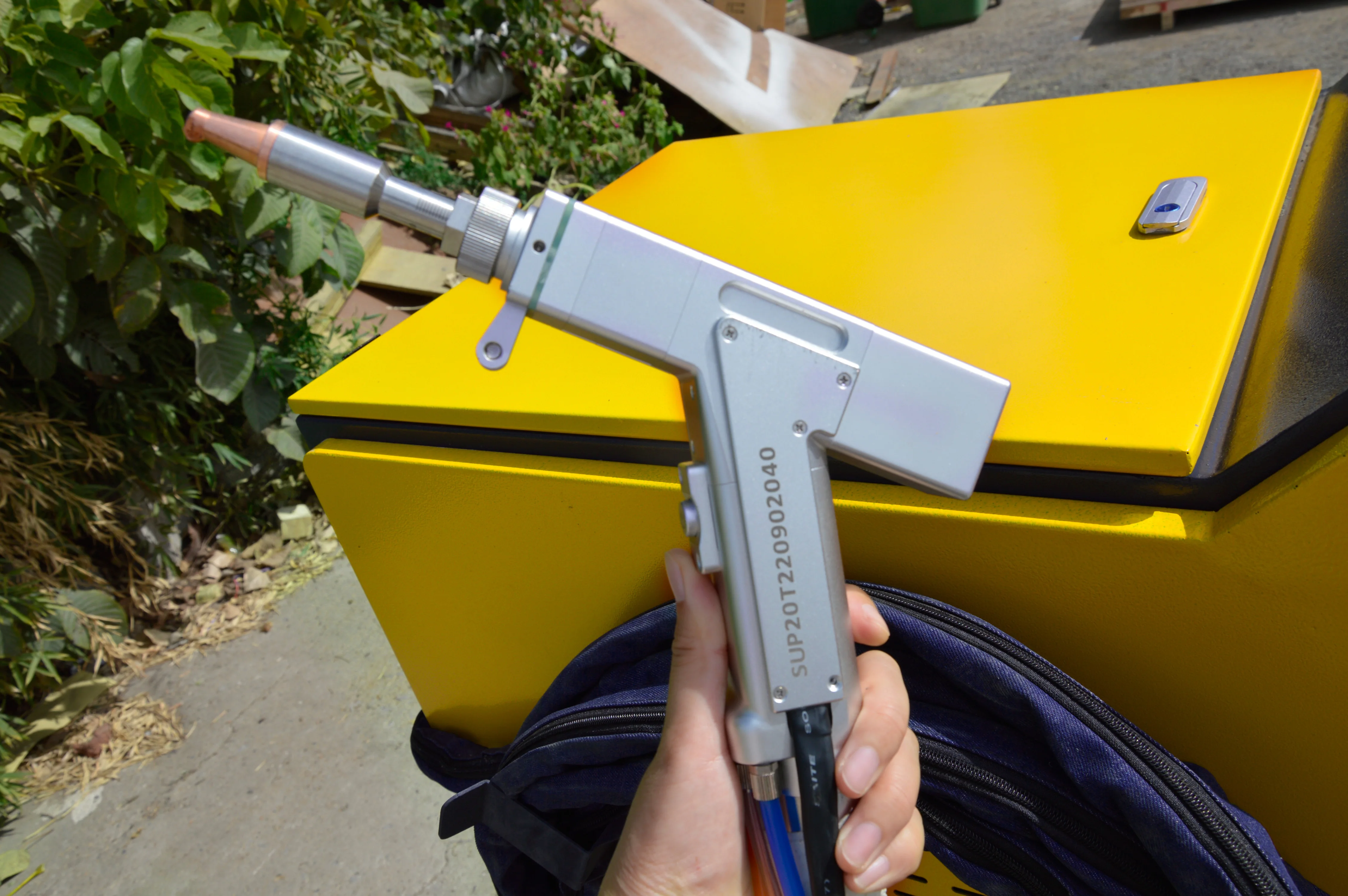

| 2.Welding head | 1.Galvanometer width adjustable, bead width 0.5-6mm. 2.Dedicated welding tip for welding at any position and angle 3.Infrared positioning, more accurate welding position |
| 3.Qilin Controller | 1.Preset multiple process modes to meet different process needs. 2.Preset multiple security alarms, more secure and reliable 3.Support multi country languages |
| 4.Water Chiller | 1.Intelligent temperature control and compressor refrigeration 2.20μm fiber core warp, higher electro-optical conversion efficiency |
| 5.Optical fiber cable | Standard length is 10 m |
Beneifit
What's the Benefits of CNC Fiber Laser Welding Machine ?
Applicable Industry:
Sheet metal processing
Railway transportation
Automobiles
Construction machinery
Agricultural and forestry machinery
Electrical manufacturing
Elevator manufacturing
Household appliances
Food machinery
Textile machinery
Tools Processing
Petroleum machinery
Food machinery
Kitchen and bathroom
Decorative advertising
Laser external processing service
Customer in our factory from all over the world:
Packaging & Shipping
How do we package our CNC Fiber Laser Welding Machine ?
Our Services
What's our service for CNC Fiber Laser Welding Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Why Choose us???:
FAQ
What do customers usually ask about our CNC Fiber Laser Welding Machine ?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Relative Products
| CO2 laser cutting machine | 4 Axis CNC Router Machine | laser welding machine |
 |  |  |
Contact Chart
NOTE: THIS MACHINE PRICE NOT INCLUDING LASER WELDING HEAD, WATER CHILLER AND LASER SOURCE.
The price is for the machine working sample cost but not for the machine price.
