YASHEL Mini series solar modules are the most popular option for small solar power plants. Thanks to their compact size and low weight, they are ideal for installation on the roof of a country house, motorhome, on a yacht or as a mobile source of energy when traveling. The Mini series solar panels are easy to take with you on a camping trip in the trunk of your car. They are also widely used for autonomous lighting, car refrigerators, CCTV cameras and powering low-power appliances.
The use of modern technologies with half-cut monocrystalline cells using PERC technology and multi-busbar Multi basbar technology provides YASHEL Mini solar modules with higher output characteristics, effective absorption of the long-wavelength light spectrum and greater power in smaller sizes than traditional panels. This ensures our panels deliver uncompromising power output in low light conditions, including dawn, dusk and cloudy conditions, and ensures efficient battery charging.
By purchasing YASHEL solar panels, you can be sure that you are getting 100% reliability and quality from fully automated production, modern technologies and materials.
The use of PERC technology increases the efficiency of solar cells by more than 20% due to the reflection of already generated electrons into the pn junction zone, which produces additional electric current. In addition, the technology reduces cell heating and promotes efficient absorption of long-wavelength light by the solar cell. As a result, PERC solar cells produce more energy, especially from long-wavelength light, which is typically more intense in the morning, evening, and during cloudy weather. This allows YASHEL modules to operate efficiently in any environment and make the most of available solar energy for increased productivity and efficiency.
The technology of multi-busbar Multi busbar cells increases the power of a solar panel by up to 2%, which is achieved by reducing internal resistance and increasing current collection from photocells. This significantly improves the performance of YASHEL solar panels in cloudy weather. Depending on the module power, up to 12 conductors per cell are used. In addition, the risk of local overheating is reduced and the mechanical strength of the elements is increased, which provides greater resistance to microcracks.

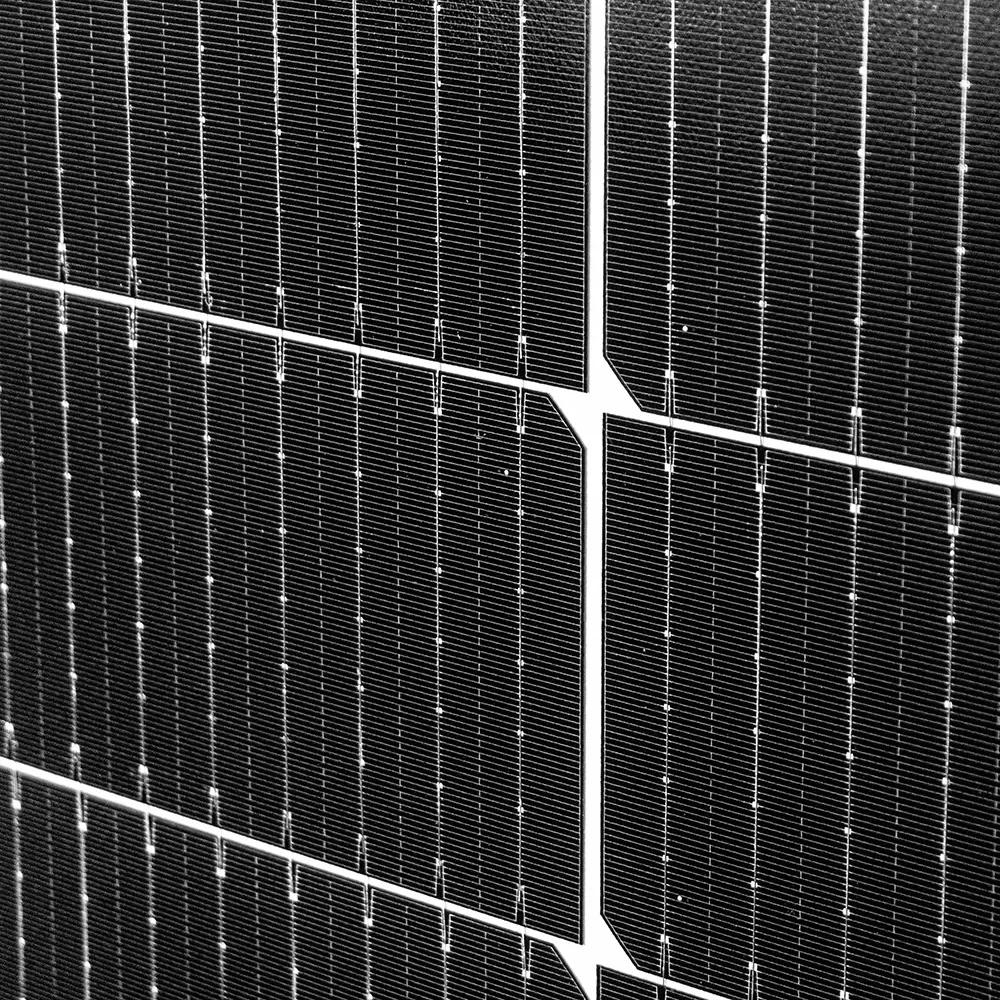

Advanced half-cut cell technology uses solar cells cut in half or 1/3 in solar panels. This reduces resistive losses and reduces current, resulting in a power increase of up to 3%. Increases resistance to local hot spots (hot spots) caused by partial shading. Smaller cells experience less mechanical stress, so the likelihood of microcracks also decreases.
The cells have low thermal coefficients which help improve performance in high summer temperatures.
- Highly efficient monocrystalline Grade A cells using PERC technology.
- The efficiency of the series reaches 20.9%! This makes them one of the most effective on the market.
- The high efficiency of solar panels in low light and cloudy weather is confirmed by customer reviews!
- Increased quantity up to 12 pcs. full-fledged conductive busbars.
- Plus up to 5 W of free power above the nominal value thanks to positive tolerance.
- Very easy to handle and carry thanks to its low weight and compact size.
- The rectangular size reduces the use of fasteners and optimizes space utilization.
- Durable, rigid aluminum frame with mounting holes.
- Tempered and ultra-clear glass 3.2mm thick.
- 25 year warranty to maintain performance over 80%.
- Long service life with minimal degradation: less than 2% in the first year and no more than 0.55% from the 2nd to the 25th year.
Rated power (W) | 550W |
Brand Name | YASHEL |
Model Number | YSM550M |
Solar cell technology | Monocrystalline |
Current at peak power, Imp | 13,10А |
Short circuit current, Isc | 13,87A |
Rated voltage | 24 V |
Maximum voltage, Vmp | 42V |
Open circuit voltage, Voc | 50,02V |
Warranty | 1year |
Number of cells | 144 |
Weight | 29 kg |
Can be used as | ||||||||
- Mobile and autonomous solar power plants - Wind-solar power plants - Tourist solar panel for hiking - Solar battery for a summer house, private house or garden - Mini solar power plants - Autonomous solar-powered lamps - Solar-powered CCTV cameras - Solar charger for batteries - Charging multifunctional portable power stations - Solar panel for boats, yachts, motorhomes - Solar charger for phones and gadgets - Power supply for automobile refrigerators |
