Оборудование для производства армированного волокном газового шланга с низким энергопотреблением/машина для производства мягких оросительных труб из ПВХ
2 734 835,00 ₽ - 3 063 015,20 ₽
Оборудование большой емкости для изготовления пластиковых оросительных водопроводных труб/волоконно армированный садовый пожарный шланг экструзионная машина
- Категория: >>>
- Поставщик: Zhangjiagang Sino-Tech Machinery Co. Ltd.
Сохранить в закладки 11000019633022:
Описание и отзывы
Характеристики
Main Features
PVC Fiber reinforcing hose production line/PVC soft Pipe making machine/pvc garden hose production line
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building.
Machine Advantage
1. High efficiency single screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden, farm, lawn and so on.
Flow Process :
layer extrusion inner-- mould die → spray cooling→ haul off→ fiber winding→ oven dryness→ outer layer extrusion→ mould die → spray cooling→ haul-off→ printer→ winder
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building.
Machine Advantage
1. High efficiency single screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden, farm, lawn and so on.
Flow Process :
layer extrusion inner-- mould die → spray cooling→ haul off→ fiber winding→ oven dryness→ outer layer extrusion→ mould die → spray cooling→ haul-off→ printer→ winder
Main Composition | ||
Item | Quantity | |
SJ65/30 Single Screw Extruder | 2sets | |
Die and Mold | 2sets | |
Stainless steel Water cooling tank | 2sets | |
Knitting Machine/Braider | 1set | |
Haul off machine | 2sets | |
Semi/Auto Winder | 1set | |
oven | 1set | |
Main Technical Parameter | ||||||||||||||||
Machine model | Screw diameter | Output | L/D Ratio | Pipe diameter | Total Power | Haul-off motor | Fiber winding power | Production speed | ||||||||
SNJB45-2 | 45mm | 60kg/hr | 30:1 | Φ12mm-φ25mm | 35kw | 1.1kw*2 | 1.5kw*2 | 6m/min | ||||||||
SNJB65-2 | 65mm | 120kg/hr | 30:1 | Φ25mm-φ50mm | 50kw | 1.1kw*2 | 1.5kw*2 | 3/min | ||||||||
Details
Floor Plan
Final Products
Company Profile
Why Choose Us
Packaging & Shipping
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Похожие товары

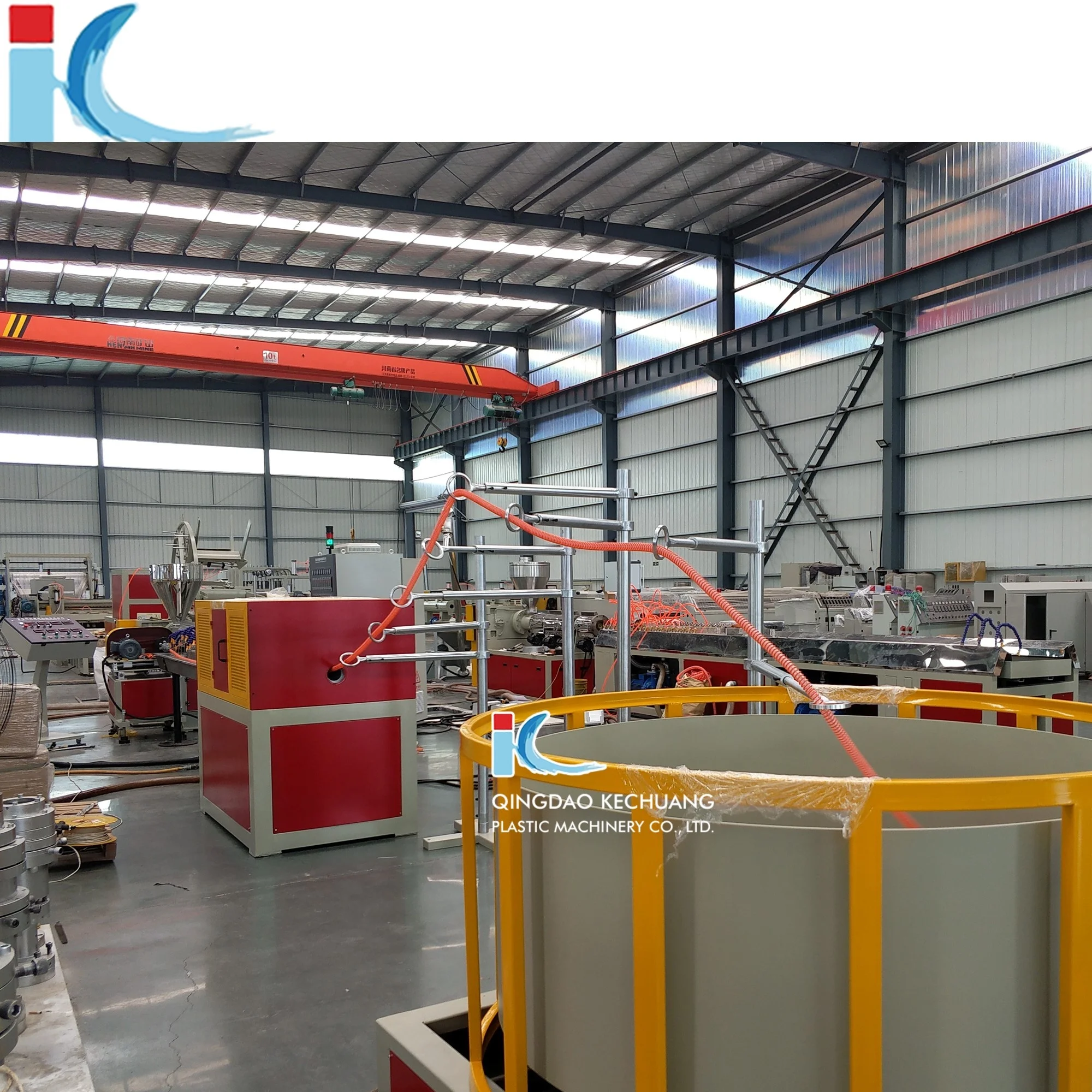

Машина для производства водяных всасывающих шлангов из ПВХ, экструзионная машина, производственная линия QINGDAO KECHUANG, пластиковые машины
2 734 835,00 ₽

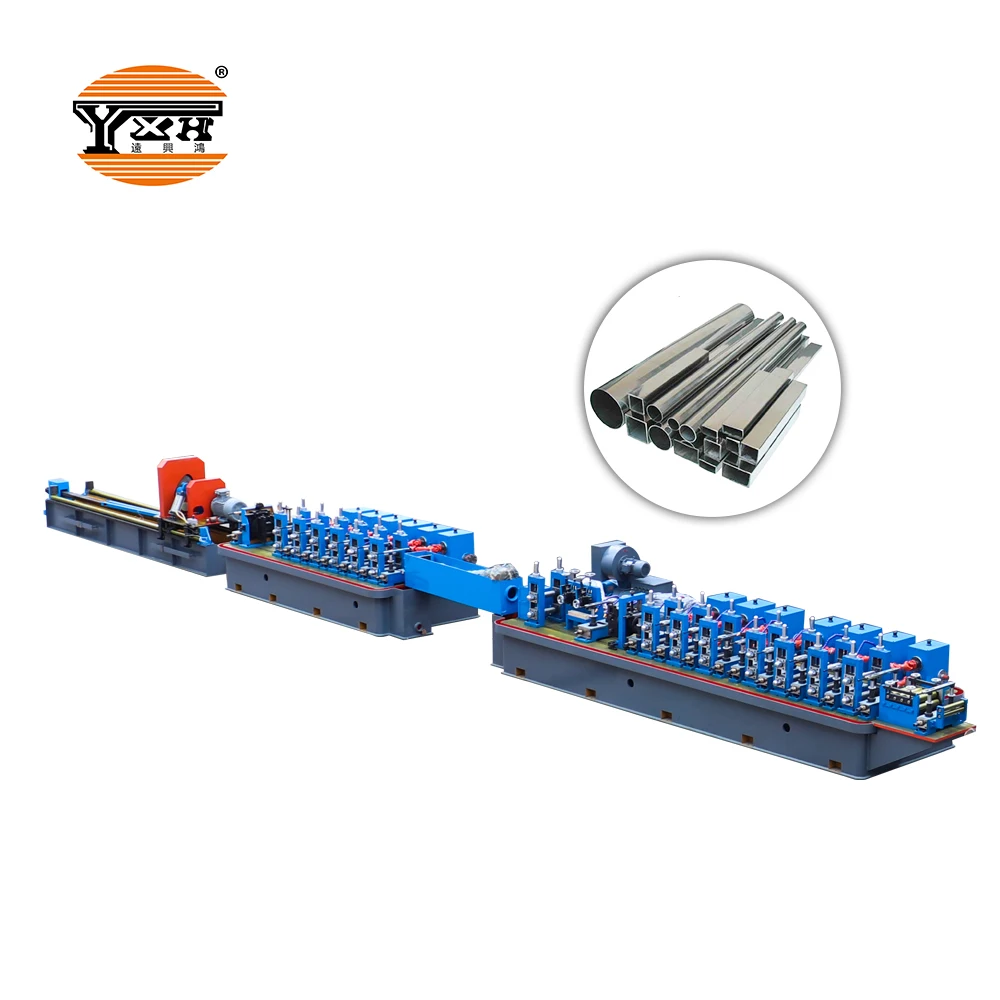

Резьбонарезной станок YXH S
842 329,18 ₽ - 902 495,55 ₽

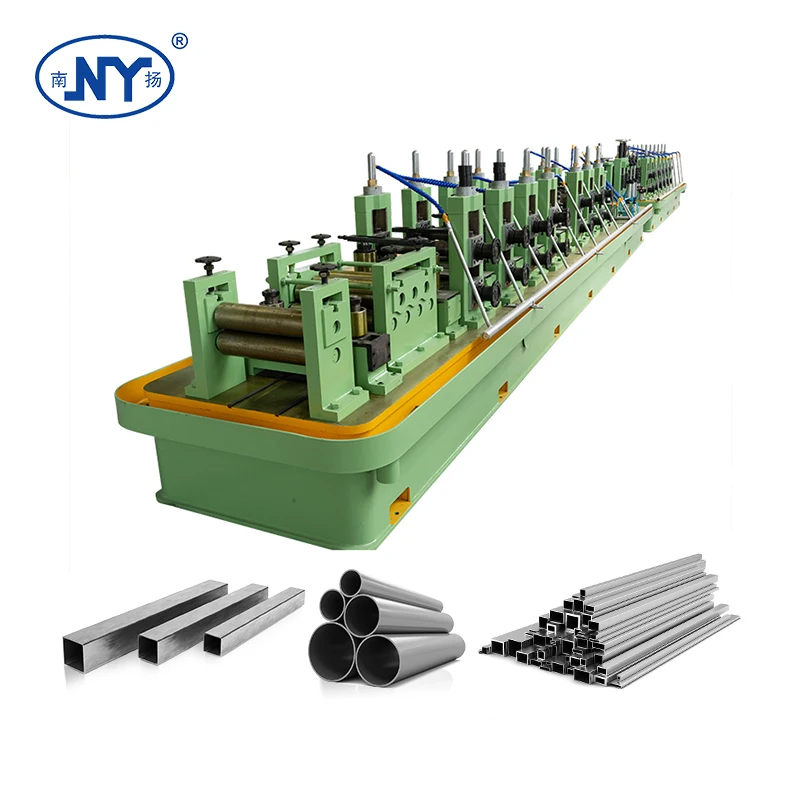

Высококачественные материалы для производства стальных труб от производителя Nanyang

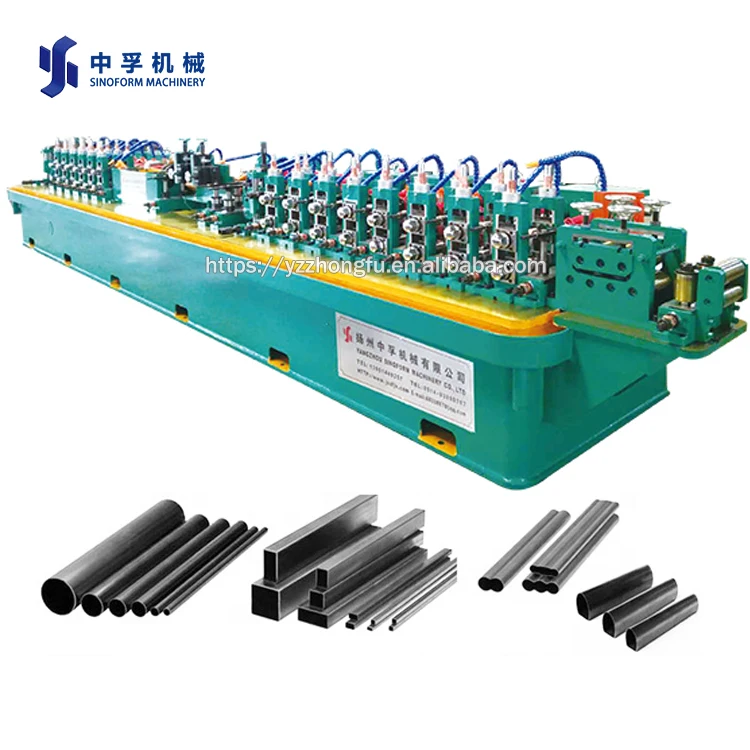

Автоматическая линия по производству труб MS, высокочастотная машина для производства труб, производство ВПВ, трубная мельница, железная стальная труба
10 228 282,90 ₽ - 10 392 373,00 ₽

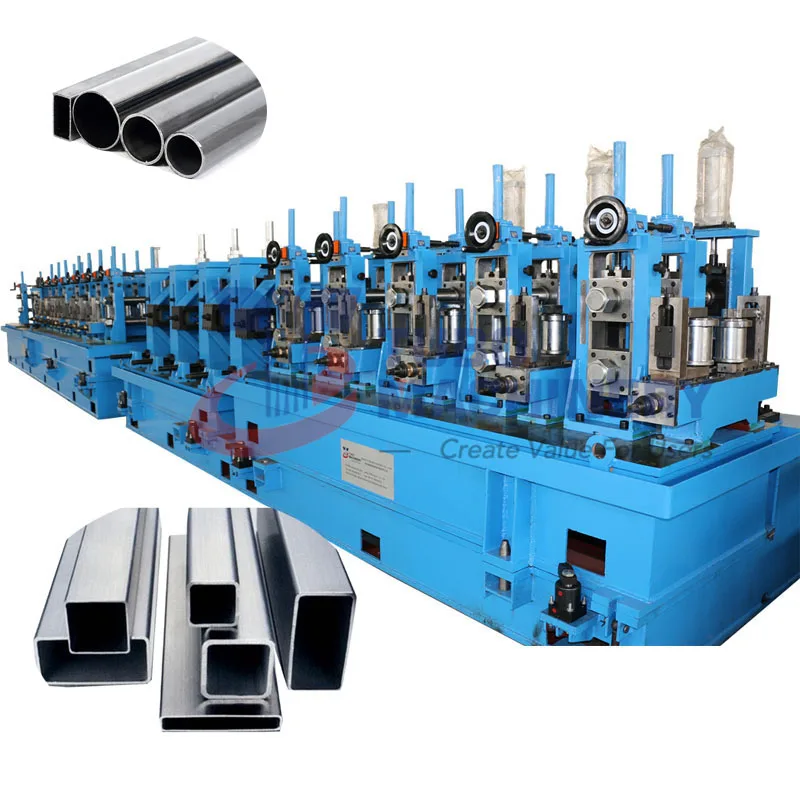

ERW трубная мельница, быстросменная система, стальная трубная мельница
9 845 406,00 ₽ - 10 939 340,00 ₽

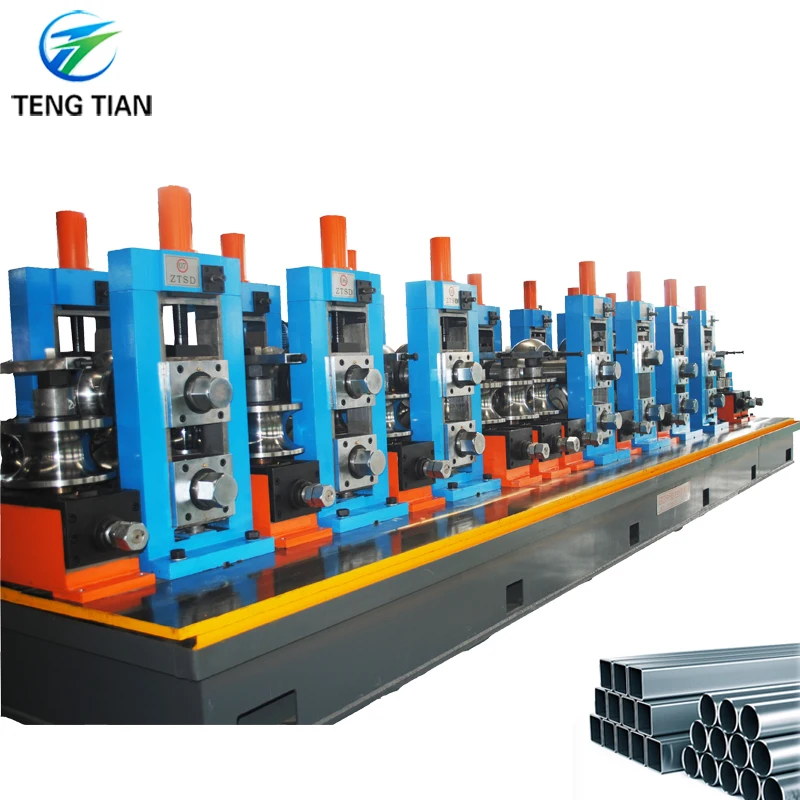

Tengtian 165 мм ERW трубчатая мельница для труб GI/ERW/углеродистая стальная Строительная труба
