Product Description

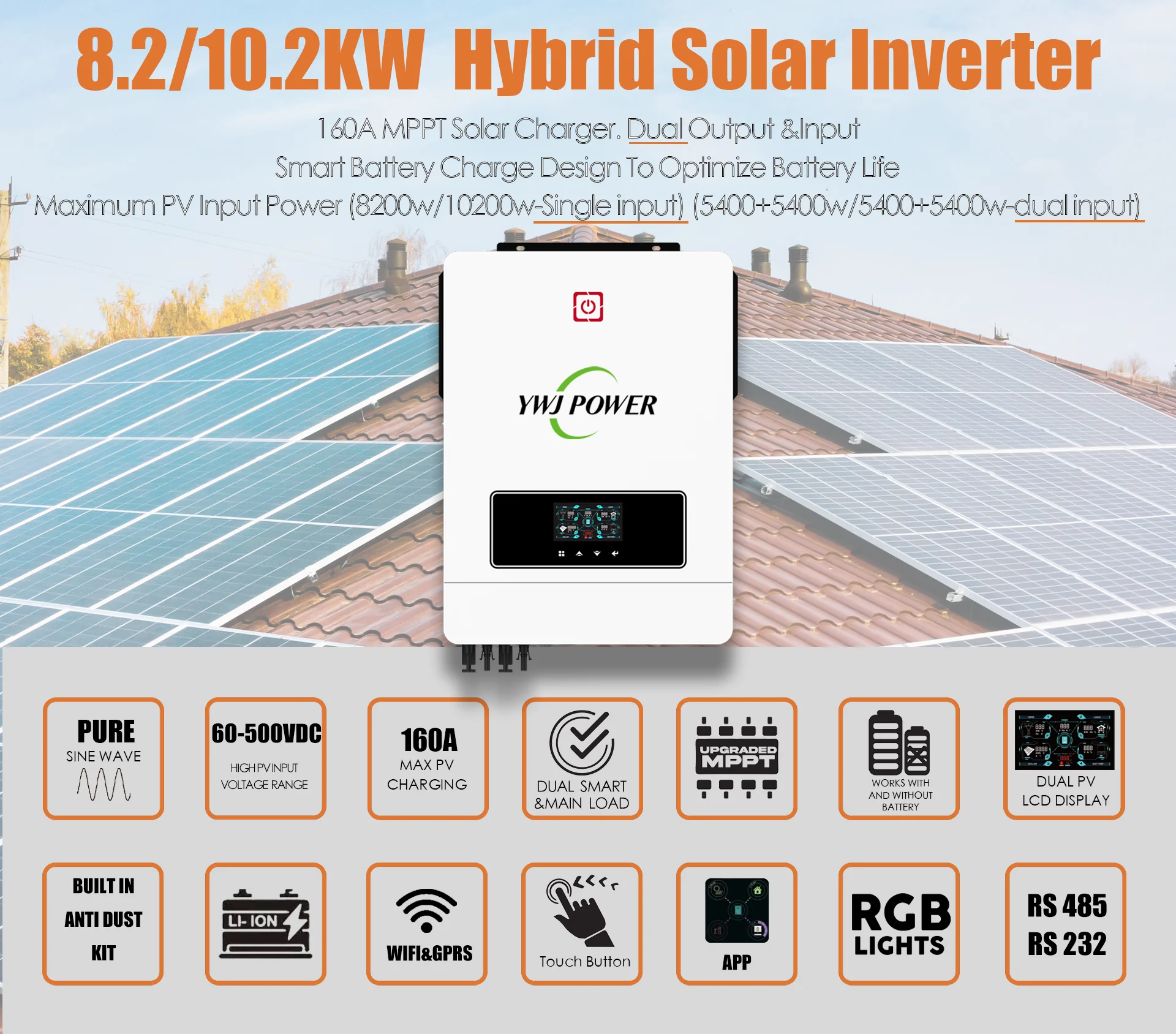

Features.
1.Pure sine wave solar inverter(on/off Grid)
2.Output power factor 1.0WIFI&GPRS available for lOS and Android
2.Output power factor 1.0WIFI&GPRS available for lOS and Android
3.Inverter can run without battery
4.One-key restoration to factory settings
5.Built-in Lithium battery automatic activation
6.Built-in 160A MPPT solar charger (for8.2kw,10.2kw)140A(for 7.2kw)
7.High PV input voltage range(90~500vDC)
8.Built-in anti-dust kit for harsh environment
9.Smart battery charge design to optimize battery life
10.Dual output
11.Dual PV input
12.Touch button

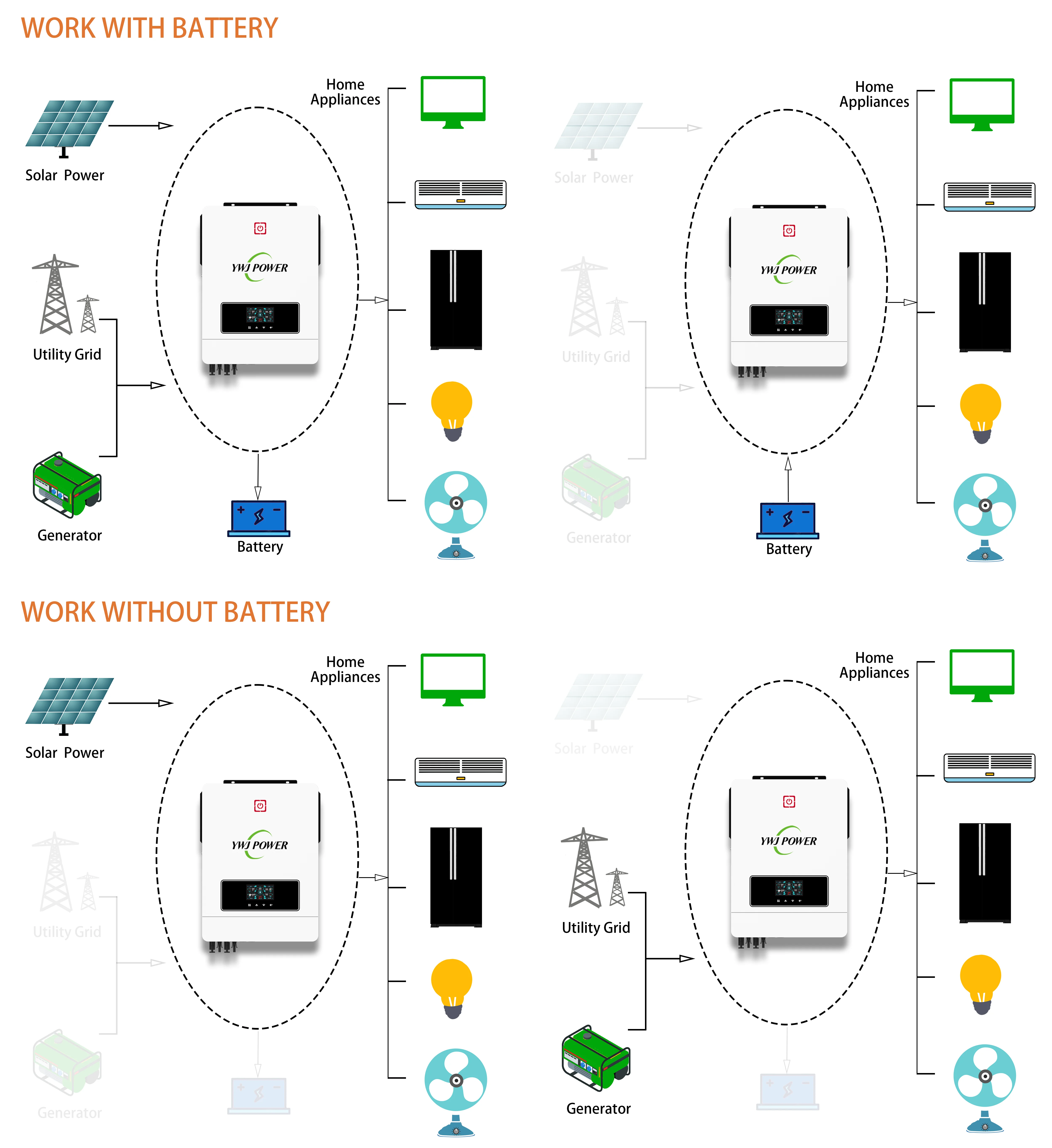

13.On Off Grid Work Mode
12.Touch button
13.On Off Grid Work Mode
Specification
Model | YWJ-NP-8.2KW | YWJ-NP-10.2KW | ||||||
Phase | 1-Phase | |||||||
Maximum PV Input Power | 8200W | 5400W+5400W | 10200W | 5400W+5400W | ||||
Rated Output Power | 8200W/8200VA | 10200W/10200VA | ||||||
Maximum Solar Charging Current | 160A | |||||||
GRID-TIE OPERATION | ||||||||
PV Input(DC) | ||||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||||
MPPT Voltage Range | 60VDC~500VDC | |||||||
Number of MPPT/Max Input Current | 1/23A | 2/18A | 1/23A | 2/18A | ||||
GRID OUTPUT(AC) | ||||||||
Norminal Output Voltage | 220/230/240VAC | |||||||
Output Valtage Range | 195~253VAC | |||||||
Norminal Output Current | 35.6A | 44.3A | ||||||
Power Factor | >0.99 | |||||||
Feed-in Grid Frequency Range | 49~51±1Hz | |||||||
EFFICIENCY | ||||||||
Max ConversionEfficiency(DC/AC) | 98% | |||||||
TWO LOAD OUTPUT POWER | ||||||||
Full Load | 8200W | 10200W | ||||||
Maximum Main Load | 8200W | 10200W | ||||||
Max Second Load(battery mode) | 2733W | 3400W | ||||||
Main Load Cut Off Voltage | 44VDC | |||||||
Main Load Return Voltage | 54VDC | |||||||
OFF-GRID OPERATION | ||||||||
AC Input | ||||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||||
Maximum AC Input Current | 40A | 50A | ||||||
Nominal operating frequency | 50/60Hz | |||||||
Surge power | 16400W | 20400W | ||||||
PV INPUT(DC) | ||||||||
Maximum DC Voltage | 500VDC | |||||||
MPPT Voltage Range | 60VDC~500VDC | |||||||
Numben of MPPT/Max Input Current | 1/23A | 2/18A | 1/23A | 2/18A | ||||
BATTERY MODE OUTPUT(AC) | ||||||||
Nominal Output Voltage | 220/230/240VAC | |||||||
Output Waveform | Pure sine wave | |||||||
Efficiency(DC to AC) | 94% | |||||||
BATTERY&CHARGER | ||||||||
Nominal DC Voltage | 48VDC | |||||||
Maximum Solar Charging Current | 160A | |||||||
Maximum AC Charging Current | 140A | |||||||
INTERFACE | ||||||||
Communication Port | RS485/RS232/WiFi/Remove LCD/GPRS | |||||||
ENVIRONMENT | ||||||||
Operating Temperature | -10~50℃ | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen YWJ Power Technology Co., Ltd. is One of Leading Manufacturer and Wholesale Supplier for the Solar Power Solution System Products & Service Provider. Our Products Include Hybrid Solar Inverter, Off Grid Solar Inverter, Solar Charger Controllers and LiFePO4 Storage Batteries Since 2013. We Have More Than 10 Years Experience in Designing and Manufacturing of Solar Power Products. Our High-quality Products Have Made Us a Well-deserved and Great Reputation in the Whole World Market.
YWJ Power :You Win Just Solar ,Power Your Green Life ,Our Goal Constantly Committed to Bring Uninterruptible Power Solutions to Our Customers.
YWJ Power :You Win Just Solar ,Power Your Green Life ,Our Goal Constantly Committed to Bring Uninterruptible Power Solutions to Our Customers.

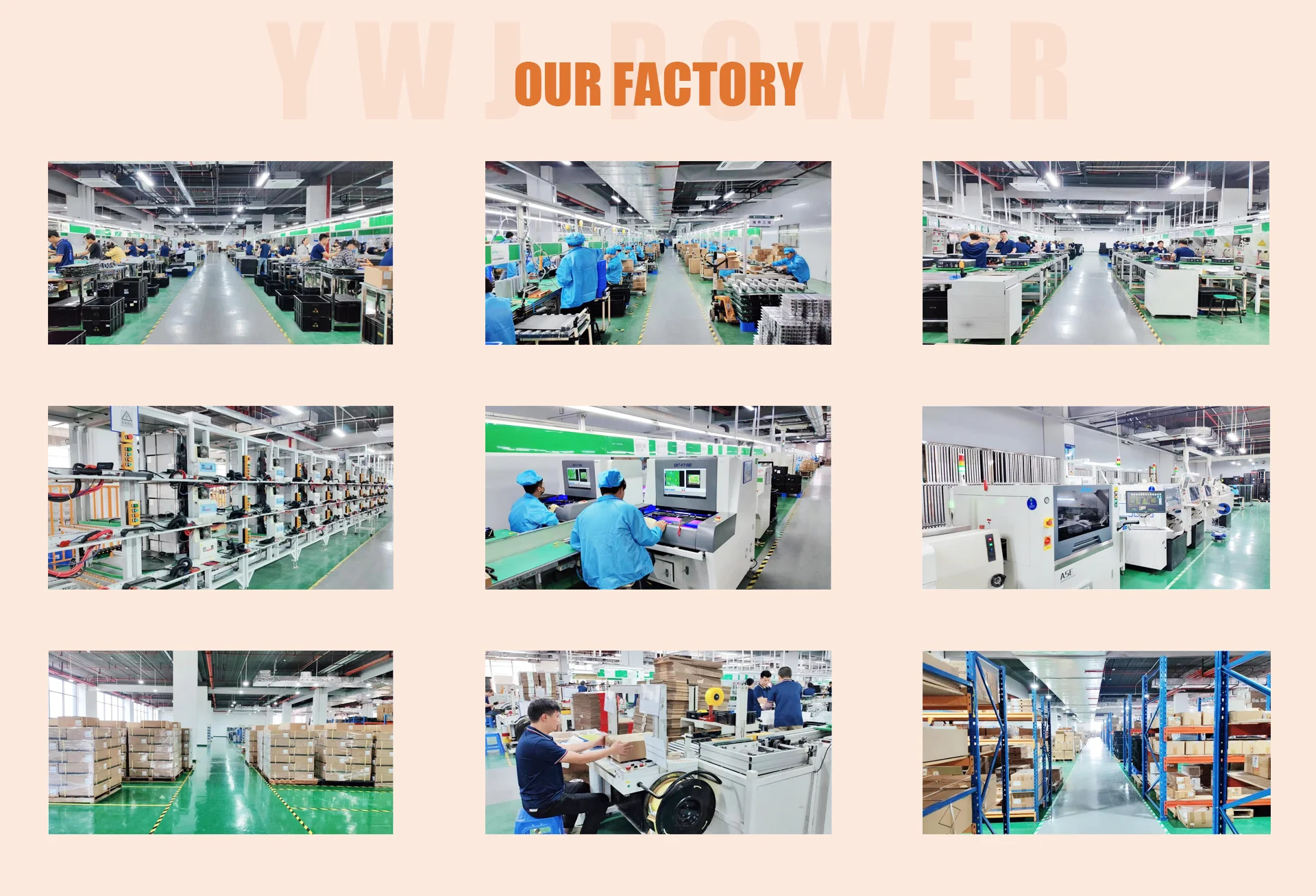

Our Factory.
Our factory covers an area of 27000 square meters and has over 530 employees. YWJ POWER focuses on management, research and development, and continuously produces cutting-edge products. Including Hybrid Solar Inverter; Off Grid Solar Inverter; On/Off Grid Solar Inverter; Solar Charger; Energy Storage Systems, etc. The average monthly production capacity is 180000 pieces. Strict quality control, Products can be customized according to customer requirements.
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3 How about the delivery time?
A3: 3- 7 days for sample; 10-20 days for bulk order.
Q4:How is your product quality?
A4: We have a strict quality control system . We have a strong R&D and manufacturing team which supported by a complete new energy supply chain. Our products have been operating widely in China, Europe, America and many other countries. We are regarded as a high quality inverter supplier.
Q5: How can I make sure it's a secure transaction ?
A5: Trade Assurance is Alibaba's order protection service that ensures your products are produced with the quality you expect,paid securely, and shipped on time. As you do the payment, the money will go directly to Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6 : Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7: How is your technical support?
A7: We provide lifetime online support through Whatsapp/Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
Q8:How to become your agent?
A8:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
A1: We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3 How about the delivery time?
A3: 3- 7 days for sample; 10-20 days for bulk order.
Q4:How is your product quality?
A4: We have a strict quality control system . We have a strong R&D and manufacturing team which supported by a complete new energy supply chain. Our products have been operating widely in China, Europe, America and many other countries. We are regarded as a high quality inverter supplier.
Q5: How can I make sure it's a secure transaction ?
A5: Trade Assurance is Alibaba's order protection service that ensures your products are produced with the quality you expect,paid securely, and shipped on time. As you do the payment, the money will go directly to Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6 : Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7: How is your technical support?
A7: We provide lifetime online support through Whatsapp/Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
Q8:How to become your agent?
A8:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Похожие товары

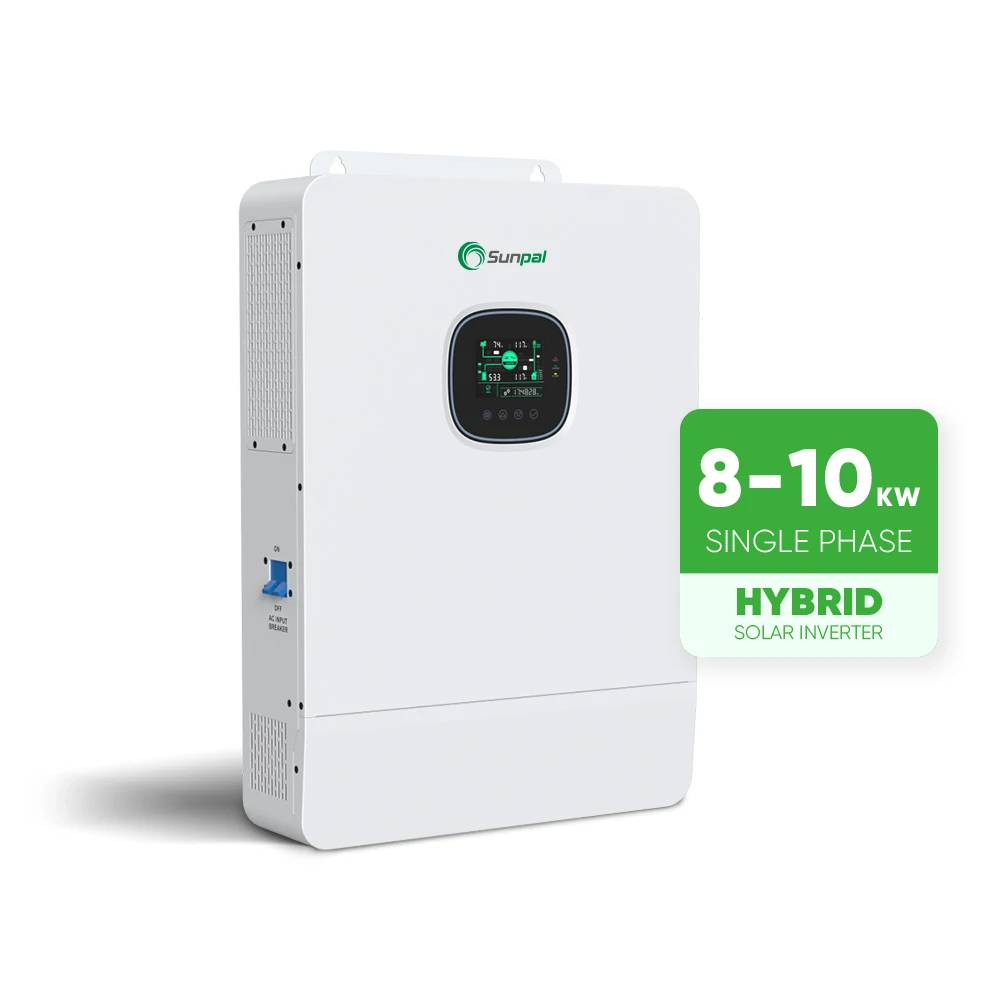

Sunpal IP65 Гибридный солнечный инвертор 48 В 5 кВт 8 10 однофазный двойной Mppt для солнечной домашней системы
82 548,27 ₽ - 89 050,74 ₽

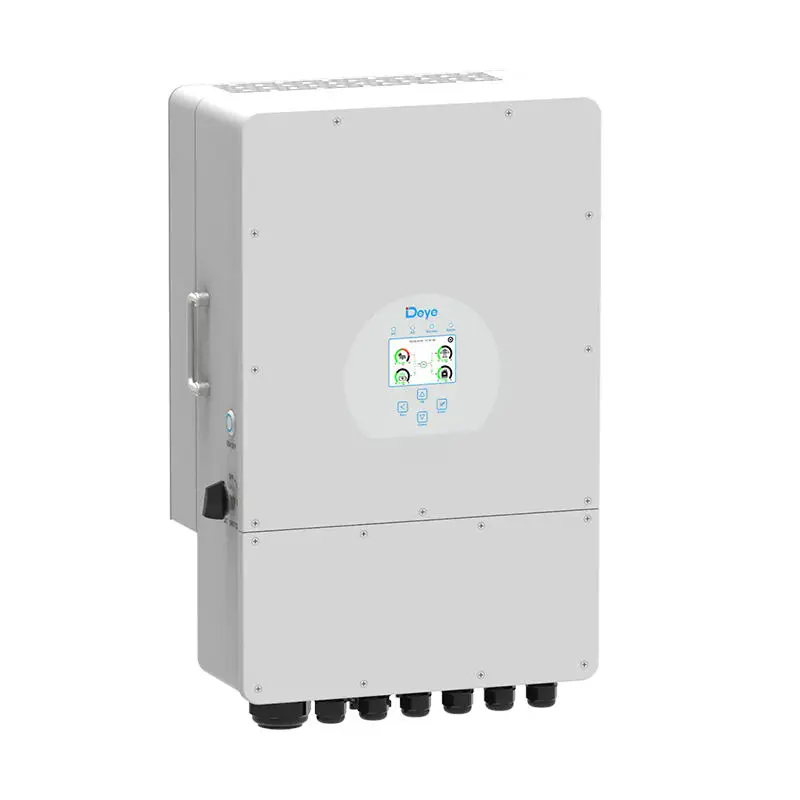

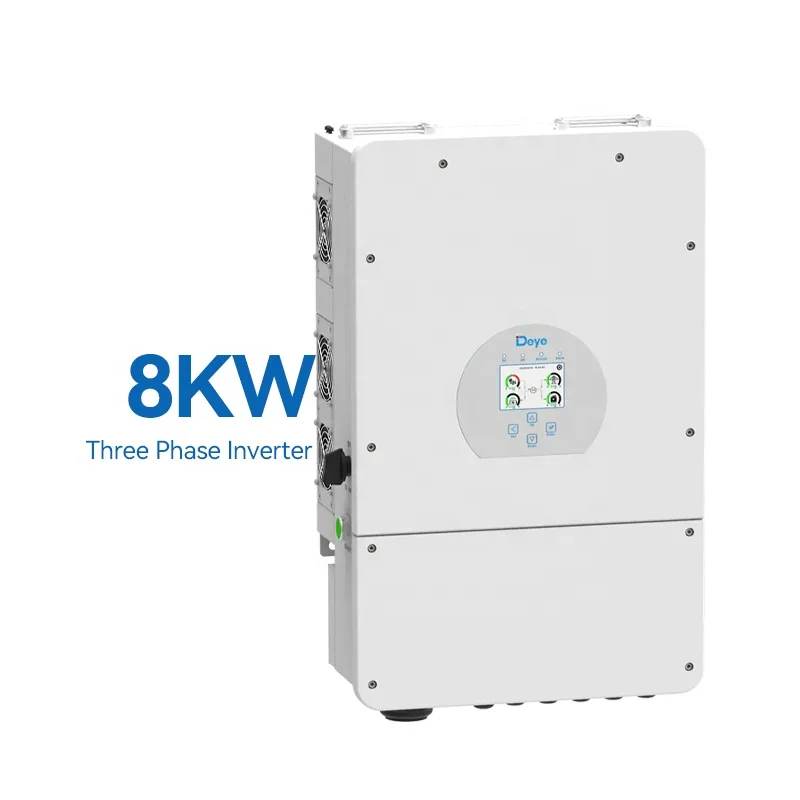

Deye 8 кВт 10 12 Гибридный Инвертор постоянного тока в переменный солнечный инвертор 3-фазный 230/400 В с Wi-Fi/4G 5G PV Европе
117 815,88 ₽ - 194 963,79 ₽
Гибридный инвертор 12kw Deye SUN-12K-SG04LP3-EU
152 653,68 ₽ - 168 642,03 ₽

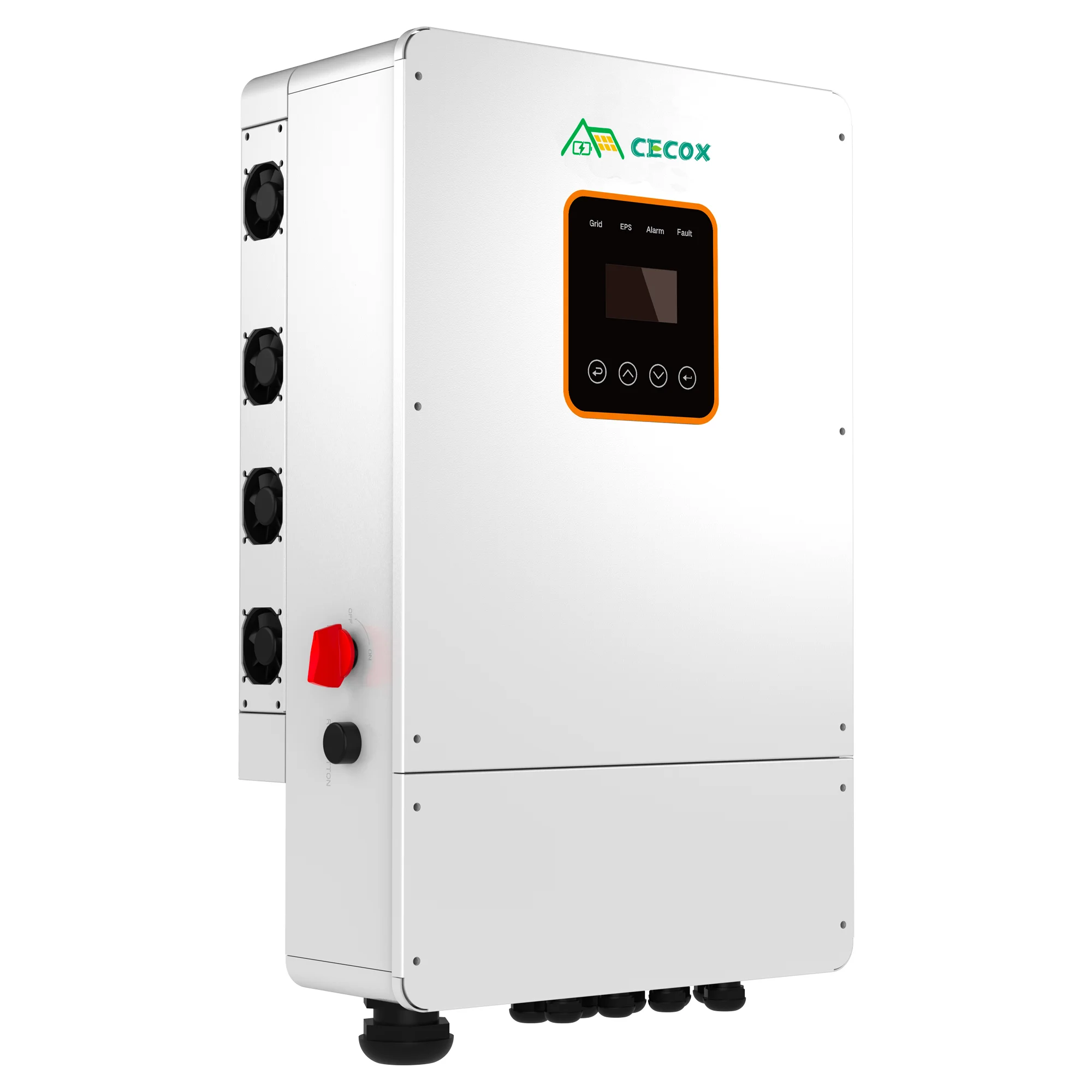

CECOX Американский инвертор с разделенной фазой 5 кВт 6 8 10 напряжение батареи 48 В
