Производитель алюминиевый сплав стальная трубка лазерная резка три патрона нулевых хвостов машина для резки труб
6 877 505,00 ₽ - 8 319 562,50 ₽
JQ лазерная обработка труб 3000 Вт автоматизированная Волоконно Лазерная резка для металлической трубы
- Категория: >>>
- Поставщик: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Сохранить в закладки 11000020055050:
Описание и отзывы
Характеристики
Product Description

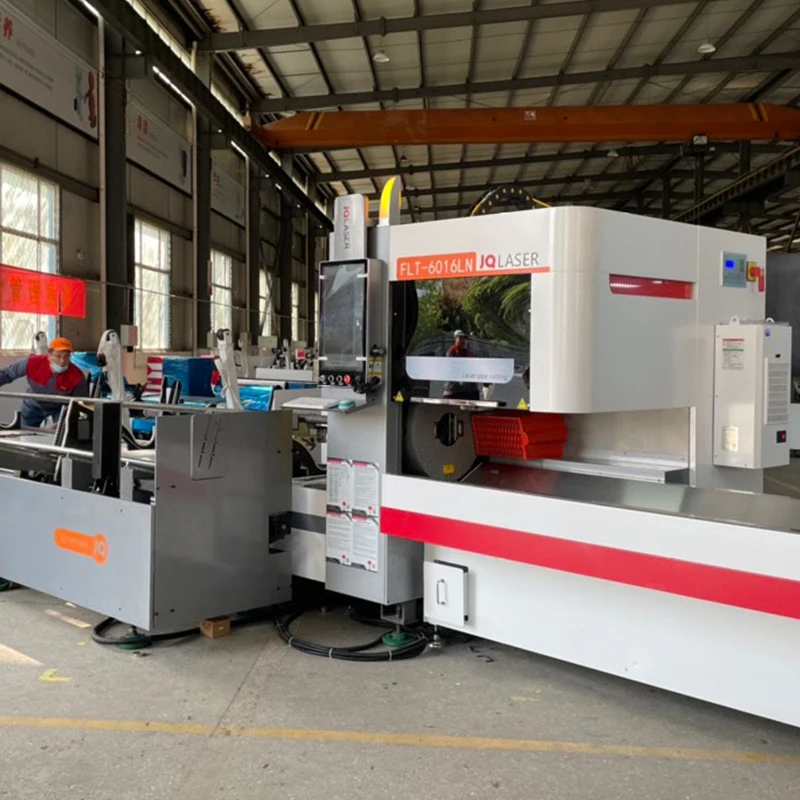

*JQLASER FLT-6016LN Economical Laser Tube Cutting Machine
FLT-6016LN is mainly an automatic laser tube cutting machine developed for the tube batch processing industry. The inside and outside of the bed are welded by steel pipes and 3mm thick steel plates to form a combined design method with stable and reliable operation, feeding and waiting functions. The body is 8.9 meters long and has strong applicability. All kinds of pipes such as round tube and square tube oval tube, can be processed.
Advantage：
* Automatic loading system. Realize the pipe material in bundles, precise cutting, save labor cost and improve efficiency.
* Man-machine interactive interface. The operation buttons are reduced and the operation panel is simplified; the intelligent manufacturing becomes at your fingertips.
* The chuck is clamped for precise cutting. The full-stroke pneumatic (double) chuck design doubles the efficiency; various specifications, support optional matching.
* Integrated gas circuit control system. All kinds of components are produced by well-known manufacturers at home and abroad to ensure that the whole machine is stable, reliable and responsive.
Parameter
Model | FLT-6016LN | ||
Maximum cut pipe length | cutting length 0~6000mm | ||
Cut pipe diameter | 15~160mm (circle of workpiece) | ||
Minimum tailings | ≥90mm | ||
X, Y axis positioning accuracy | ±0.05/1000mm | ||
X, Y axis repeat positioning accuracy | ±0.03/1000mm | ||
Acceleration | 1.0G m/s² | ||
Maximum operating speed | 60 m/min | ||
Maximum weight for each tube | 150Kg | ||
Chuck rated speed | 100rpm | ||
Mainframe shape | about 10000×1900×1900mm | ||
Laser power | 1000w-6000w | ||
Product Structure

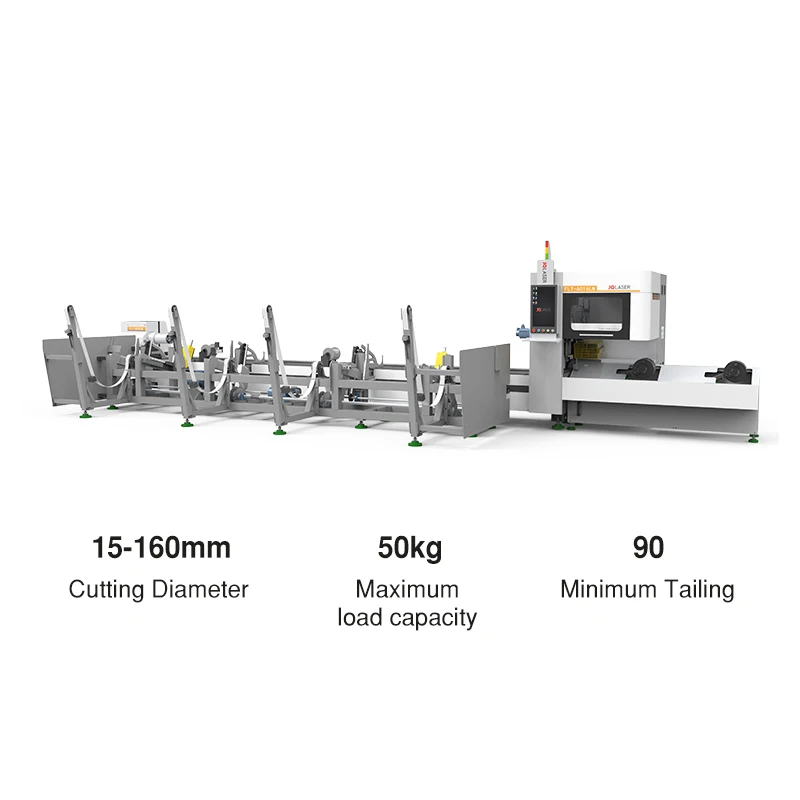

FLT-6016LN Economical Laser Tube Cutting Machine:
Protective Glass：OD5+
Safety and environmental protection 0 pollution: fully enclosed structure, full surround design, exclusive fiber optic wavelength visual protection window, international standard laser protection glass, in line with CE certification standards, standard dust removal system, safe and environmental protection, effectively reduce the harm to human body.
Front Receiving Device
Front receiving device can complete the continuous cutting of the pipe and improve the processing efficiency.

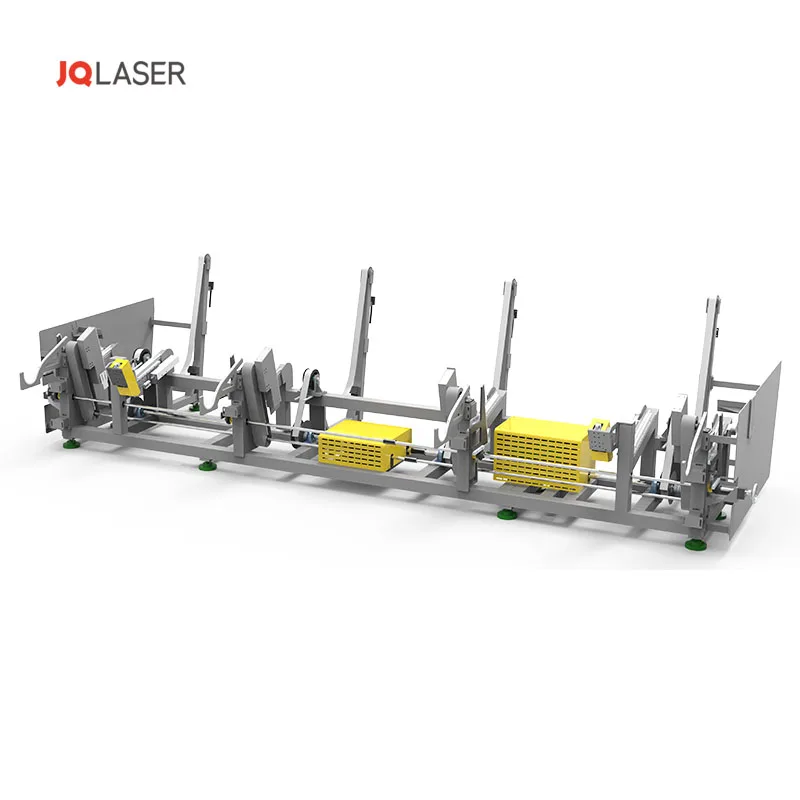

Discharge Loading Device
Automatic loading system. Realize the pipe material in bundles, precise cutting, save labor cost and improve efficiency.
Reducing Wheel Support
The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
Rack And Pinion
High-speed operation, high load capacity, smooth operation, high transmission efficiency.
Man-machine Interactive Interface.
The operation buttons are reduced and the operation panel is simplified; the intelligent manufacturing becomes at your fingertips.
Wide Applications
Suitable for the processing of a variety of metal pipes, waist round pipes, round pipes, giant pipes, square pipes, I-beams, channel steels, D-shaped pipes, special-shaped pipes, etc.
Sample
*WE SUPPORT FREE SAMPLES SERVICE！！YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQLASER fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing, etc.
Certificate
*We have passed CE certification, ISO9001 quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Customer Site
Packing&Shipping
Company Profile
16 years
of factory production experience
24 h
after-sales quick solution
30000+
cumulative customers nationwide

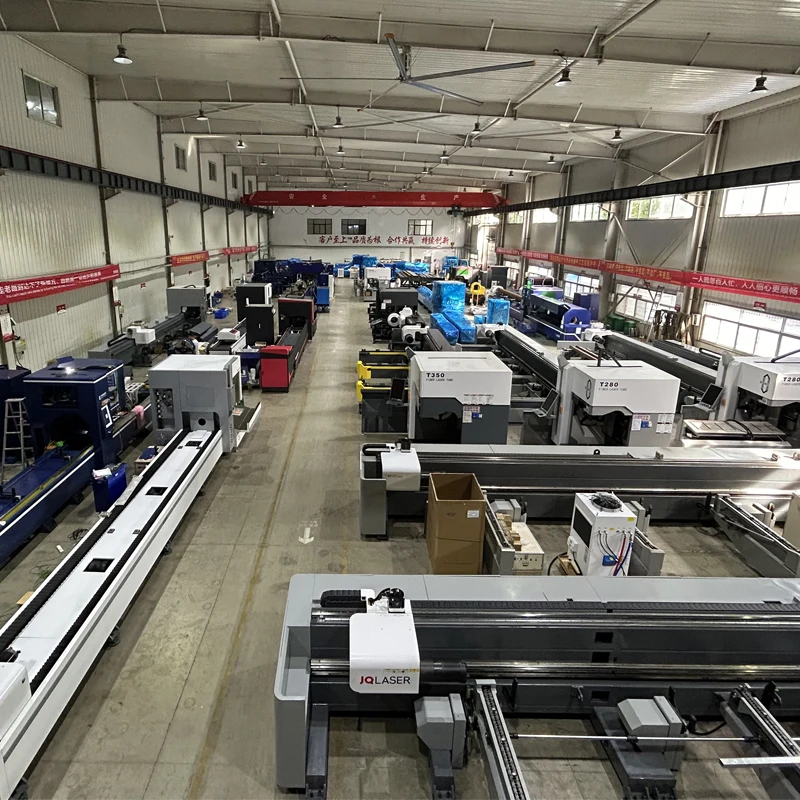

JQLASER was established in 2006. It is a high-tech industry focusing on the research and development, production and sales of laser application and sheet metal automation complete equipment. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. Jinqiang Laser currently has more than 300 employees, and technology research and development and after-sales service account for more than 50%; we have a professional and fast-responding customer service team, providing 24-hour online and offline technical services in 12 languages. With reliable product quality, reasonable prices and perfect after-sales service system, JQ laser is now exported to more than 150 countries and regions around the world.
