Product Overview

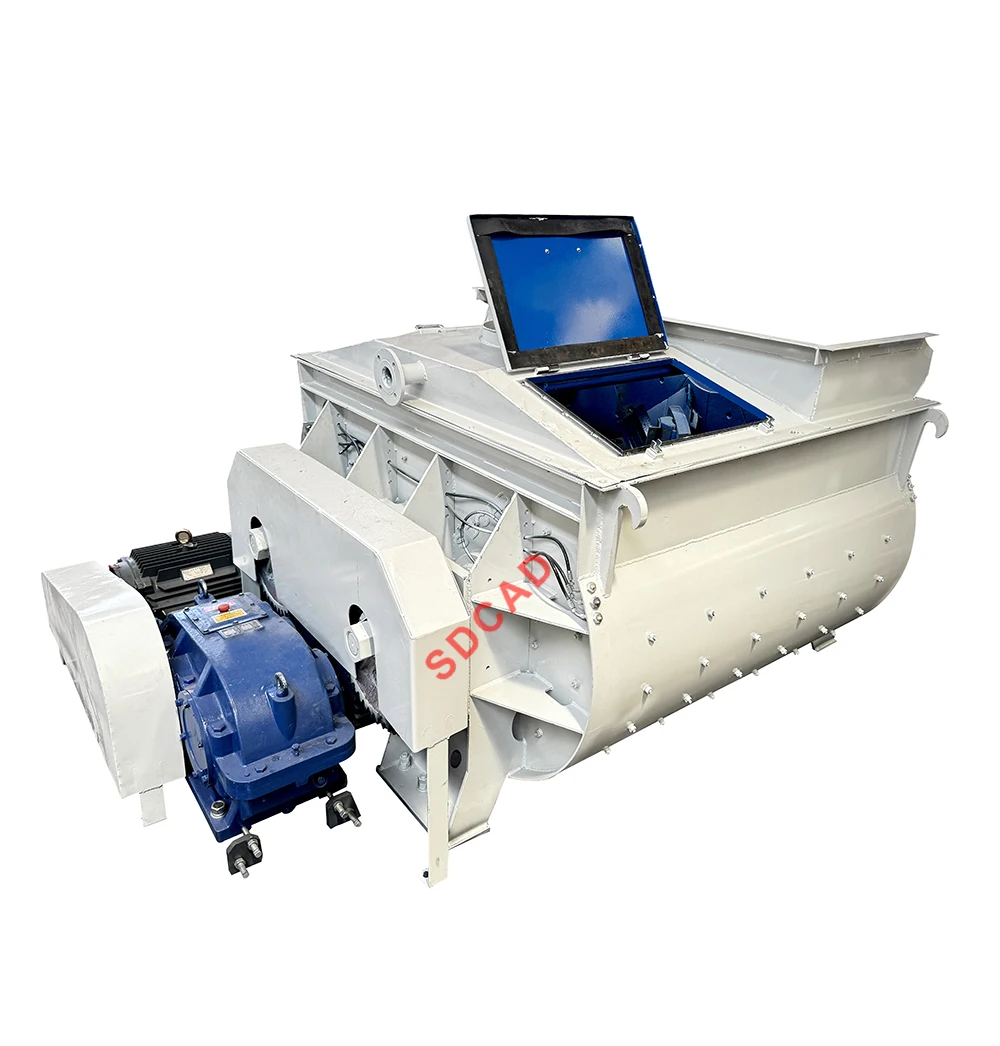

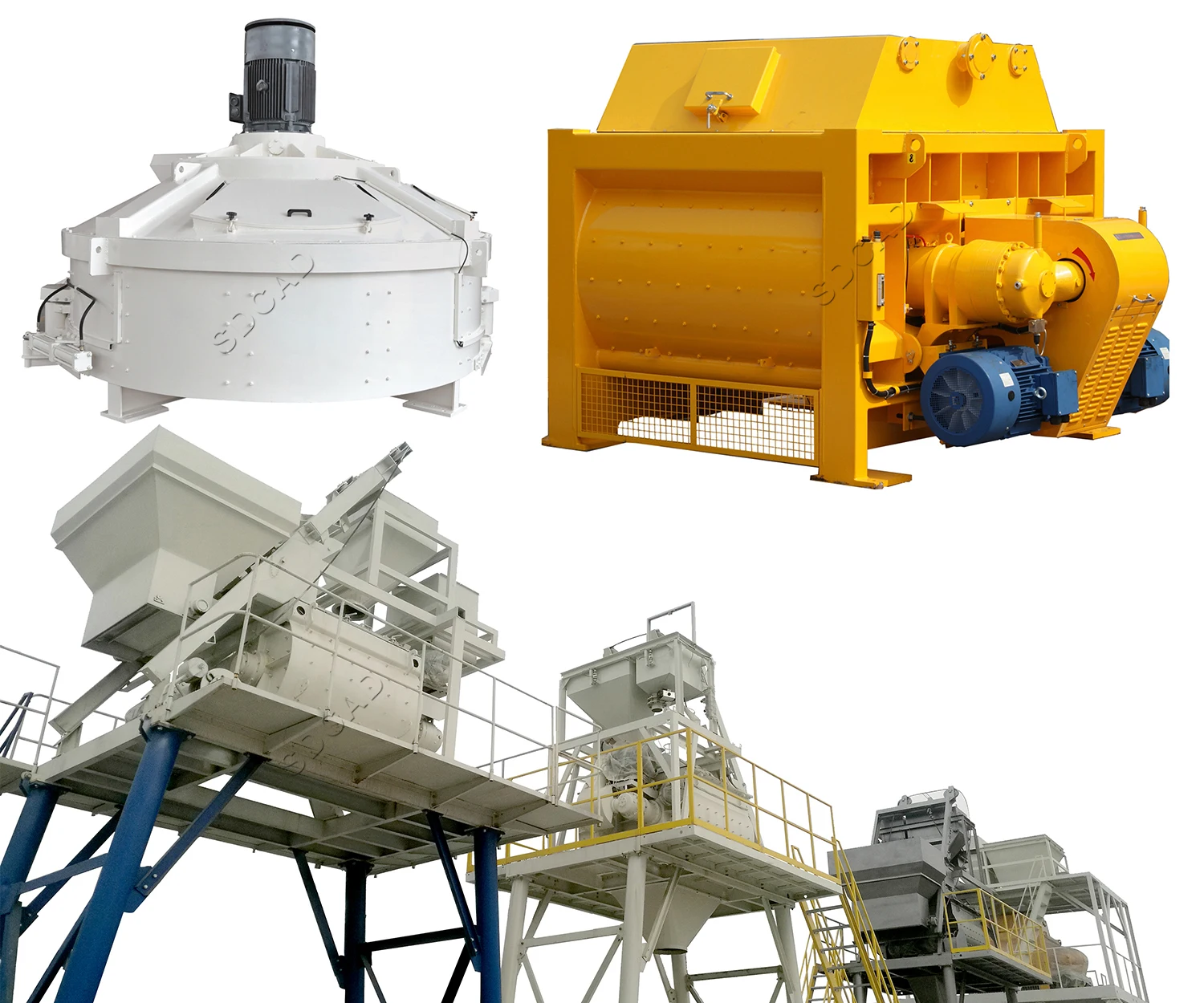

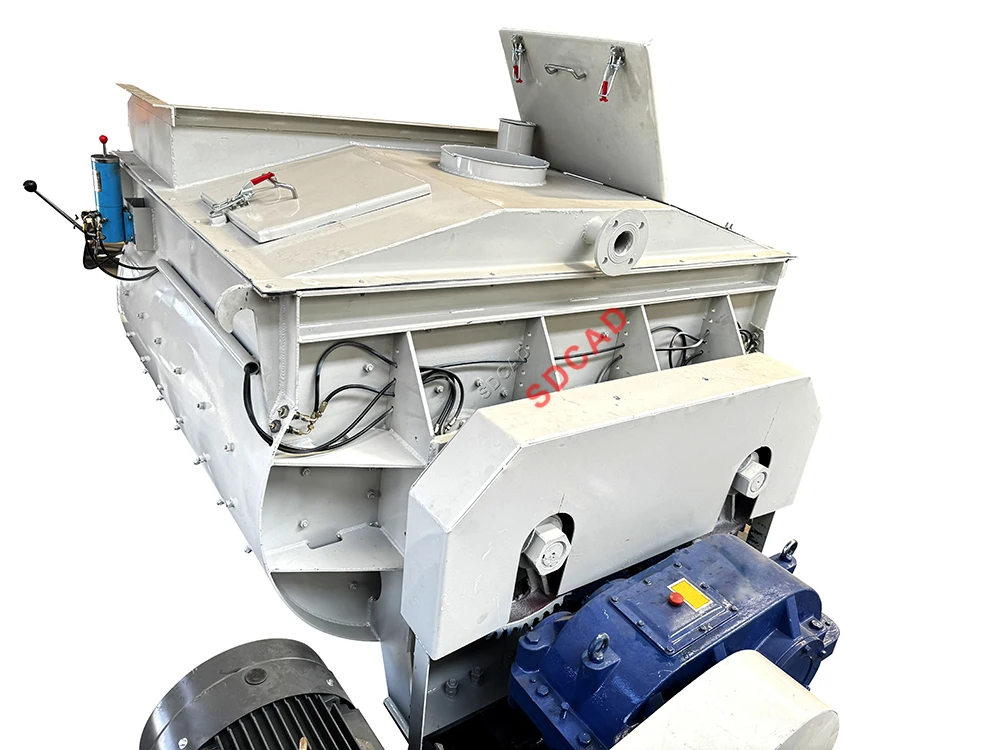

Twin shaft mixer Achieving the desired homogeneity and work ability of modern mixtures, within the shortest period possible, is often the most critical phase of production. SDCAD offers an extensive range of high performance mixers – Single-Shaft, Twin-Shaft, Planetary or Pan with variety of different capacities, ensuring we comply with every mixing requirement. SDCAD Twin-Shaft mixers have proven to be reliable and built to the highest quality, resulting in SDCAD equipment being the choice of many professionals in over 50+ countries around the world.


Models of JS Mixer


JS500
JS750
JS1000


JS1500
JS2000
JS3000


Model
JS 750
JS 1250
JS 1500
JS 2000
JS 3000
JS 4000
Charging capacity(L)
1200
2000
2400
3200
4800
6400
Discharging capacity(L)
750
1250
1500
2000
3000
4000
Production capacity(m3/h)
42
75
90
120
180
240
Mixing axle rotation speed(r/min)
29.9
29.67
26.75
23.5
23.4
22.85
Mixer motor power(kw)
2*15
2*22
2*30
2*37
2*55
2*75
Librication oil pump
motor power(kw)
0.09
0.09
0.09
0.09
0.09
0.09
Hydraulic system
motor power(kw)
2.2
2.2
2.2
2.2
2.2
2.2
Electromagnetism valve
power supply(V)
DC24
DC24
DC24
DC24
DC24
DC24
Mixing time(s)
≦40
≦40
≦40
≦40
≦45
≦45
No. of mixing arm
12
12
16
16
18
22
Max diameter of
aggregate(Detritus/
Pebble)
60/80
60/80
60/80
80/120
100/150
100/150
Transportation dimensions(LxWxH)
2900x
2100x
2100
3000x
2100x
2100
2900x
2320x
2150
3450x
2320x
2250
3900x
2600x
2230
4500x
2600x
2230
Entire machine weight(kg)
5000
5300
6500
7500
9300
11800


Our Advantages



Customized service:
Unique top opening design.Position and size of the feeding inlet according to the customer's needs.
Advantage of the three-dimensional mixing concept

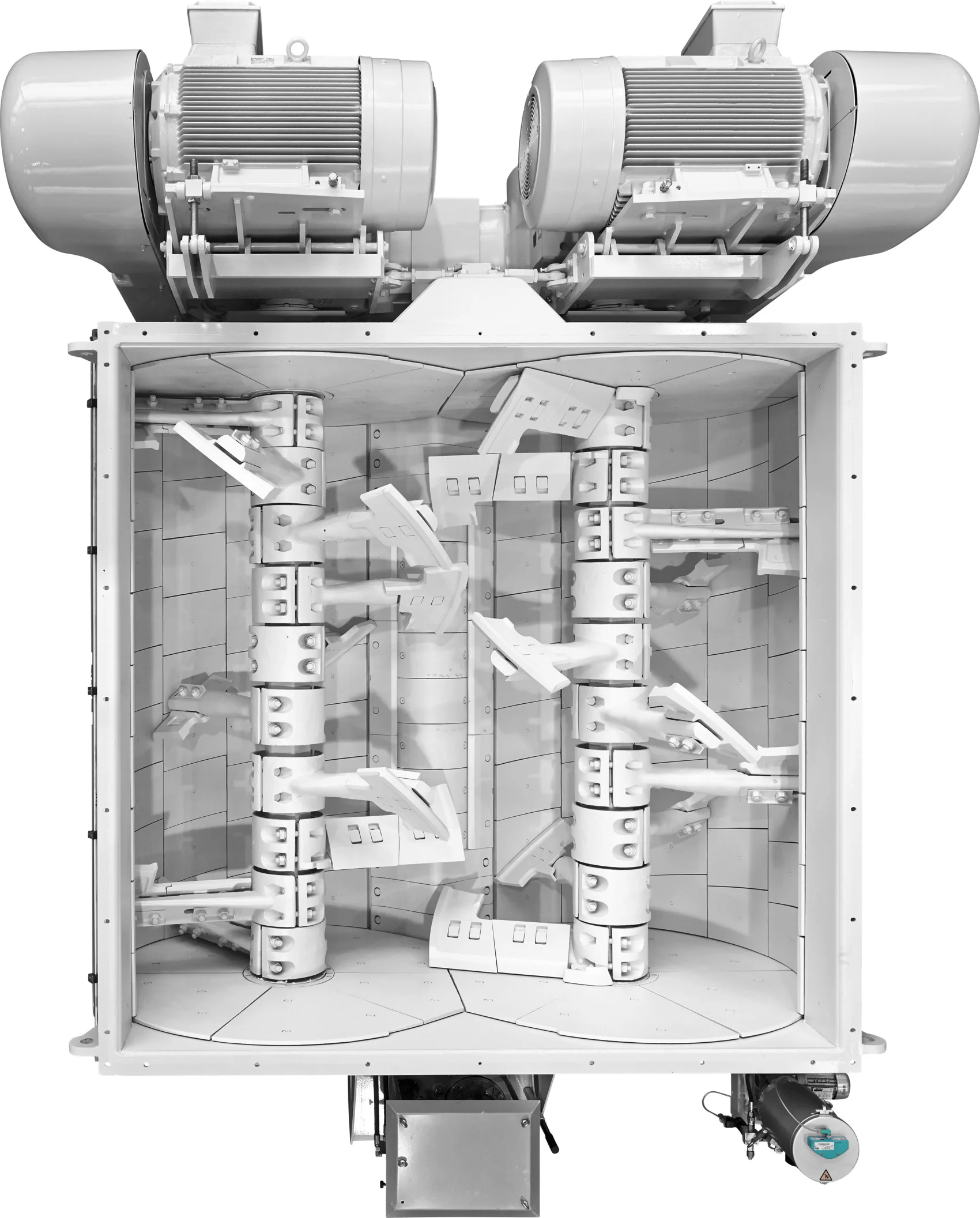

In contrast to the circular motion of other mixing systems, the three-dimensional mixing principle of the twin-shaft batch mixer produces a more intensive exchange of material, which leads to shorter mixing times while consuming less energy.

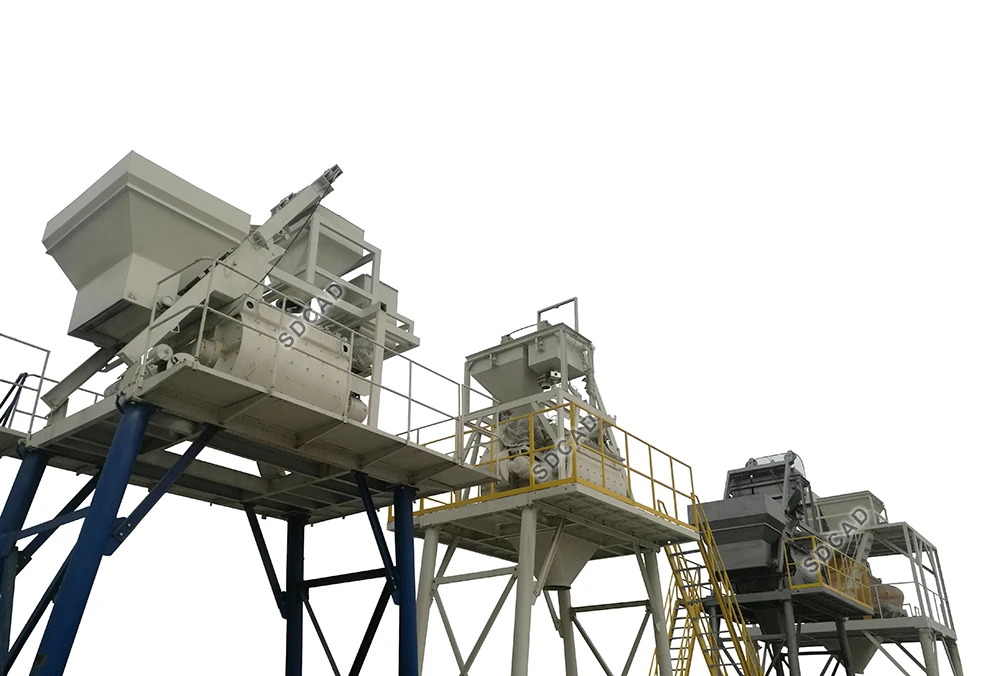

SDCAD - Full Process Solution Provider




Accessories of Twin Shaft Mixer


Electric lubricating oil pump
Supplying the grease to four shaft end respectively with using four pump cores. It is no need to use flow divider valve,avoiding blocking of the flow divider valve to decreasethe workload of maintenance and service.
Reducer
Adopting the Italy brand or self making reducer and parts reliable performance, long service life, low noise.
Shaft-end sealling
Multi-combined sealing by imported components,avoiding the cement and slury contacting the shaft headextending the service life of the concrete mixer.



Hydraulic discharging system
With strong drive force and reliable discharging;Discharging door can be opened at any angle,with manual discharging function: The discharging dooradopts detachable structure convenient for maintenance.
Mixing tool with wear tiles
the robust mixing tool and the corrugated pattern of the wear tiles which are made of chromium carbide. The corrugated pattern prevents the gaps between the wear plates from washing out (wear) in an early stage.
Hydraulic mixer gate
The hydraulic mechanism for closing the mixer gate utilizes .There are no disruptions in the operation procedures because of clamped aggregates. The mixer gate is always closing properly and prevents soiling by outrunning concrete.
