Product Overview

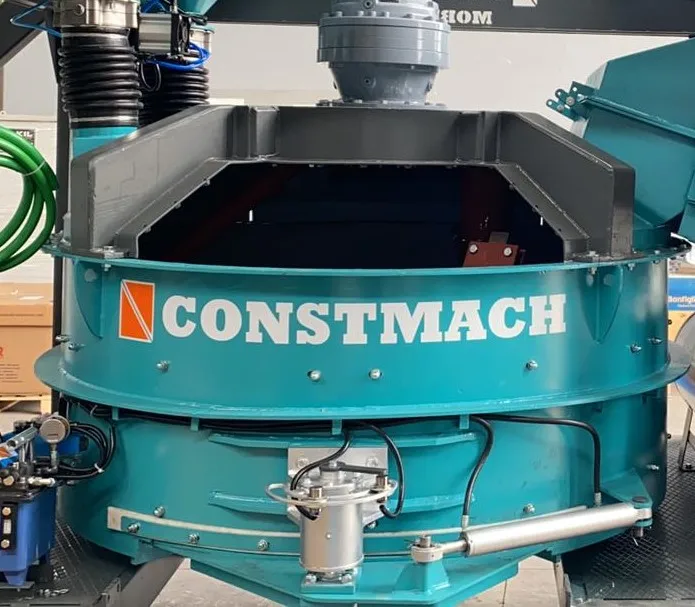

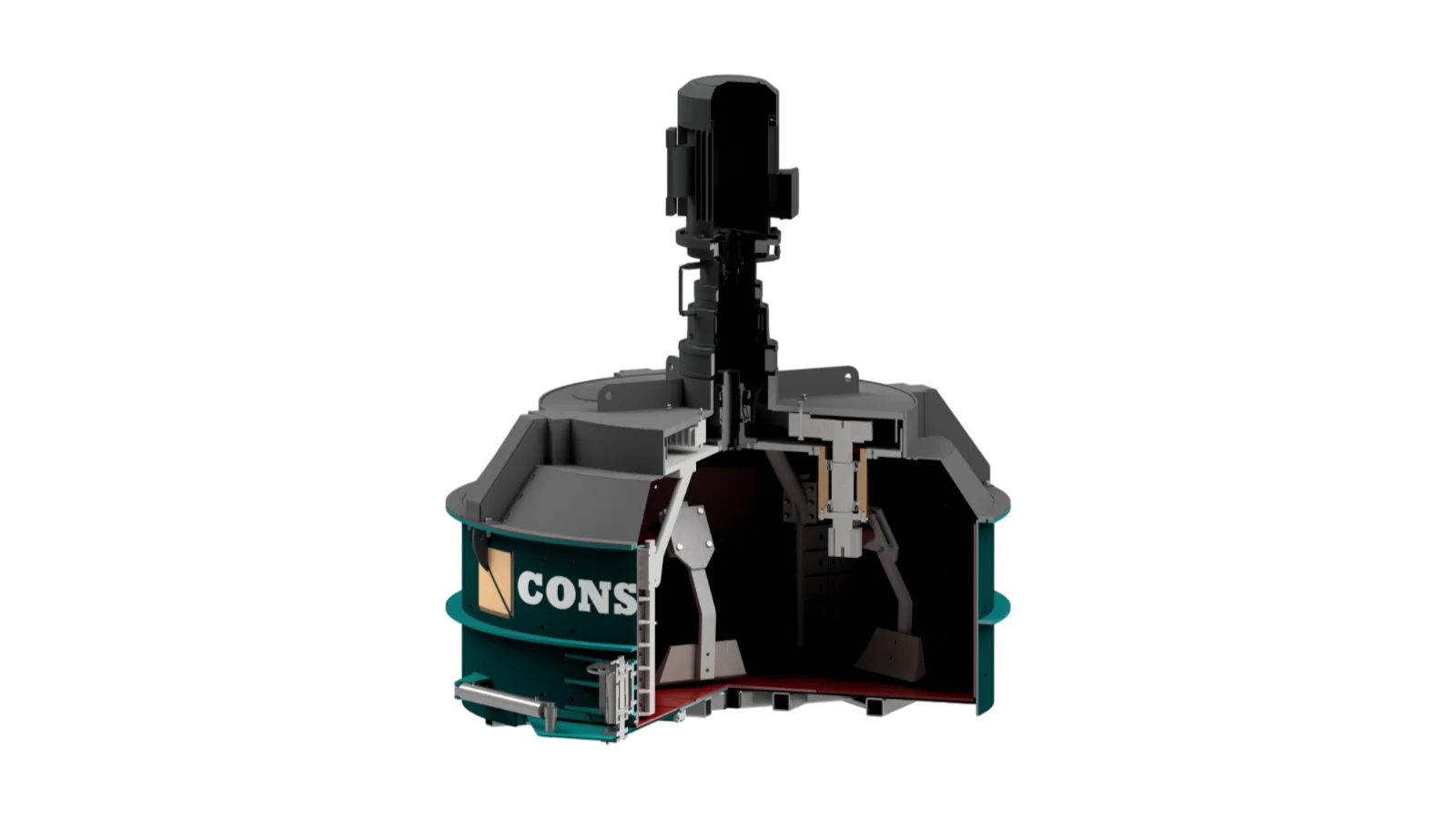

Constmach’s high-speed planetary concrete mixer stands out as the best in its class, offering exceptional performance and efficiency. Designed with precision and continuously refined, this mixer incorporates advanced features to meet the highest standards in concrete mixing. Its planetary (countercurrent) mechanism features one or two mixing stars that rotate independently while orbiting a central axis. This design ensures thorough and rapid mixing, covering the entire mixer floor in multiple revolutions. The result is a mixing time of 30 seconds or less for most concrete types, enabling greater throughput and consistent quality.
The planetary concrete mixer is ideal for producing all types of dry-cast concrete, outperforming turbine and twin-shaft mixers. Its powerful mixing action quickly homogenizes zero-slump mixes, delivering superior strength and consistency while reducing cement consumption by 10–15%. Key features of this mixer include an increased pan volume, accommodating full and partial loads with ease, and Ni-Hard cast iron liner tiles for extended wear life.
Technical specifications offer versatility across multiple models, from the CPLN-0.5 to the CPLN-2, with charging volumes ranging from 750 to 3,000 liters and motor power options up to 2 x 37 kW. Built for durability, the mixer features Hardox bottom wearing plates, St 52 side body wearing plates, and optional chromium carbide cladding for extreme applications.
With its advanced features and unmatched value, Constmach’s planetary concrete mixer for sale delivers reliability and performance for a wide range of concrete production needs.
The planetary concrete mixer is ideal for producing all types of dry-cast concrete, outperforming turbine and twin-shaft mixers. Its powerful mixing action quickly homogenizes zero-slump mixes, delivering superior strength and consistency while reducing cement consumption by 10–15%. Key features of this mixer include an increased pan volume, accommodating full and partial loads with ease, and Ni-Hard cast iron liner tiles for extended wear life.
The robust hydraulic discharge door mechanism ensures smooth operation, while additional discharge doors can be added for greater flexibility. Maintenance is simplified with quick-access covers, a high-security locking system, and cleanout mechanisms that eliminate residue efficiently.
Technical specifications offer versatility across multiple models, from the CPLN-0.5 to the CPLN-2, with charging volumes ranging from 750 to 3,000 liters and motor power options up to 2 x 37 kW. Built for durability, the mixer features Hardox bottom wearing plates, St 52 side body wearing plates, and optional chromium carbide cladding for extreme applications.
With its advanced features and unmatched value, Constmach’s planetary concrete mixer for sale delivers reliability and performance for a wide range of concrete production needs.
PRODUCT SPECIFICATIONS
CPLN - 0.5 Planetary Shaft Concrete Mixer Technical Specification
Charging Volume | 750 lt |
Fresh Concrete Volume | 625 lt |
Compacted Concrete Volume | 500 lt |
Motor Power | 15.5 kW |
Bottom Wearing Plates | 10 mm Hardox 450 |
Side Body Wearing Plates | 8 mm St 52 |
Mixing Arm Wearing Plates | 25 mm Ni-Hard |
Hydralulic Discharge Door | AVAILABLE |
Maintanence Door Safety Switch | AVAILABLE |
CPLN - 0.75 Planetary Shaft Concrete Mixer Technical Specification
Charging Volume | 1000 lt |
Fresh Concrete Volume | 875 lt |
Compacted Concrete Volume | 750 lt |
Motor Power | 30 kW |
Bottom Wearing Plates | 10 mm Hardox 450 |
Side Body Wearing Plates | 8 mm St 52 |
Mixing Arm Wearing Plates | 25 mm Ni-Hard |
Hydralulic Discharge Door | AVAILABLE |
Maintanence Door Safety Switch | AVAILABLE |
CPLN - 1 Planetary Shaft Concrete Mixer Technical Specification
Charging Volume | 1.500 lt |
Fresh Concrete Volume | 1.250 lt |
Compacted Concrete Volume | 1.000 lt |
Motor Power | 30 kW |
Bottom Wearing Plates | 15 mm Hardox 450 |
Side Body Wearing Plates | 8 mm St 52 |
Mixing Arm Wearing Plates | 25 mm Ni-Hard |
Hydralulic Discharge Door | AVAILABLE |
Maintanence Door Safety Switch | AVAILABLE |
CPLN - 1.5 Planetary Shaft Concrete Mixer Technical Specification
Charging Volume | 2.250 lt |
Fresh Concrete Volume | 2.000 lt |
Compacted Concrete Volume | 1.500 lt |
Motor Power | 2 x 30 kW |
Bottom Wearing Plates | 10 mm Hardox 450 |
Side Body Wearing Plates | 10 mm St 52 |
Mixing Arm Wearing Plates | 25 mm Ni-Hard |
Hydralulic Discharge Door | AVAILABLE |
Maintanence Door Safety Switch | AVAILABLE |
CPLN - 2 Planetary Shaft Concrete Mixer Technical Specification
Charging Volume | 3.000 lt |
Fresh Concrete Volume | 2.500 lt |
Compacted Concrete Volume | 2.000 lt |
Motor Power | 2 x 37 kW |
Bottom Wearing Plates | 15 mm Hardox 450 |
Side Body Wearing Plates | 12 mm St 52 |
Mixing Arm Wearing Plates | 30 mm Ni-Hard |
Hydralulic Discharge Door | AVAILABLE |
Maintanence Door Safety Switch | AVAILABLE |
Transport
Certificates
Fairs
Our Services
Installation and Training
- Assembly
- Commissioning of the plant
- 7 days of free training and test production.
- Commissioning of the plant
- 7 days of free training and test production.
After Sales Service
- 2 years warranty
- Engineers available for overseas service for the machinery
- 10 years spare parts warranty
- Engineers available for overseas service for the machinery
- 10 years spare parts warranty
Company Profile
Why Should You Choose CONSTMACH Company?
When it comes to high-quality construction machinery, CONSTMACH stands out as a global leader. With years of industry experience, we specialize in manufacturing concrete batching plants, crushers, and concrete block machines that meet the diverse needs of our
clients worldwide.
Our commitment to excellence is evident in every product we deliver. We utilize cutting-edge technology and adhere to stringent quality control standards to ensure optimal performance and durability. By choosing CONSTMACH, you are investing in reliable equipment that enhances productivity and minimizes downtime.
Customer satisfaction is at the core of our business philosophy. We offer comprehensive after-sales support, including installation, training, and maintenance services. Our dedicated team of experts is always ready to provide technical assistance, ensuring your operations run smoothly.
Innovation drives us forward. We continuously invest in research and development to introduce advanced features and eco-friendly solutions. Our machinery is designed to be energy-efficient, reducing operational costs and environmental impact.
Choosing CONSTMACH means partnering with a trusted manufacturer that values quality, innovation, and customer success. Let us provide you with the machinery solutions that will propel your projects to new heights.
clients worldwide.
Our commitment to excellence is evident in every product we deliver. We utilize cutting-edge technology and adhere to stringent quality control standards to ensure optimal performance and durability. By choosing CONSTMACH, you are investing in reliable equipment that enhances productivity and minimizes downtime.
Customer satisfaction is at the core of our business philosophy. We offer comprehensive after-sales support, including installation, training, and maintenance services. Our dedicated team of experts is always ready to provide technical assistance, ensuring your operations run smoothly.
Innovation drives us forward. We continuously invest in research and development to introduce advanced features and eco-friendly solutions. Our machinery is designed to be energy-efficient, reducing operational costs and environmental impact.
Choosing CONSTMACH means partnering with a trusted manufacturer that values quality, innovation, and customer success. Let us provide you with the machinery solutions that will propel your projects to new heights.
References
Our company delivered dozens of concrete plants, crushers, concrete block machines in more than 85 countries around the world. Here, you can see only some of them. Please get in touch with us for more information about our clients all over the world.
