Легкая установка домашняя настенная батарея LiFePo4 48 В 51 2 100Ah 200Ah IP54 Водонепроницаемая перезаряжаемая солнечная с глубоким циклом
- Категория: >>>
- Поставщик: Jiangxi Xidong Export And Import Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 11000021006424:
Описание и отзывы
Характеристики
Products Description
Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-16 | HZEB-LCT-20 | |||||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |||||||
Cell model/configuration | 3.2V100Ah/16S1P | 3.2V205Ah/16S1P | 3.2V280Ah/16S1P | 3.2V205Ah/16S2P | |||||||
Capacity(Ah) | 100Ah | 205Ah | 280Ah | 410Ah | |||||||
Rated Energy(kwh) | 5.120kwh | 10.496kwh | 16.076kwh | 20.992kwh | |||||||
Max.Charge/Discharge Current(A) | 100A | 100A | 150A | 200A | |||||||
Voltage Range(Vdc) | 44.8-57.6V | ||||||||||

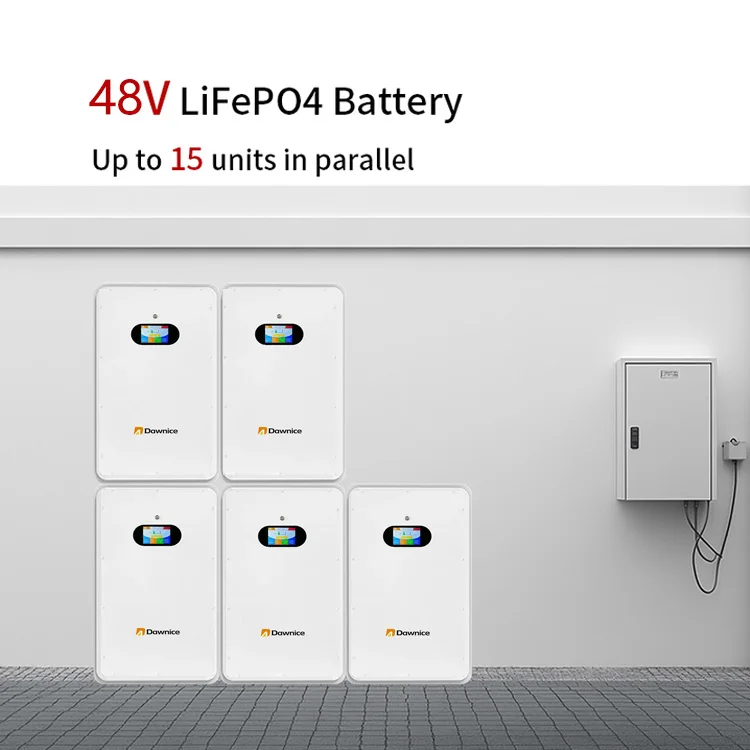

Scalability | Up to 15 parallel | ||||||||||
Communication | CAN/RS485/RS232 | ||||||||||
Cycle Life | ≥8000Cycles@25℃,80%DOD | ||||||||||
Design Life | ≥15 Years( Cycle Life≥15Years (25℃) ) | ||||||||||
MECHANICAL SPECIFICATIONS | |||||||||||
Weight(Net/gross)(KG) | 55KGS | 98KGS | 128KGS | 180KGS | |||||||
Dimension(W/D/H)(mm) | 160*400*700mm | 245*450*640mm | 245*450*800mm | 265*650*973mm | |||||||

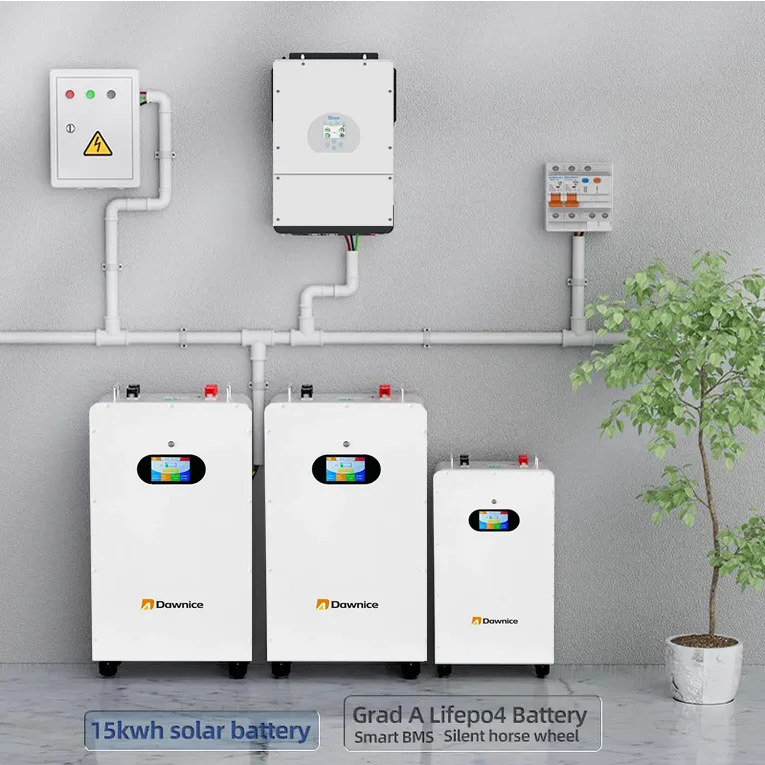

Installation Mode | Wall / Ground Mounted(20kWh battery ground-mounted only) | ||||||||||
IP Grade | IP54 | IP20 | |||||||||
SECURITY AND CERTIFICATION | |||||||||||
Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | ||||||||||
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | ||||||||||
Protection | Short- circuit protection/over current protection/over-temperature protection | ||||||||||
ENVIRONMENTAL SPECIFICATIONS | |||||||||||
Operating temperature(℃) | Charge 0℃_50℃; Discharge -10℃_50℃ | ||||||||||
Altitude(m) | ≤2000 | ||||||||||
Humidity | ≤95%(Non-condensing) | ||||||||||
Warranty | 10 Years Warranty | ||||||||||
Recommend Products

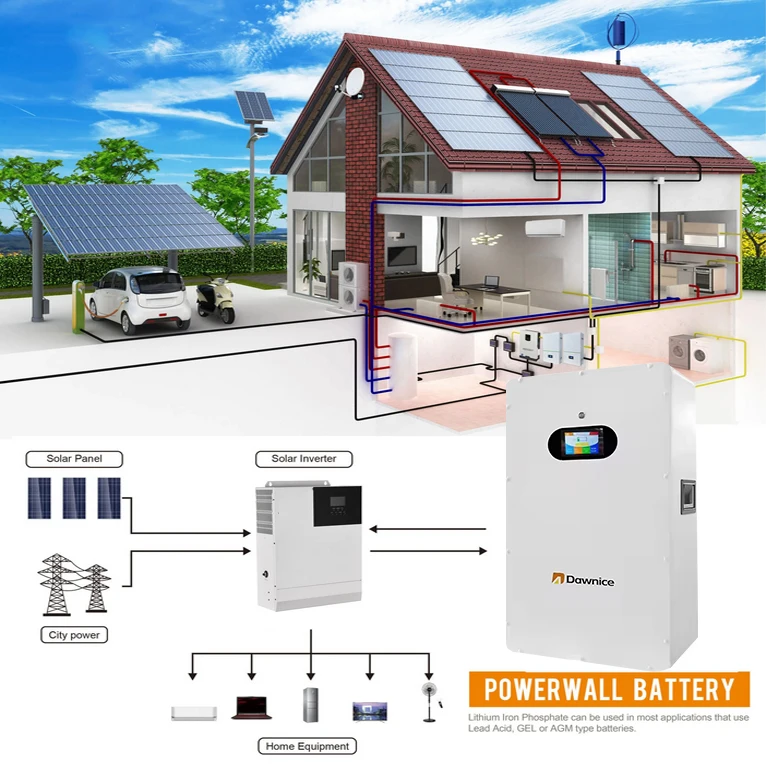

How does a solar energy storage system work?
A solar energy storage system typically includes components such as solar panels storage batteries, and inverters. lts operation principle is as follows:
Solar panels: Convert sunlight into direct current (DC) electricity. When sun light is received by the solar panels, they generate DC electricity and send it to the storage batteries for storage.
Storage batteries: Store the electricity generated by the solar panels. During the day, the storage batteries can store excess electricity generated by the solar panels for use at night or during cloudy weather. When electricity is needed, the storage batteries release the stored energy.
Inverter: Converts the DC electricity stored in the storage batteries into alternating current (AC) electricity for use. The inverter converts the DC electricity stored in the storage batteries into AC electricity, which is supplied to household appliances.
Solar panels: Convert sunlight into direct current (DC) electricity. When sun light is received by the solar panels, they generate DC electricity and send it to the storage batteries for storage.
Storage batteries: Store the electricity generated by the solar panels. During the day, the storage batteries can store excess electricity generated by the solar panels for use at night or during cloudy weather. When electricity is needed, the storage batteries release the stored energy.
Inverter: Converts the DC electricity stored in the storage batteries into alternating current (AC) electricity for use. The inverter converts the DC electricity stored in the storage batteries into AC electricity, which is supplied to household appliances.
Buyers Feedback
Details Images
About us
Jiangxi Xidong Export and Import Co., Ltd.
Located in Yichun City, Jiangxi Province, is known as the Lithium Capital of Asia. We insist on innovation around customer needs, offering competitive, safe, and reliable lithium battery products and solutions. We specialize in the research, development, production, and sales of lithium battery packs, serving industries such as solar energy,wind energy, and intelligent charging equipment. We are looking forward to establishing business relations with customers from all over the world.
VR
Advantages of Home Energy Storage Systems:
Energy Independence: They allow homeowners to store excess energy from solar panels or the grid, reducing reliance on external power sources.
Cost Savings: They help reduce electricity bills by storing energy during off-peak times when prices are lower and using it during peak times. Backup Power: They provide a reliable source of backup power during outages, ensuring continuous operation of essential appliances.
Environmental Impact: They enable the use of clean, renewable energy, reducing the household's carbon footprint.
Increased Efficiency: They optimize energy usage and enhance the efficiency of home energy systems.
Grid Support: By reducing demand during peak times, they contribute to a more stable and resilient power grid. These advantages make home energy storage systems an attractive option for modern households.
Product packaging
Certifications
FAQ
Q1: What is the typical capacity of a wall mounted battery?
A: Wall-mounted batteries generally have a capacity between 10Ah and 100Ah.
Q2: Is there a standard requirement for the installation height of wall mounted batteries?
A: Usually installed between 1.5 meters and 2 meters high for ease of operation and safety.
Q3: How long does it take to charge a wall mounted battery?
A: Takes around 4 to 10 hours with a standard charger, and less with a fast charger.
Q4: How to determine the quality of wall mounted batteries?
A: Consider cycle life, self-discharge rate, safety features, brand reputation, and user feedback.
Q5: What is the approximate price range for wall mounted batteries?
A: Typically ranges from a few hundred to several thousand yuan, depending on brand, capacity, and technology.
Q6: In which scenarios can wall mounted batteries be applied?
A: Used for household energy storage, emergency lighting, power for monitoring equipment, charging electric tools, and as a backup power source in areas with unstable power supply.
A: Wall-mounted batteries generally have a capacity between 10Ah and 100Ah.
Q2: Is there a standard requirement for the installation height of wall mounted batteries?
A: Usually installed between 1.5 meters and 2 meters high for ease of operation and safety.
Q3: How long does it take to charge a wall mounted battery?
A: Takes around 4 to 10 hours with a standard charger, and less with a fast charger.
Q4: How to determine the quality of wall mounted batteries?
A: Consider cycle life, self-discharge rate, safety features, brand reputation, and user feedback.
Q5: What is the approximate price range for wall mounted batteries?
A: Typically ranges from a few hundred to several thousand yuan, depending on brand, capacity, and technology.
Q6: In which scenarios can wall mounted batteries be applied?
A: Used for household energy storage, emergency lighting, power for monitoring equipment, charging electric tools, and as a backup power source in areas with unstable power supply.
Похожие товары

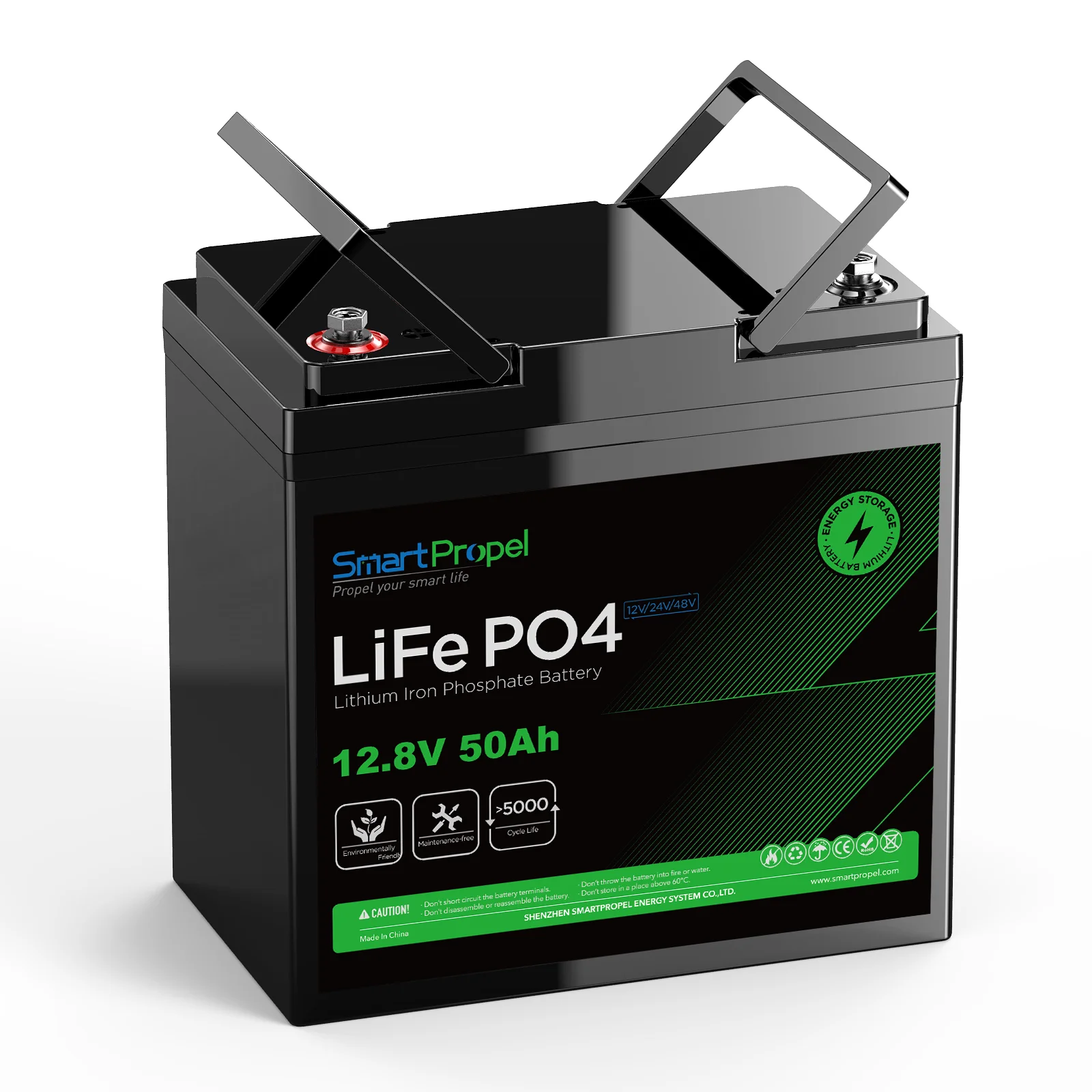

Литий-ионный аккумулятор 12 В 50 А/В
11 188,49-21 359,84 ₽
Литий-ионная аккумуляторная батарея для 12 В 72 солнечных 24 36 8 А Электрический автомобильный аккумулятор 23А 402035 полимерный с воздушным разделением 45
48,32-125,88 ₽

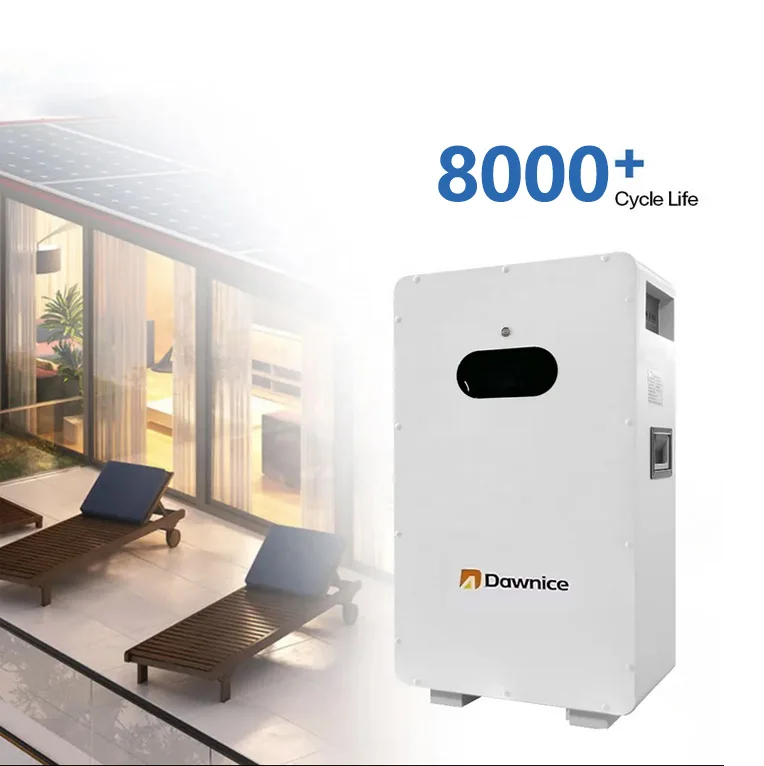

Мощная стена 48 В 5 кВтч батарея LiFePO4 ветровая и солнечная гибридная домашняя система хранения энергии
