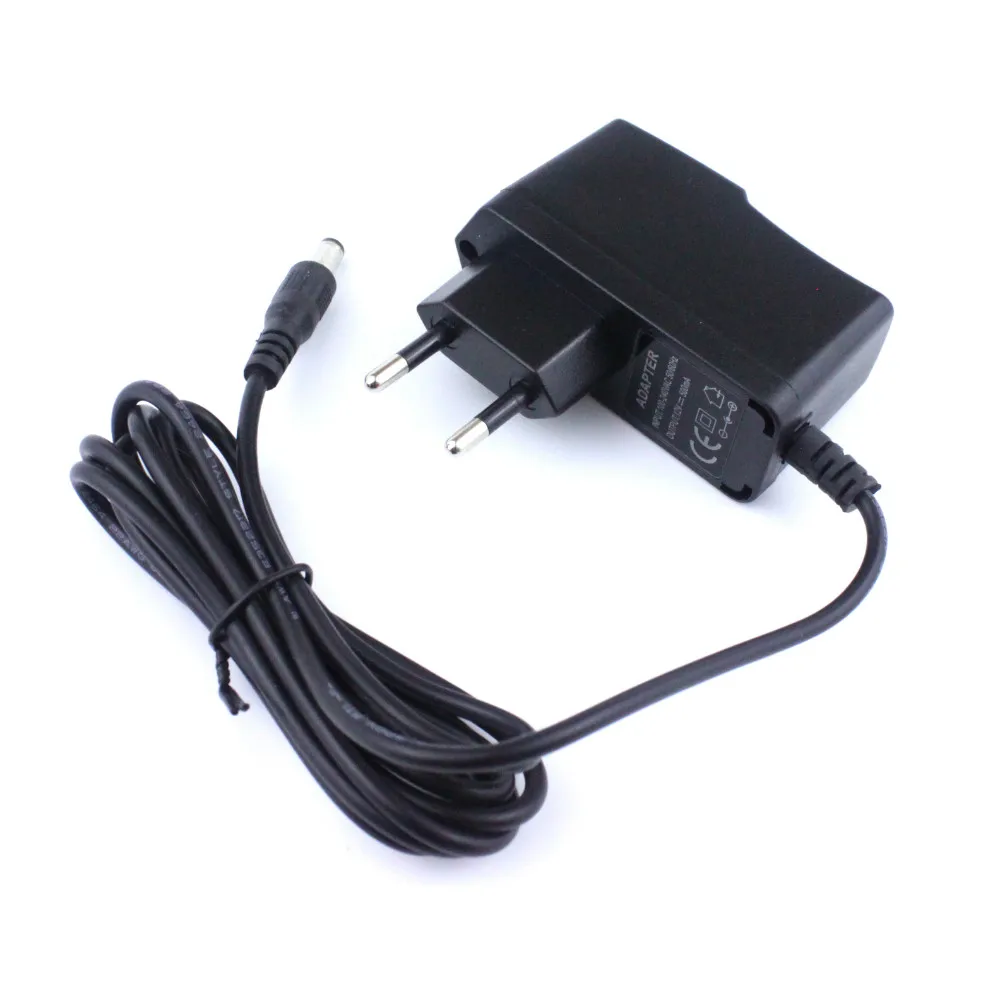

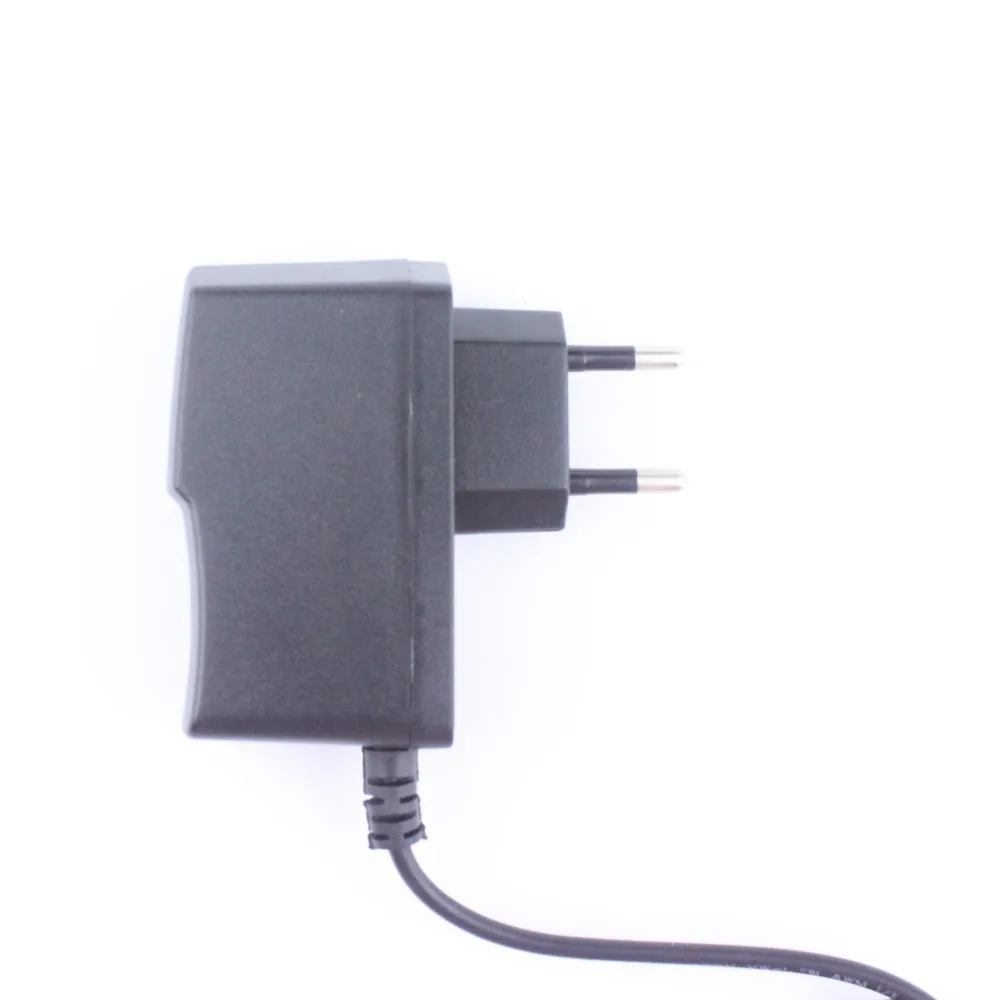

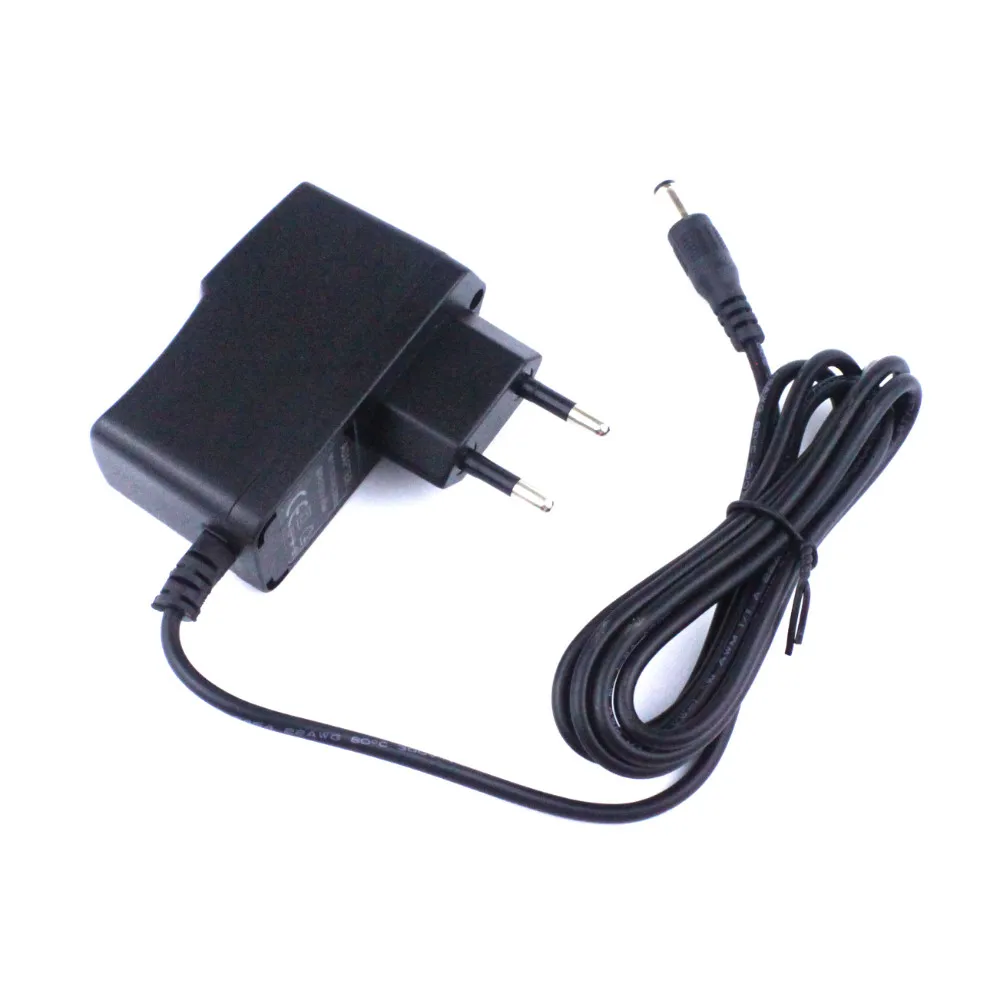

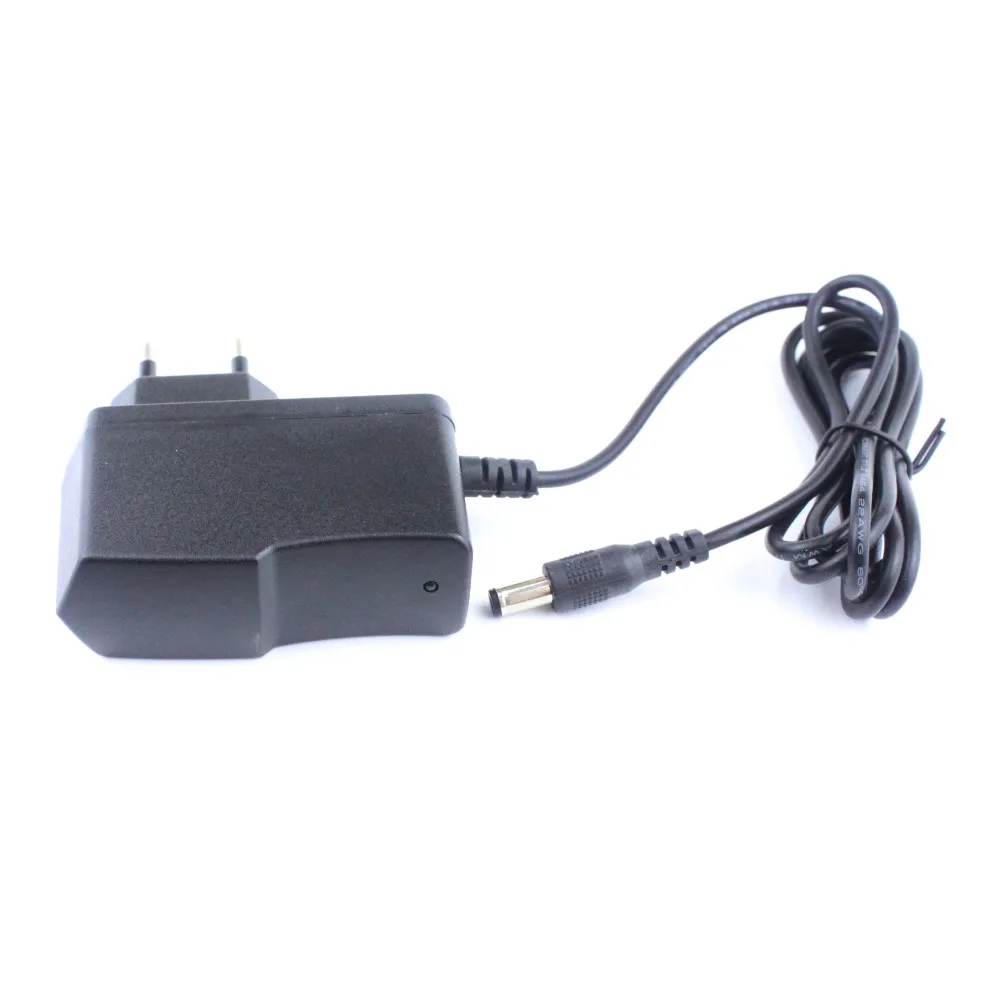

SHENZHEN factory Direct selling 5v / 9v /12v ac dc adapter

Цена:*

Количество:

OUTPUT	DC VOLTAGE	5V	9V	12V	15V	24V
	OUTPUT POWER	10W	10W	12W	12W	12W
	CURRENT RANGE	2A	1.1A	1A	0.8A	0.5A
	RIPPLE & NOISE(max.)	100mVp-p	100mVp-p	120mVp-p	150mVp-p	200mVp-p
	VOLTAGE TOLERANCE	±5.0%
	CONNECTOR	5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
	DC CABLE	1.15M or customized requirement
INPUT	AC CABLE	US UK AU EU KR IN etc.
	VOLTAGE RANGE	110~ 240VAC
	AC CURRENT(Typ.)	0.5A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%	82%	82%	83%	83%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.25mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	ISOLATION RESISTANCE	P-S>50Mohm at 500V DC
	WITHSTAND VOLTAGE	3KV,10mA,60S
OTHERS	DIMENSION	L74W40H27MM
	WEIGHT	0.08Kg,100PCS/Carton
	SHELL MATERIAL	Black plastic or white plastic
