SATA3 7 15pin для M.2 (NGFF) и mSATA SSD конвертер адаптер карта
- Категория: >>>
- Поставщик: Shenzhen Bojiada Technology Co. LtdShenzhen Ltd
Сохранить в закладки 1100014772065:
Описание и отзывы
Характеристики
Product Description

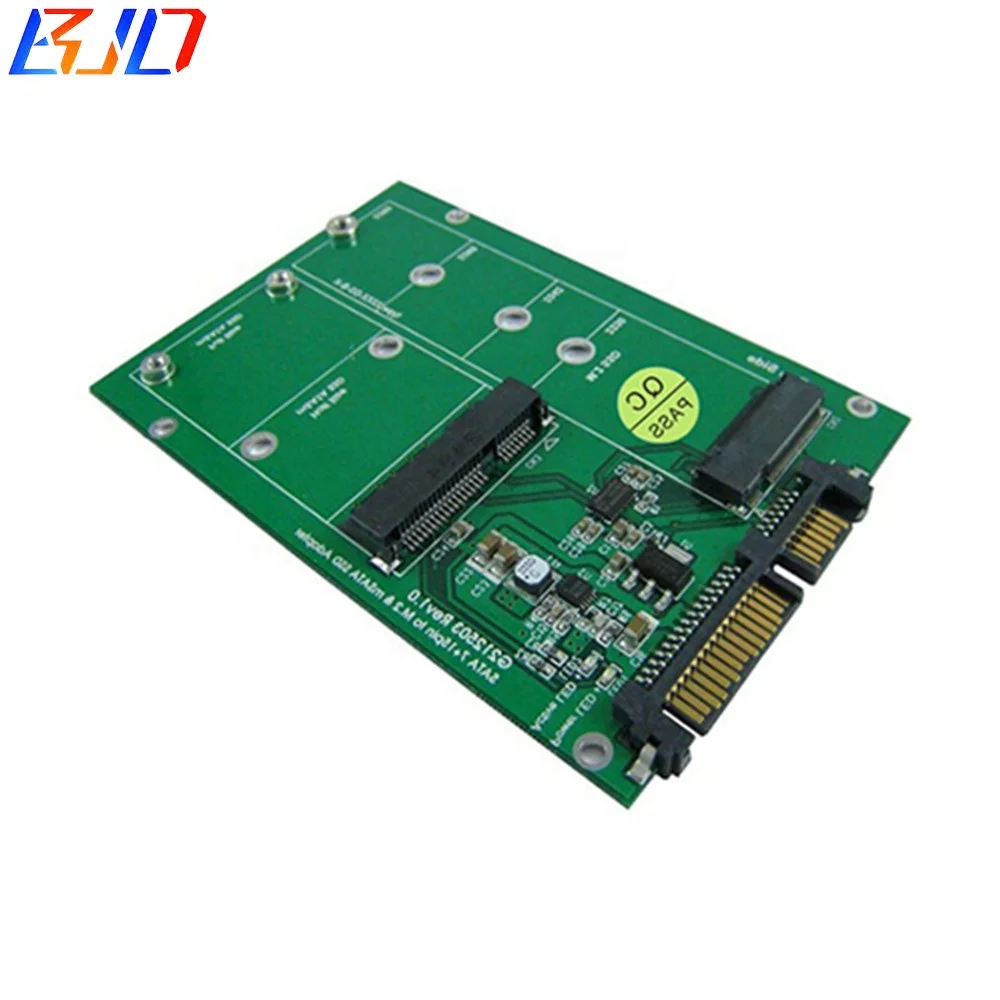

M.2 NGFF B-key SSD & mSATA to SATA 3.0 Adapter Converter Card support 2230/ 2242/ 2260/ 2280 | ||||||||
Features：
1, 2.5 "SATA SSD shell appearance size: 98 * 65.5MM
2. M.2 (NGFF) & mSATA to SATAⅢ module
3.MSATA 52pin male
4.M.2 (NGFF) B key male seat
5.Green LED indicates SSD power-on status
6.Red LED indicates SSD operation status
7. When M.2 and mSATA SSD are installed on this adapter card at the same time, M.2 SSD will be detected first, mSATA SSD will not work
specification：
1.Support SATA Reversion 3.2
2.Only supports sata protocol bkey m.2 NGFF hard disk
3.PWM synchronous buck converter power IC
4.Provide the maximum current of 3 amps
5.Short circuit protection
6.Inrush current protection
7.Static protection HBM (Human Body Mode) / 2KV

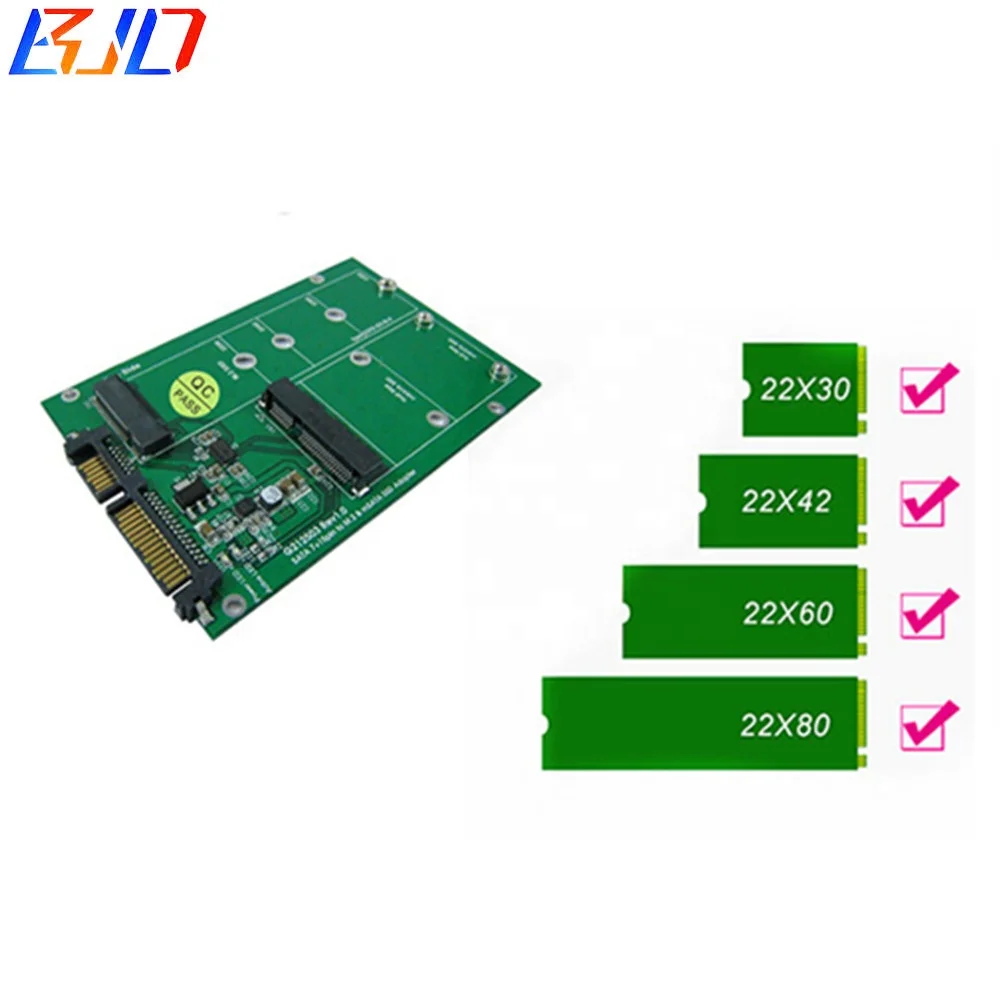

Support M.2 (NGFF) SSD specifications
Type 2280-D2-B-M: 80mm (L) * 22mm (W)
Type 2260-D2-B-M: 60mm (L) * 22mm (W)
Type 2242-D2-B-M: 42mm (L) * 22mm (W)
Type 2230-D2-B-M: 30mm (L) * 22mm (W)

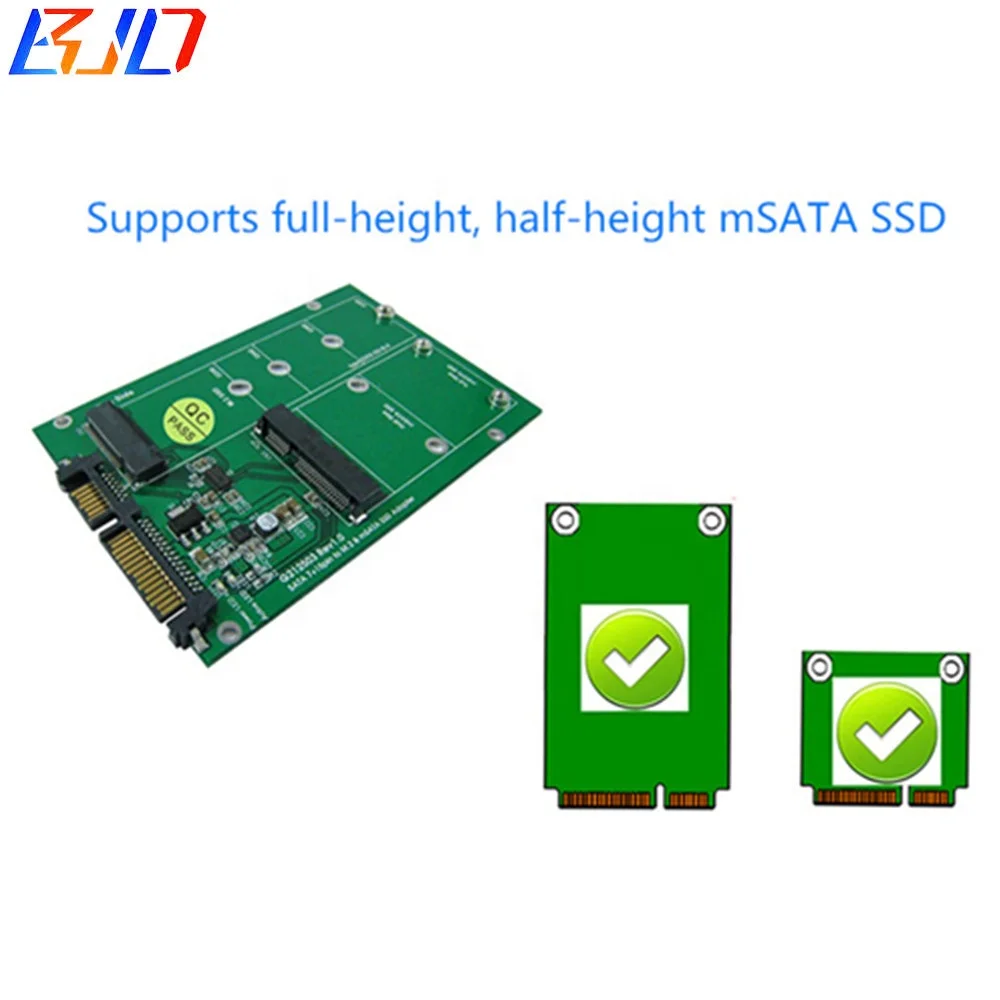

Support mSATA SSD specifications
Half size mSATA: 26.8mm (L) * 30mm (W)
1, 2.5 "SATA SSD shell appearance size: 98 * 65.5MM
2. M.2 (NGFF) & mSATA to SATAⅢ module
3.MSATA 52pin male
4.M.2 (NGFF) B key male seat
5.Green LED indicates SSD power-on status
6.Red LED indicates SSD operation status
7. When M.2 and mSATA SSD are installed on this adapter card at the same time, M.2 SSD will be detected first, mSATA SSD will not work
specification：
1.Support SATA Reversion 3.2
2.Only supports sata protocol bkey m.2 NGFF hard disk
3.PWM synchronous buck converter power IC
4.Provide the maximum current of 3 amps
5.Short circuit protection
6.Inrush current protection
7.Static protection HBM (Human Body Mode) / 2KV
Support M.2 (NGFF) SSD specifications
Type 2280-D2-B-M: 80mm (L) * 22mm (W)
Type 2260-D2-B-M: 60mm (L) * 22mm (W)
Type 2242-D2-B-M: 42mm (L) * 22mm (W)
Type 2230-D2-B-M: 30mm (L) * 22mm (W)
Support mSATA SSD specifications
Half size mSATA: 26.8mm (L) * 30mm (W)
Full size mSATA: 50.95mm (L) * 30mm (W
Package Includes:
1 x PCB Adapter
2 x Mounting screws
1 x PCB Adapter
2 x Mounting screws
