360 degree 12v wiring parallax long range infrared pir motion sensor
Product Description

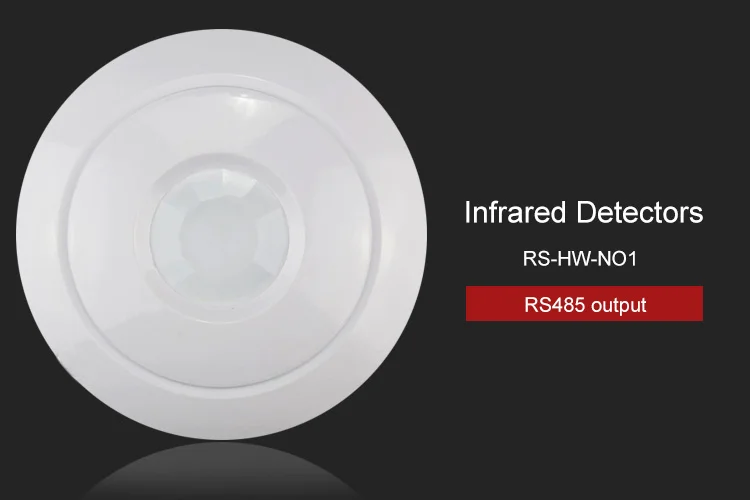

RS-HW-N01 is a high stability of the passive infrared detector. Using advanced signal analysis and processing technology, with high detection and anti-false alarm performance. When an intruder passes the detection area, the detector will automatically detect the activity of the human body in the area. When motion phenomenon, an alarm will be generated, an output device 485, a standard Modbus-RTU protocol, secondary development.Products for family residential areas, real estate villas, factories, warehouses, shopping malls, office buildings and other places of security precautions.
Power supply | 10 ~ 30V DC |
Power consumption pir motion sensor | 0.4W pir motion sensor pir motion sensor |
Type Sensor | dual pyroelectric infrared sensor |
Alarm delay pir motion sensor pir motion sensor | 30s, 10s, 5s output optional |
Installation | Ceiling |
Mounting height pir motion sensor | 2.5 ~ 6m pir motion sensor pir motion sensor |
Detection range | 6M diameter (mounting height 3.6m) |
Detection angle pir motion sensor | full 360 ° pir motion sensor pir motion sensor |
Signal Output | RS485 (Modbus-RTU) |
Working Environment pir motion sensor | -10 ℃ ~ 50 ℃, ≤ 95%, non-condensing |

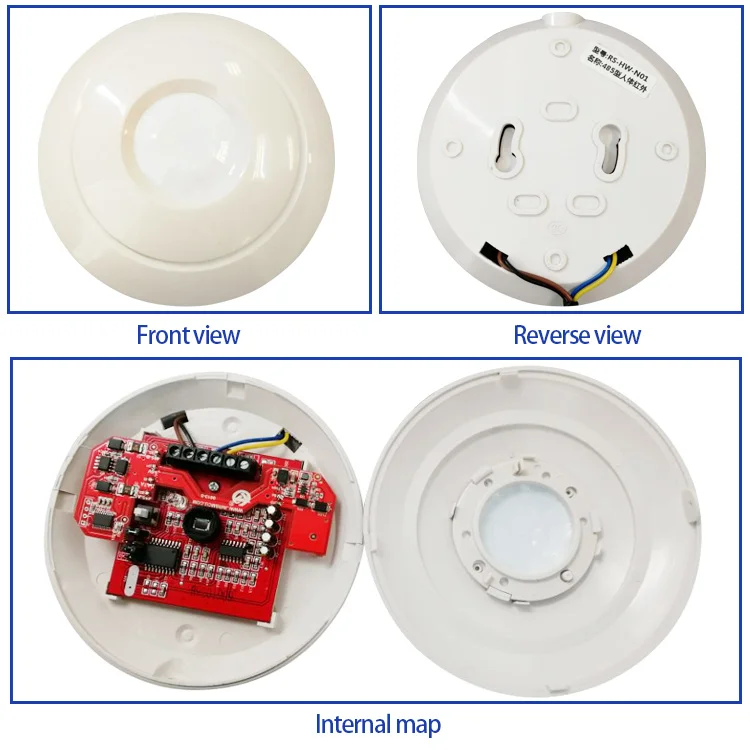

Details Images
■ using low-power CMOS 8-bit processor pir motion sensor
■ automatic temperature compensation function pir motion sensor
■ Anti RFI interference: 20 ~ 1000MHZ (mobile communication)
■ Optional three alarm delay output pir motion sensor
Select Delay Figure
FIG detection range
Product Usage
Line color | Description | Remarks |
brown | Power is positive | 10-30VDC |
black | Negative power supply | |
yellow | 485-A | |
blue | 485-B |
Related Products
Company Introduction
Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: How is your quality assurance service?
A: 24 months quality guarantee.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: How is your quality assurance service?
A: 24 months quality guarantee.
360 degree 12v wiring parallax long range infrared pir motion sensor
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
Похожие товары

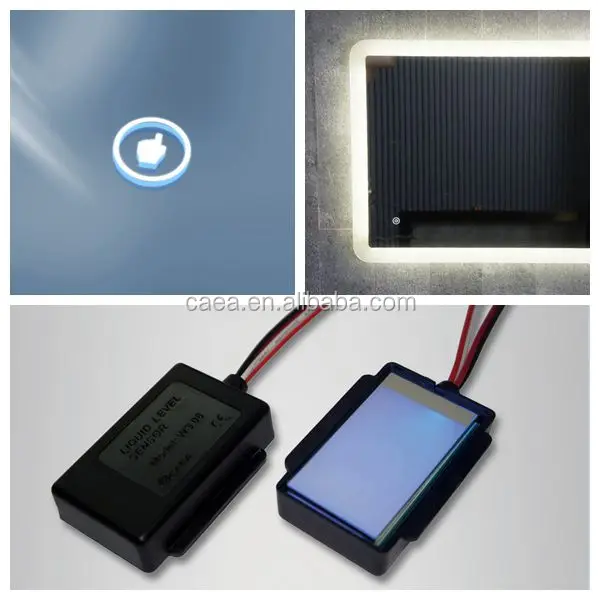

12 В 24 диммер сенсорный датчик переключатель для зеркала Профиль Шкаф CAEA WS08

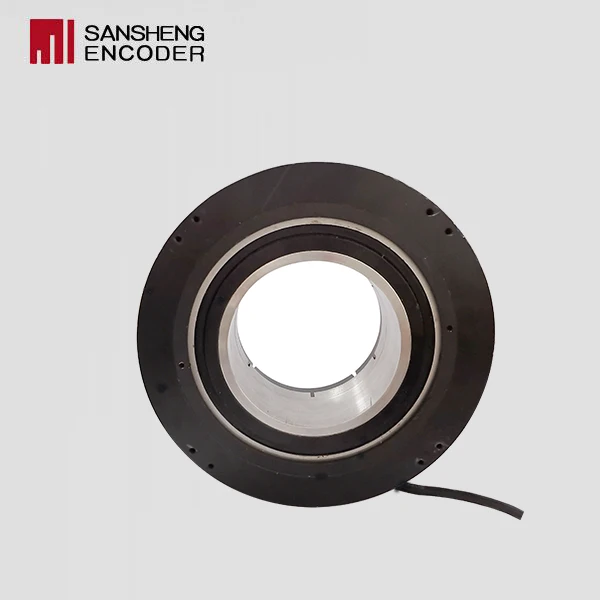

Низкая стоимость 18 бит абсолютный 60 мм полый Поворотный энкодер RS422
