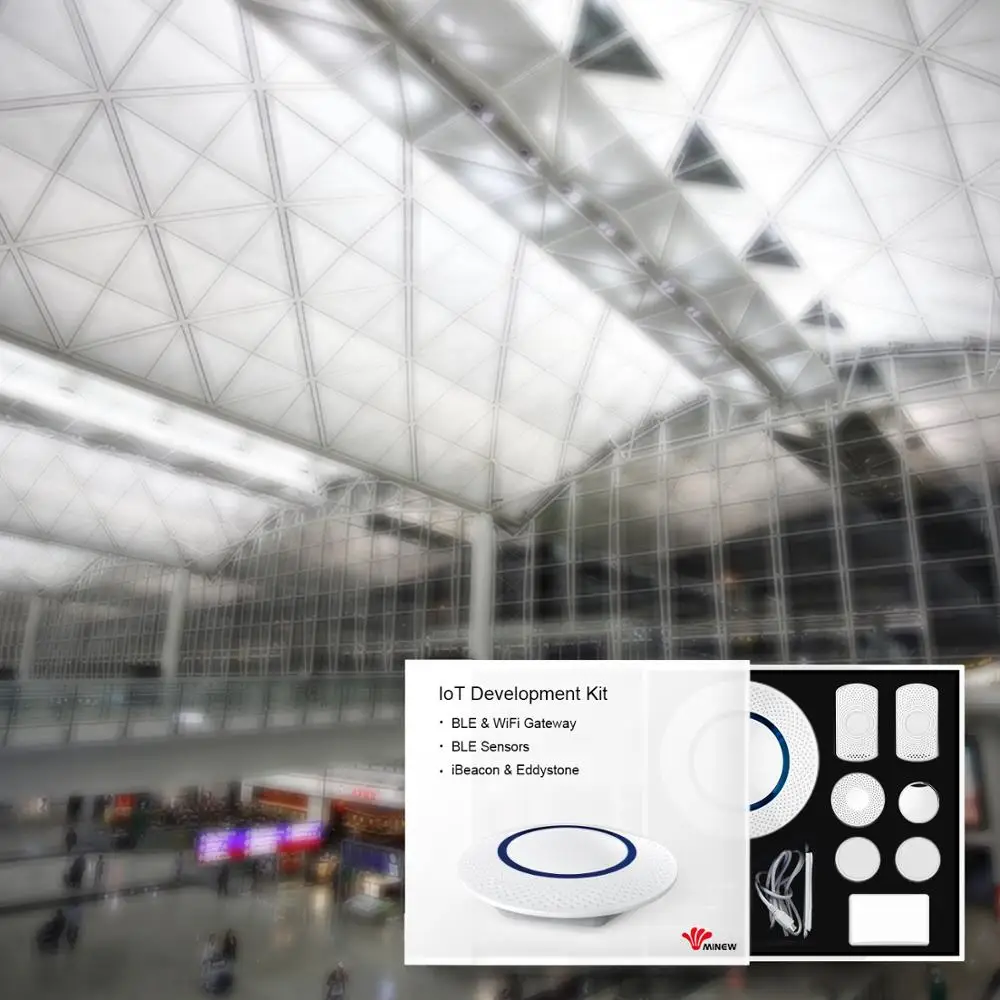

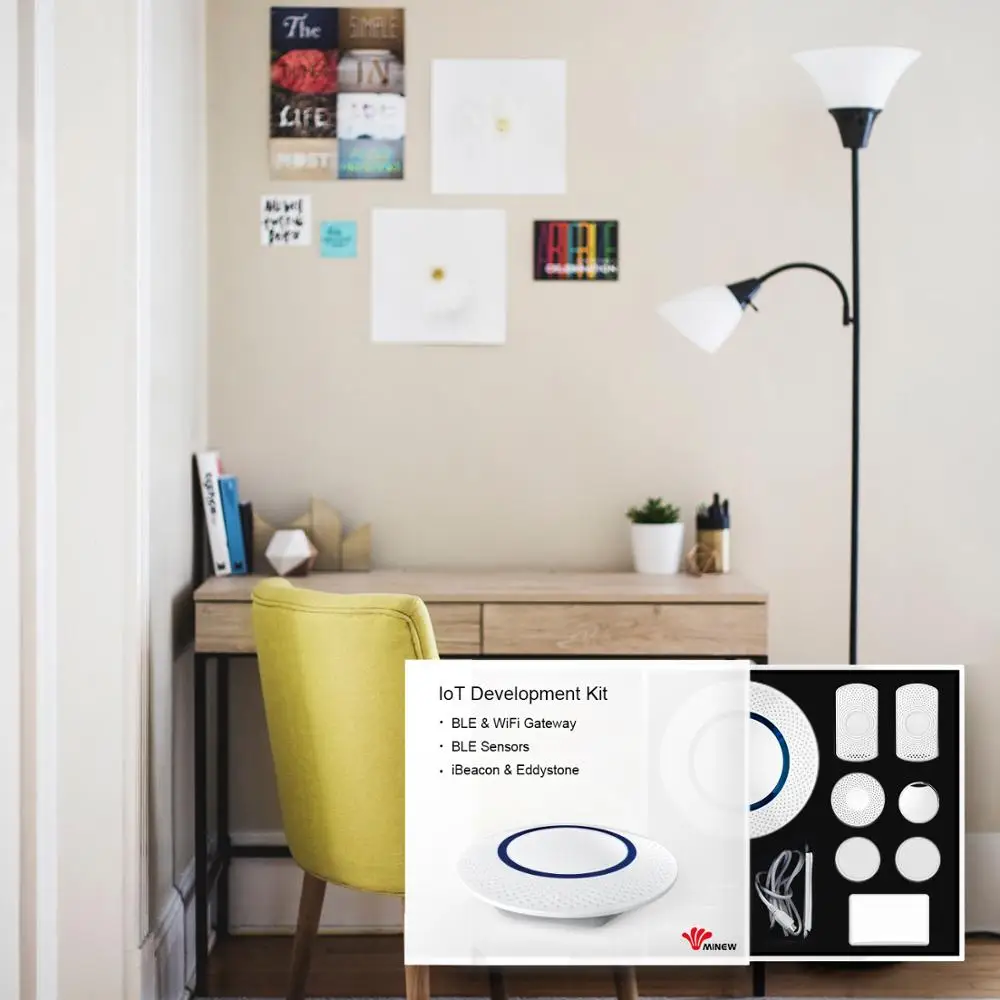

Iot шлюз Oem комплект разработки 300 метров дальность передачи Minew G1

Iot шлюз Oem комплект разработки 300 метров дальность передачи Minew G1

Категория: >>>
Поставщик: Shenzhen Minew Technologies Co. Ltd.Shenzhen Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

BLE receiver Beacon Gateway Minew

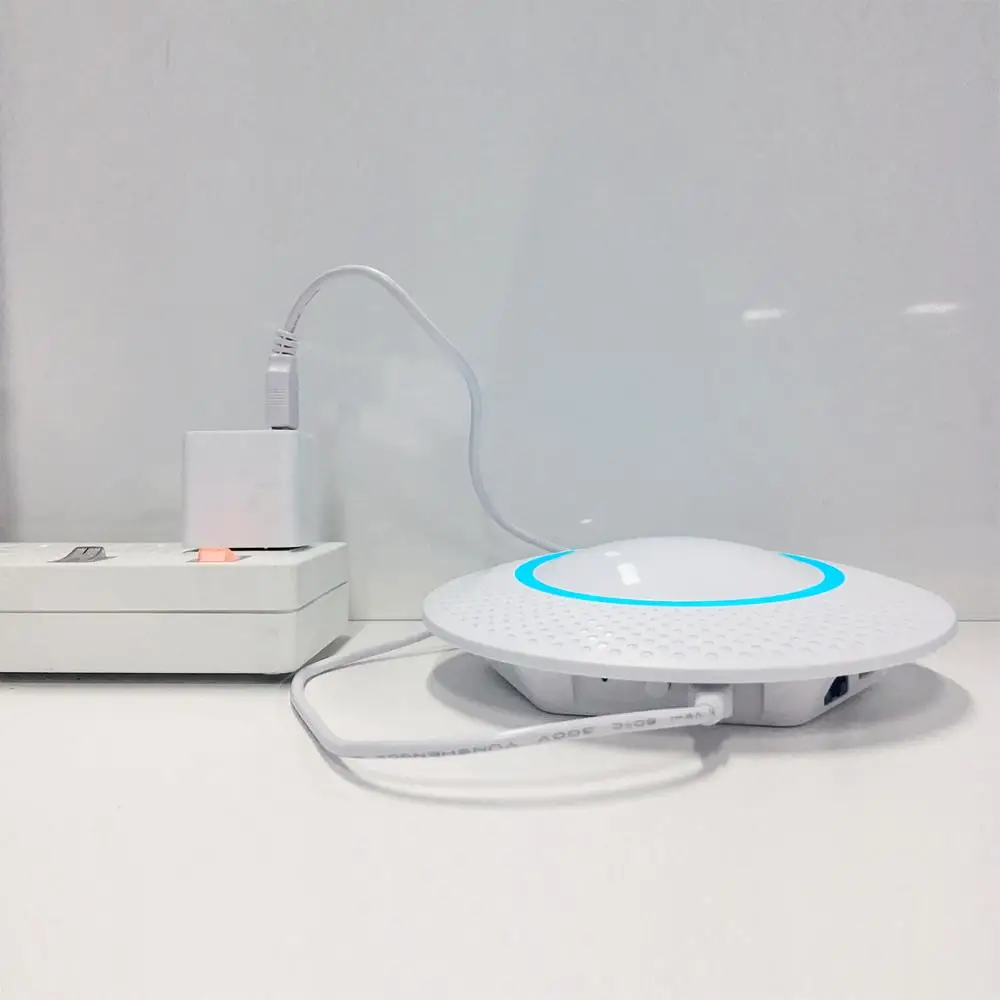

G1 Bluetooth to Wifi Gateway

G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps. The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices,
and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular.The user is easy to configure the G1 gateway via a very simple web UI.

General specification

●Supports input with DC 5.0V, 1A, micro-USB ●Supports 10/100 Ethernet with 802.3af PoE

●Supports firmware upgrade Over-the-Air &USB ●Supports HTTP(support SSL/TLS)/MQTT(support SSL/TLS)

●Operating temperature: -25℃ to 65℃

● RGB LED string as the status indicator ● Based on OpenWrt

Wi-Fi specification

● Up to 300 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 2T2R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud

BLE Specification

● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)

Specification

Technical Specification
Device item No.	G1 ble&wifi gateway	Size	150x150x36mm
Ethernet	10/100Mbps Ethernet, PoE	IN	Micro-USB, power input (5.0Vdc, 1A)
Wifi	IEEE 802.11b/g/n 2.4GHz with external antenna	Net Weight	180g
Bluetooth	BLE 5.0 nRF52832 with external antenna	Power supply (Vcc)	Max. 5.5 Volts, DC

How it works

Capture

Detect and collect the data of bluetooth device in ranges,
Including all popuar protocols : iBeacon, Eddystone as well as custom sensor format. G1 bluetooth&wifi gateway can work perfectly with our Minew beacon device

Communicate

Send all the data to the local TCP server or remote cloud server by HTTP / MQTT protocol

Health

Quickly locate assets, keep track of patients and staff, while monitoring any array of sensors

Industry Application

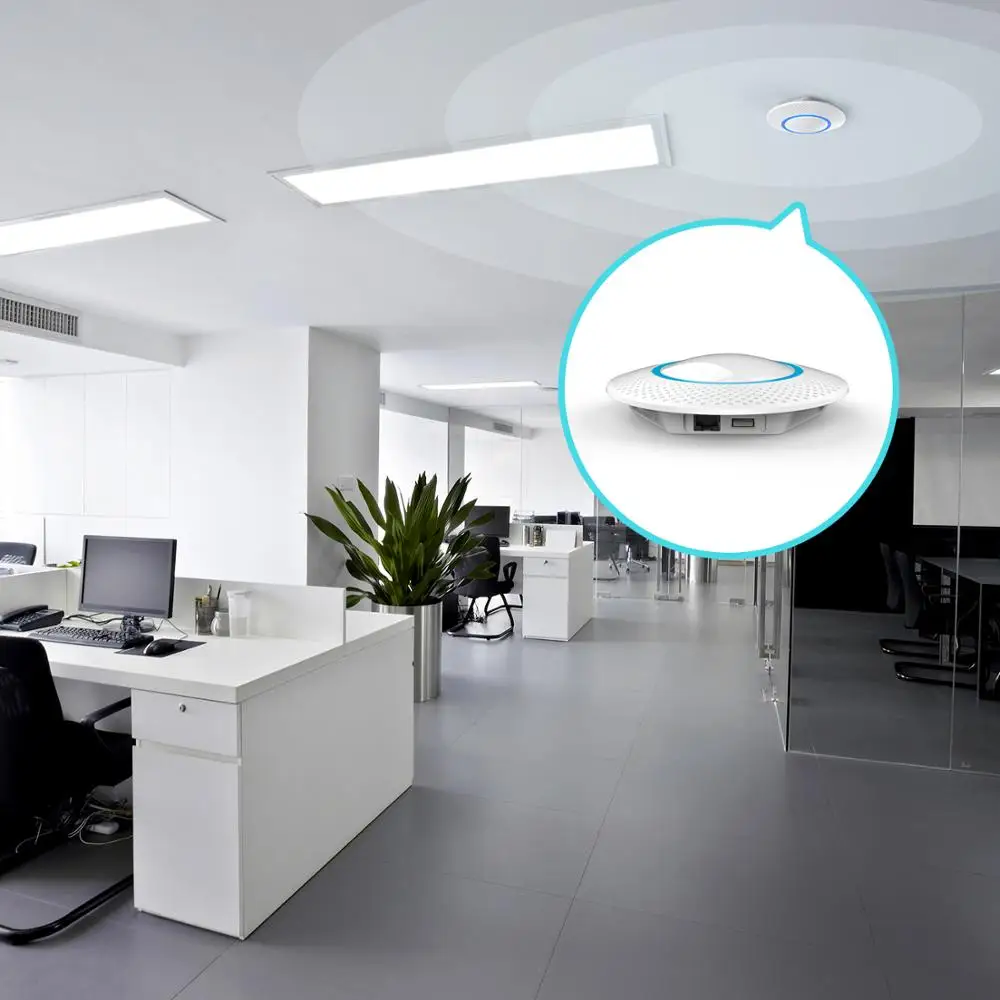

Office

Collect, analyse, and share valuable insights about the movements and trends of Assets and Personnel within your organisation, office, or commercial premises. Save money and increase productivity through better space utilisation powered by Minew products

Construction

Improve the safety of your construction site by easily monitoring, in real time, when and where contractors check in/out of your project site. Increase response times, improve evacuation times, and drive down costs through smarter asset and personnel management

Industrial & Engineering

Deploy, manage, and monitor your industrial or engineering project faster using G1 Gateway. Using G1 gateware you will be able to deploy, scan, and communicate your BLE data with ultimate easy and versatility, giving you full control on how, when, and where to send your BLE data
