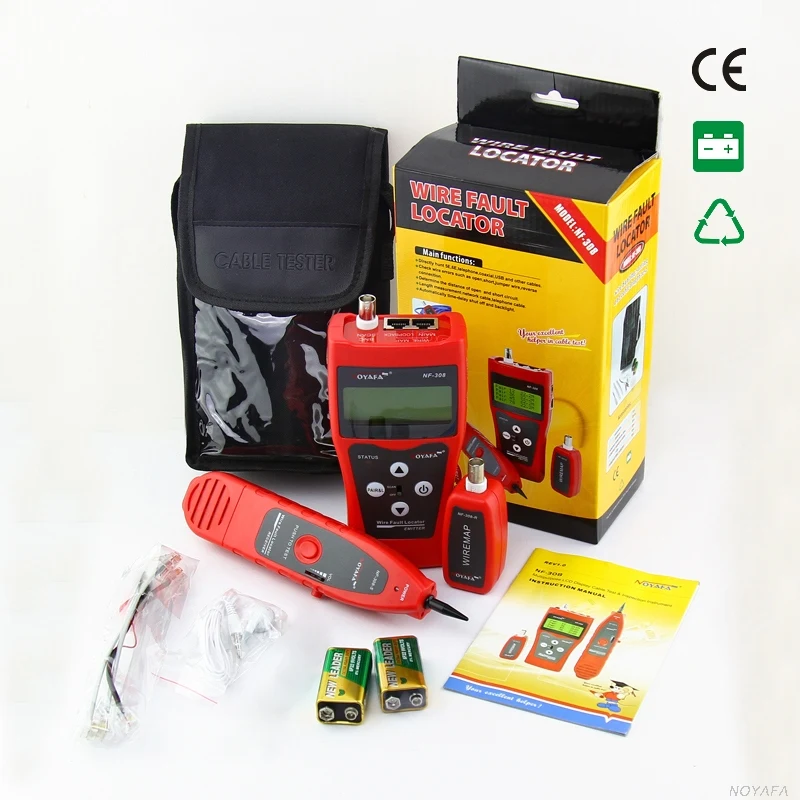

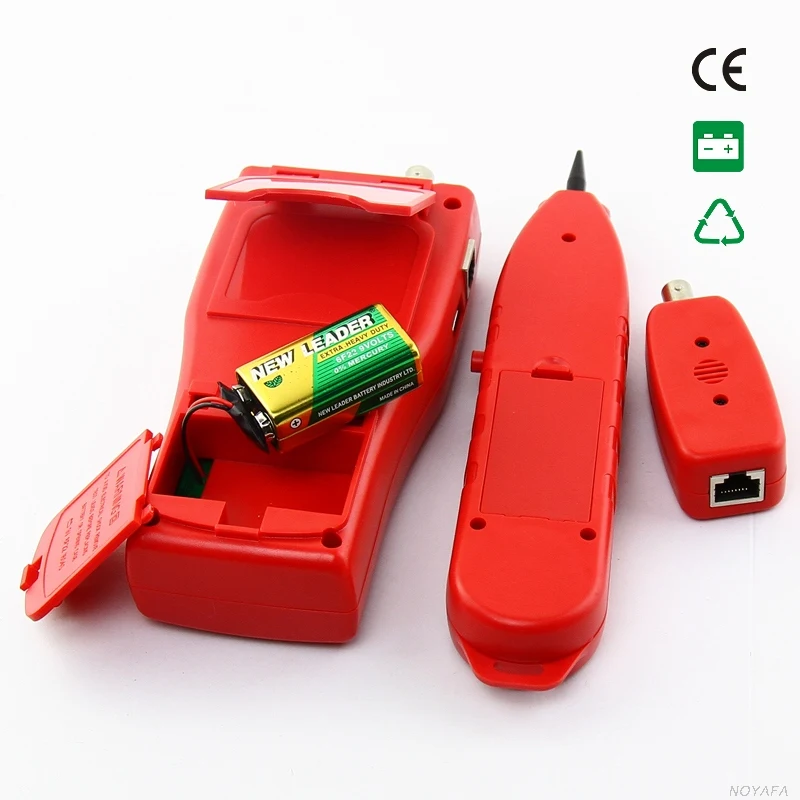

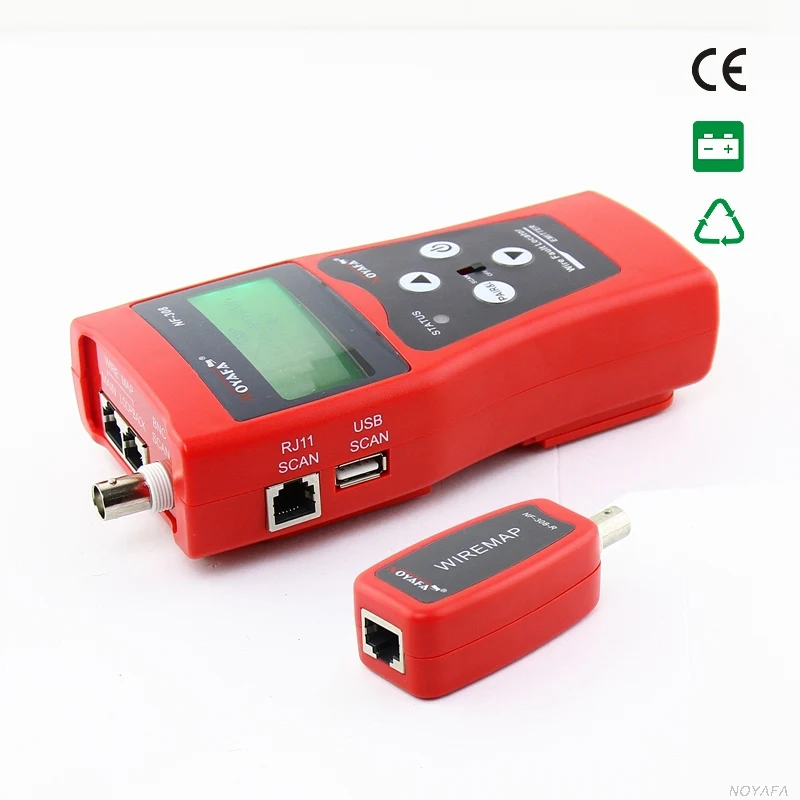

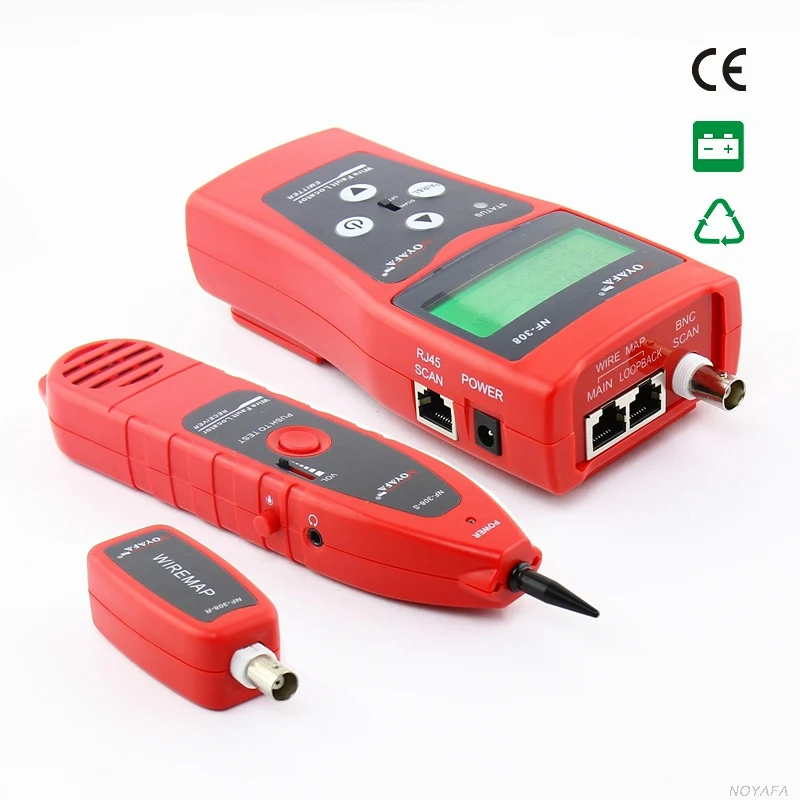

NOYAFA ЖК провода tracker Тестер тон генератор и зонд длина кабеля тестирования NF 308
- Категория: >>>
- Поставщик: Shenzhen Noyafa Electronic Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1100015264766:
Описание и отзывы
Характеристики
Product Description
Main function
1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of open circuit and short circuit.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of open circuit and short circuit.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Technical Index
NF-308 Transmitter specifications | ||
Tone frequency | 455KHz | |
Max. distance of transmission | 2000m | |
Max. distance of cable map | 300m | |
Max. working current | Less than 70mA | |
Tone mode | 2 Tone adjustable | |
Compatible connectors | RJ11，RJ45, BNC, USB | |
Max. signal voltage | 15Vp-p | |
Function and faults LCD display | LCD display ( wiremap, Tone, short, No adapter, Low battery ) | |
Cable map indication | LCD (#1-#8) | |
Shielded indication | LCD ( #9) | |
Battery Type | DC9.0V（NEDA 1604/6F22 DC9V x 1pcs） | |
Dimension(LxWxD) | 185x80x32mm | |
NF-308 Receiver specifications | ||
Frequency | 455KHz | |
The Max. working current | Less than 70mA | |
Battery Type | DC9.0V（NEDA 1604/6F22 DC9V) x1pc | |
Dimension(LxWxD) | 218x46x29 mm | |
NF-308 Remote unit specifications | ||
Compatible connectors | RJ45, BNC | |
Dimension(LxWxD) | 107x30x24mm | |
Packaging & Shipping
Packing
Standard carton :
Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 22kg
Shipping: All shipping way is available
Related Products
Our Services
After-Sale service Commitment
1.Product quanlity
All products are guaranteed on consistency
All products are stabilized after 24-hour aging testing.
All products are 100% inspected PASS before shipment.
All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure,
GB4793-1984 Safety
requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.
2. After-sales service Clause
2.1 Responsibility
We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
1.Product quanlity
All products are guaranteed on consistency
All products are stabilized after 24-hour aging testing.
All products are 100% inspected PASS before shipment.
All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure,
GB4793-1984 Safety
requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.
2. After-sales service Clause
2.1 Responsibility
We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
Company Profile
SHENZHEN NOYAFA TECHNOLOGY CO., LTD is a manufacturer set up in 2006 and based in Shenzhen,China, supplying cable tester, wire tracker, fiber tester, laser distance meter, CCTV tester and other test equipment.
After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, our products are exporting to all over the world, especially to Europe, Asian. No matter where of when, customer satisfactory is our eternal pursuit and goal.
FAQ
Q1: Are you trading company or manufacturer? A1: We're original manufacturer, which can help you get factory selling products with competitive prices. Q2: How long is your delivery time? A2: Normally it is 3-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, it is according to your order quantity. Q3: How is your after-sale service? A3: Our experienced technical team is ready to respond you within 24 hours. Q4: What is your MOQ? Do you provide customized services? A4: For sample order, there is no limit on MOQ. We will appreciate it if you'd like to purchase samples for testing first. Q5: What is your terms of payment? A5: Payment≤5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance, balance before shipment. Trade Assurance order payment. Paypal, Western Union etc. Q6: Can I become your sole distributor in my place? A6: We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detail requirements about distributor terms and sales targets.
Похожие товары

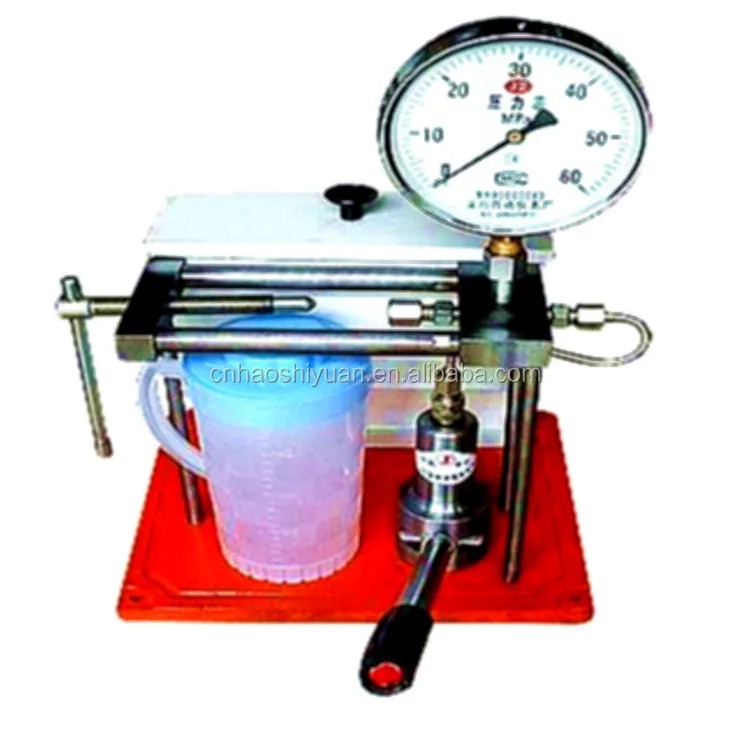

Высокая PJ-60 тестер сопло инжектора

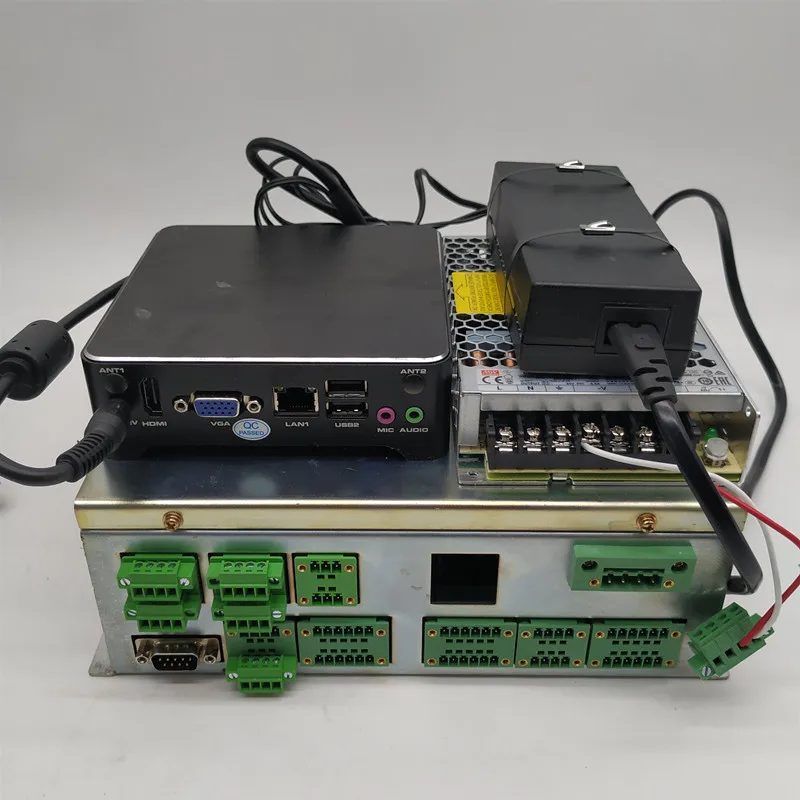

Реле и Защита Микрокомпьютера Тест-Системы

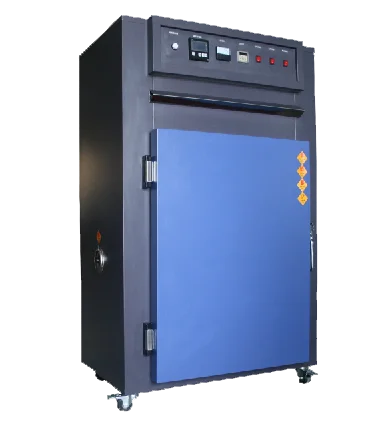

Высокая температура циркуляции Горячего Воздуха Промышленные Печи Старения
Экологически чистые HZ-5200 Высокая точность петли tack тестер сопротивления
FCT Резец Образца

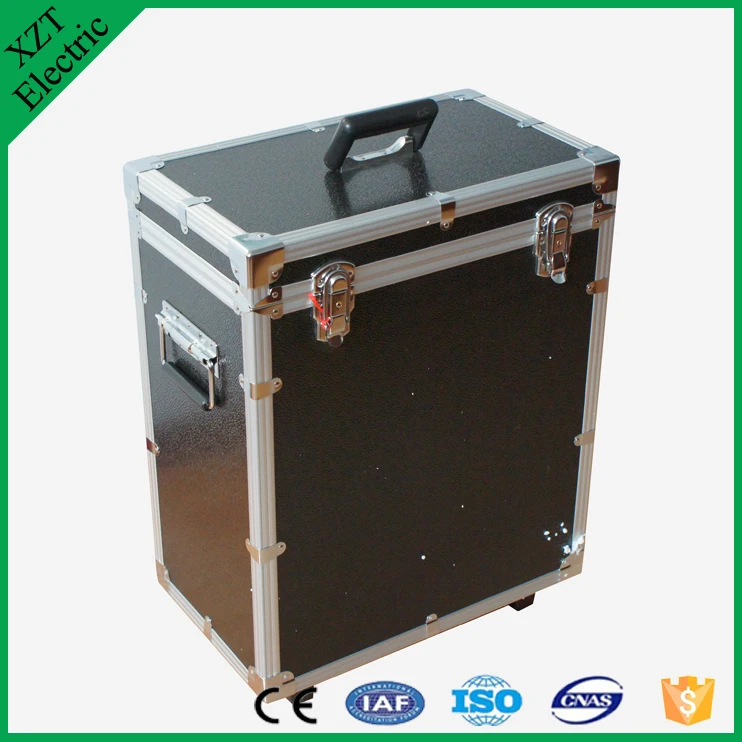

Hzbb-10b 3 трехфазный трансформатор оказывается тестер
