ALION AHC181H 220V 240V 50 60Hz 24 часа последовательный таймер механический минутный выключатель
- Категория: >>>
- Поставщик: Wenzhou Alion Electronics Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1100015393433:
Описание и отзывы
Характеристики

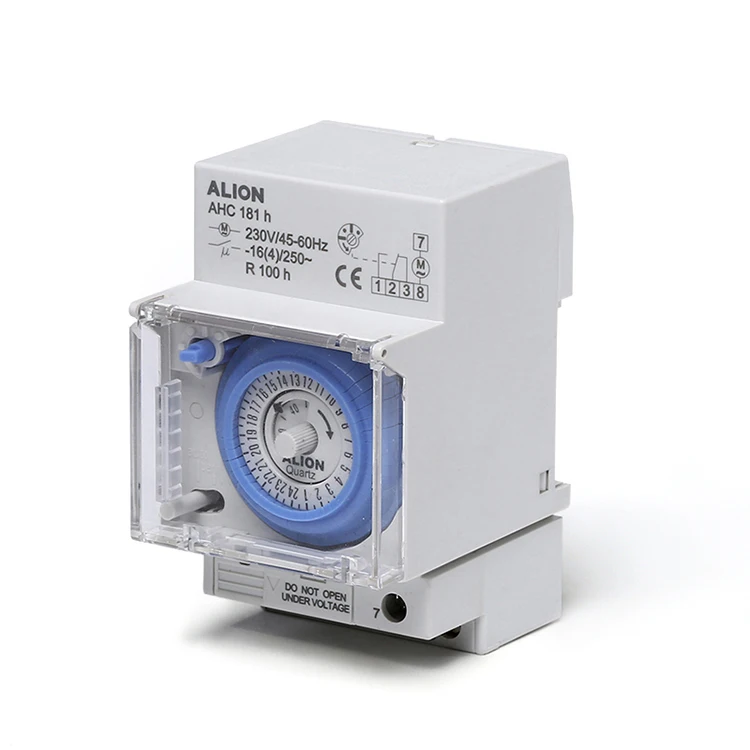

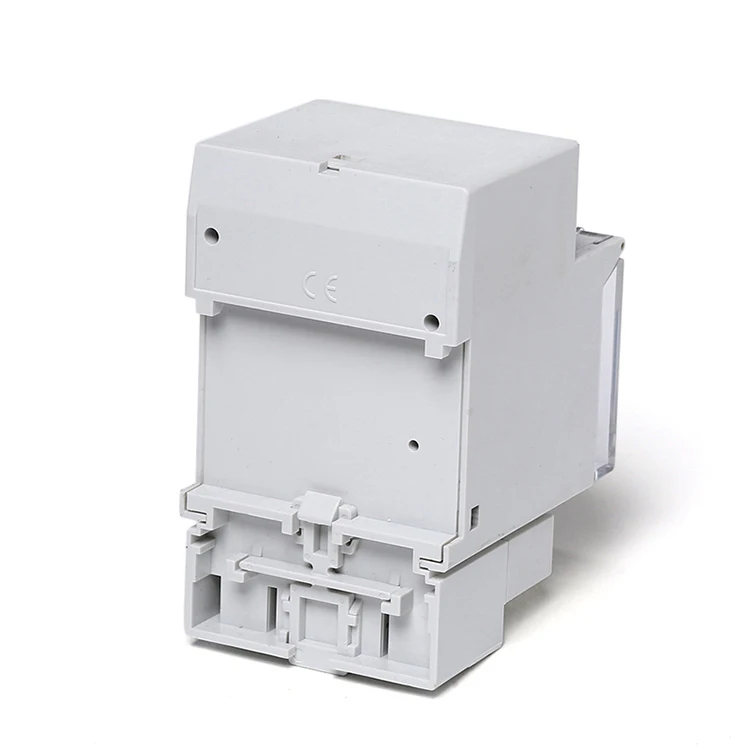

ALION AHC181H 220V-240V 50-60Hz 24 Hours Sequential Timer Mechanical Minute Light Timer Switch
Product Description
Focus On Time Control For 24 Years
The AHC181h/AHC181d daily program analogue time switches are easy to change the battery. It can switching with continuous ON/AUTO/continuous OFF.
Description
Common functions
- Analogue time switch
- 1 channel
- Daily program
- Quartz controlled
- With power reserve (NiMH replace&rechargeable battery)
- Fine adjustment for time setting accurate to the minute
- Simple summer/winter time correction
- 48 switching segments
- Screw terminals
- Switching preselection
- Manual switching with continuous ON/AUTO/continuous OFF
- Permanent ON/OFF switch
- Switching status display
- Operating indication
AHC181h
- Shortest switching time: 30 minutes
AHC181d
- Shortest switching time: 15 minutes
Applications
- Billboard or Showcase lighting
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Geyser/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
Technical Data
| Type | AHC181h | AHC181d |
| Operating voltage | 230-240 VAC / 110VAC / 24VDC / 12VDC | |
| Frequency | 50-60Hz | |
| Number of channels | 1 | |
| Width | 3 modules | |
| Installation type | DIN-rail | |
| Type of connection | Screw terminals | |
| Drive | Quartz-controlled stepper motor | |
| Program | Daily program | |
| Power reserve | 7 days | |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A | |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A | |
| Incandescent/halogen lamp load | 1100W | |
| LED lamp < 2 W | 20W | |
| LED lamp > 2 W | 180W | |
| Shortest switching time | 30 min | 15 min |
| Programmable every | 30 min | 15 min |
| Number of switching segments | 48 | 96 |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) | |
| Type of contact | Changeover contact | |
| Switching output | Potential-free and phase-independent | |
| Power consumption | 1.5VA | |
| Test approvals | CE | |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic | |
| Type of protection | IP 20 | |
| Protection class | II in accordance with EN 60730-1 | |
| Ambient temperature | –10 °C … +50 °C | |
Connection Example
Scale Drawings
Scale Drawings
Company Information
Packaging & Shipping
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
FAQ
Q1: Why choose ALION?
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality - all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
