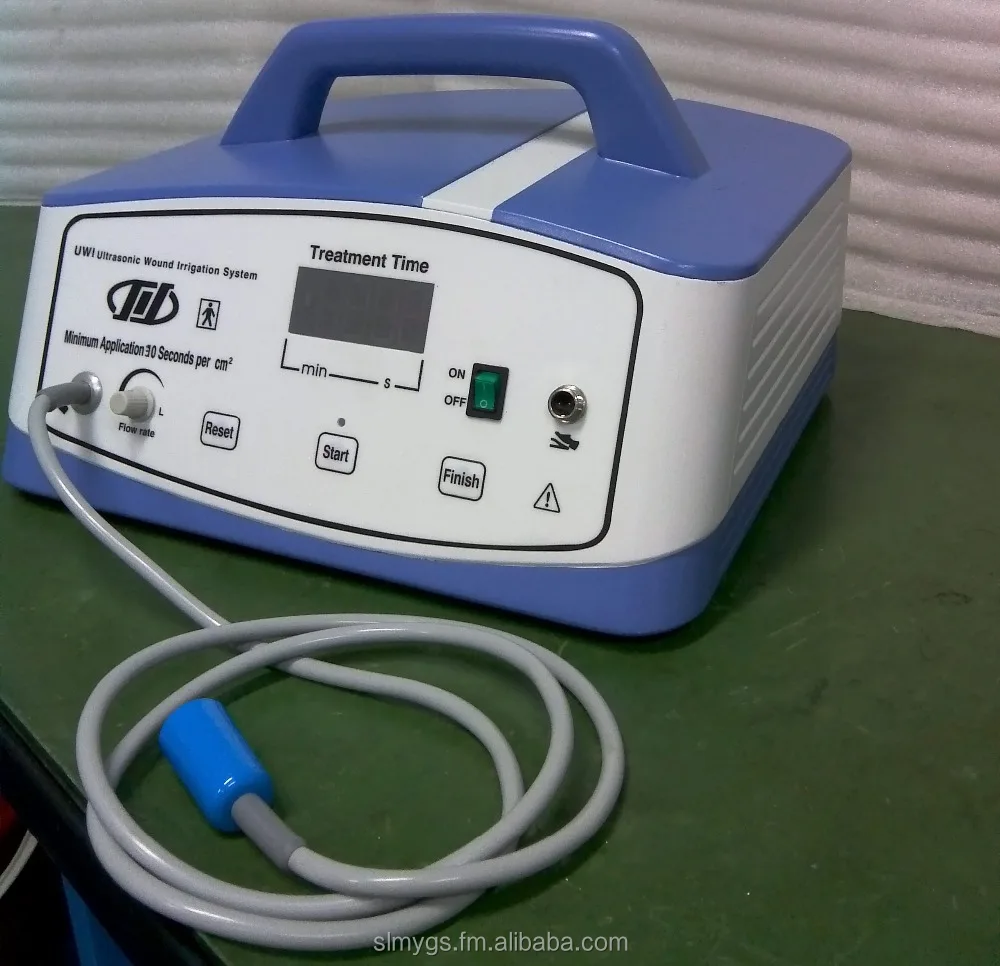

Ultrasound Wound Healing Machine: painless debridement and fast healing
UWI-E debridement machine is an ultrasound device for wounds treatment, which generates 40Khz ultrasonic wave power and magnifies it through a transducer. The power is carried via the handle piece probe, and conducted to human tissue & work on the wounds through medical normal saline. The purpose is to fast remove the necrotic tissue, bacterium, debirs, fibrin slough, etc. from the wounds, and keep wounds surface fresh to promote wounds healing. Model No: UWI-E Certificate: CE Patents: China Sciential Property Right Invention Paten: ZL011084596 New Pattern Utility Patent: ZL042328484
Technical Parameters
Host output power
18-100Khz
Ultrasonic working frequency
40 KHz +- 10 KHz. It can be automatically tracked
Power consumption
< 200W
Output power
15w

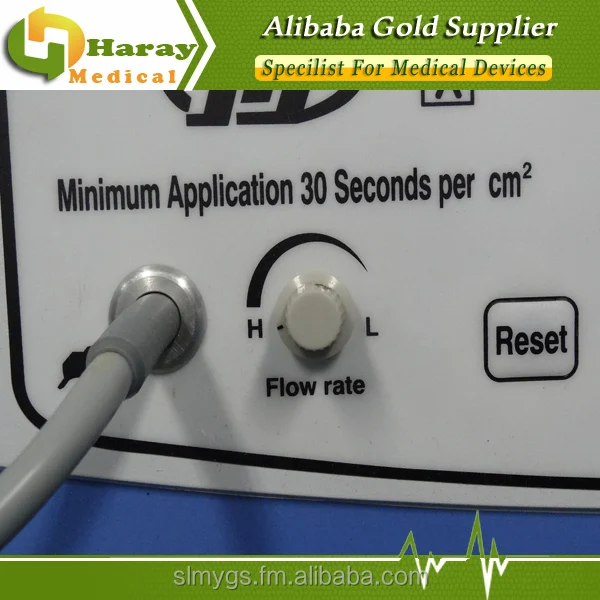

The maximum liquid flow
<200ML/MIN
Handle outer diameter
32mm
Handpiece amplitude
80-100micron meter Working conditions
Power
a.c.100-240V AC, 50Hz/60HZ, not exceeding 250VA
Liquid temperature
0-30℃
Working temperature
0-40℃
Relative humidity
≤80% RH
Atmospheric pressure
860Pa - 1060kPa
Fuse
rated current F3.15AL250V 5*20mm
Timing
< 99m 59s.
Preset control time
5min, error ≤2s.
Anti-Shock type
type I
Anti-shock level
BF
Foot pedal water-proof type
IPX1

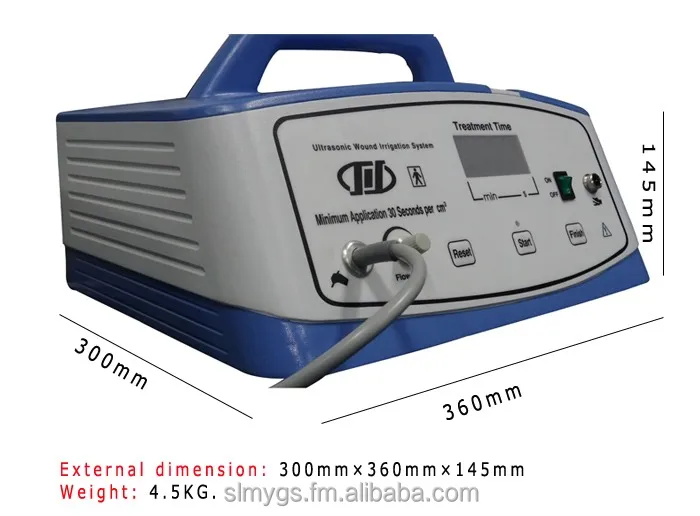

External dimension
300×360×145
Weight
4.5KG.
Key Features
PAINLESS, EFFECIENT, SAFE AND CONVENIENT -
THE BEST CHOICE FOR CHRONIC WOUNDS DEBRIDEMENT
1. LOW FREQUENCY ULTRASOUND
Low frequency of 40-50Khz comes with very weak penetrability of about 1mm at most, which is not provided with complete penetrability to contaminated, infected and decayed tissue. The removal of abnormal tissues and debridement accomplished by probes moves back and forth on the wounds surface. There is no any damage to the normal tissue.
2. EEEICIENT DEBRIDEMENT
The device removes particulate pollution, activated carbon and bacterial contamination. Hospital clinical therapeutic obvious effect reaches 86%, and wounds surface healing reaches more than 80%.
3. EASY OPERATION

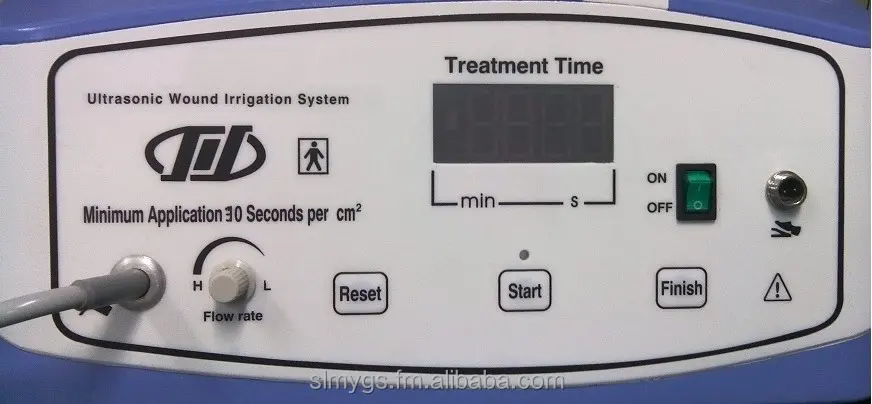

Human-computer interface simplifies the operation,. It doesn't need special experts and complicated training.
4. LIGHTWEIGHT AND PORTABLE DESIGN
4.5kg lightweight and portable design enables it easy transported to a variety of clinical settings, such as community sites, clinic or at home, between ward units, and even field hospital. Easier carriage and wider applicability.

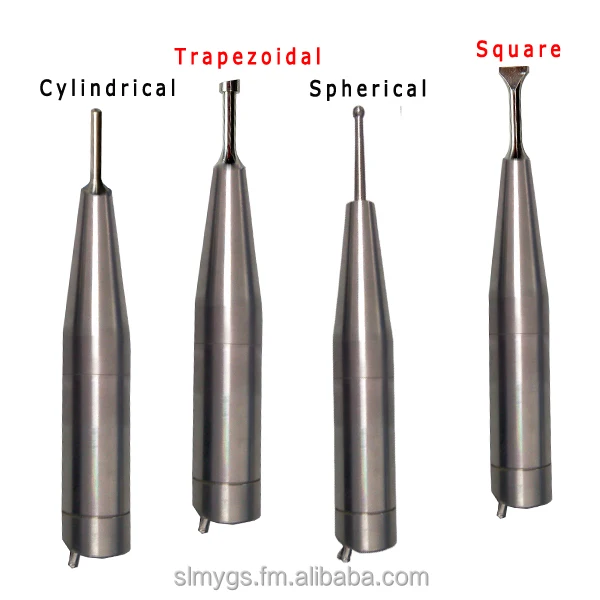

5. FOUR TYPES OF ULTRASONIC PROBES
4 kinds of probe shapes designed for different wounds, targeted to achieve better effects. Hand pieces are resuable, able to sterilized and easy to clean and maintain.
6. SMALL HANDPIECE
Makes operation easy and flexible, which saves the workload of medical staff, and shorten the wounds treatment time.
Advantages
1. PAINLESS DEBRIDEMENT
The low working frequency of ultrasound does no damage to surrounding nurves and blood vessels, and to the normal tissue & new granulation tissue. But it can remove the fibrous protein and necrotic tissue of chronic infection wounds without much trauma, which free the patients from the pain of traditional debridement methods.
2. CLOTING EFFECT
With the action of ultrasonic wave, biological tissue dehydrated and generates oxygen, and evaporates, which leads to the capillaries shrinkage, at last effects in stopping bleeding. The in time hemostasis duration debridement provides maximum protection for the patients.
3. THOROUGH DEBRIDEMENT
Adjusting the distance between probe and wounds enables it reach the places that ordinary debridement couldn't, to realize thorough debridement.
4. HIGH RATE OF BACTERIUM REMOVAL
Ultrasound removes bacterium, fungus, and virus of the wounds surface and deep wounds, which reaches up to more than 96%.
5. HIGH SPEED DEBRIDEMENT
The ultrasound wave spray from the handpiece probe, features in large area, even strength, fast speed and short time-consuming.
6. PROMOTE WOUNDS HEALING
It activates fibroblast protease, and promotes synthesis of fibroin layers, thus improves the wounds surroundings and healings.
Benefits
For the Distributor -- Right Choice to Help You Increase Reputation and Profits
1. Cheap Price: The performance similar with that of the European and American products, with only 10% price. It will help your sales and promotion.
2. Profitable Investment: Because of the low cost, there is not much pressure for the terminal hospitals, the purchasing decision is comparatively easier to make. Sales and order increasing leads to market share and profits increase for you.
3. Better Acceptability: for Hospital and Patients: Compared with traditional debridement methods, it comes with the advantages of better effects, no anaphylactic reaction, painless, no damage to the tissues and repeated operation, so for both hospitals and patients, it is more likely to accept, which is helpful for your reputation and brand development.
4. Guaranteed After Sales: One year guarantee and life time maintenance free your worries.
For the Hospital -- Right Choice to Satisfy Patients and Medical Staffs
4. Goodness for patients: good debridement effect, painless, high performance, etc. Brings more patients and reputations for the hospitals.
For the Patients -- Best Choice to Free from the Tortures of Wounds
1. Painless Debridement, fewer bleeding, reducing patients' suffering, and maximum protection to patients.
2. Thorough Debridement, high rate of bacterium removal, reducing infection and sequela.
3. Efficient Debridement, shorten time of operation, reducing pain and saving cost.
4. Ultrasound does help for wound healing, shortening healing time.
Packing & Delivery
Packing
1 piece/ master carton
Carton Size
500*500*470mm
Gross Weight
About 9.5kg
Why Choose Us
1. Profession & Assurance 10 year experience in
2. OEM/ODM Welcome Logo, label, packing, etc can be made to your requirements.
3. High Standards Quality All of our products complied with CE standards.
4. TOTAL SOLUTIONS Our technical ability and production facility are capable to offer you total solution of wound debridement services.
5. Small MOQ 1-2 pieces accepted as sample order or trial order accepted before bulk order.
6. Every Customer is Treated as VIP We serve every customer with the most sincerity, new or old, no matter the quantity of order.
7. Reasonable Price We assure the top quality in the same level of price, and the best price in the same level of quality and service.
8. Samples Available Samples are available for Your Test
9. Fast Delivery Within 10 working days delivery for sample
FAQ
1. Are you a manufacturer? Yes we have been engaged in manufacturing wound debridement machine for 10 years,.
2. How is your sample offered? 1 piece of sample order accepted at charge basis.
3. How about the delivery time? Samples will be offered in 10 working days. and mass order depends on the specific orders.
4. May I custom make my order? Yes, your requirements of logo, label, packing etc welcomed.
5. How about the payment terms? T/T. Paypal, Western Union, T/T + L/C accepted according to specific order situation.
6. What is your MOQ? 1-2 pcs accepted for Sample order and trial order.
7. How about the packing? 1 piece wrapped in a blister bag, and then in a master carton with aerated foam filling in the interspace, to protect the machine perfectly. Carton size: 500*500*470mm Gross weight: About 9.5kg
8. How to ship my order? A wide range of shipping ways for your option: - Courier: DHL, Fedex, UPS, TNT, Aramex, EMS or your designated forwarder. - By Air - By Sea.
9. What is the warranty of my order? One year period of warranty available for your order. And life time maintanence service available.
10. Is your production process green and environment friendly? Sure it is, we only have one earth.
11. May I visit your factory? Sure you are welcome, and we will arrange the pick up in the airport.
12. What is your advantage? - Profession and experience: 10 years manufacturing and exporting. - Personalized customization - Excellent co-operation ability
13. How can I place an order? Customer send inquiry----We quote price----Reach agreement----Confirm samples----Order confirmation----Payment/deposite----Production----Balance payment----Shipment----Goods Received----Aftersales
Похожие товары
Недорогая деревенская каминная полка, декоративная полка для украшения помещений
75 337,90 ₽ - 150 675,80 ₽

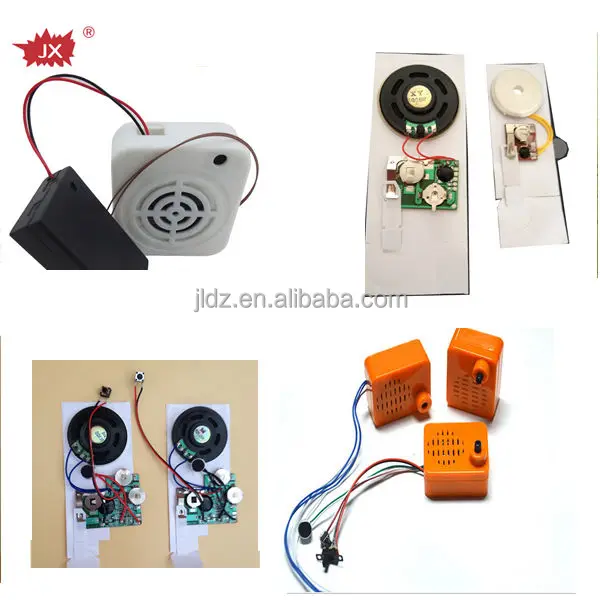

Заводская поставка, записываемый звуковой чип животного для игрушек
