FBYZ-024-003

Poultry house Intelligent Environment Controller

Product description:

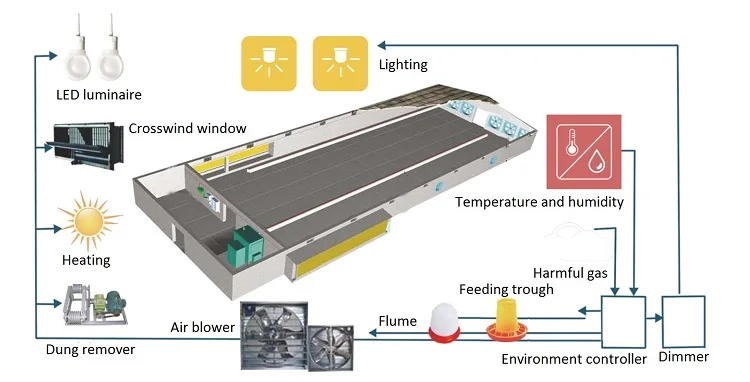

Model FBYZ-024-003 Poultry house Intelligent Environmental Controller adopts intelligent control technology, which unifies the parameters of temperature, humidity, static pressure, ventilation, light and poultry feeding process, the utility model has the advantages of precise control, sufficient and reasonable ventilation, automatic timing illumination, accurate and reliable.

Technical Features:

1. Using 7-inch touch LCD display, can real-time, visual display of the status of the equipment and sensor data, touch operation is simple and convenient;.

2. Poultry feeding process parameters provide open data interface, users can modify the feeding process parameters according to regional, seasonal, poultry types and other needs.

3. Accurately calculated minimum ventilation parameters, control accurate to "second" , high-efficiency balance between low temperature season ventilation needs and the relationship between temperature control.

4. According to the automatic time control of day-age, up to 10 sets of light control parameters can meet the whole breeding cycle of light control parameters.

5. GPRS DTU data transmission module can be selected to send sensor data and equipment status to terminal, such as PC or mobile phone, users can know the environment and alarm information of poultry house in real time.

6. Parameter modification operations are password protected, can effectively prevent error caused by wrong operation or non-professional operation.

7. The recommended control parameters can be quickly recovered by factory setting.

Device interface:

A total of 8 groups of 4 ~ 20mA analog sensor input, including 4 groups of temperature sensors, a group of humidity sensors, a group of static pressure difference sensors, a group of CO2(carbon dioxide) sensors, a group of NH3(ammonia) sensors.

Sensor:

    Environment: Indoors (temperature-10 ~ 50 °C, humidity ≤90% RH)
