A18.1830 Motorized Digital Forensic Comparison Microscope, with Motorized Working Table |
Magnification | 2x~240x |

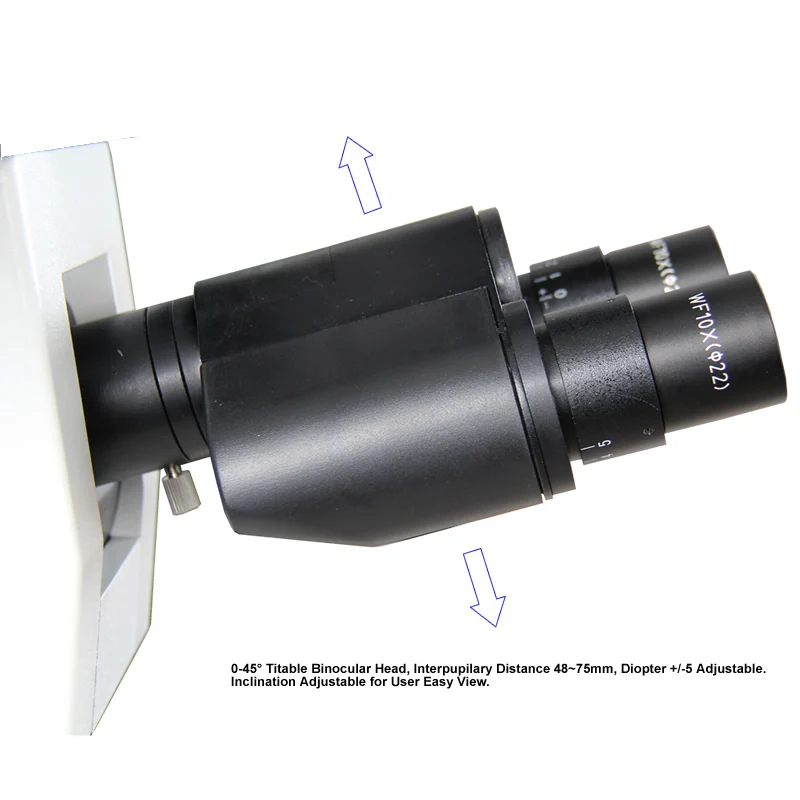

Head | 0-45° Titable Binocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable. Inclination Adjustable for User Easy View. |

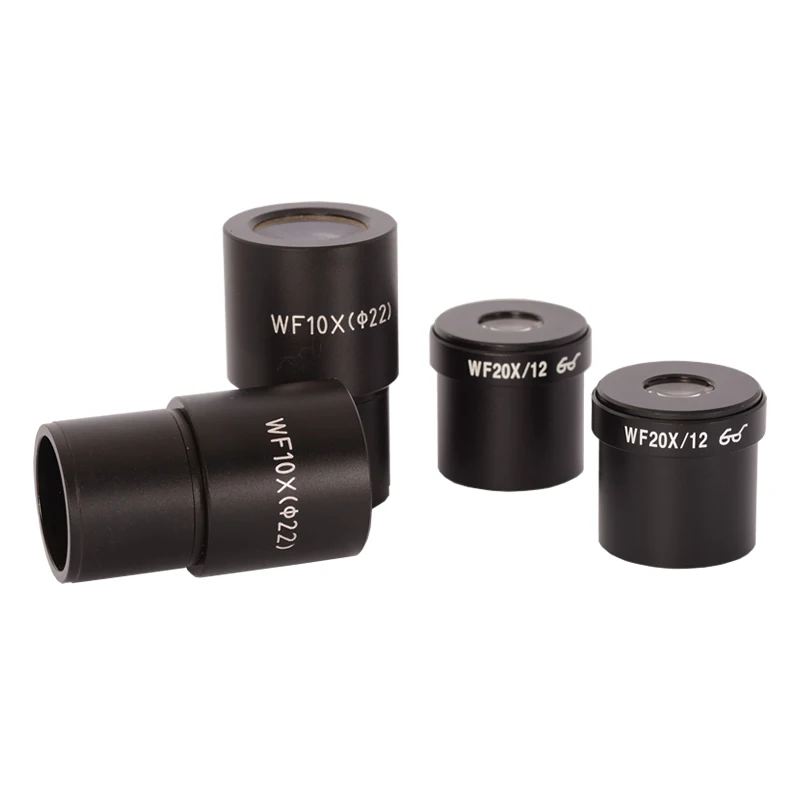

| Eyepiece | WF10x/22mm, High Eyepoint |
WF20x/12mm, High Eyepoint |
Nosepiece | 6 Hole Click Stop Nosepiece |
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x |
Auxiliary Lens 0.4x, 2.0x |
Working Distance | 101mm |
View Field | Dia. 2.3~62mm |
Magnification Correcting | Magnification Correction System, with Correcting Lens |
Separation Line Adjusting | Seperation Line Adjust System in Back, with Special Designed Adjust Driver |
Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable |
5W LED Cold Light, High Brightness, Brightness Adjustable |
Coaxial Light Lens, to observe in deep hole, or smooth object surface |
Polarizing Light Lens, to eliminate flare lights and dazzling lights; |
| Transmit Bottom Light (Built-in Working Stage) |
| Ultraviolet Light Lens |
Filters: Red, Blue, Yellow, Green |
Adapter | 0.5x CCD Adapter |

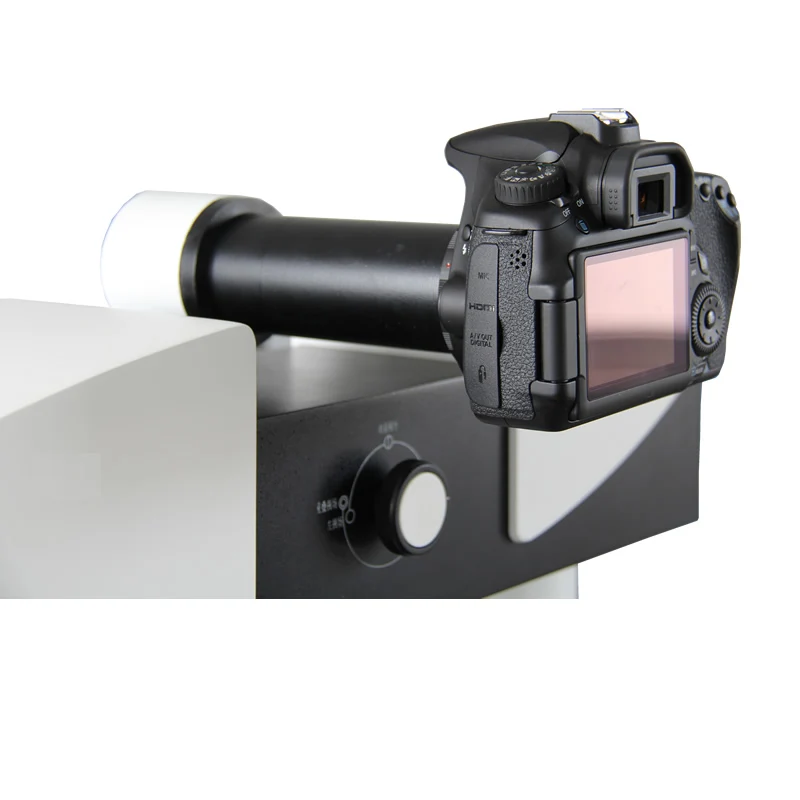

Front View Photo Adapter for SLR Digital Camera For user to view and take photo easily |
CCD Camera | Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output, 2048*1536 Pixels, Pixel Size 3.2*3.2um |
| Software | Professional forensic image analysis software |
| Motorized/Manual Control to switch in full left/right, split-image or overlapping image comparision |

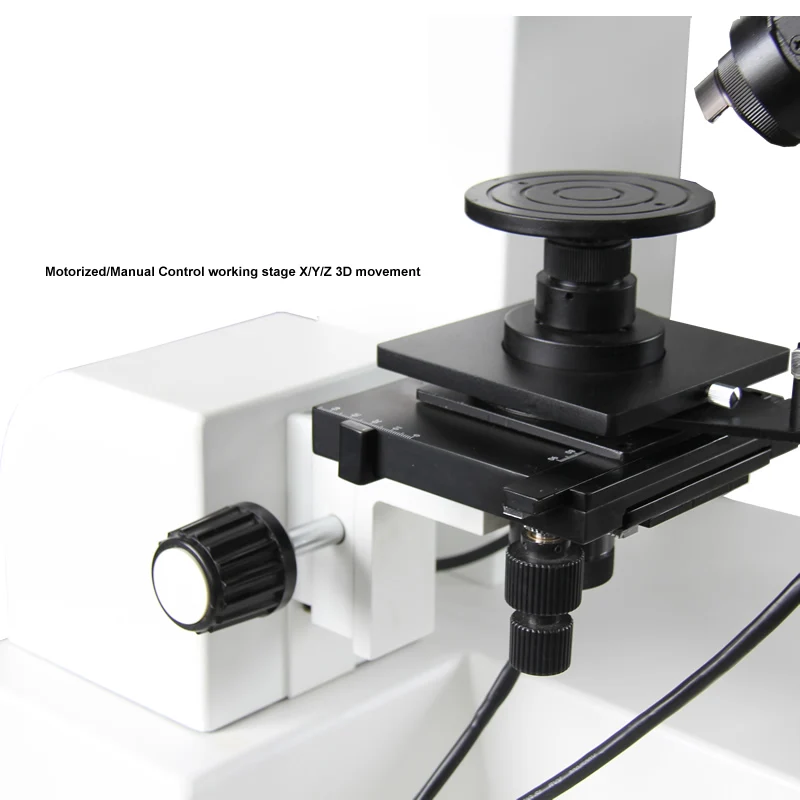

| Motorized/Manual Control working stage X/Y/Z 3D movement |
| Motorized/Manual Control round stage rotating in clockwise/counterclockwise direction |
| Working Table | Motorized Working Table, Table Surface 60*120mm, Height 65mm, Motorized Up/Down 160mm |
Power | 80~240V Wide Range Voltage |
| Bullet Holder | Standard Bullet Holder 2 Sets |
Dimension | Instrument Size 40*60*72cm |
Optional Accessories | Item No. |
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 |
| Light Source | 150W Cold Light Source, with Optical Fiber & Light Collector | A56.1821 |
